V8 Finder Satellite Finder Gtmedia Bt05 Bluetooth Sat Finder with Android APP for Satellite TV Receiver Built-in Lithium Battery

Product Description

V8 Finder BT05:
Highlight
1. DVB Finder DVB-S2 Multi standard demodulation & decoding;
2.Bluetooth connection for Android APP and Apple APP;
3.Support full satellite selection;
4.Built-in lithium battery 2200mAh;
5.Support LNB short circuit prompt, overload protection;
6.Technical support website:szjoinwe.en.made-in-china.com;
Note: We reserve the right to change the design and OEM/ODM supported

Specification

Hardware

Flash Memory

32MB Serial Flash

DDR2 Memory

512M Bits

Bitmap

Blue(Flashing:Not connected, Normally on: connected)

Bitmap

Green light: Power indication (When flicker means low power),

Red light: Charging indicator (Long bright means full charge),

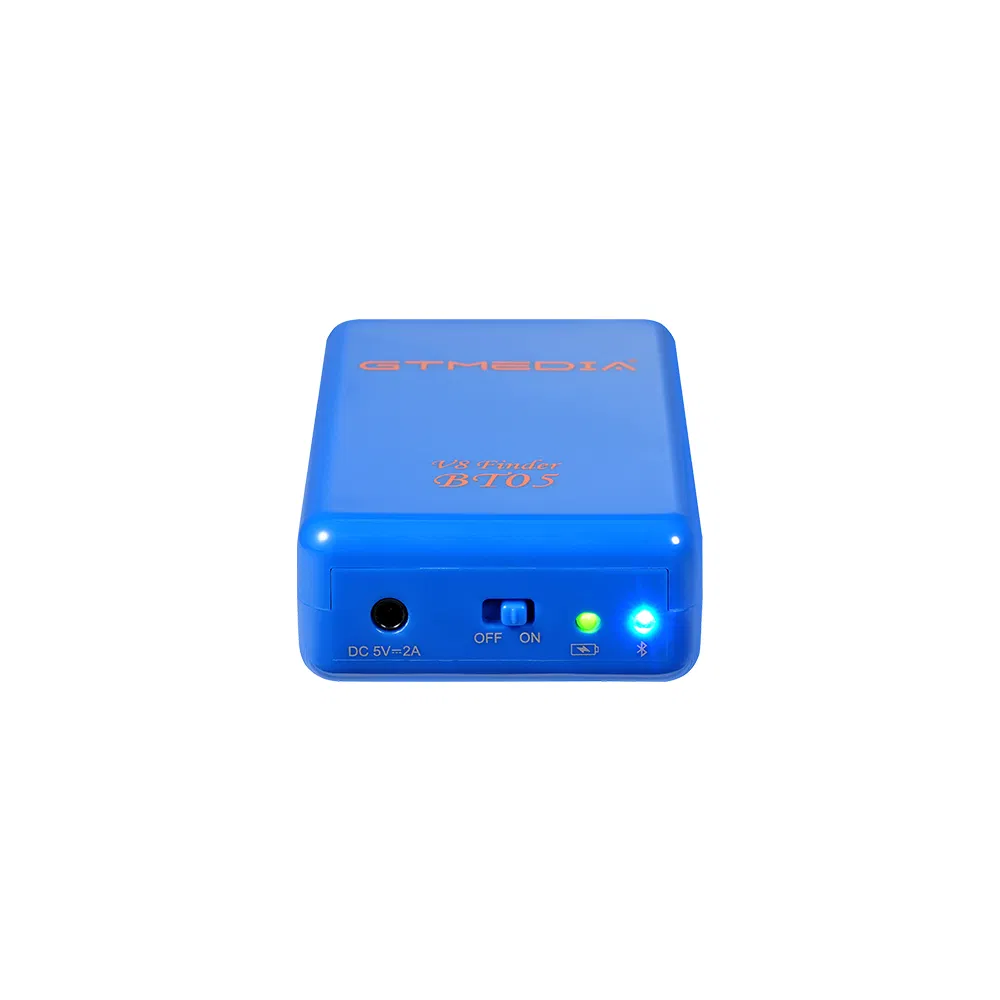

Rear Panel

LNB IN : Frequency Range950MHz to 2150MHz DVB-S/S2

OFF/ON: Power switch

DC 5V 2A : Charging input

System introduction

DVB-S2

DVB-S/S2 system standard:ETS 302 307(SCPC and MCPC receivable from C/Ku band satellite)

DiSEqC1.0support, 13/18V DC @ 300mA MAX,Overload Protection, 0/22K

Multi standard demodulation & decoding

DVB-S2 CCM,QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK+2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK+3/4, 4/5, 5/6, 8/9, 9/10
Legacy DVB-S,QPSK+1/2, 2/3, 3/4, 5/6, 7/8

VCM mode supported

Dummy frame insertion supported

Automatic standard recognition

Support 1 to 60Mbaud symbol rates

Fast channel blind scan for RF frequency & symbol rate acquisition

High performance equalizer, canceling echo introduced by front end

Simple AGC - Tuner interface

Build in DC cancellers to remove DC component

IQ imbalance compensator

Automatic roll-off factor (0.35/0.25/0.20) detection

Automatic spectrum inversion

Signal quality and statistic, allowing improved monitoring and debug
