Product Description

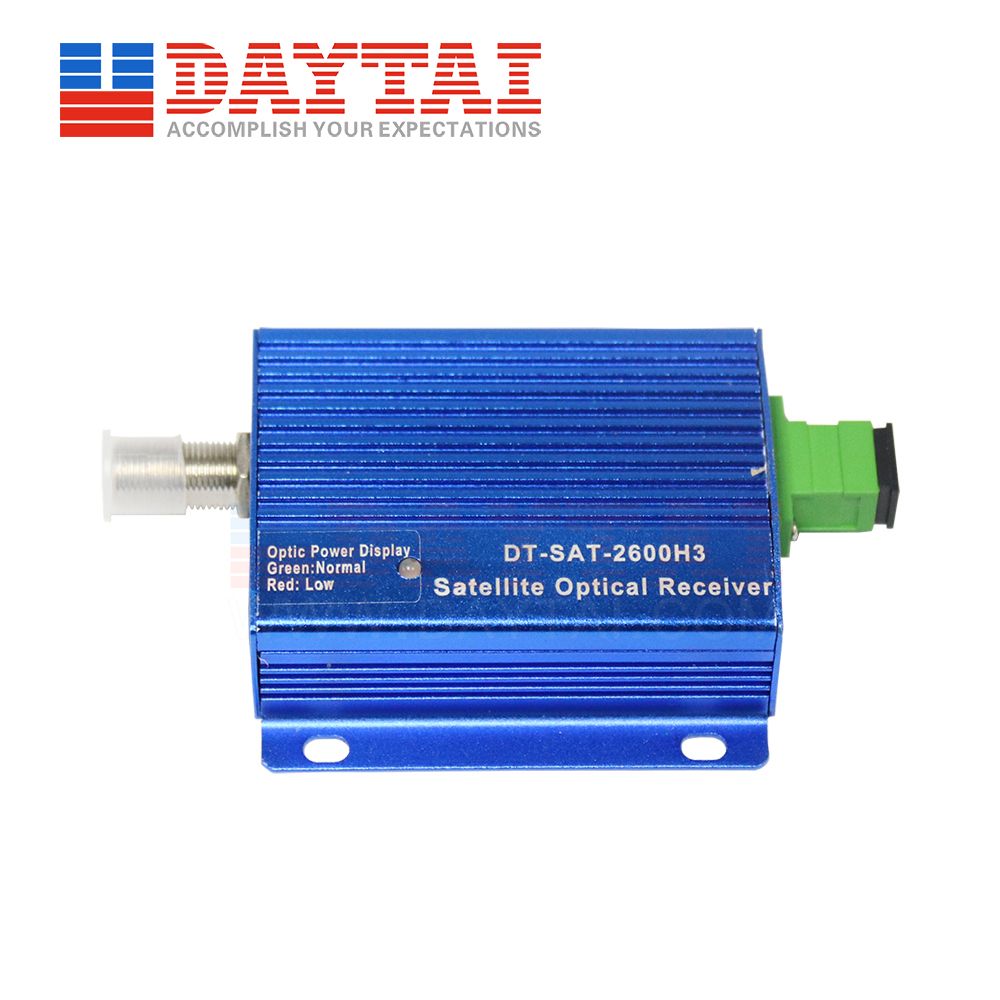

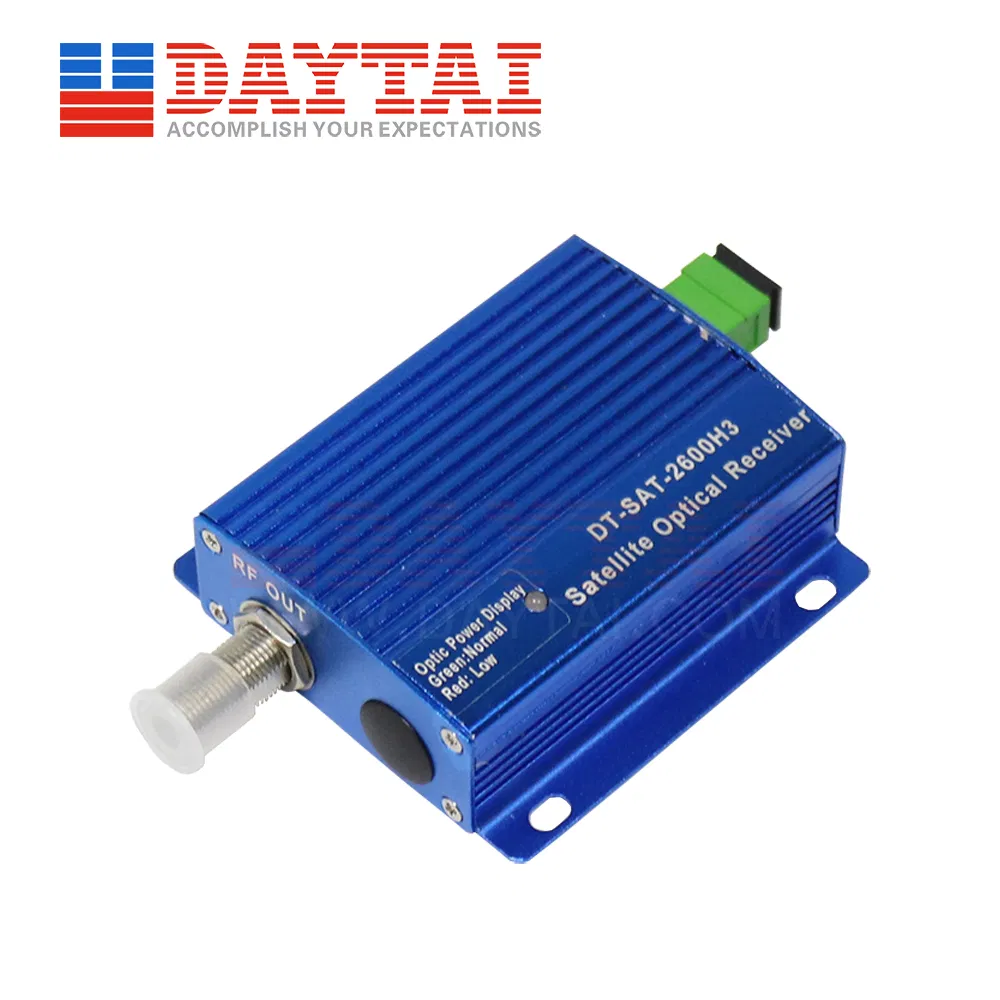

Mini Small SAT Satellite Receiver FTTH Digital Satellite Receiver

DT-SAT-2600H3 optical receiver is particularly designed for FTTH application circumstance, adopts MMIC amplification circuit, suitable for satellite signal transmission system.

★Features

⊙LED diode to display input optical power
⊙High response PIN optoelectronic converter to assure good CNR data for the complete machine
⊙High quality aluminum outer case, dust-proof, good shielding, good heat dissipation and easily installation

★Specification

Items	Unit	Parameter		Remark
		DT-SAT-2600H3	DT-SAT-2600H3P
Optical				About 1U
Receiving optical power	dBm	-10~0		About 17"
Suggested receiving optic power	dBm	-9~-1
Optical return loss	dB	≥45
receiving optical wavelength	nm	1270~1610	1540~1560
Optical connector	-	SC/APC
Optical link performance
Third order intermodulation1)	dB	≥55
Equivalent noise factor	dB/Hz	>115		Automatic detection
RF data
Frequency scope	MHz	45~2600
Flatness in band	dB	±1.5
RF output level	dBm	-25 ~ -40
RF output impedance	Ω	75		Step 1MHz
Output return loss	dB	≥10		Adjustable attenuation of 0~15dB
RF output port		1
Other				Support Annex- A/C
Power supply		AC100~240
Optic power display	-	Three-color LED
Work temperature	ºC	-20~+55
Storage temperature	ºC	-40~+65		After equalizer, 64QAM
Power consumption	W	3.0(Max)		After FEC, 64QAM
Outer dimension	mm	103×67×24
Net weight	Kg	0.2
Operation temperature		0~45ºC	Mbps	SR=7Mbaud, 256QAM
Storage temperature		-20ºC~80ºC	dB	No equalizer, -8dBm, 64QAM
Humidity		10%~90%		After FEC, 64QAM

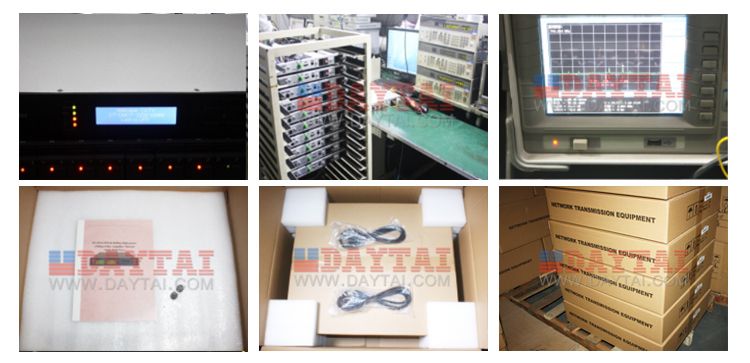

Our Workshop
