Product Description

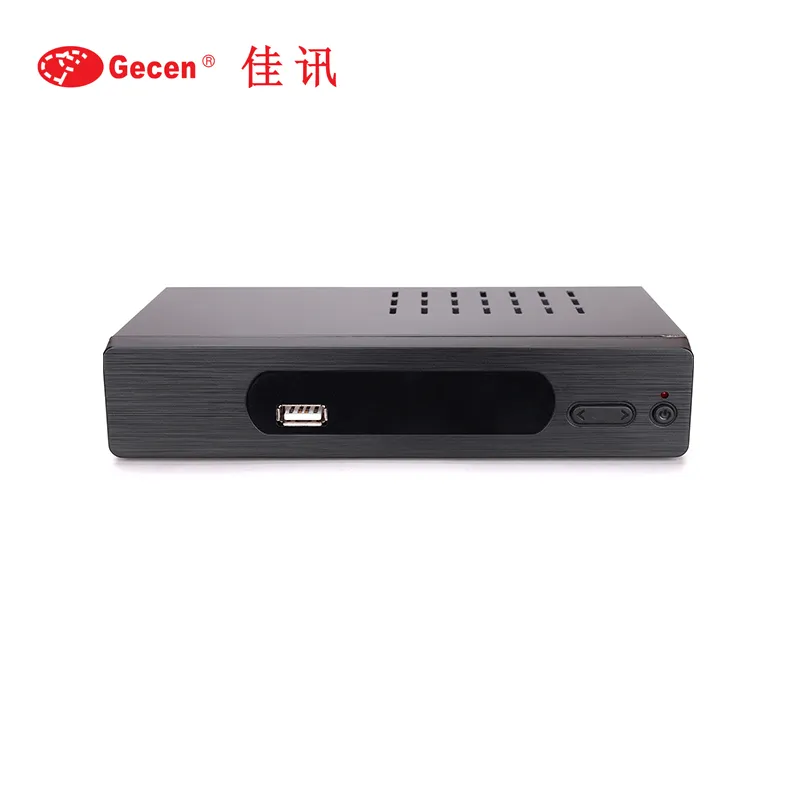

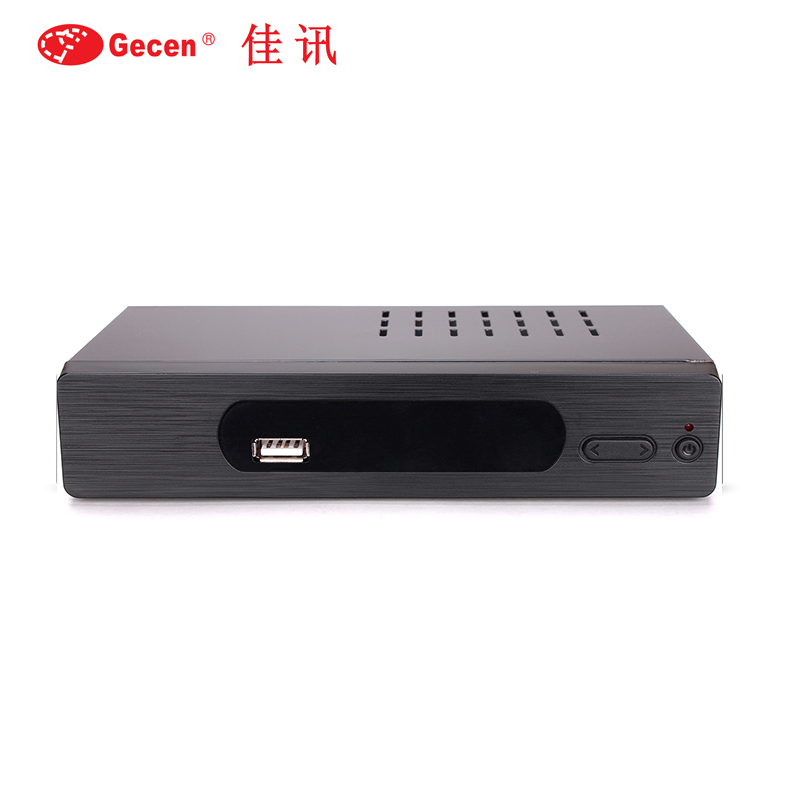

Set Top Box Tv Antenna DVB-T2 HD digital terrestrial tv receiver
| CPU and Memory | CPU | Mstart 7T00 |
| DDR2 | DDR2 512Mbit(64MByte) | |
| Flash | 32Mbit(4MByte) | |
| Tuner | Tuner | R836 & MXL608 |
| Connector Type | RF In/ANT In(IEC-Female),Loop,SCART,HD | |
| Input Frequency | (UHF)470∽866MHz, (VHF)170∽231MHz | |
| Bandwidth | 6, 7, 8MHz | |
| Signal Input Level | -78∽-20dBm | |
| Input Impedance | 75 Ohm | |
| Active Antenna | 5V(On/Off), Imax=100mA | |
| Demodulation Scheme | QPSK, 16-QAM, 64-QAM, 256-QAM | |
| FFT | 1K, 2K, 4K, 8K, 16K, 32K | |
| FECE mode | 1/2, 2/3, 3/4, 3/5, 4/5, 5/6 | |
| Guard Interval | 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256 | |
| Software Function | OS | ECOS |
| EPG | Fully support to 7 days Electronic Program Guide(EPG) | |
| Video Decoding | MPEG1, MPEG2, MPEG4, H264, VC-1, MOTION JPEG, MPG, MP4 | |
| Video Format | avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts | |
| Audio Decoding | MPEG-1/2/3/4, wma | |
| Audio Format | mp3, wma, agg | |
| Picture Format | JPEG, BMP, PNG | |
| Video Resolution | 480i, 480P, 576i, 576P, 720P, 1080i, 1080P | |
| Video Aspect Ratio | 4:3(LB/SCAN), 16:9(LB/FIT) | |
| Analog Video System | PAL, NTSC, SECAM | |
| OSD Language | nine kinds of language | |
| LCN Sort | Support Logic Channel Number(LCN) | |
| Teletext | VBI insertion for Teletext,CC and WSS | |
| Time Shift | Support Time Shift | |
| Hardware Interface | Video Output | RCA(CVBS, L/R), HD Interface |
| USB Interface | 1*USB2.0 | |
| Power supply | DC5V 1.2A 5WMax | |
| Package | Product size | 170*90*40mm |
| Appliactions | Internet | ,USB WiFi support( M7601 chipset wifi),Megogo, |
| IPTV | Support USB import IPTV programs, as txt,xml,m3u files |
