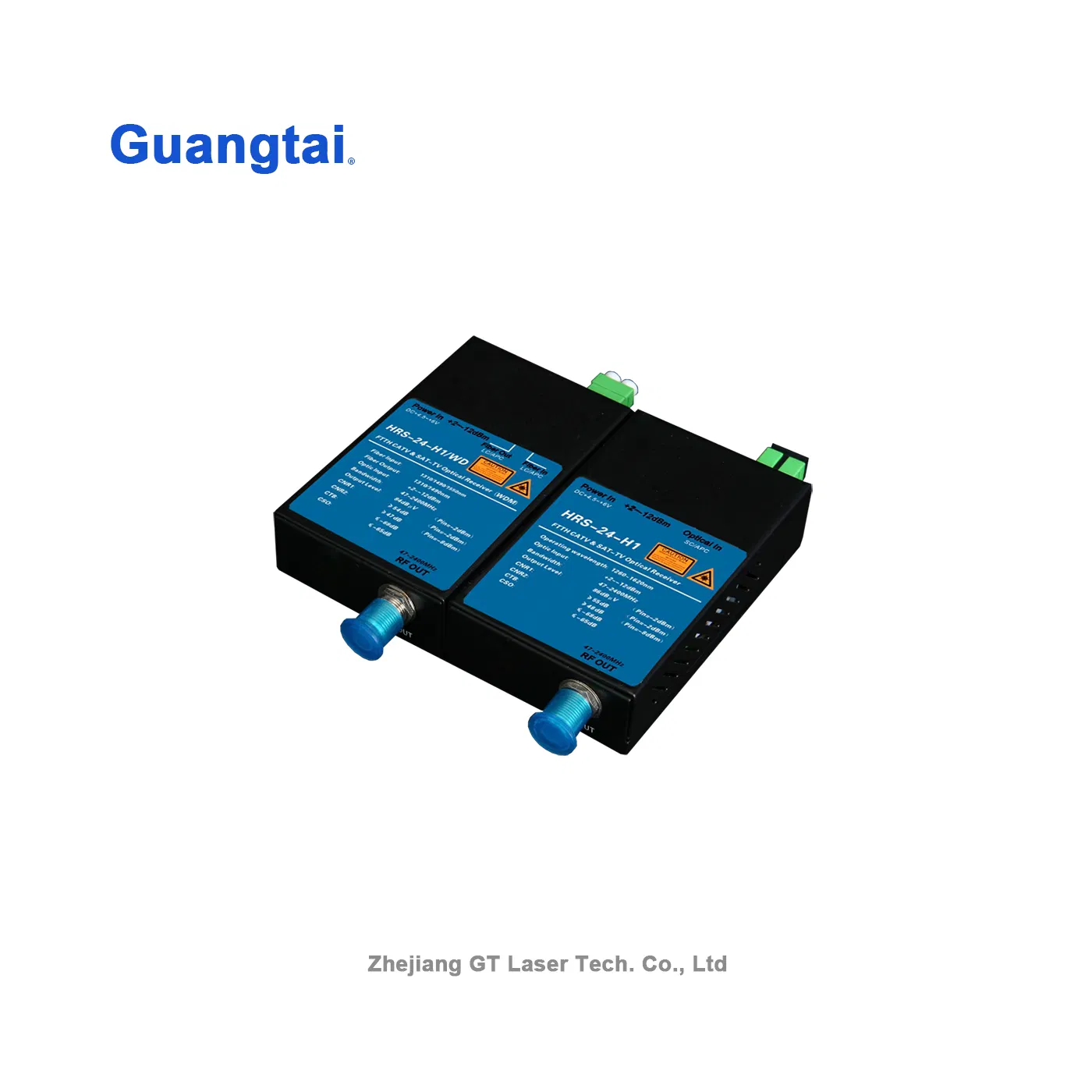

Guangtai 47~2400MHz FTTH CATV & Sat -TV Optical Small Satellite Receiver Hrs-24-H1
Product DescriptionHRS-24-H1 product series is a kind of CATV & SAT-IF optical receiver with high-performance and high-index. 7~2400MHz operate bandwidth. Output level Vo=86dBμV ( Pin=-2dBm ), suitable for FTTH, FTTP fiber access network. It is a low power consumption, high performance an......
Send Inquiry
Product Description
HRS-24-H1 product series is a kind of CATV & SAT-IF optical receiver with high-performance and high-index. 7~2400MHz operate bandwidth. Output level Vo=86dBμV ( Pin=-2dBm ), suitable for FTTH, FTTP fiber access network. It is a low power consumption, high performance and excellent cost performance CATV & DBS network ONU(Optical network unit).
This series product adopts high sensitivity receiving tube and special low noise matching circuit. Under 3.8% modulation, when transmitting in full channels and with receiving power of -8dBm, the CNR can still reach high index of 48dB and low inter modulation index. If adopting HRS-24-H1, it is only need very low optical power to reach 48dB CNR required by the user.
HRS-24-H1 optical port mode with following three types optional:
HRS-24-H1/NC:RFTV operating wavelength 1260~1620nm.
HRS-24-H1/WF:Build-in channel filter, RFTV operating wavelength 1550nm.
HRS-24-H1/WD:Build-in CWDM, RFTV operating wavelength 1550nm,pass wavelength 1310/1490nm, ( Link EPON,GPON ONU ).
1. Extra-low noise ( 3.8% modulate, -8dBm receive, CNR≥48dB )
2.In high operating wavelength 47~2400MHz, adopting CATV & SAT-IF signal transmitting
3. Analog TV, Digital TV, SAT-TV, all have excellent features:
Analog TV: ( 59CH PAL-D, 3.8% modulation )
Pin=-10dBm,CNR≥44dB
Pin=0dBm,CTB ≤ -65dB, CSO ≤ -65dB
Digital TV: ( The original signal MER=38.6dBm, BER<1.0E-9 )
Pin=-14dBm, MER≥33dB ( MER deterioration5dB )
Pin=-19dBm, BER<1.0E-9
SAT-TV: ( The original signal =64% )
Pin=-15dBm, signal quality>38%
4. Large dynamic range of received optical power, high receiving sensitivity :
Analog TV: +2dBm~ -10dBm
Digital TV: +2dBm~ -19dBm
SAT-TV: +2dBm~ -15dBm
5. Extra-low inter modulation indicators
6. High output level ( Pin=-2dBm, Vo=86dBμV )
7. In range of 47~2400MHz, all have good flatness
8. Metal shell, supply safeguards to opt electrical sensing device
9. Low power consumption, high cost performance

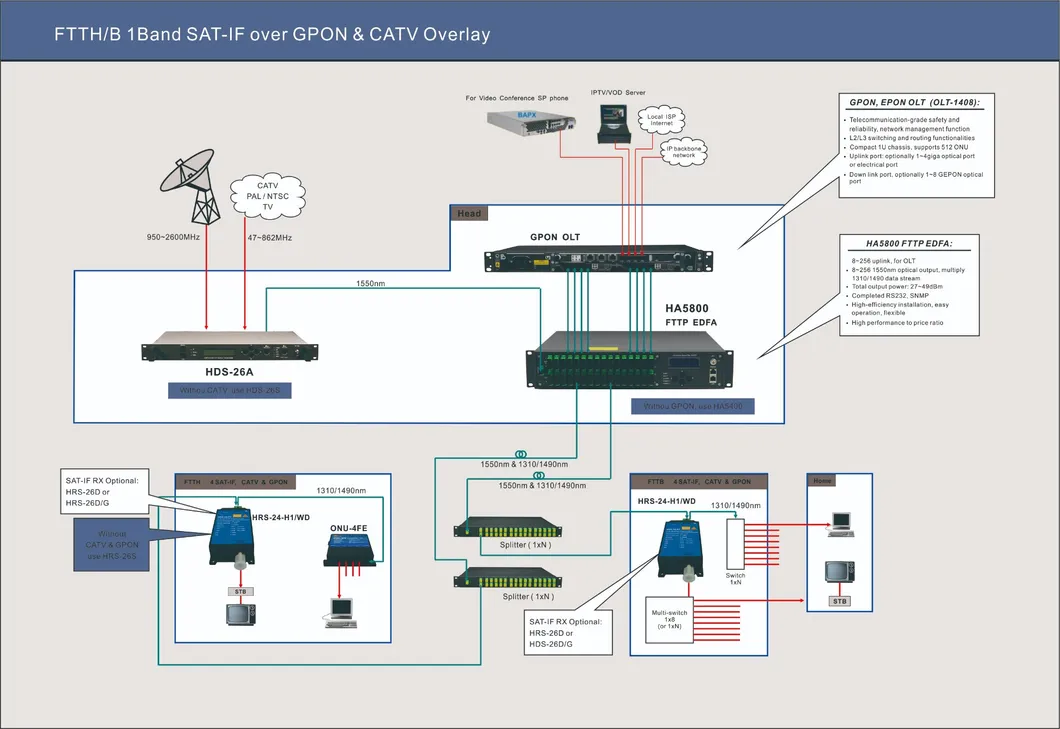

1. FTTH
2. FTTP, FTTO
| Performance | Index | Supplement | |||||
| Min. | Typ. | Max. | |||||
Optical feature | CATV work wavelength | (nm) | 1260 | 1620 | HRS-24-H1/NC | ||
| 1540 | 1550 | 1560 | HRS-24-H1/WF, HRS-24-H1/WD | ||||
| Input wavelength | (nm) | 1310, 1490/1550 | |||||
| Pass wavelenth | (nm) | 1260 | 1310 | 1360 | |||
| 1480 | 1490 | 1550 | |||||
| Insertion loss | pass CH | (dB) | 0.4(*1) | ||||
| Reflection CH | (dB) | 0.3(*1) | |||||
| Isolation | pass CH | (dB) | 40 | 45 | |||
| Reflection CH | (dB) | 20 | 25 | ||||
| Responsivity | (A/W) | 0.85 | 1310nm | ||||
| 0.9 | 1550nm | ||||||
| Receiver power range | (dBm) | +2 | -10 | Analog TV | |||
| +2 | -19 | Digital TV | |||||
| +2 | -15 | SAT TV | |||||
| Optical return loss | (dB) | 55 | |||||
| Optical connector | SC/APC | HRS-24-H1/NC, /WF | |||||
| LC/APC | HRS-24-H1/WD | ||||||
RF feature | Work bandwidth | (MHz) | 47 | 2400 | |||
| Flatness | (dB) | -1.0 | +1.0 | 47~862MHz | |||
| -2.0 | +2.0 | 950~2400MHz | |||||
| Output level ( Pin=-2dBm ) | (dBμV) | 86 | HRS-24-H1/NC | ||||
| 84 | HRS-24-H1/WD | ||||||
| Return loss | (dB) | 14 | 47~862MHz | ||||
| 8 | 950~2400MHz | ||||||
| Output impedance | (Ω) | 75 | |||||
| Number of RF output port | 1 | 47~2400MHz | |||||
| RF connector | F-female | ||||||
| Analog TV link feature | Test channel | (CH) | 59CH (PAL-D) | NTSC/80CH | |||
| OMI | (%) | 3.8 | |||||
| CNR1 ( Pin=-2dBm ) | (dB) | 55 | HRS-24-H1/NC | ||||
| 54 | HRS-24-H1/WD | ||||||
| CNR2 | (dB) | 48 | HRS-24-H1/NC | ||||
| 47 | HRS-24-H1/WD | ||||||
| CTB | (dB) | -65 | Pin= 0 dBm | ||||
| -70 | Pin= -5dBm | ||||||
| CSO | (dB) | -65 | Pin= 0 dBm | ||||
| -69 | Pin= -5dBm | ||||||
| HUM | (dB) | -60 | |||||
Digital TV link feature | Test channel | <10 CH | Analog | ||||
| Digital QAM | 47-862MHz | ||||||
| MER (*2) | (dB) | 37 | Pin : +2.0~-10dBm | ||||
| 33 | Pin >-14.0dBm | ||||||
| BER (*2) | (dB) | 1.0E-9 | Pin : +2~-19dBm | ||||
| General feature | Power supply | (V) | +4.5 | +6 | |||
| Power current | (mA) | 180 | 200 | ||||
| Work temp | (ºC) | -20 | +60 | ||||
| Storage temp | (ºC) | -40 | +85 | ||||
| Work relative humidity | (%) | 5 | 59 | ||||
| Size | (mm) | 88×50×22 | B-Type | ||||
| 59×98×23 | C-Type | ||||||
2: digital TV test signal:MER:38.6dB, BER:<1.0E-9
