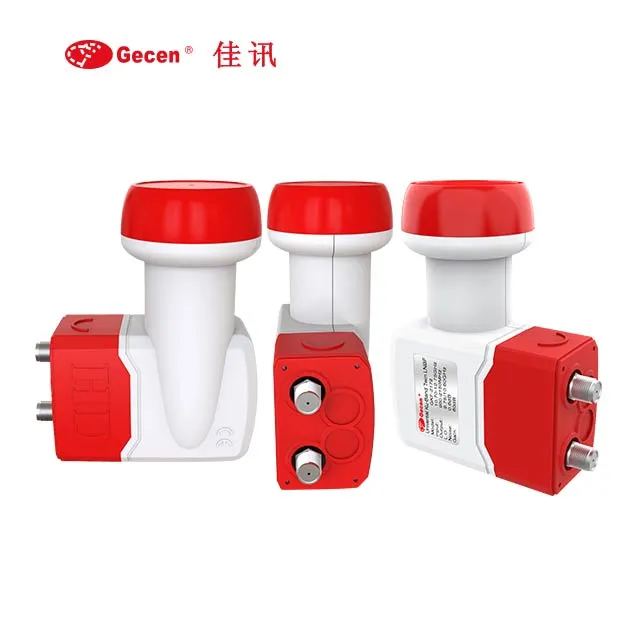

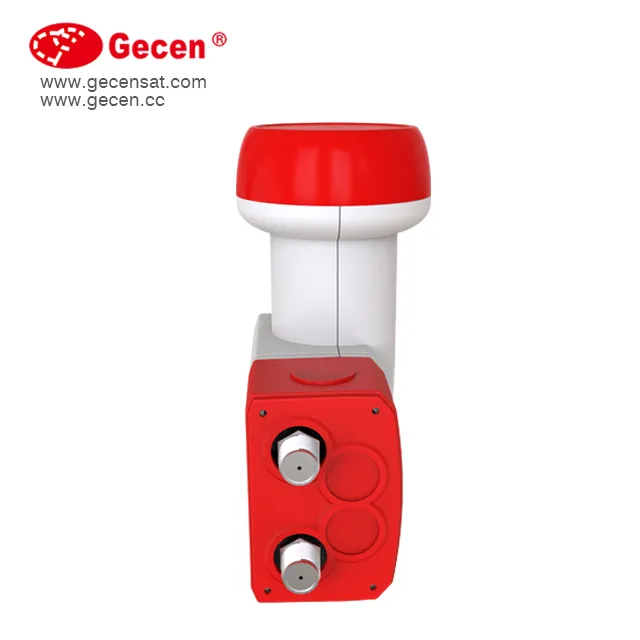

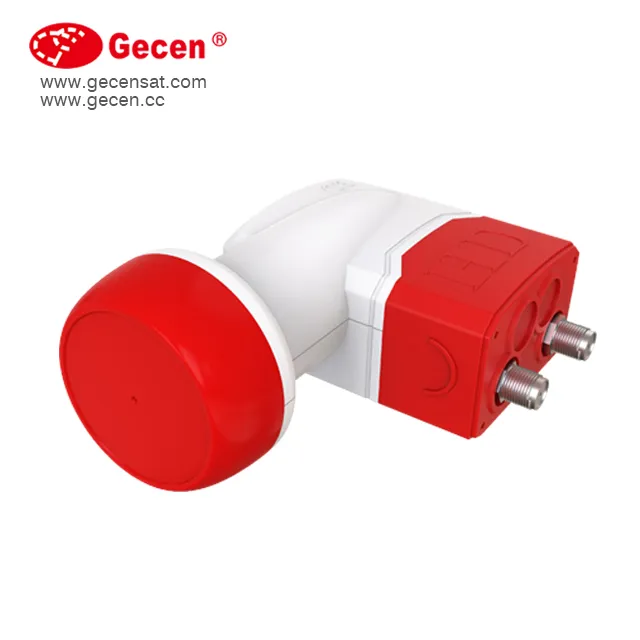

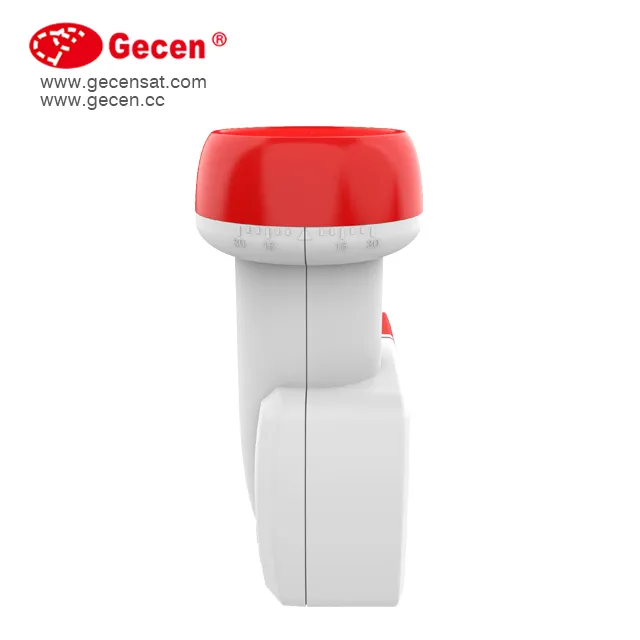

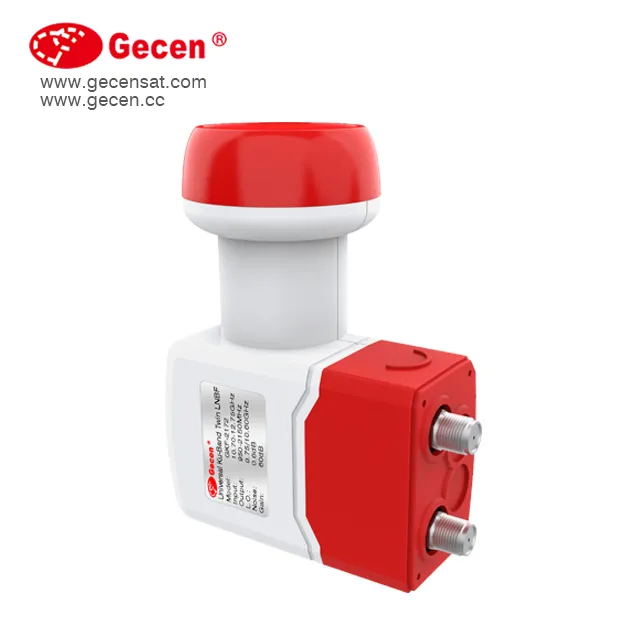

Gecen Original 0.1dB Twin Output LNB
Product NameGecen Universal Ku Band LNB GKF-2172MaterialABSFunctionLow noise, high gainPackageCOLOR BOXItemSpecificationItemSpecificationInput Frequency RangeLow Band:10.70~11.70GHzGain Flatness±0.5dB/26MHzHigh Band:11.70~12.75GHzCross POL. Isolation25dB(Typ.)Output Frequency RangeLow Ban......
Send Inquiry
Product Description
Product Name | Gecen Universal Ku Band LNB GKF-2172 |
Material | ABS |
Function | Low noise, high gain |
Package | COLOR BOX |
Item | Specification | Item | Specification |
Input Frequency Range | Low Band:10.70~11.70GHz | Gain Flatness | ±0.5dB/26MHz |
High Band:11.70~12.75GHz | Cross POL. Isolation | 25dB(Typ.) | |
Output Frequency Range | Low Band:950~1950MHz | Image Rejection | 40dB(Min.) |
High Band:1100~2150MHz | Output VSWR | 2.0:1(Max.) | |
L.O. Frequency | Low Band:9.75GHz | P1dB | 0dBm (Min.) |
High Band:10.60GHz | DC Current Consumption | 80mA(Typ.) | |
L.O. Frequency Stability | ±1.0MHz (Max.)@+25ºC | Low/High Band Switching | Low Band:0Hz |
±2.0 MHz (Max.)@-30ºC~+70ºC | High Band:22KHz±4KHz | ||
L.O. Phase Noise | -60dBc/Hz@1KHz | POL. Switching Voltage | 10.5~14.0V @Vertical |
-80dBc/Hz@10KHz | 16.0~20.0V @Horizontal | ||
-100dBc/Hz@100KHz | Relative Humidity | 0%~95% | |
Conversion Gain | 60dB(Typ.) | Operating Temperature | -30ºC~+70ºC |
Noise Figure | 0.1dB(Typ.) | Connector Type | 75Ω Female Connector |
Located in Zhuhai National Hi-Tech Industry Development Zone, we, Zhuhai Gecen Technology Co., Ltd, have been persisting in the development strategy of High Starting Point, High Technology, High Quality and High Efficient since founded. At present, we have our own leading core technology and the capability of sustainable research and development. Our turnover is increasing geometrically in recent years due to mature technology, very high quality products and strong market response ability. Moreover, our products are taking a large percentage in Middle East, Southeast Asia and Americas market rapidly which makes Gecen become one of the outstanding manufacturers in this field among the world. Nowadays Gecen this brand has become a well-known brand in SATV and CATV industry.
Why choose us:
We are the professional factory specialized in SATELLITE accessories, which have over 20 years history;
Competitive Price We have our own complete production lines to provide a competitive price;
Strong real production capacity to assure fast delivery time for you;
Multiple private molds to choose which is different with mold in the open market;
Many certificates for factory and products which can meet different requirement of you;
Customer Service: Your inquiry will be replied within 24 hours;
OEM/OEM Service: We have strong production capacity and R&D department;
Design Service: Our proessional designer team, we can design for you depend on your requirement;
QC Service: Strict quality control inspection before shipment;
Warranty: One year.
