Factory Direct Price Plastic 4 Sat LNB Holder
Factory Direct Price Plastic 4 Sat LNB Holder Detailed PhotosProduct DescriptionBrief Introduction:This model of LNB bracket holder can hold up to 4 LNBs and can have different combinations of LNBs.This bracket can allow for up to 4 different satellites to be found at once. Can be used with 30mm and......
Send Inquiry
Product Description
Brief Introduction:

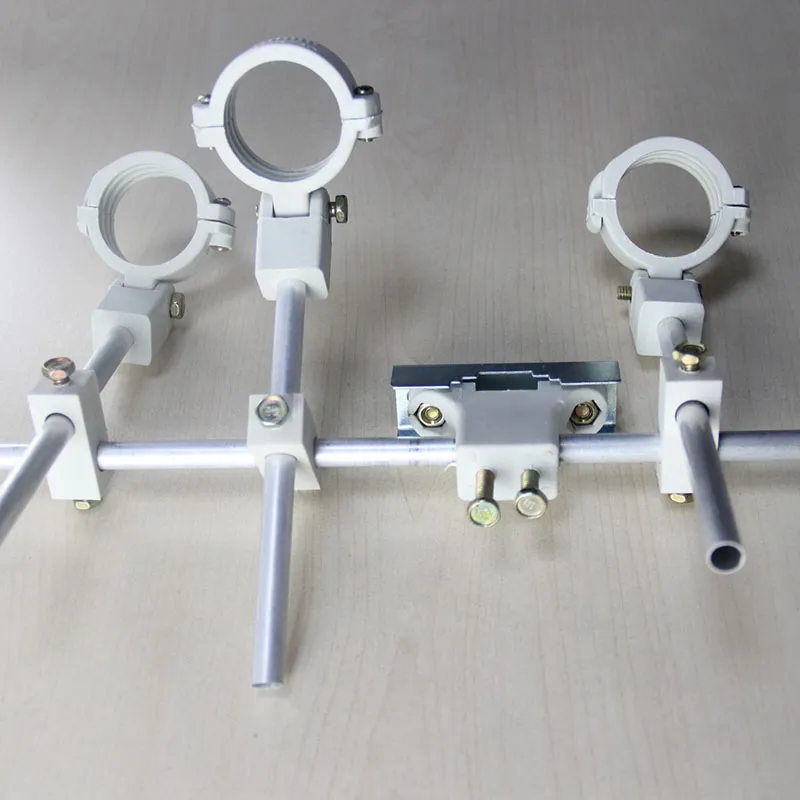

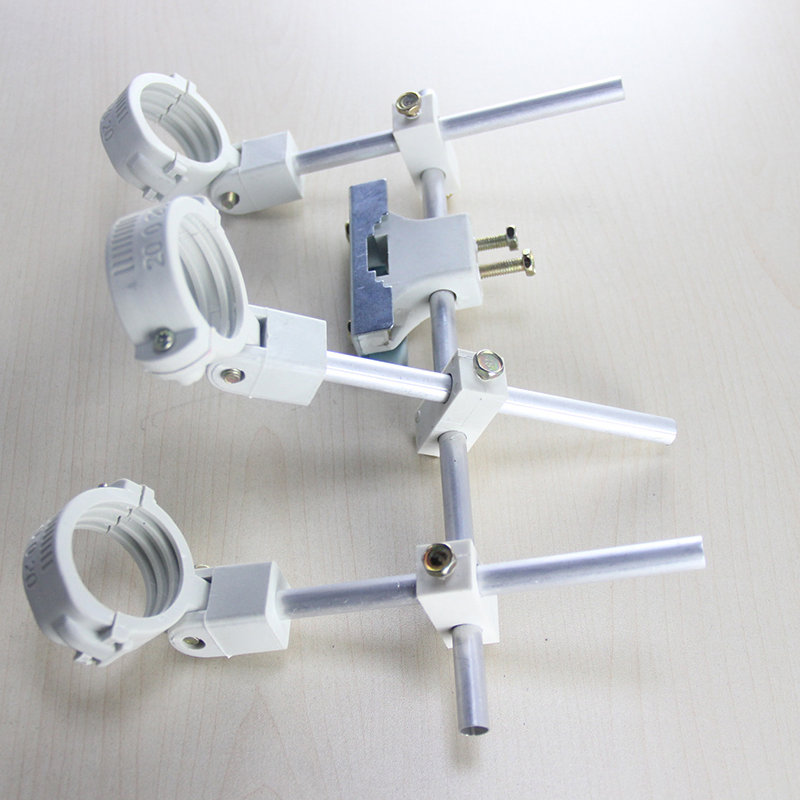

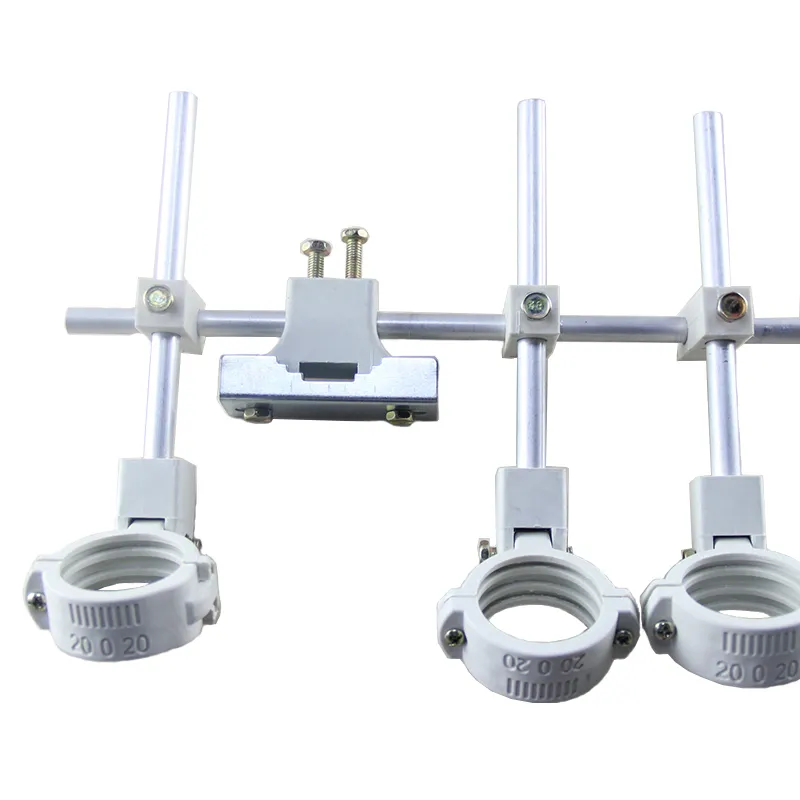

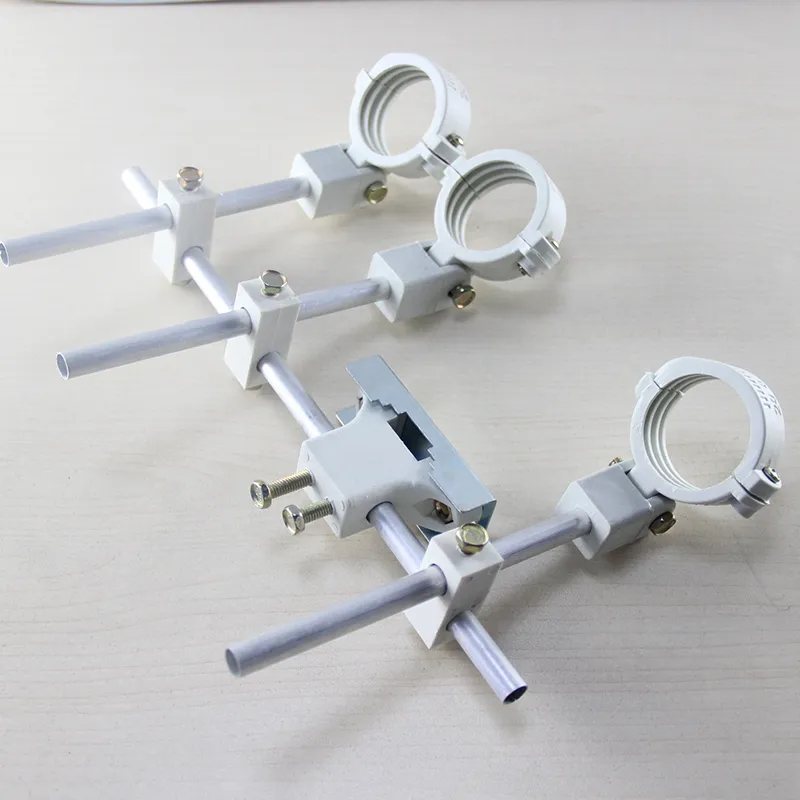

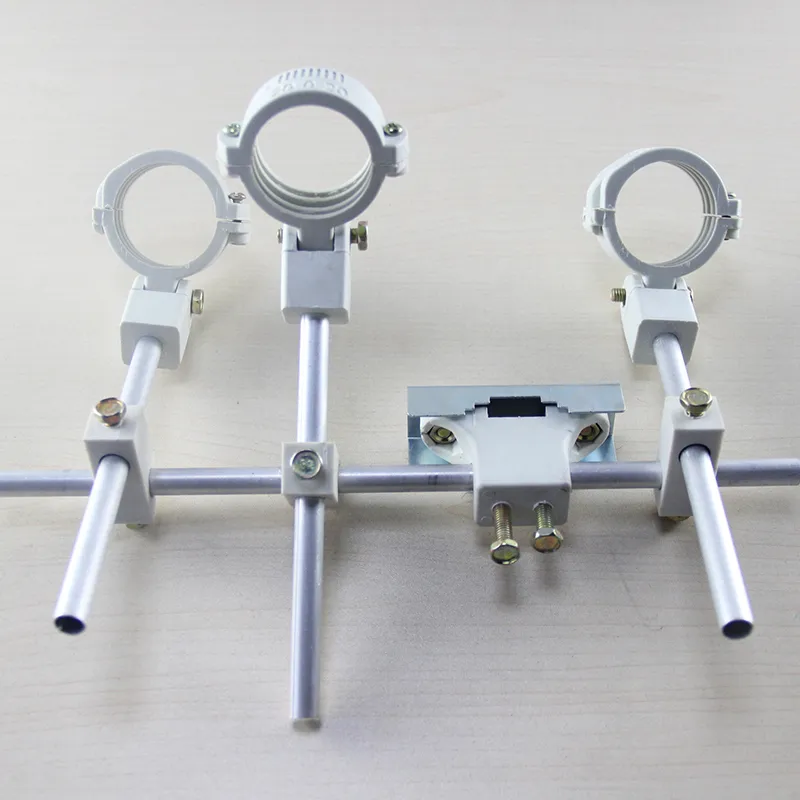

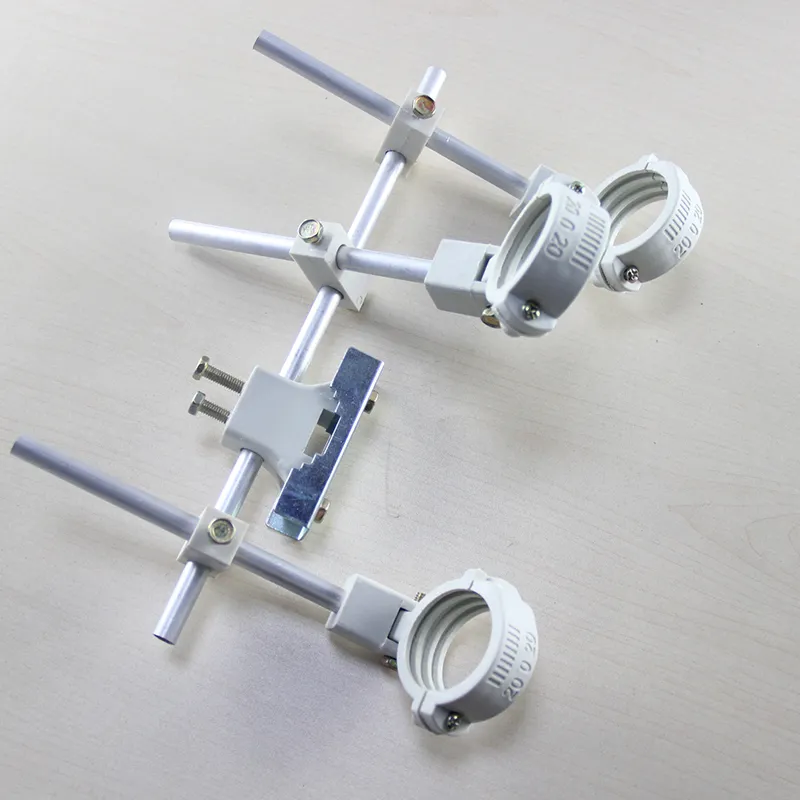

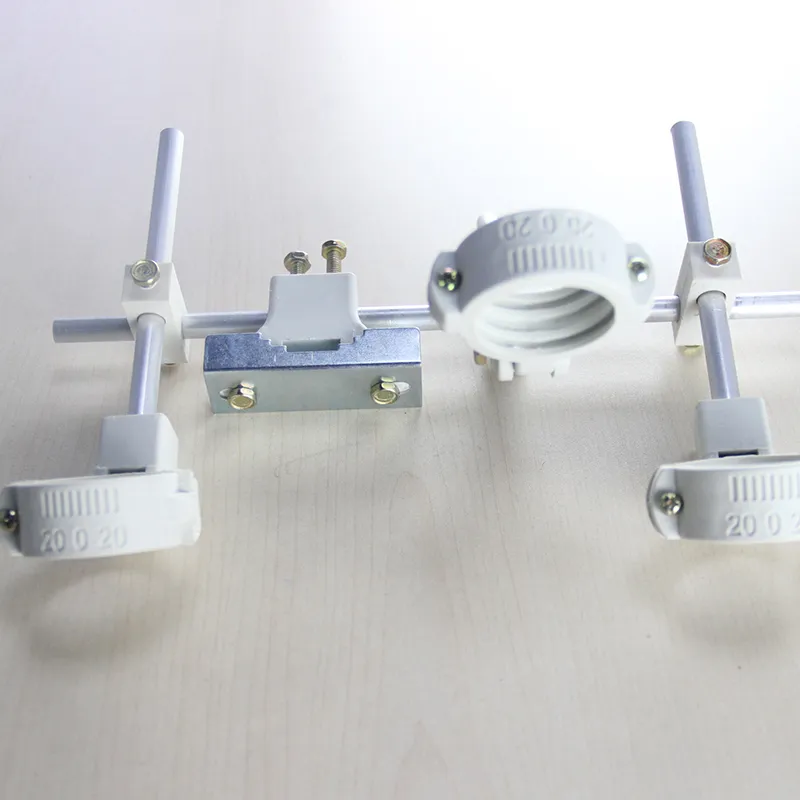

This model of LNB bracket holder can hold up to 4 LNBs and can have different combinations of LNBs.
This bracket can allow for up to 4 different satellites to be found at once. Can be used with 30mm and/or 40mm LNBF heads. Suit for ku band dish/ antenna.
Adjustable Up-Down and Left-Right.
Specification of ku Band Lnb:
Input Frequency | Low Band:10.7-11.7GHz High Band:11.7-12.75GHz |
Output Frequency | Low Band:950-1950MHz High Band:1100-2150MHz |
L.O. Frequency | Low Band:9.75GHz(1MHZ@25ºC) High Band:10.6GHz(1MHZ@25ºC) |
L.O. Stability | ±1MHz(-40ºCto+70ºC) |
Noise Figure | 0.1dB |
Conversion Gain | 65dB |
Gain Flatness | ≤±1.5dB |
Input VSWR | 2.5:1(max) |
Output VSWR | 2.0:1(max) |
Output Connector | F-female Connector |
Output Impedance | 75Ω |
Cross Polar Isolation | 20dB(min) |
Supply Voltage | 1)Ca:11.5-14.0V(Vertical Polarization)13VDCtype 16.0-19.0V(Horizontal Polarization)18VDCtype |
Direct Current | 150mA |
Control Signals | 1) Low Band:Ca or Cb(see below) 2) High Band:Cc or Cb(see below) 3) Cc:Continues 22KHz |
Operating Temperature | -40ºCto+70ºC |
Storage Temperature | -40ºCto+80ºC |
Relative Humidity | 0%-95% |
Phase Noise | 1)-50dBc/Hz@1KHz(max) 2)-75 dBc/Hz@10KHz(max) 3)-95 dBc/Hz@100KHz(max) |
Image Rejection | 45dB(min) |

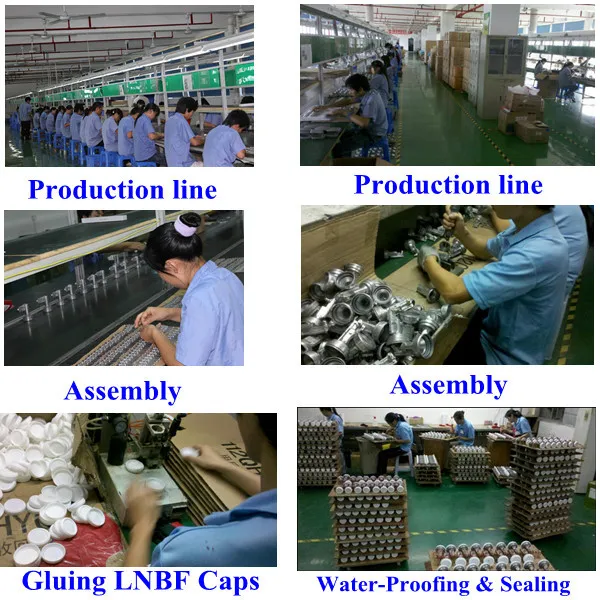

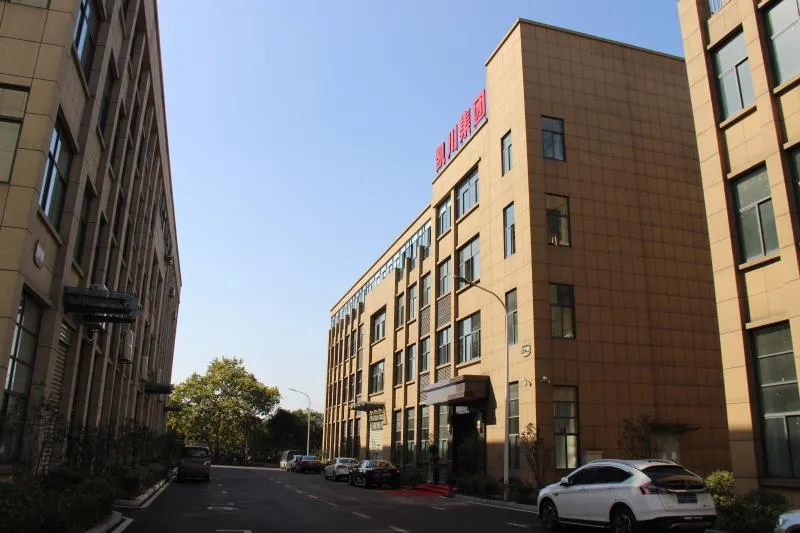

Bowei Electronics is a professional manufacture21 years specialized in LNB, MMDS down converter and Antenna etc. Anhui Bowei Electronics Technology Co., Ltd is a National High-tech Enterprise mainly engaged in the research, development, production, fabrication, marketing of microwave high frequency electronics and over-voltage and over-current protection equipment.
Our products command a good market both at home and abroad. Microwave High Frequency Electronics are mainly exported to Europe, Southeast Asia, Middle East, North America etc. 86 countries and areas. In the domestic markets, Anhui Bowei Electronics services for the national Radio and Television"Hu Hu Tong" Household Project and also supports the digital improvement for Regional Radio and TV Cable Network Companies. Meanwhile, Over-voltage and Over-current Protection Equipment are widely distributed around the country and mostly applied in fields of electricity, petroleum, chemistry, metallurgy, cement and steel.
In the future, Anhui Bowei Electronics will continue to communicate and cooperate with domestic and overseas counterparts in the main products to arrive at the aim of providing our honored customers with more excellent quality products and more superior service.
1,Q:Are you a factory or trading company?
A:We are a factory with more than 20 years satellite LNB and MMDS downconverter manufacture experience.
2,Q: What about your products?
A:Our products are assured by the strict QC for each step, so good quality is promised. And our products can design by your requirements.
3,Q:What is the material of your products?
A:The main material of our products is Aluminum.
4,Q:Can you delivery samples before place an order?
A:Yes, but we are not responsible for the freight.
5,Q:What about packing & delivery?
A:We provide the standard trading package, and ships out within 7 working days.
6,Q:What about your service?
A:Factory supply directly, OEM service available.
7,Q:What are my rights as a customer?
A: It is now easier for you to choose only those funeral related items, whether good or services that you want or need and to pay for only those you select as a result of government regulation. You can now compare costs before making any final choices whether you shop the internet, by telephone or in person.
1.We provide 2 years warranty for all our products. Artificially damaged or with missing components is not in the warranty terms.
2.Buyer needs to be responsible for the shipping cost. (In normal case, you only need to ship back the main device without any accessories).
3.Before you ship back the products, please contact with us to make sure that is hardware defect, but not software problem. We will give you full tech-support.
4.Before shipping, please contact with us to get the correct return address. Please use regular registered post service and provide us tracking number. (Don't use fast delivery service in case of import tax.). We will reship the repaired item or exchange it to you ASAP.

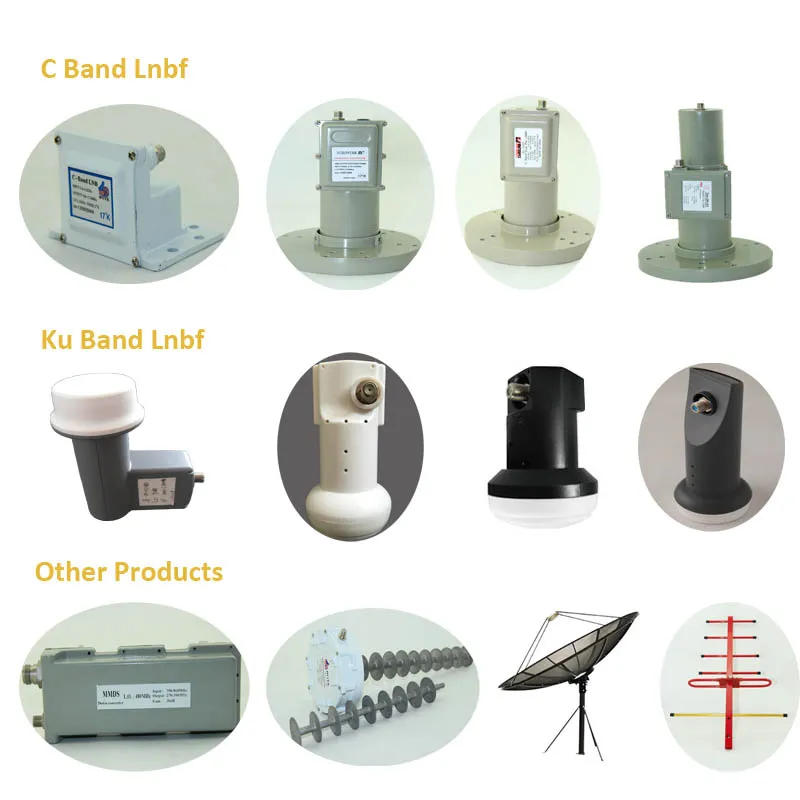

Other product we make are VARIOUS LNB series, MMDS downconverter series, Yagi antenna series, UHF antenna, Microwave communication series, BUCs and other satellite receive equipment. More information please click our website:https://dream-china.en.made-in-china.com/
