Product Description

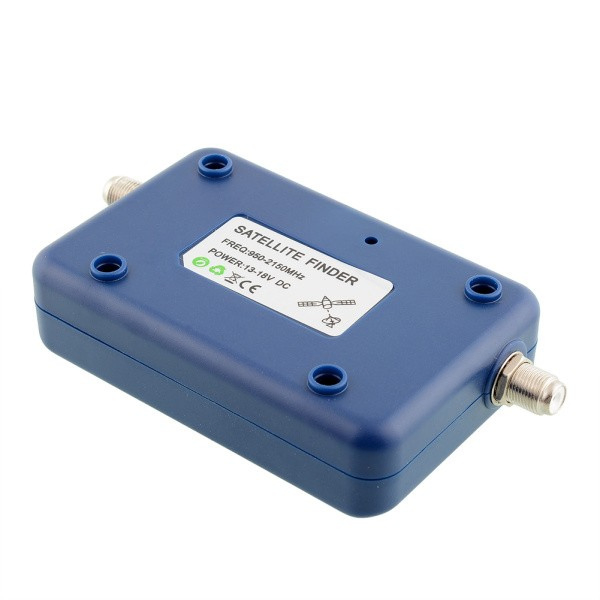

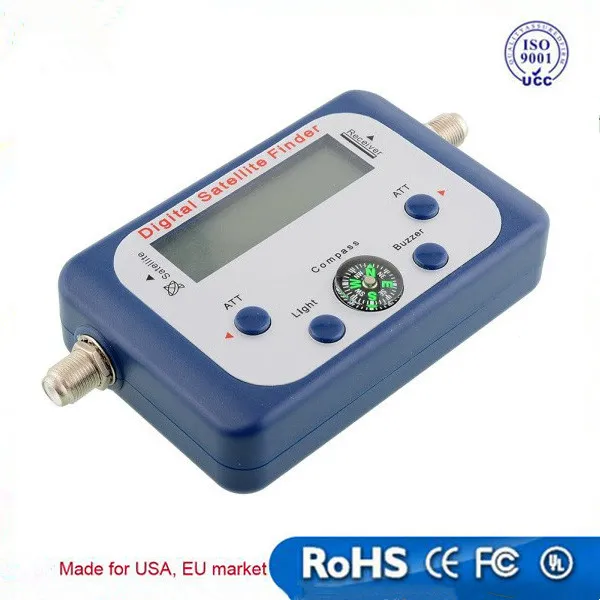

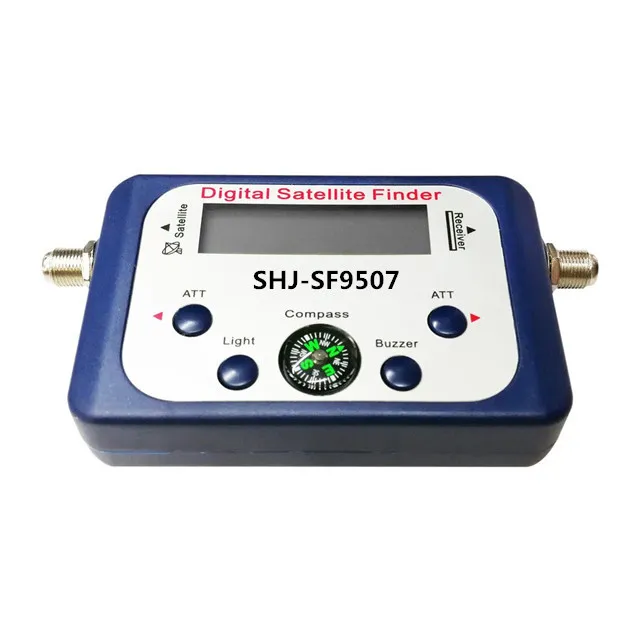

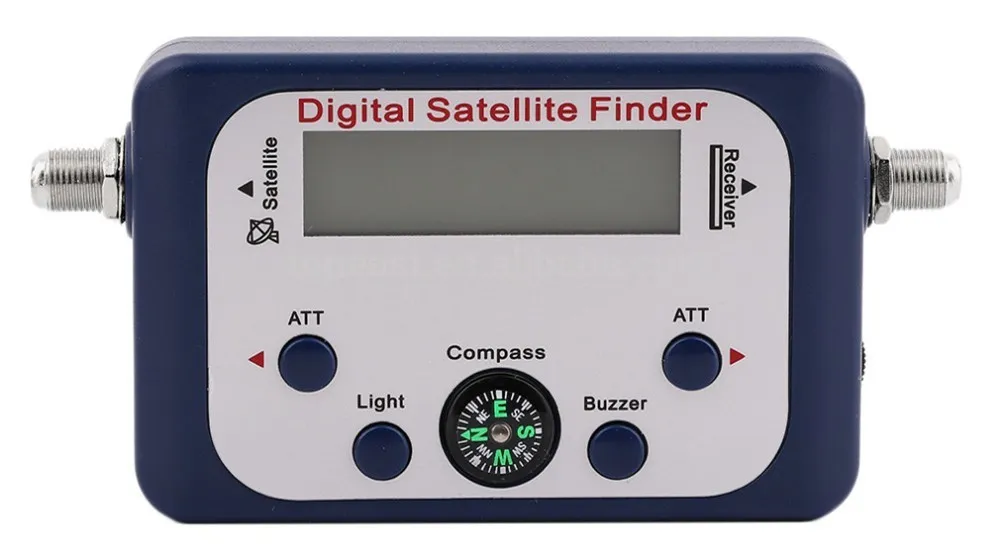

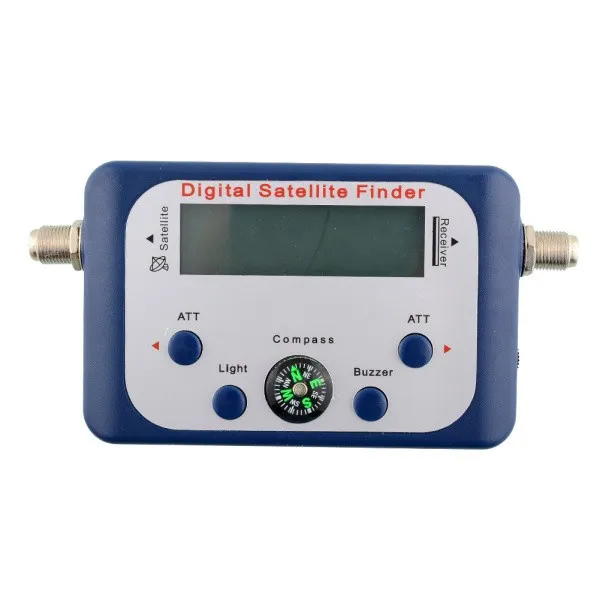

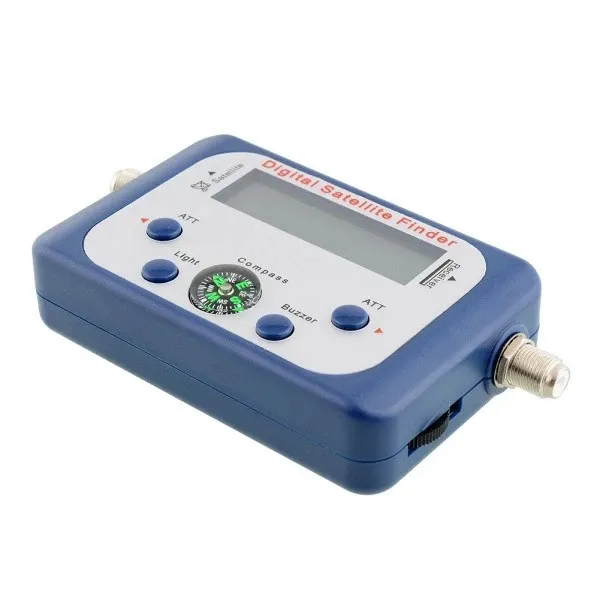

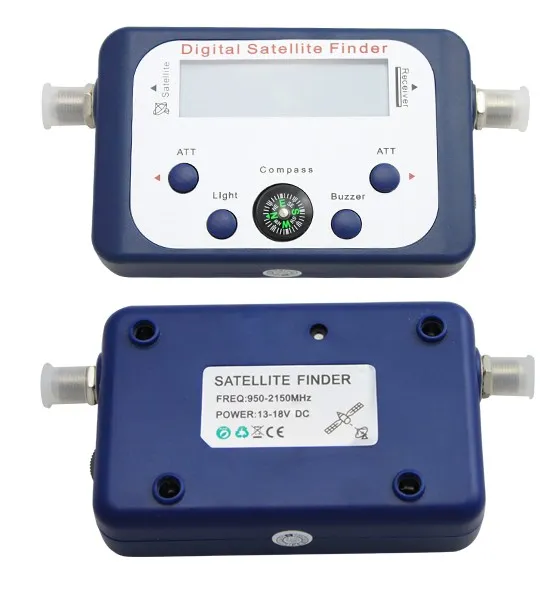

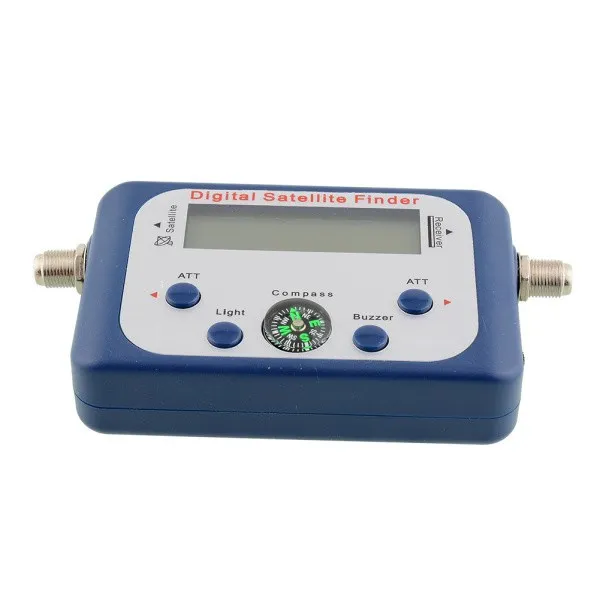

Ce Approved Digital Satellite Finder (SHJ-SF9507)
Product Description:
1. LNB and internal lighting can pass DC
2. Look elegant, portable
3. Good sensitivity...
Features:

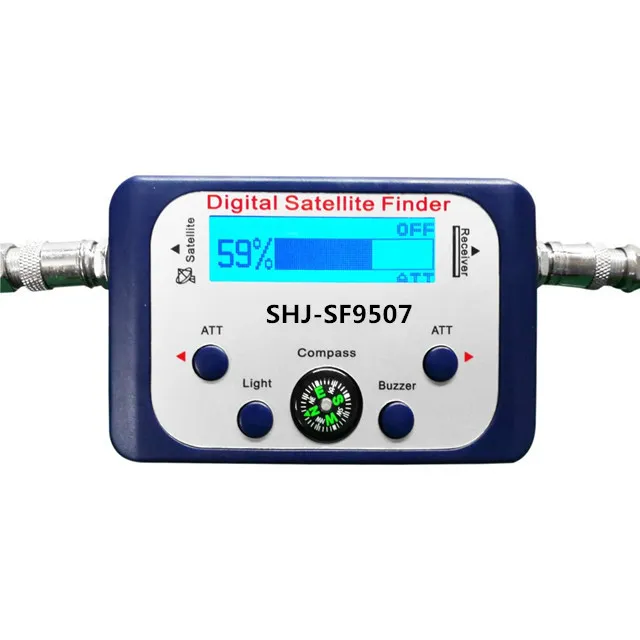

1. Use LCD to display the satellite signal intensity
2. Built-in signal alert buzzer
3. The button can control LCD backlightbuzzer and set up attenuation function
4. DC pass to LNB
Technical Data:
1. Frequency Range: 950-2150MHz
2. Supply Voltage: 13-18VDC
3. Input Level Range: -40dBm~ -10dBm
4. Operating Temperature: 0° C ~ +40° C
5. Impedance: 75Ω
Package included:
1.1x Digital Satellite Finder Signal Meter

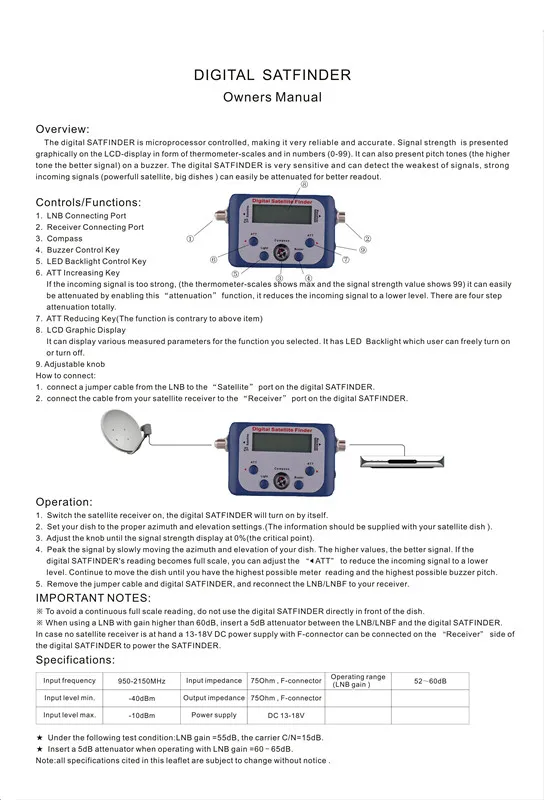

2.1x English Manual
| Item | SHJ-SF9507 |
| FrequencyRange | 950-2150 MHz |
| InputLevel Range | -40dBm~ -10dBm |
| Impedance | 75Ω |
| Power Supply | 13-18V DC |
| Operating Temperature | 0° C~ +40° C |
| Dimension/Weight | 17.7*11*5.8 cm / 0.18 KG |
| Carton Size/ Quantity | 57*37.5*31 cm / 50 PCS |
