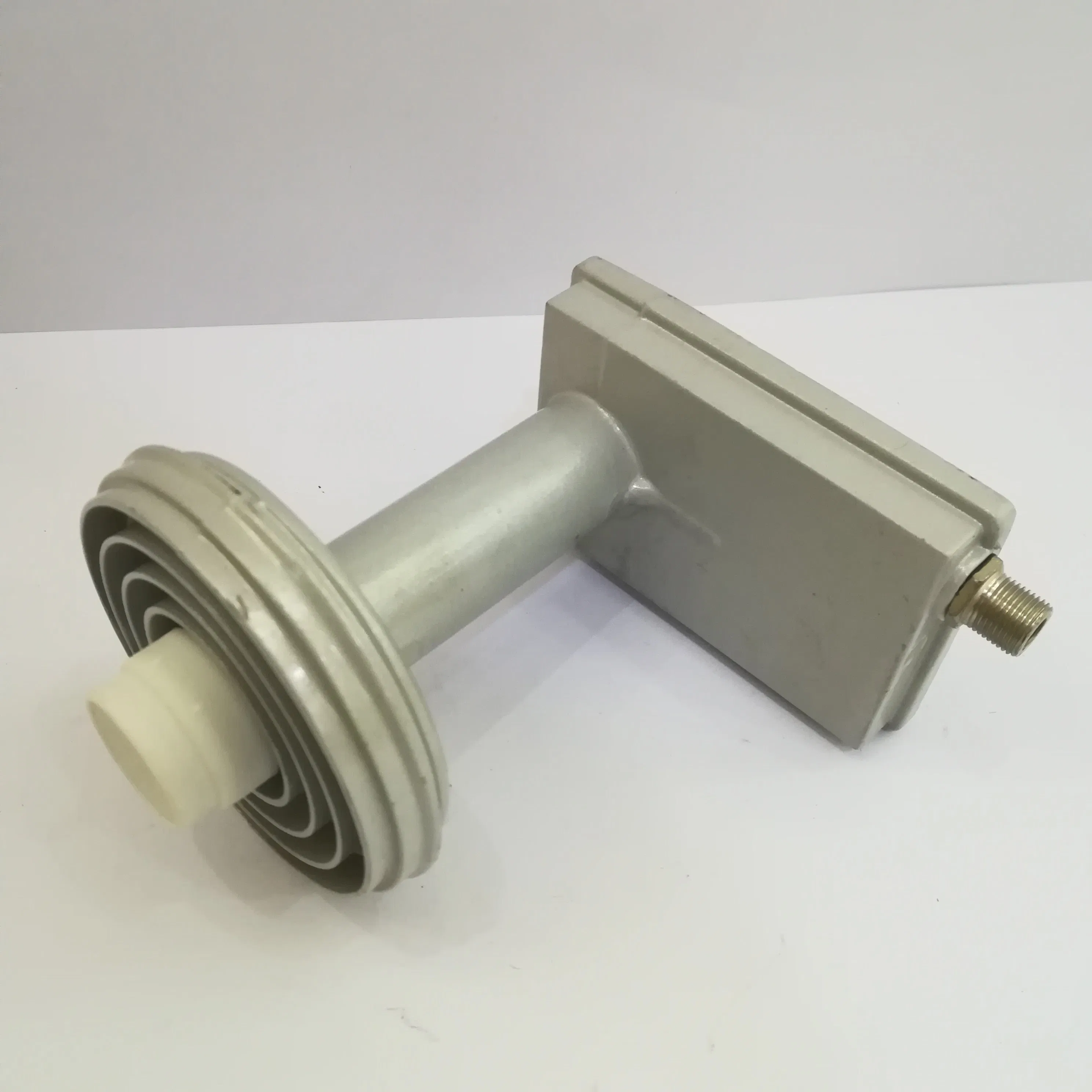

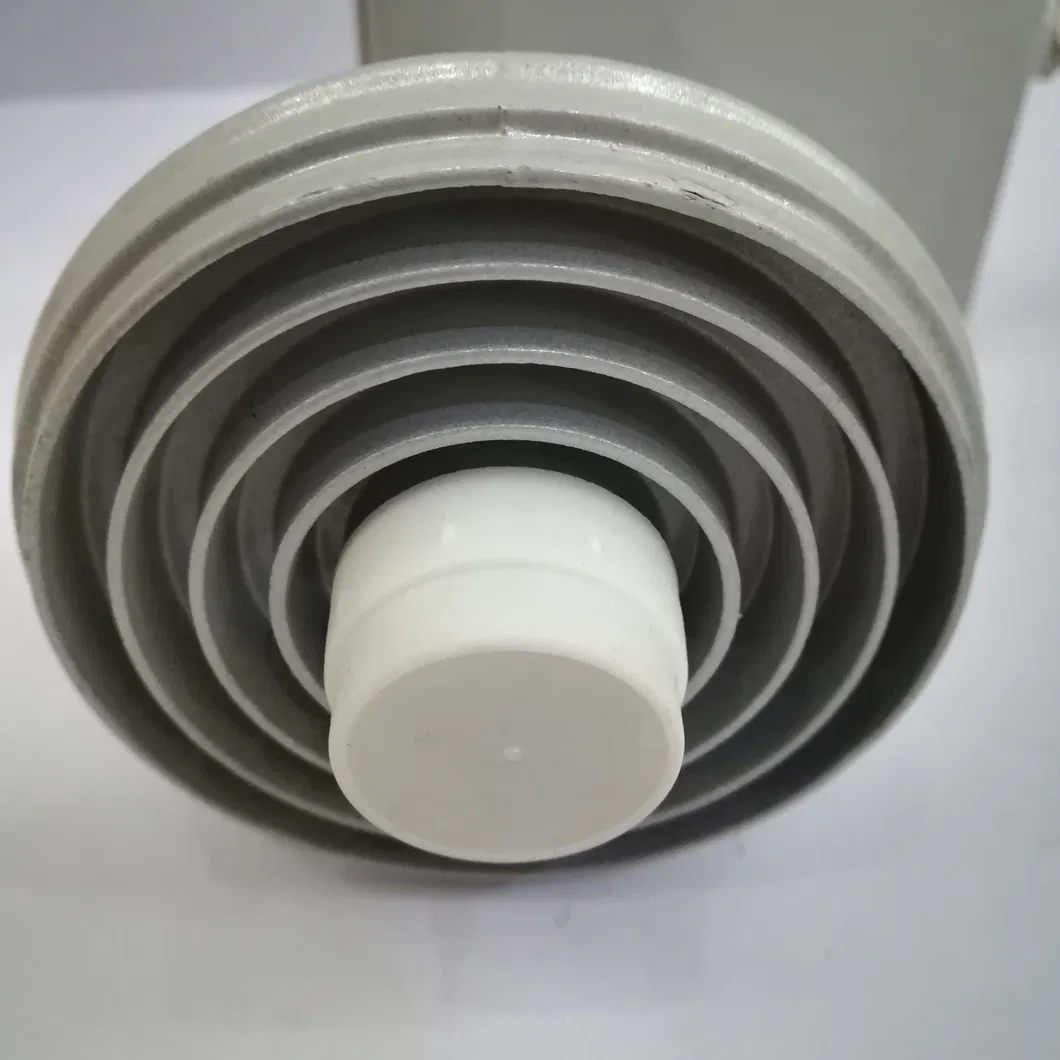

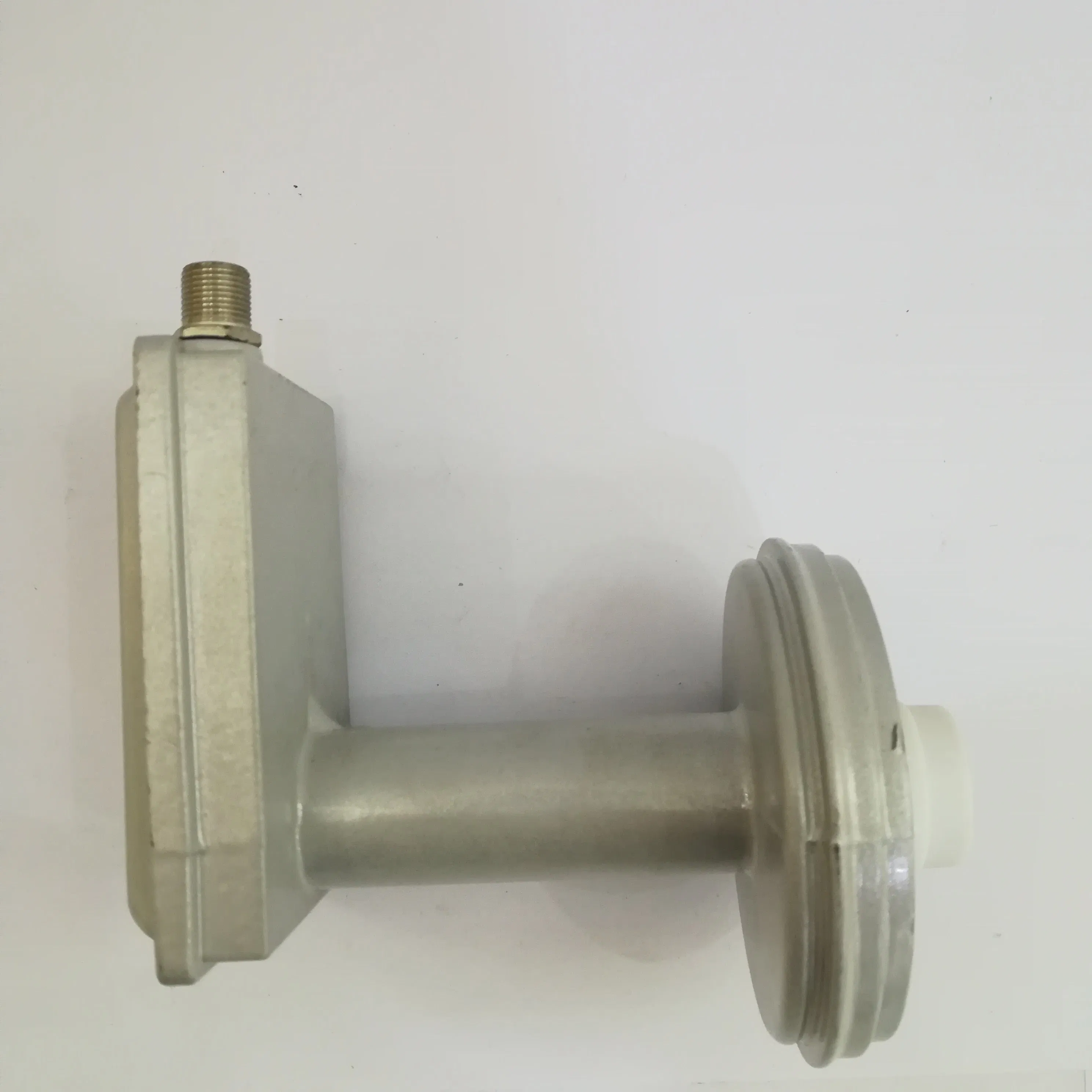

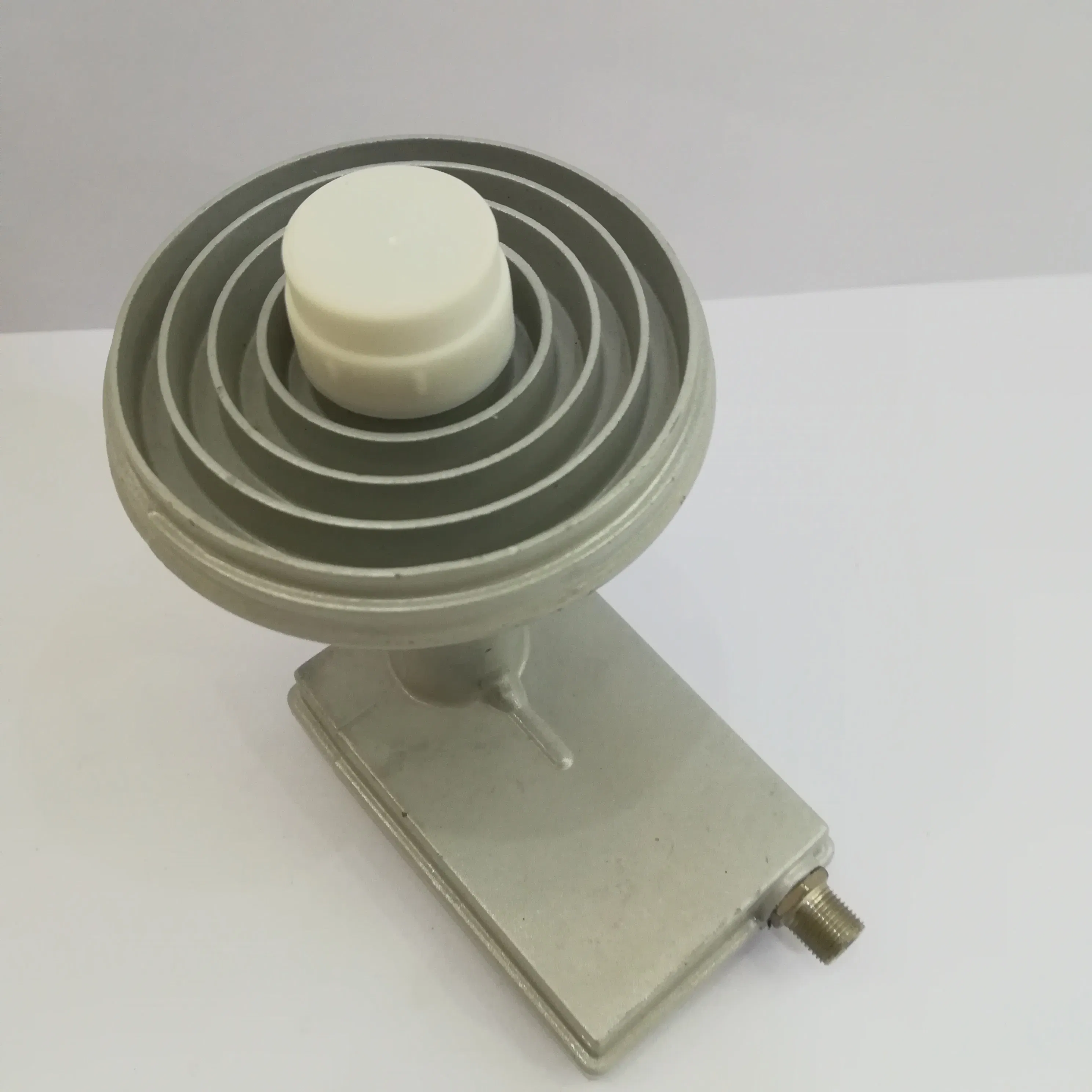

Best Quality Strong Ku Band Single LNB

Product Description

Best Quality Strong Ku Band Single lnb

Specification

Input Frequency	11.7-12.75GHz
Output Frequency	950-2050MHz
L.O. Frequency	10.7GHz
L.O. Stability	±1MHz(-40ºCto+70ºC)
Noise Figure	0.1dB
Conversion Gain	65dB
Gain Flatness	≤±1.5dB
Input VSWR	2.5:1(max)
Output VSWR	2.0:1(max)
Output Connector	F-female Connector
Output Impedance	75Ω
Cross Polar Isolation	20dB(min)
Supply Voltage	1)Ca:11.5-14.0V(Vertical Polarization)13VDCtype 16.0-19.0V(Horizontal Polarization)18VDCtype
Direct Current	150mA
Control Signals	1)Low Band:Ca or Cb(see below) 2)High Band:Cc or Cb(see below) 3)Cc:Continues 22KHz
Operating Temperature	-40ºCto+70ºC
Storage Temperature	-40ºCto+80ºC
Relative Humidity	0%-95%
Phase Noise	1)-50dBc/Hz@1KHz(max) 2)-75 dBc/Hz@10KHz(max) 3)-95 dBc/Hz@100KHz(max)
Image Rejection	45dB(min)

Packaging and shippment
Place of Origin: Anhui, China (Mainland)
Model Number: BT-180
Item: ku band prime foucus lnb
material: aluminum
input freq: 11.7-12.75
output freq: 950-20050MHZ
L.O.freq: 10.7GHZ
waterproof: yes
noise figure: 0.1db
gain: 70db
key words: ku band prime focus lnb
HD: yes
Packing:
standard export packaging ,and 50pcs for one carton

Shipping:

For samples and small o
rders, we can ship out the goods within 7 working days.For large quantity, we usually ship out within 15-25 working days.

Our service:

1.Supply OEM services,Reply E-mail within 24 hours .

2.Make products as customers requirements.

3.High quality after-sale services and quality gurantee.
