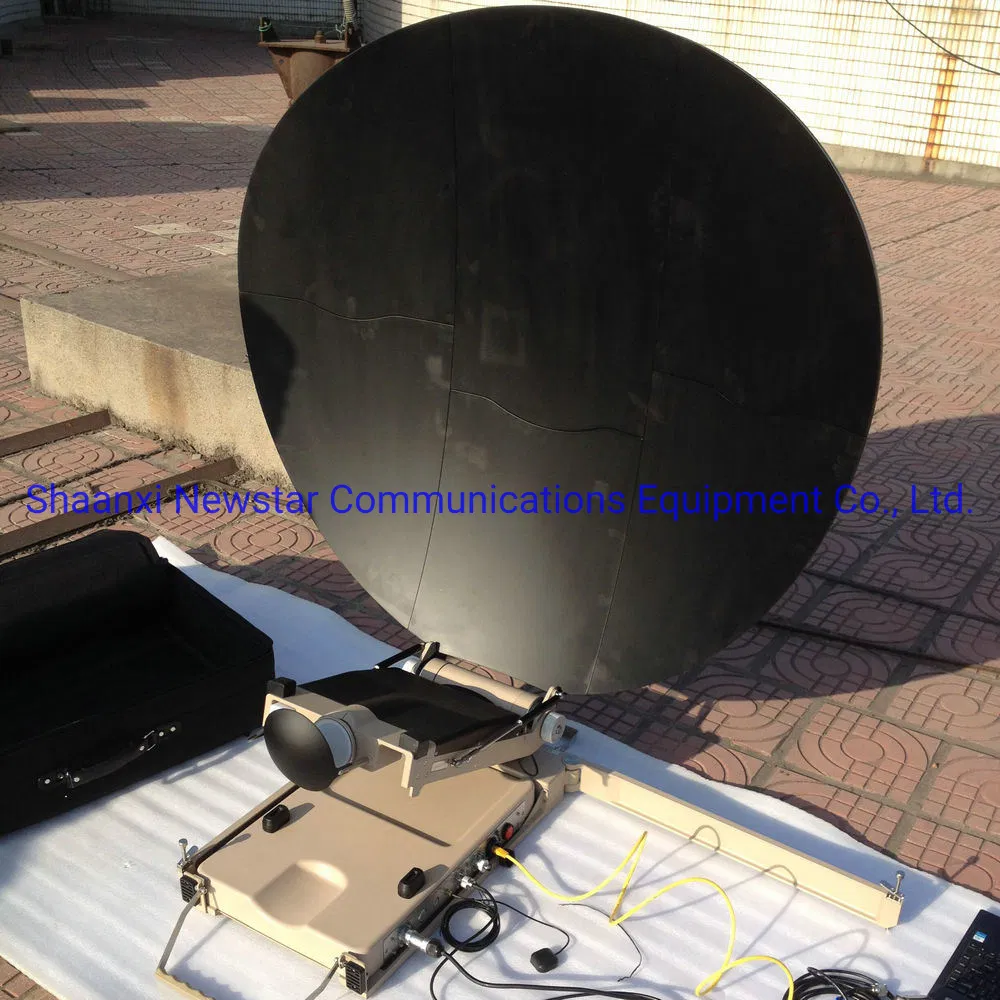

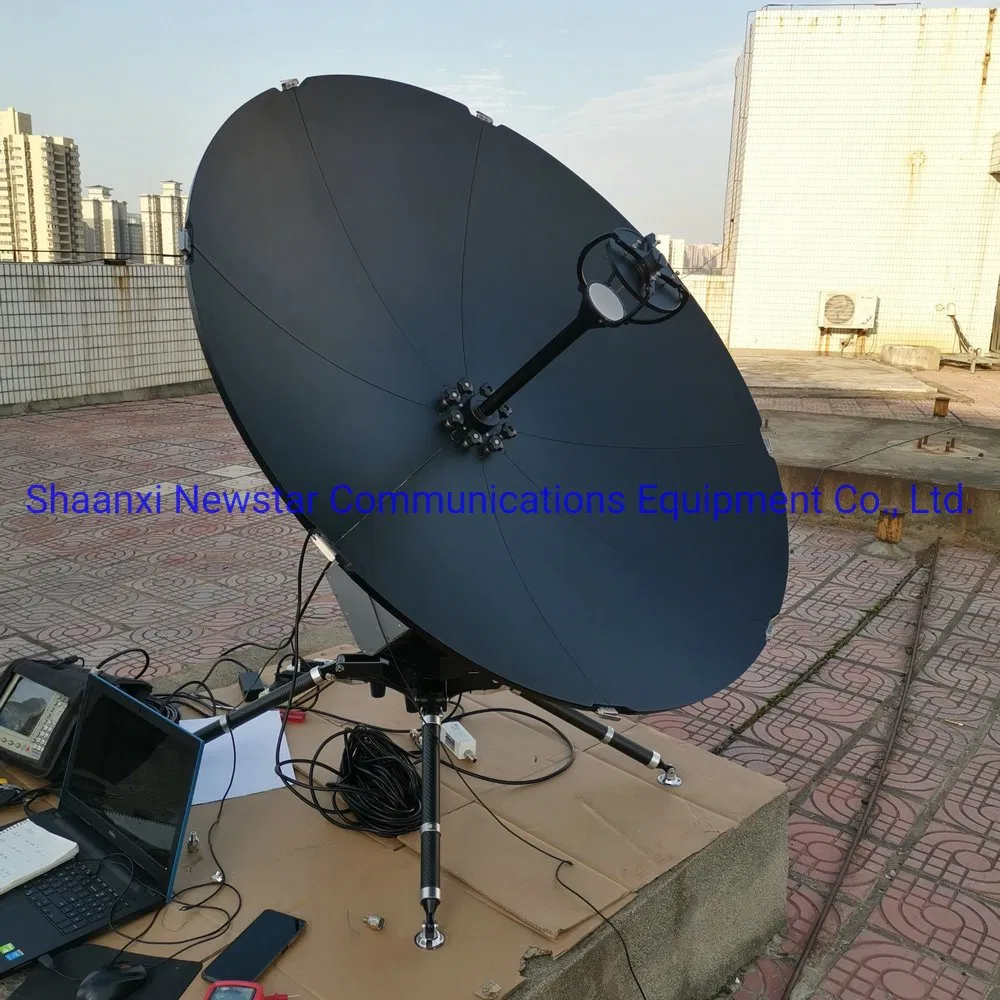

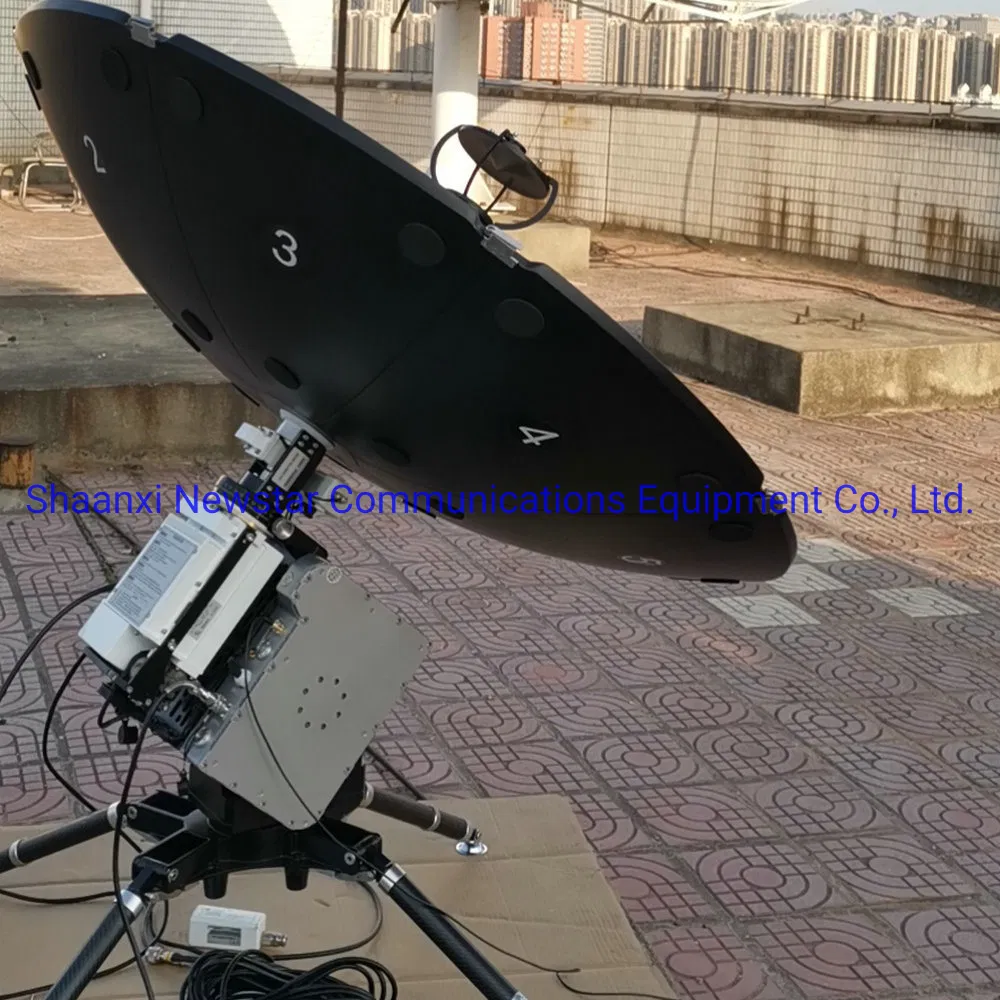

4feet Center Feed Portable Antenna with 6 Petals
4feet center feed portable antenna with 6 petalsCharacteristics:1.Meets or exceeds CCIR 580 and INTELSAT requirements2.Ring focus antenna;3.Light weight,small volume,high accurancy,high strength;4.High gain, Low sidelobe, high G/T rate;5.Hot-dipped zinc processed Antenna mount, with strong corrosion......
Send Inquiry
Product Description
Characteristics:
1.Meets or exceeds CCIR 580 and INTELSAT requirements
2.Ring focus antenna;
3.Light weight,small volume,high accurancy,high strength;
4.High gain, Low sidelobe, high G/T rate;
5.Hot-dipped zinc processed Antenna mount, with strong corrosion resistant ability;
6.Easy to assemble or disassemble.
7.Easy to maintenance.
Optional:
LNB,BUC.
ELECTRICAL SPECIFICATIONS
Antenna Diameter | 1.2m | |
Band | Ku | |
| Receive | Transmit |
Operation Frequency(GHZ) | 10.95~12.75 | 13.75~14.5 |
Gain(GHZ) | ≥ 41.5+20lg(f/12.5) dB | ≥ 42.5+20lg(f/14.25) dB |
-3dB Beamwidth | 1.4° | 1.23° |
VSWR | 1.3:1 | 1.3:1 |
Cross-polarization | 35dB | 35dB |
Isolation,Rx to Tx,dB | 85dB | |
Power Capacity | / | 1 |
Polarization | Linear | |
Feed Interface | WR-75 | |
First Sidelobe | ≤-14dB | |
MECHANICAL SPECIFICATIONS
| Antenna diameter | 1.2m | |
| Antenna type | Ring focus | |
| Panel qty | 8pcs Linear segmentation panels | |
| Searching Time | ≤ 3 minutes | |
Panel material | Carbon Fiber | |
| Working mode | AZ&EI(Auto), POL(Manual) | |
| Control mode | Wire/Wireless PC, One-key access, Wireless terminal | |
Travel Range | Azimuth | 360° |
| Elevation | 10°~90° | |
Polarization | ±90° | |
Operational wind load | Steady wind≤50km/h(with balance weight) |
| Survival wind load | Gust≤65km/h(with Strengthen balance weight) |
| Using temperature | -25°C~+65°C |
Storage temperature | -40°C~+75°C |
| Protective level | IP66(Standard:GB4208-2008) |
