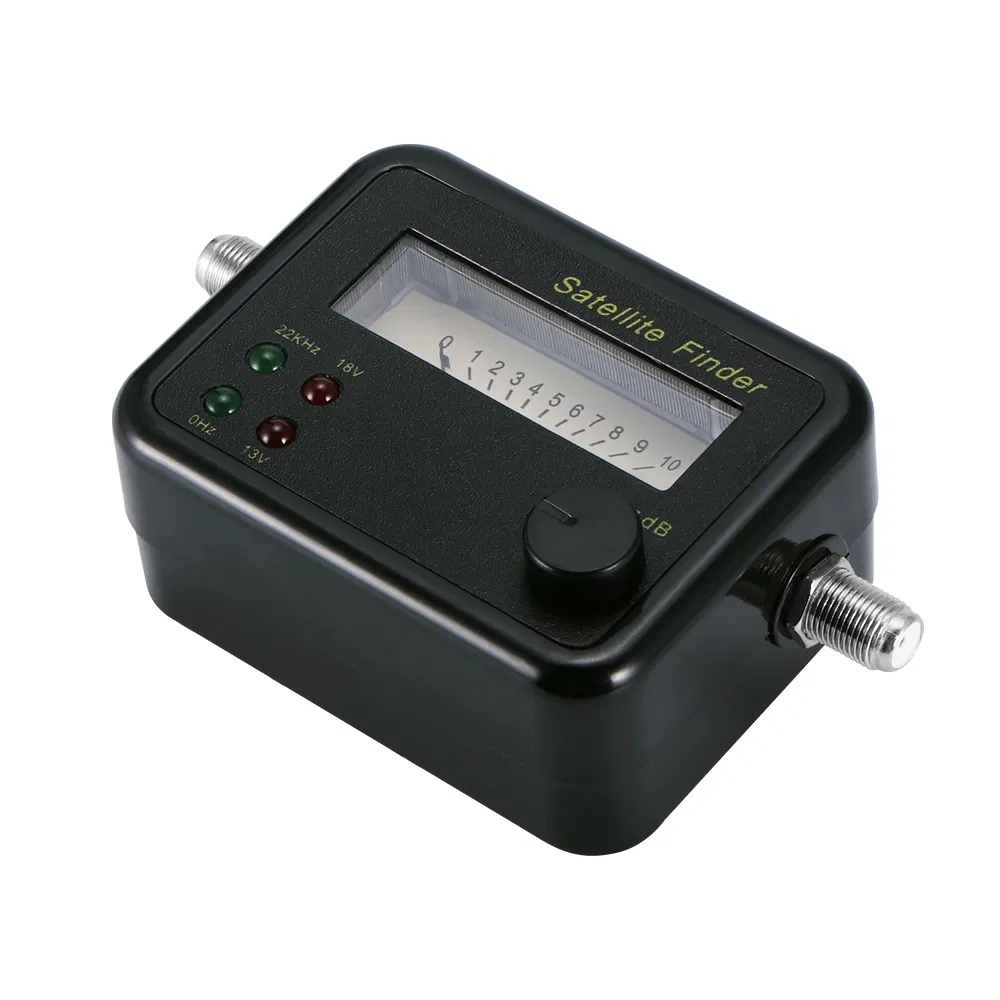

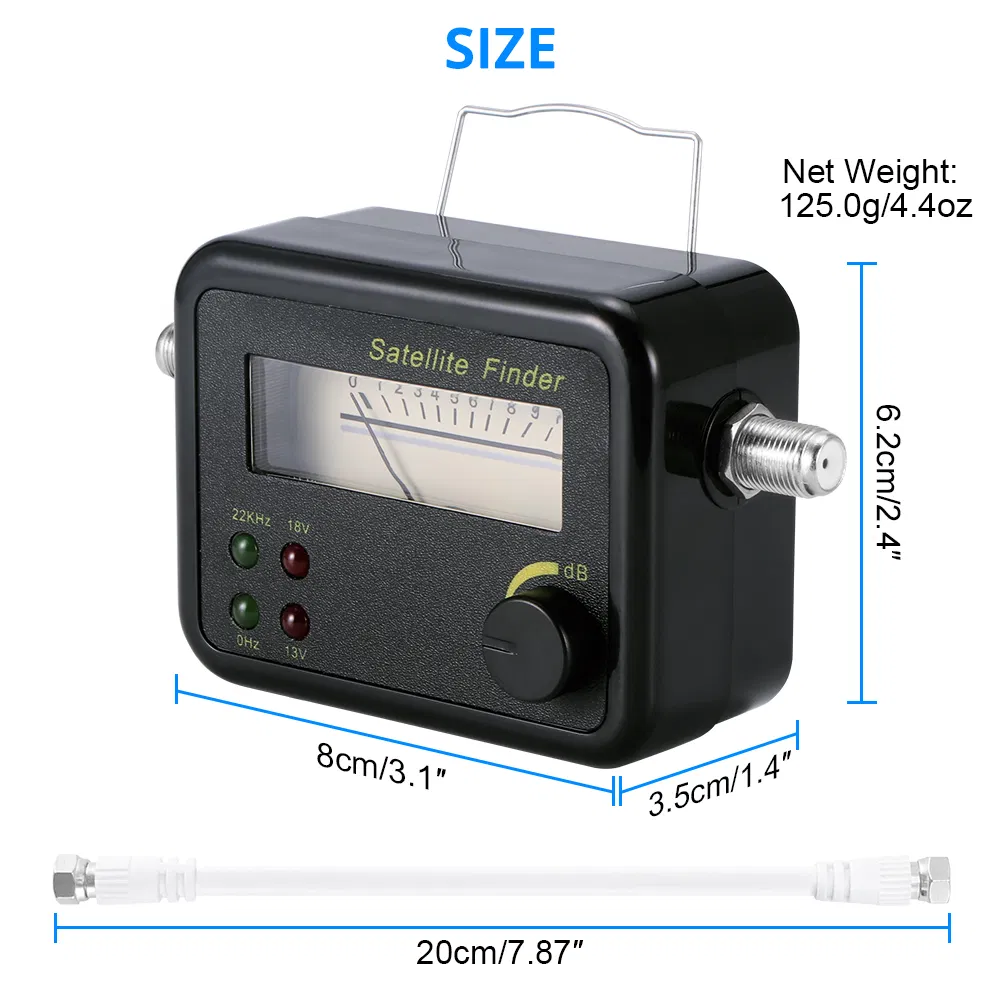

2 LED Light Displayed Digital Signal Satfinder Meter

Detailed Product Description

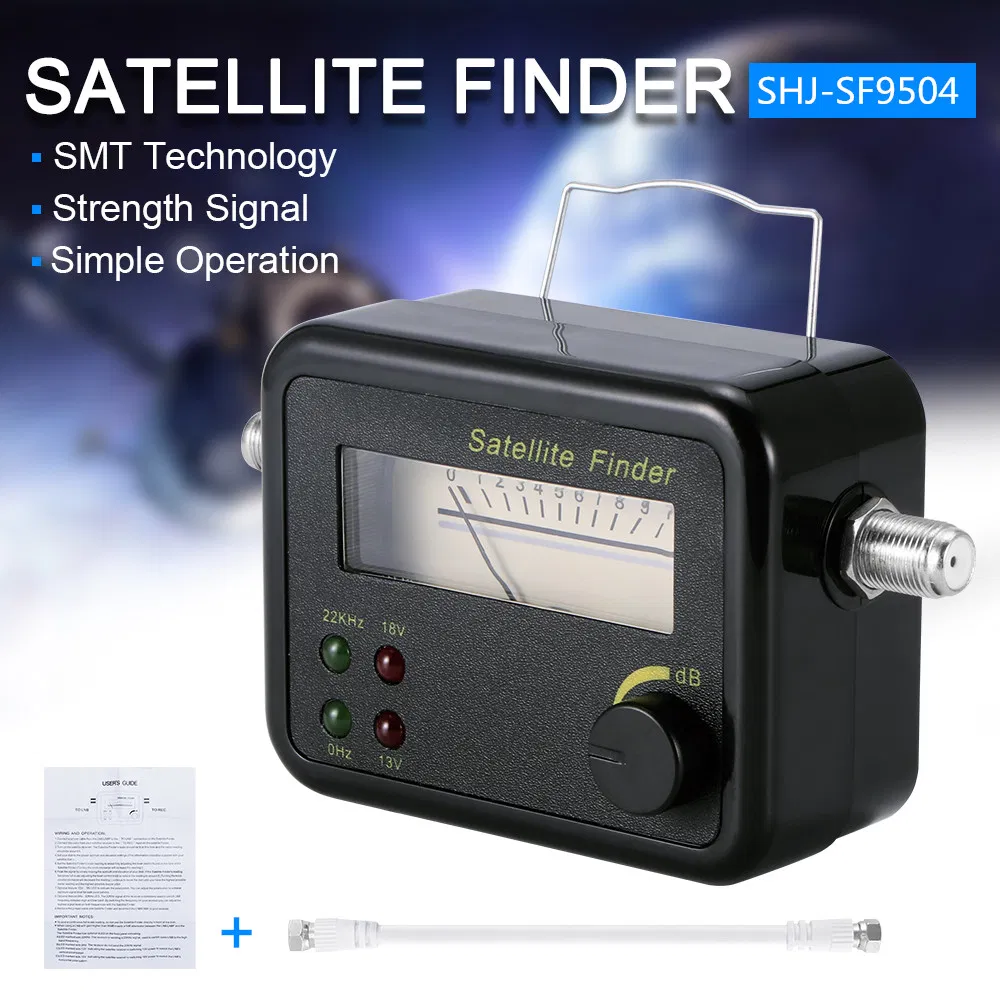

Satellite Finder

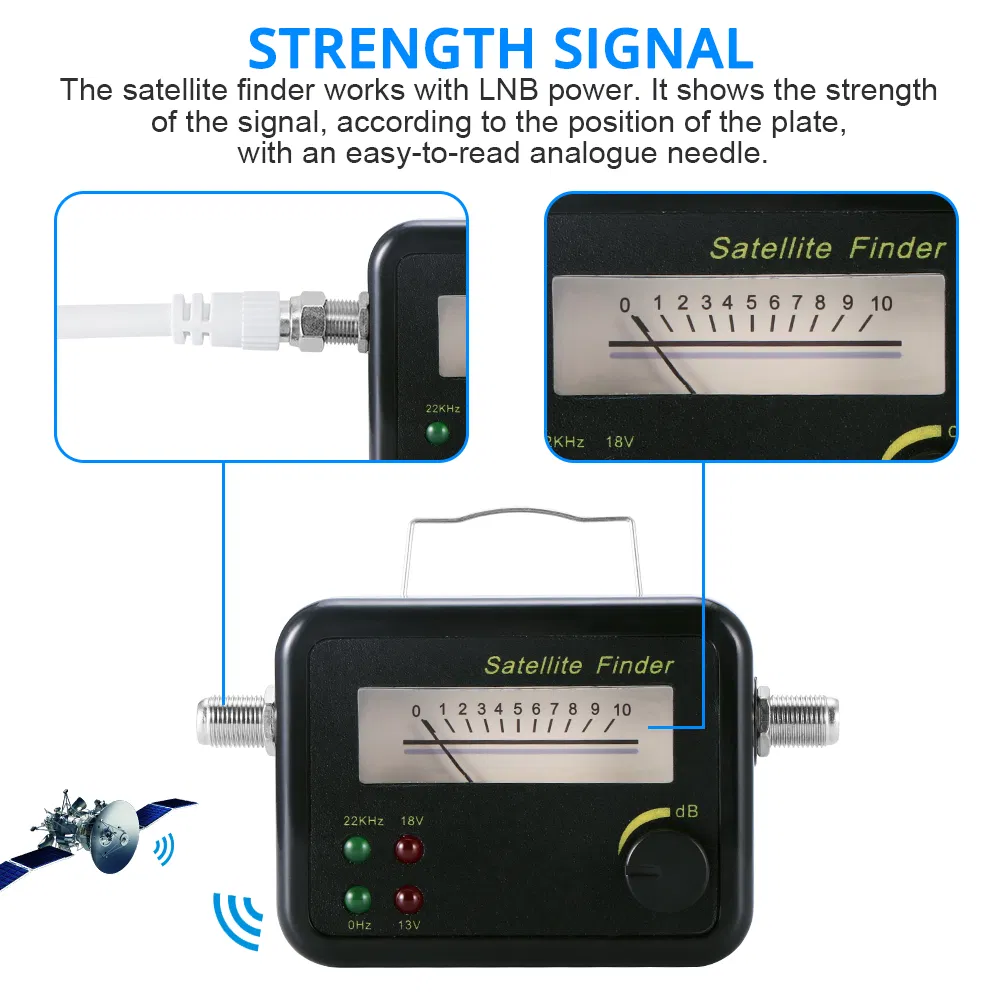

1. In-line IF signal strength meter
2. Excellent sensitivity

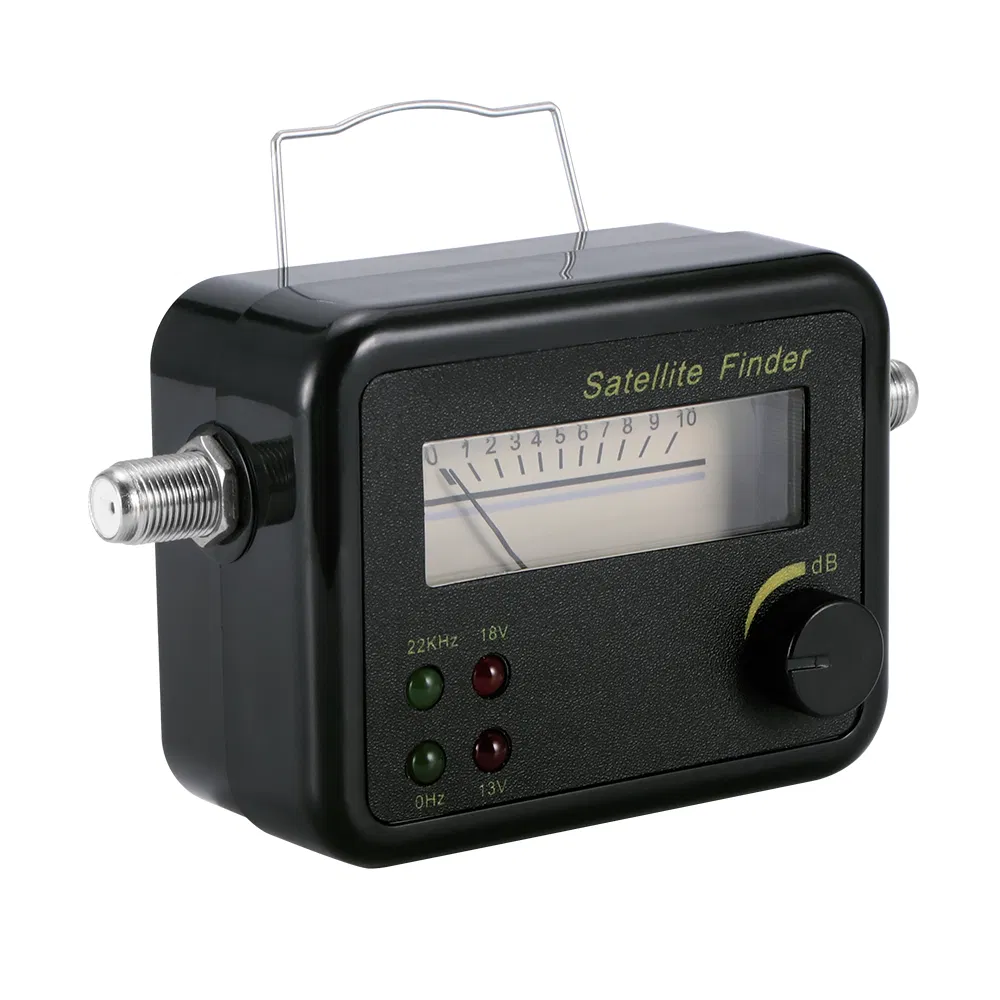

3. Built-in 0Hz/22KH, 13V/18V LED and buzzer

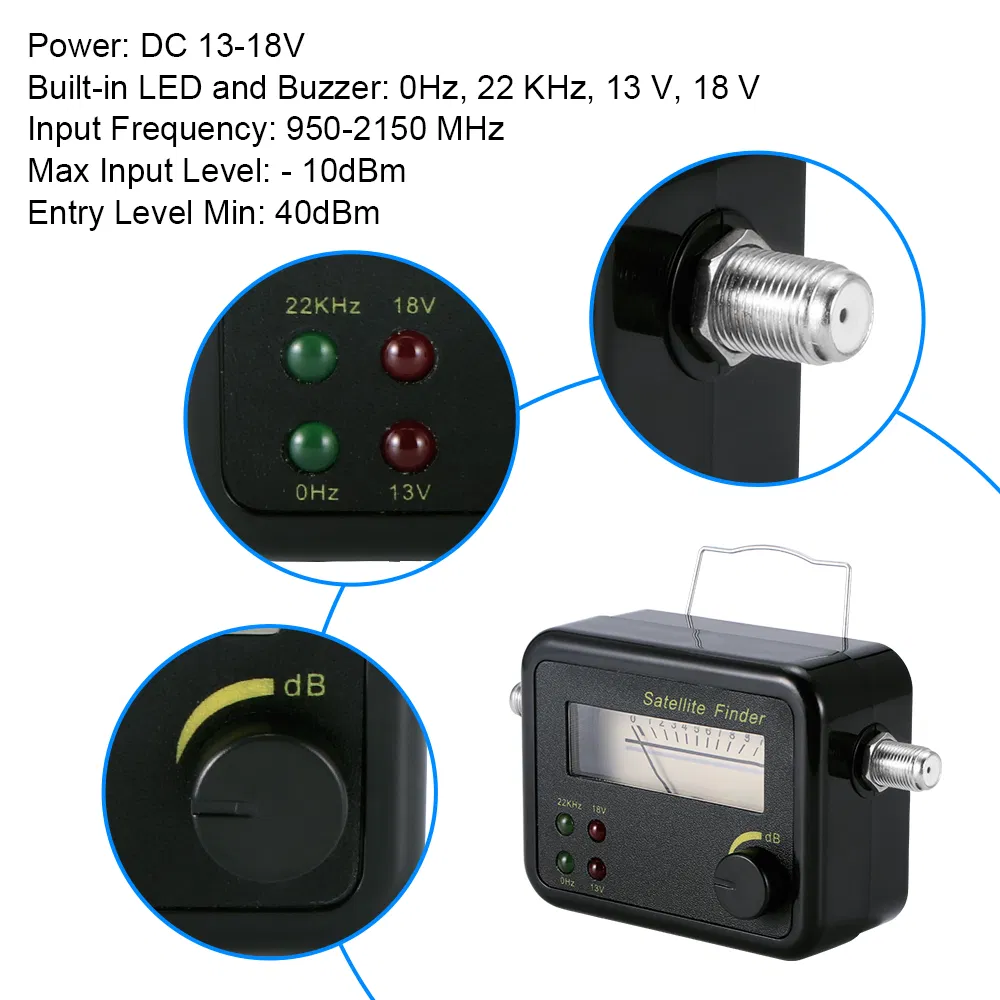

Specifications:

1) Pocket size and lightweight
2) High sensitivity
3) Audio tone function

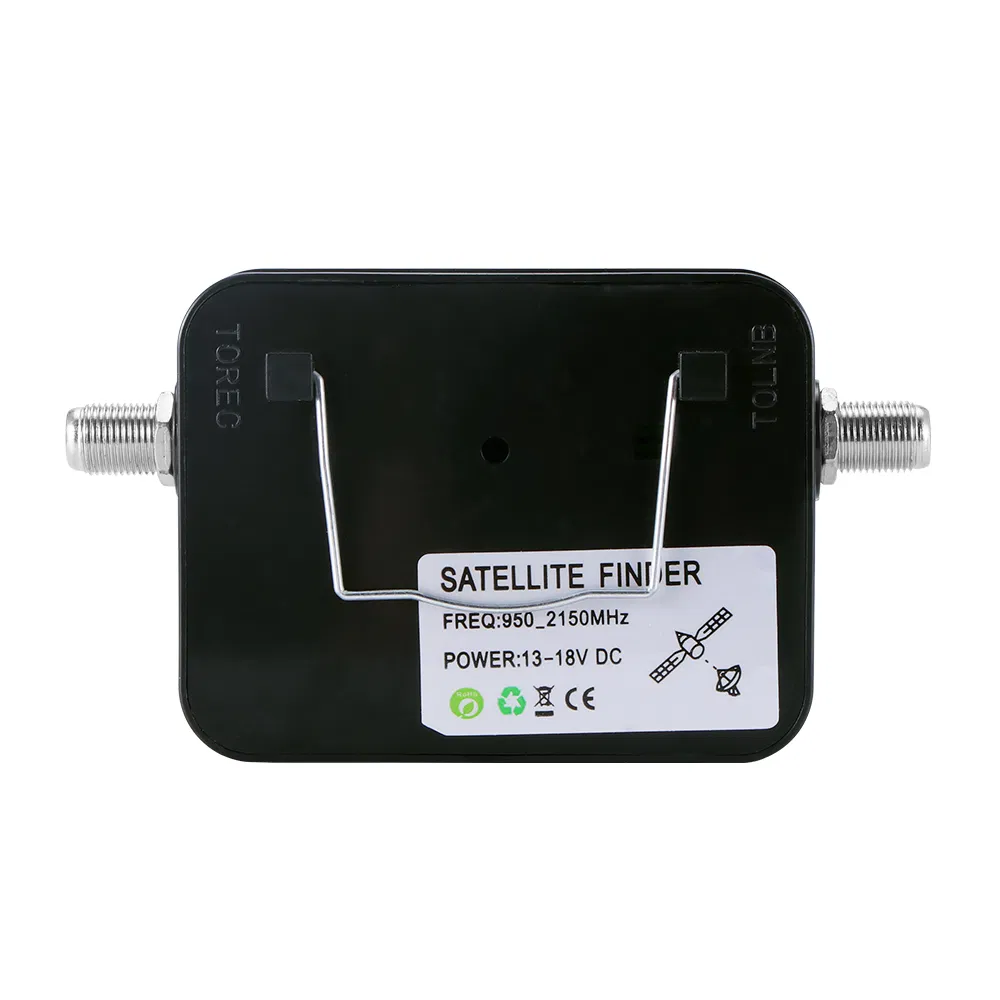

4) Input frequency: 950-2, 150MHz
5) Input level: -25dBm ~ +75dBm
6) Sensitivity: 7μ V under 55dB gain, 15dB three carrier C/N
7) Operating range: LNB gain 52-60dB

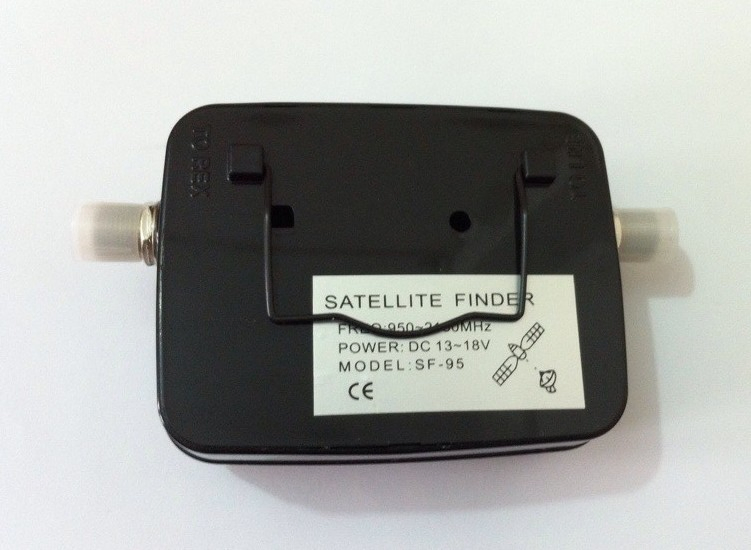

8) DC power plug: +13 to 18V/DC

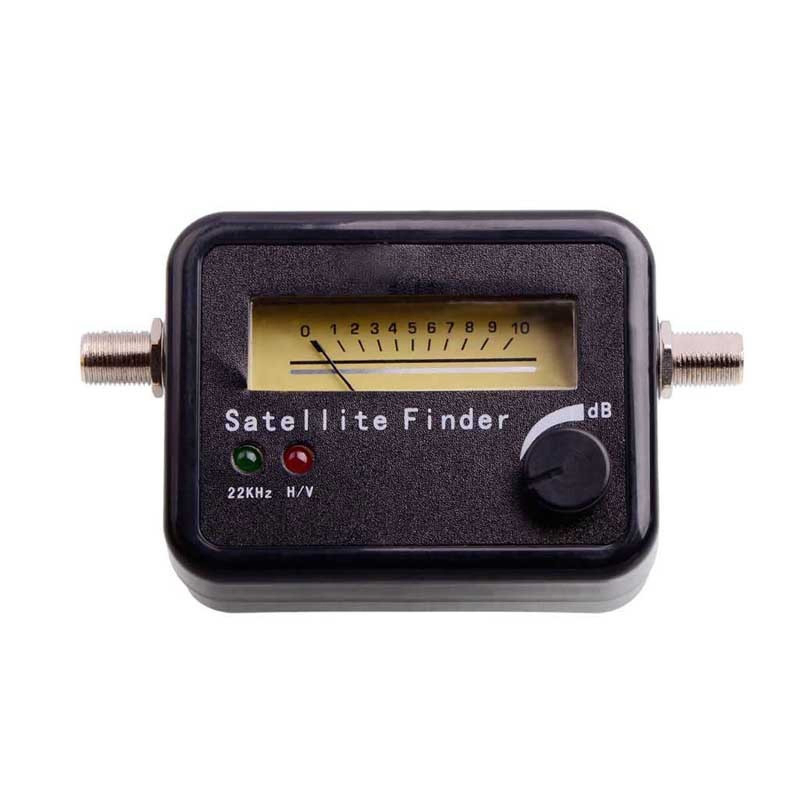

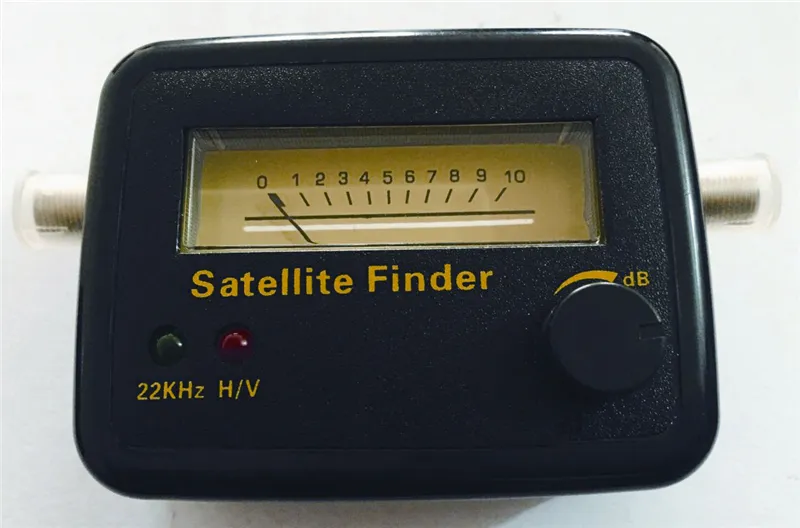

Satellite Finder
*with dial level indicator.
*Sensitive meter for in-line use. With electronic buzzer.
*Built-in amplifier compensates insertion loss.
*Pocket size and light weight.
*KV IEEE C62.41-1991 category A-3 ring wave and 1kV combination wave surge for all ports.
*Channel loading output levels, CTB, XM, CSO.

1. Enhance the television signal
2. Enhance the television image clarity
3. Reduce the TV noise
4. It used to find the satellite signal

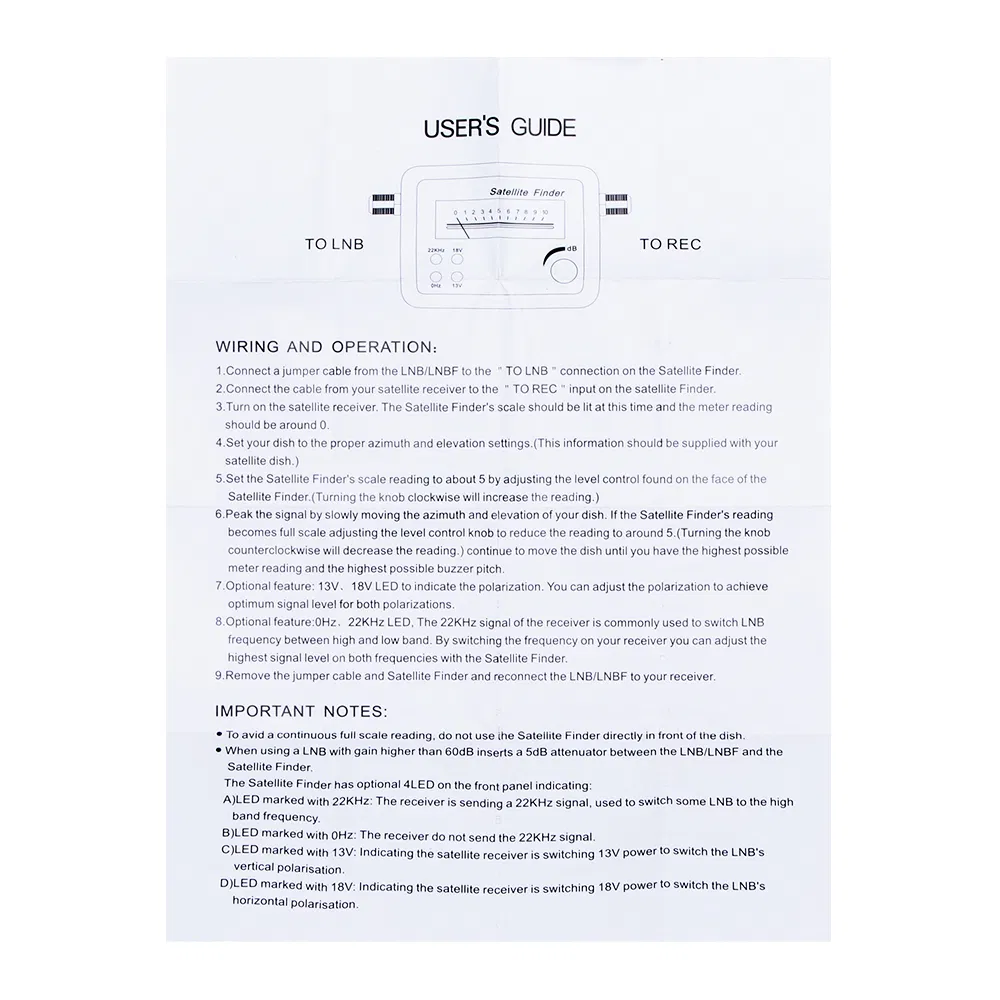

NOTE:

1. To avoid a continuous full scale reading, do not use the satellite finder directly in front of the dish.
2. When using a LNB/LNBF with gain higher than 60 dB, insert a 5dB attenuator between the LNB/LNBF and the satellite finder.
