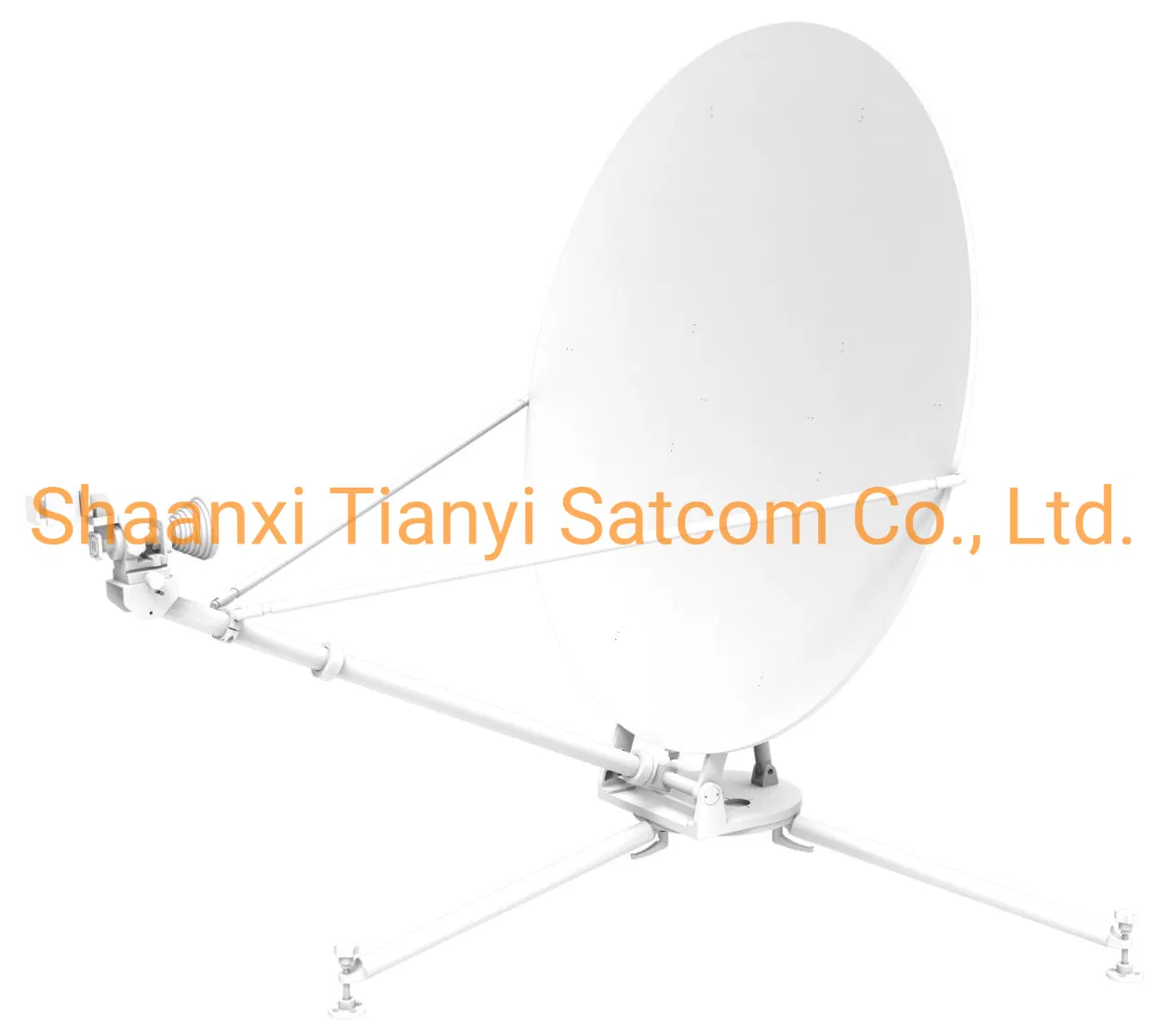

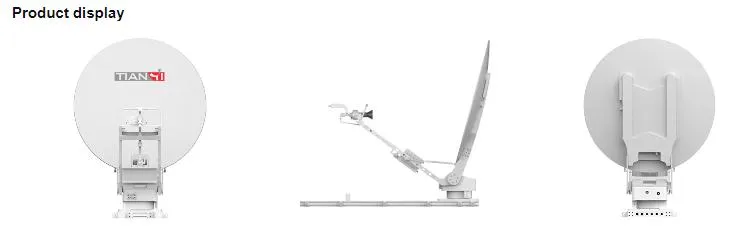

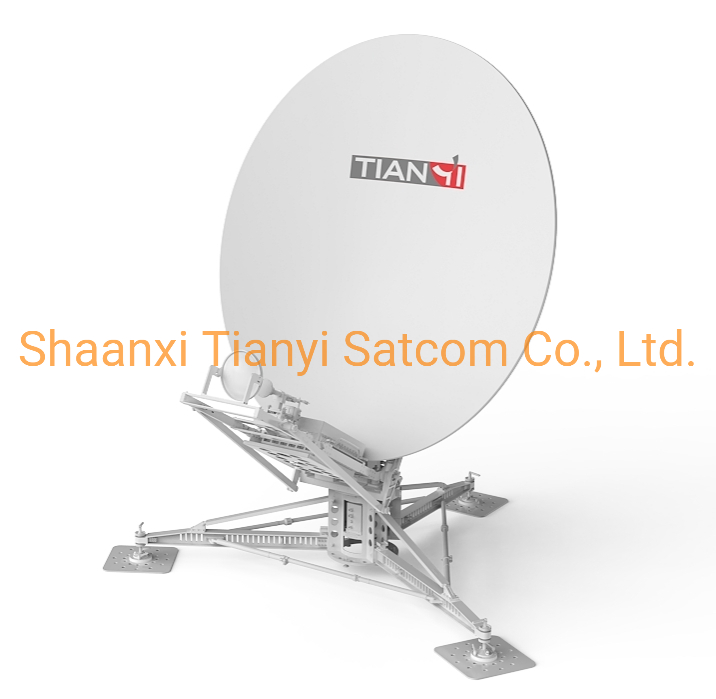

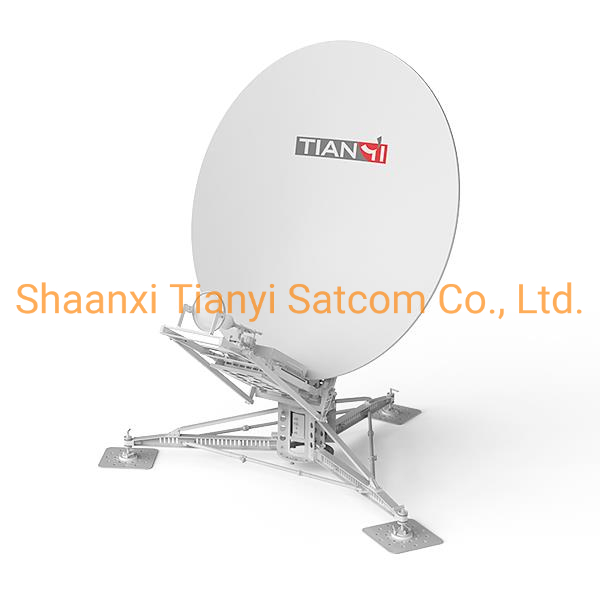

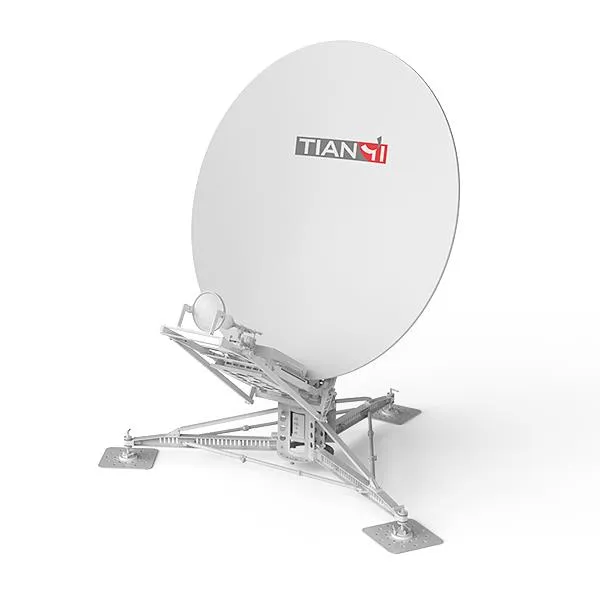

2.4m Ku Band Auto Deploy Flyaway Antenna
2.4m Ku Band Auto Deploy Flyaway Antenna HighlightA. Support manual, auto and one button capture satellite within 30 minutes.;B. Carbon fiber reflector and tripod with stable material, light weight, high strength and is convenient for portable application. C. Gregory dual offset assures high gain, l......
Send Inquiry
Product Description
Highlight
A. Support manual, auto and one button capture satellite within 30 minutes.;
B. Carbon fiber reflector and tripod with stable material, light weight, high strength and is convenient for portable application.
C. Gregory dual offset assures high gain, low side lobe and perfect RF proformance.
D. The antenna system is provided with GPS system, position detection system, POL adjustment system ,servo drive system, auto protection system , high performance satellite beacon receiving system , antenna controller and intelligent control management software etc .
E. Provision of motorized and manual control modes for the convenient emergency operation at various conditions
ApplicationsSudden public events and all kinds of disasters on-site information gathering Disaster relief.
Public security, government, oil, water conservancy, electricity, finance and other important sectors of the country
The remote areas and the vast rural areas out of coverage.
Field operations, exploration, news media.
Technical date
Model No | AF2400D-A | |
Ku band | ||
Operational Frequency | Tx | 10.7~12.75GHz |
Rx | 13.75~14.5GHz | |
Gain (Mid Band) | Tx | 48.5+20lg(f/14.25) dBi |
Rx | 47.5+20lg(f/12.5) dBi | |
Polarization | linear | |
CPI (On Axis, linear) | 35 dB | |
Tx/Rx Isolation | 85 dB | |
RF Interface | WR75 | |
MF interface | N-50K | |
Side Lobe | -14 dB(first side lobe) | |
Feed Type | Single offset | |
Reflector Aperture | 2.4m | |
Reflector Material | Carbon fiber | |
Shipping
Shipping by sea is our usually method send goods to our customers, Send small spare parts we through by air or by express to our customers
Q1. What's our payment terms?
A: We only accept T/T payment
Q2. What's your production lead time?
A: Based on your purchase quantity. If we have your requested products in stock, We'll send goods after received your prepayment. If no spot goods, we'll according to two parties negotiation as sales contract
