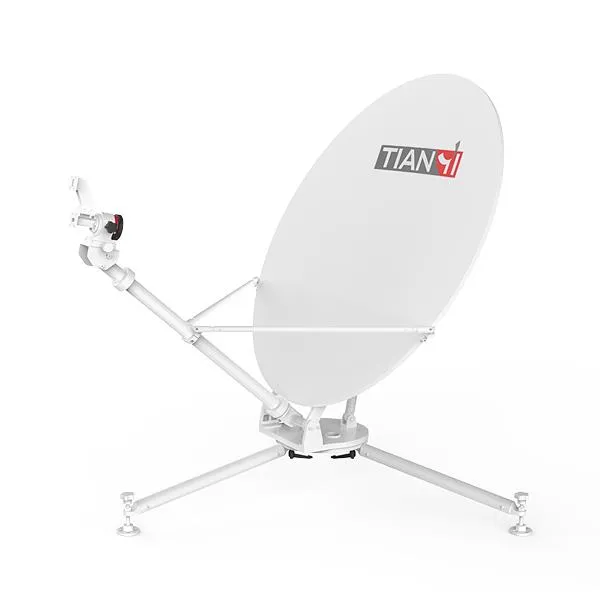

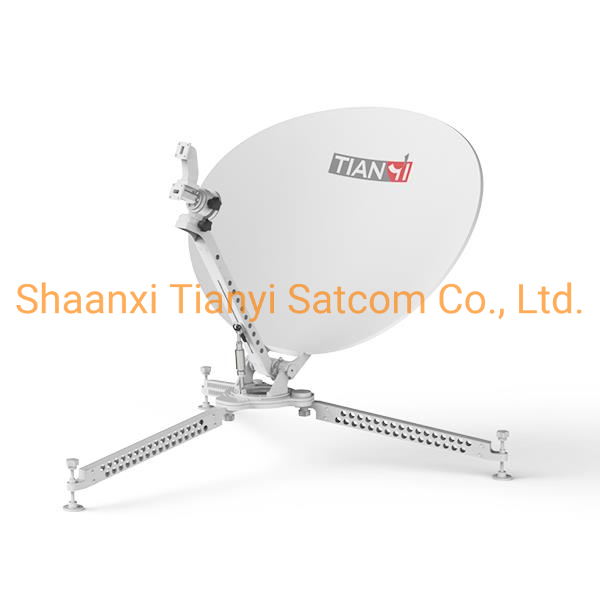

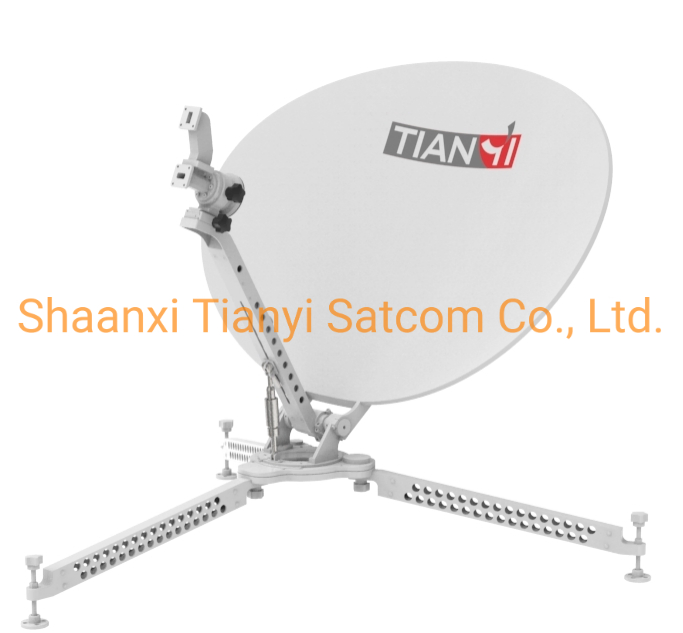

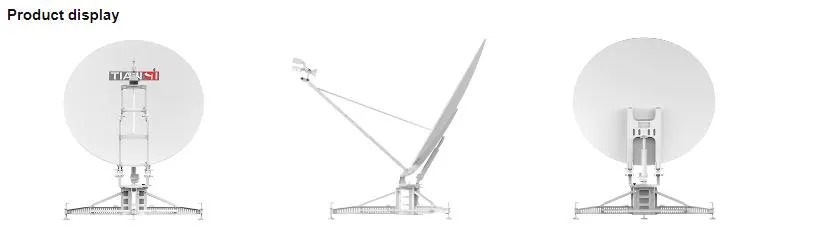

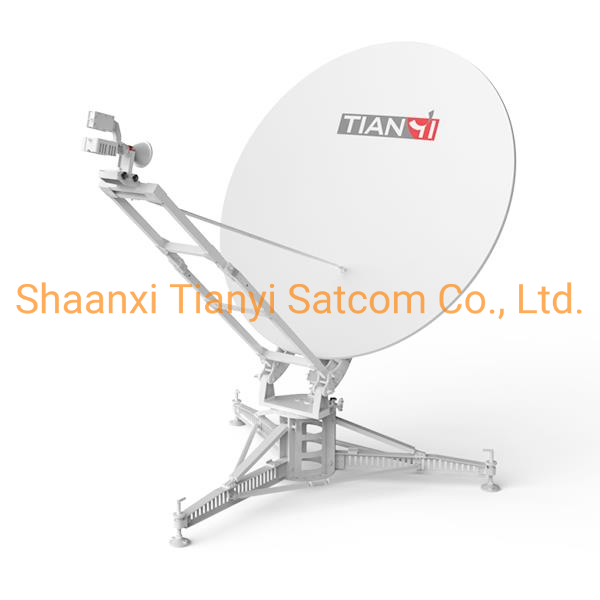

0.9m Ku Band Carbon Fiber Reflector Manual Flyaway Antenna System
0.9m Ku Band Carbon Fiber Reflector Manual Flyaway Antenna System HighlightA. Superior RF performance through optimization design of reflector and RF branch.B. simple in disassembly and assembly, one person can finish the installation within 3 minutes. C. Fast and high quality band width transmissio......
Send Inquiry
Product Description
Highlight
A. Superior RF performance through optimization design of reflector and RF branch.
B. simple in disassembly and assembly, one person can finish the installation within 3 minutes.
C. Fast and high quality band width transmission with transmission band width not less than 4M anywhere and anytime.
D. High integration ,light weight ,case type.
E. No tool is needed in assembly & disassembly of the antenna and interchangeability is good.
Applications
Sudden public events and all kinds of disasters on-site information gathering Disaster relief.
Public security, government, oil, water conservancy, electricity, finance and other important sectors of the country
The remote areas and the vast rural areas out of coverage.
Field operations, exploration, news media.
Technical date
Model No | MF900-A | |
Ku band | ||
Operational Frequency | Tx | 13.75~14.50 GHz |
Rx | 10.7~12.75 GHz | |
Gain (Mid Band) | Tx | 39.8+20lg(f/14.0) dBi |
Rx | 38.5+20lg(f/12.0) dBi | |
Polarization | linear | |
CPI (On Axis, linear) | 35 dB | |
Axis Ratio (Circular) | / | |
VSWR | 1.3 | |
Tx/Rx Isolation | 85 dB | |
Power capability | 400W | |
Feed Interface | WR75 | |
Side Lobe | -14dB(first side lobe) | |
Feed Type | Single offset | |
Reflector aperture | 0.90M | |
Slew Range | Azimuth | ± 60° |
Elevation | 15°~90° | |
Polarization | ±90° | |
Weight | ≤ 13Kg(without BUC, LNB, packaging and accessories etc.) | |
