Multigang FM Radio Adjusting Potentiometer B10k B100k
Potentiometer, rotary potentiometers, 8mm Rotary potentiometer, metal shaft potentiometers, audio potentiometersBosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.The type potentiometer with cooper shaft......
Send Inquiry
Product Description

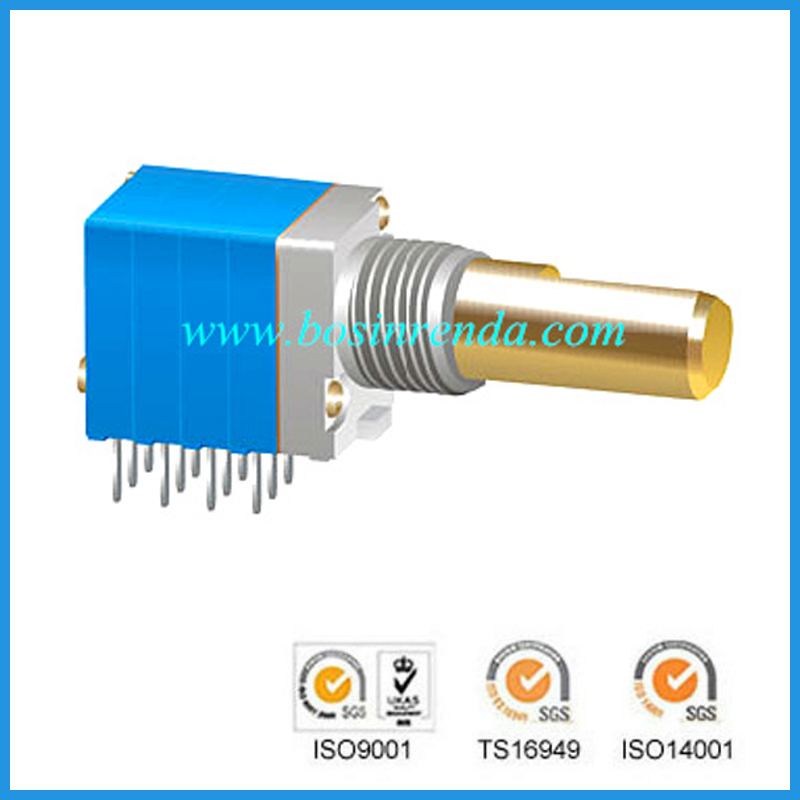

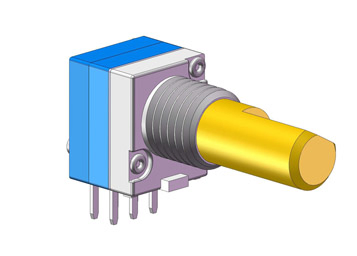

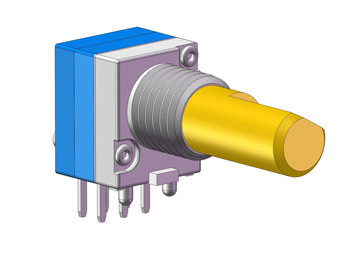

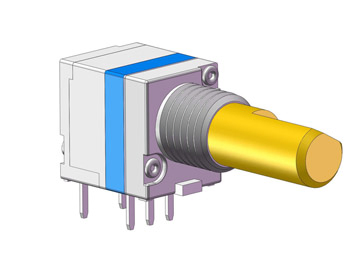

Potentiometer, rotary potentiometers, 8mm Rotary potentiometer, metal shaft potentiometers, audio potentiometers
Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.
The type potentiometer with cooper shaft, mainly used on audio equipment, interphone and radio
Following please check the specification.

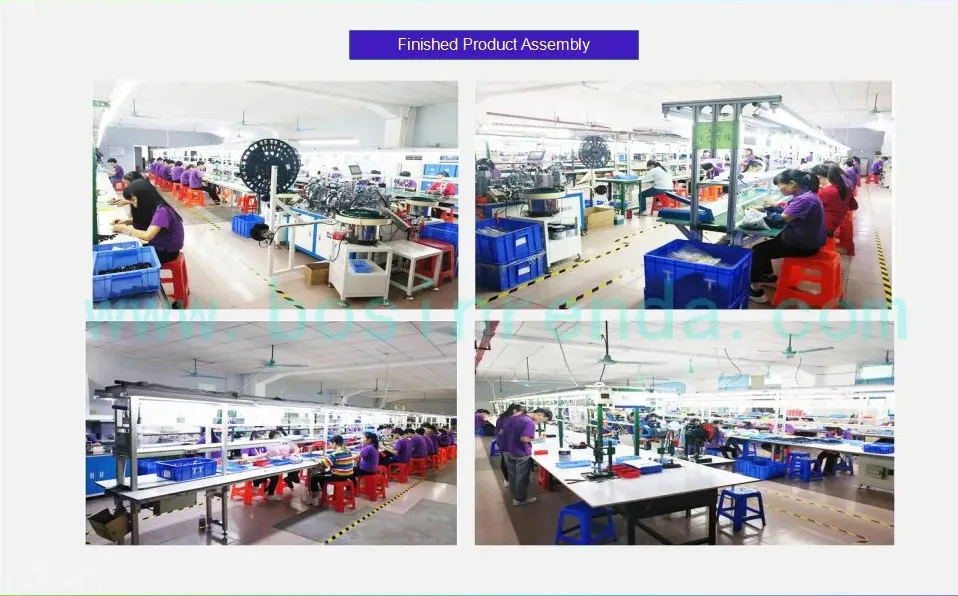

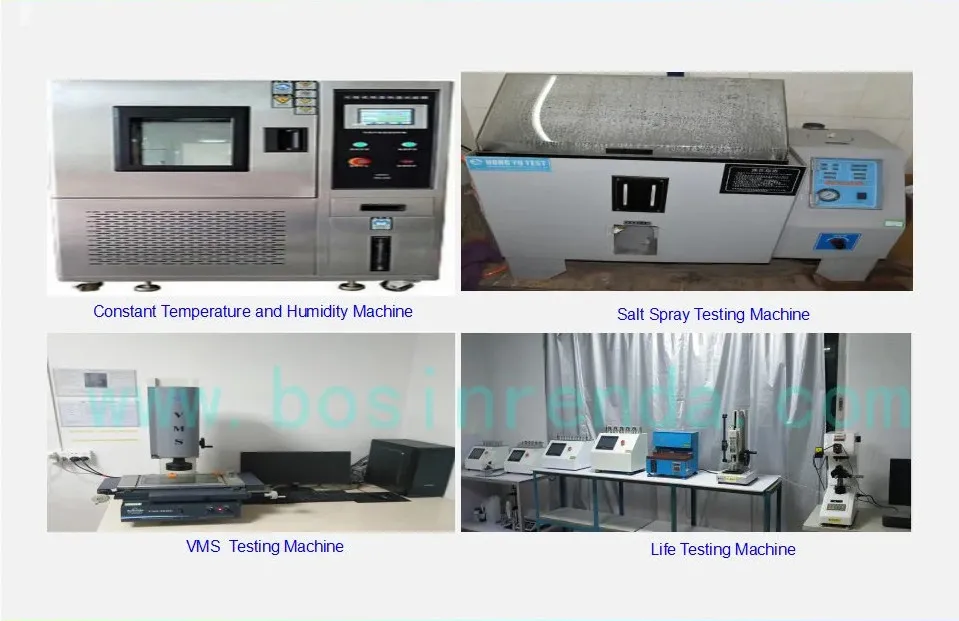

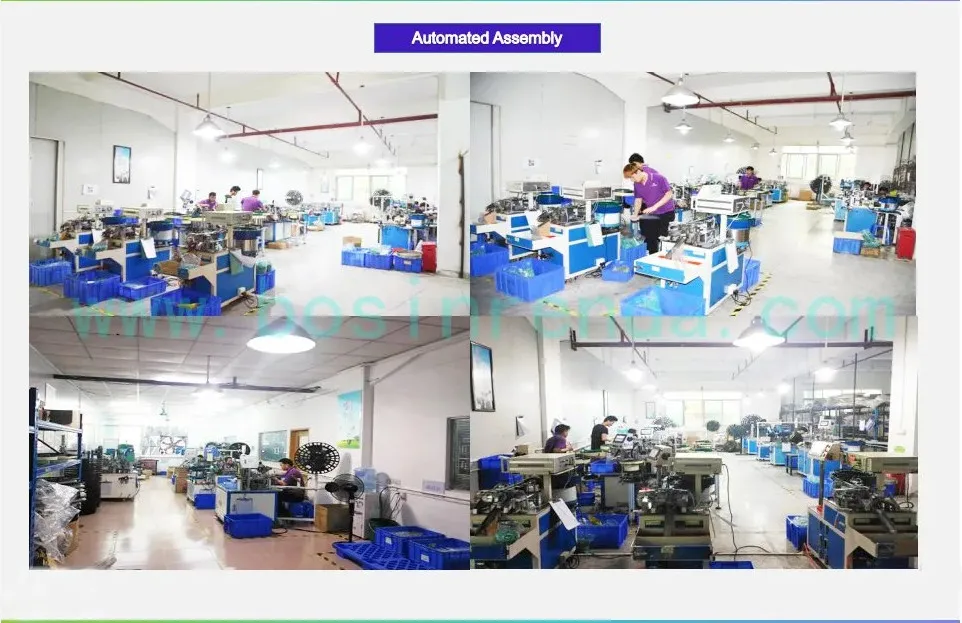

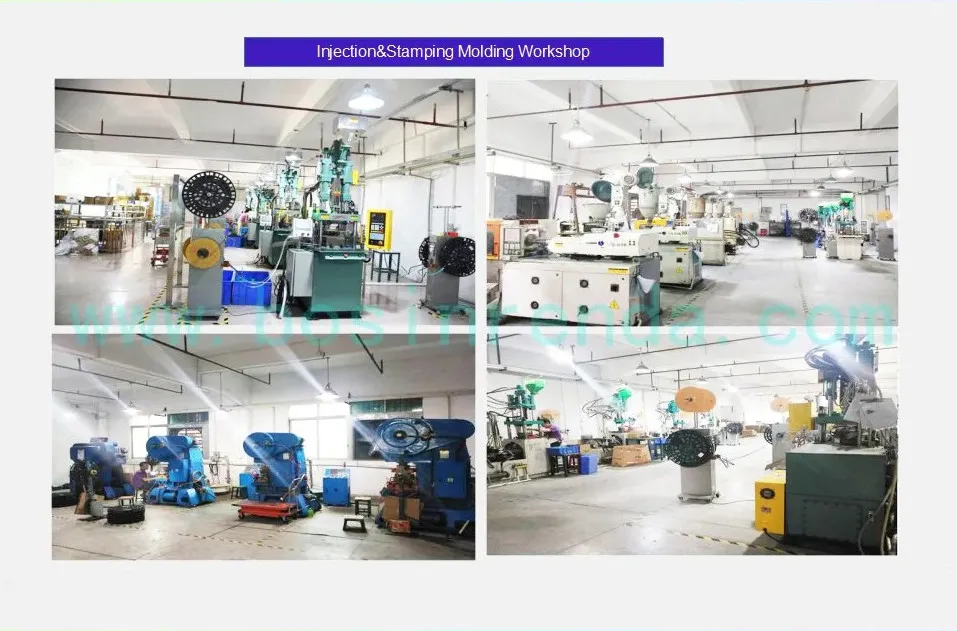

Factory
Dongguan Bosin Electronic CO.,LTD. are mainly engaged in developing, producing and marketing high-performance industry rotary encoder,potentiometer,switches,DC motor.passed ISO9001, ISO14001, ISO/TS16949.
With the strong R&D team ,our company have gained several proprietary intellectual property rights,seven software copyrights and one patent have been achieved . Three patents for invention are applied on the way.
Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.
The type potentiometer with cooper shaft, mainly used on audio equipment, interphone and radio

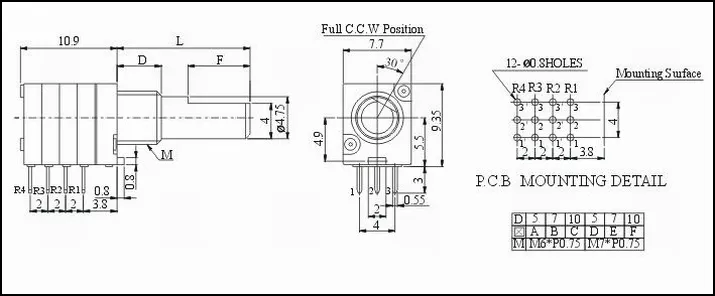

Following please check the specification.
| 1.Mechanical characteristics for 8mm rotary potentiometer | |
| 1.1 Total Rotational Angle: | 300°±10° |
| 1.2 Rotational Torque: | 20~100 gf.cm |
| 1.3 Stopper Strength: | 3.0Kgf.cm Min |
| 1.4 Push-Pull Strength: | Pull: 8Kgf Max; Push: 6Kgf Max |
| 1.5 Shaft wobble: | 0.5 mm Max |
| 1.6 Detent: | 1(Center) detent, 11 detents |
| 2.Electrical characteristics | |
| 2.1 Total Resistance: | 1KΩ~1MΩ |
| 2.2 Resistance Tolerance: | ±20% |
| 2.3 Resistance Taper: | A,B,C |
| 2.4 Max. operating Voltage: | AC 50V, DC 10V |
| 2.5 Rated Power: | 0.05W |
| 2.6 Sliding Noise: | 100 MV Max |
| 2.7 Insulation Resistance: | Less Than 100MΩ at DC 250V |
| 2.8 Withstand Voltage: | 1 minute at AC 300V |
| 2.9 Residual Resistance: | 50Ω Max |
| 3.0 Gang error: | 40db~0db±3db |
| 3.Durability | |
| 3.1 Rotational Life: | 30,000 Cycles Min. |
| 3.2 Cold Test: | -20±2°C for 96 hours |
| 3.3 Dry Heat: | 70±2°C for 96 hours |
| 3.4 Temperature Cycle: | -20~+70°C, 5 cycles |
| 3.5 Soldering Condition: | Wave Soldering: 260°C±5°C,5 Sec. Max |
| Manual Soldering: 350°C±10°C 3 Sec Max. | |
| 4. Switch Characteristics | |
| 4.1 Rated Power: | 3.0 A at DC 16V |
| 4.2 Contact Resistance: | Less than 50mΩ |
| 4.3 Switch Angle: | 30°±10° |
| 4.4 Switch Torque: | 150~450gf.cm |
| 4.5 Switch Life: | 25,000 cycles without load |
Factory
Dongguan Bosin Electronic CO.,LTD. are mainly engaged in developing, producing and marketing high-performance industry rotary encoder,potentiometer,switches,DC motor.passed ISO9001, ISO14001, ISO/TS16949.
With the strong R&D team ,our company have gained several proprietary intellectual property rights,seven software copyrights and one patent have been achieved . Three patents for invention are applied on the way.
