High Quality Single Solution Euro Star C Band LNB
BoWei 3.7-4.2G C Band 5150MHz 5750MHz Twin / Dual output LNBF.OEM & ODM availableProduct Image SpecificationModel NumberBW-380BInput Frequency3.7-4.2 GHzLocal Frequency5150MHz & 5750MHzOutput Frequency950-1450MHz & 1550-2050MHzOuput Interference F-male connectorL.O. Stability&plus......
Send Inquiry
Product Description
BoWei 3.7-4.2G C Band 5150MHz 5750MHz Twin / Dual output LNBF.
OEM & ODM available

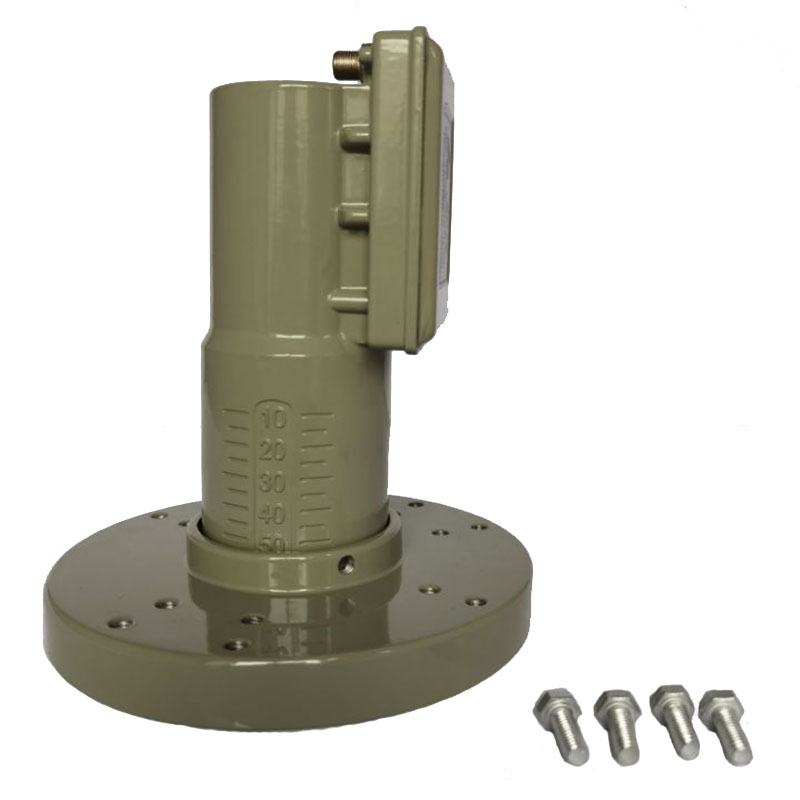

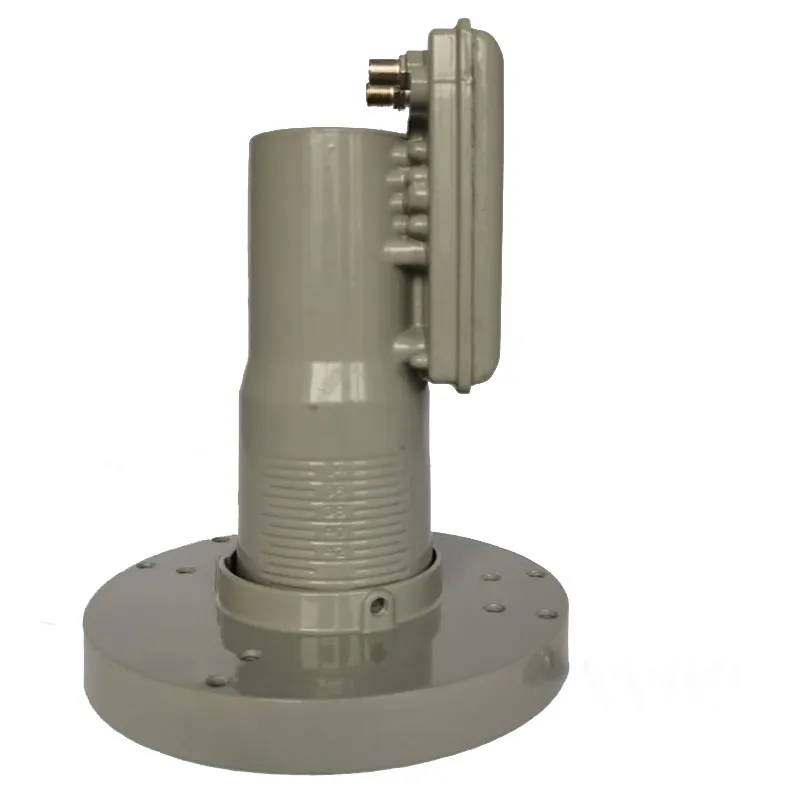

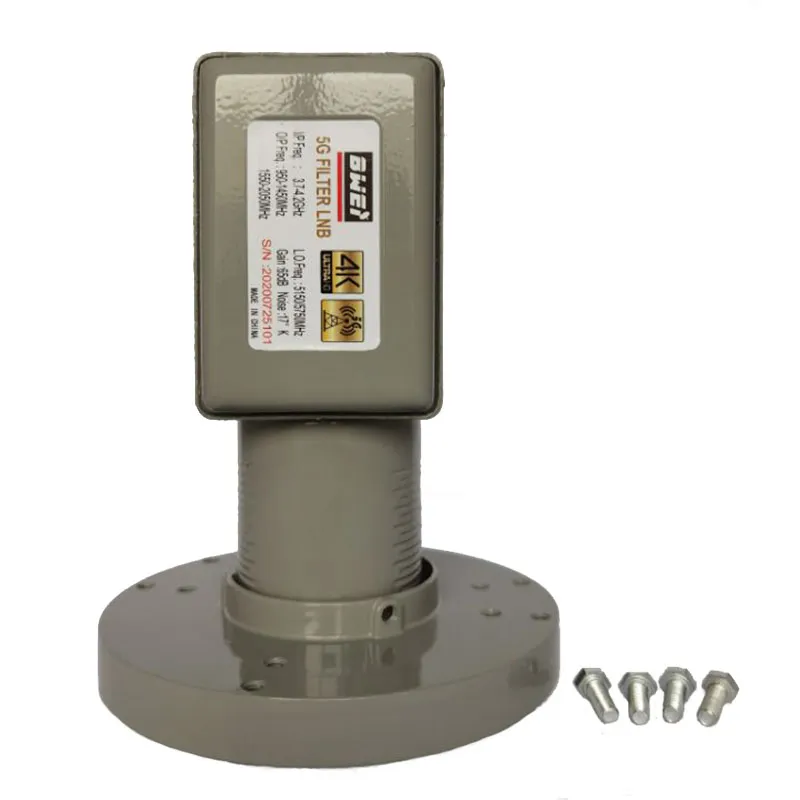

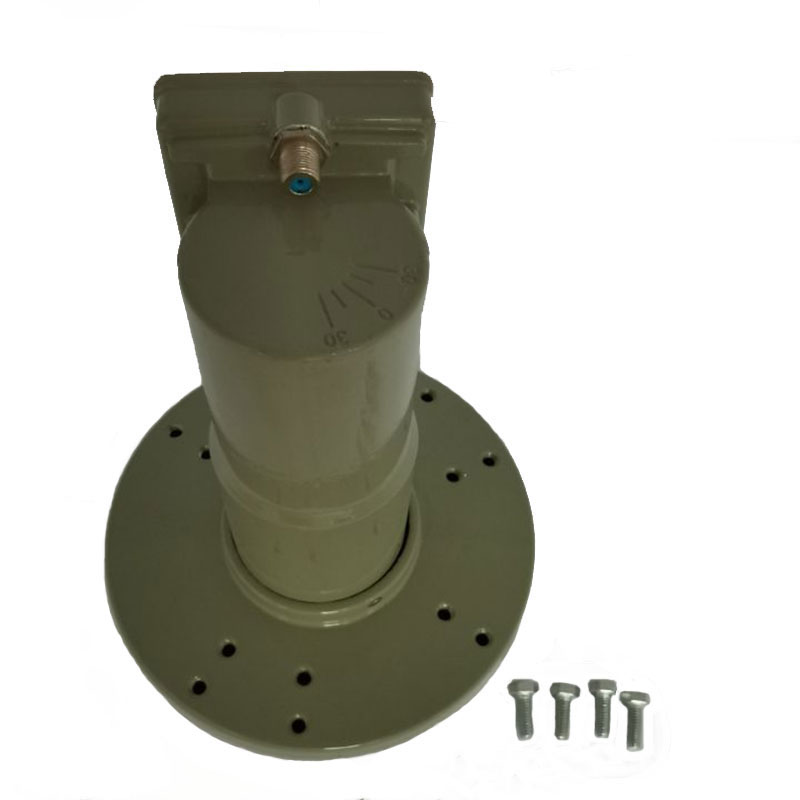

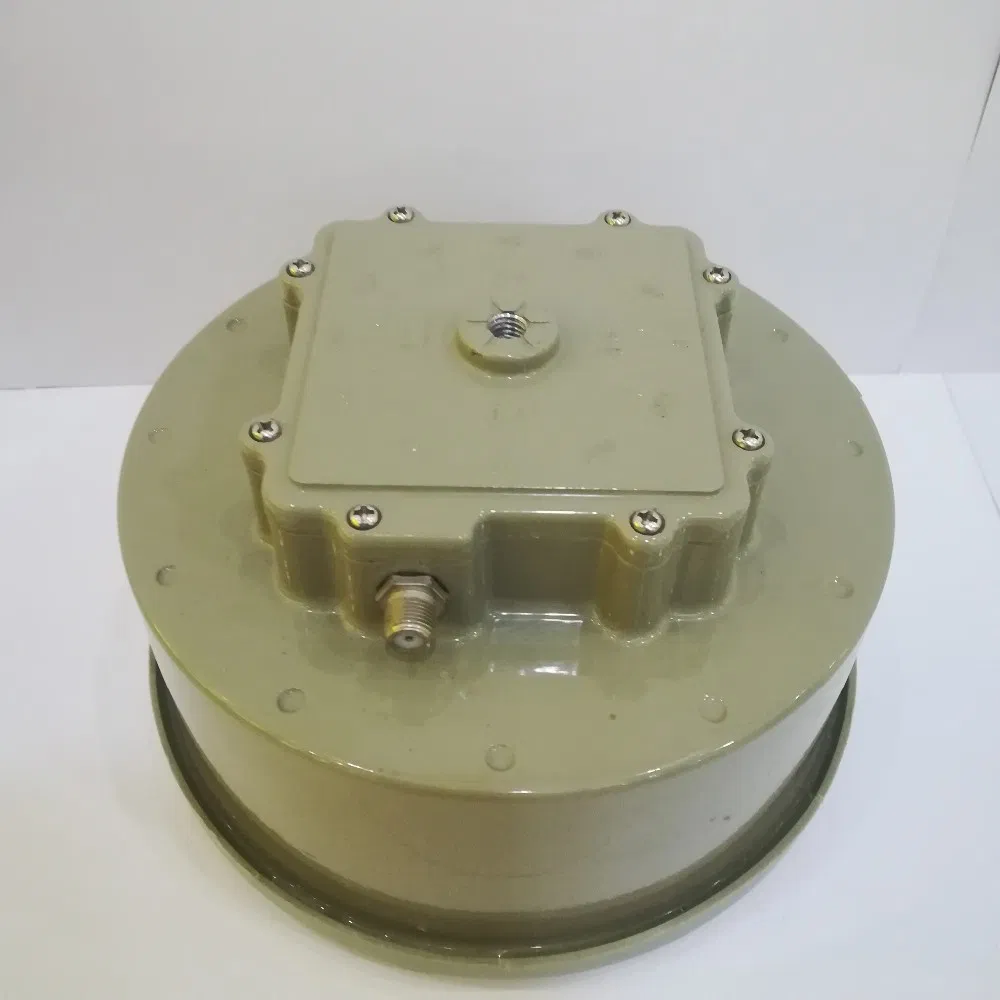

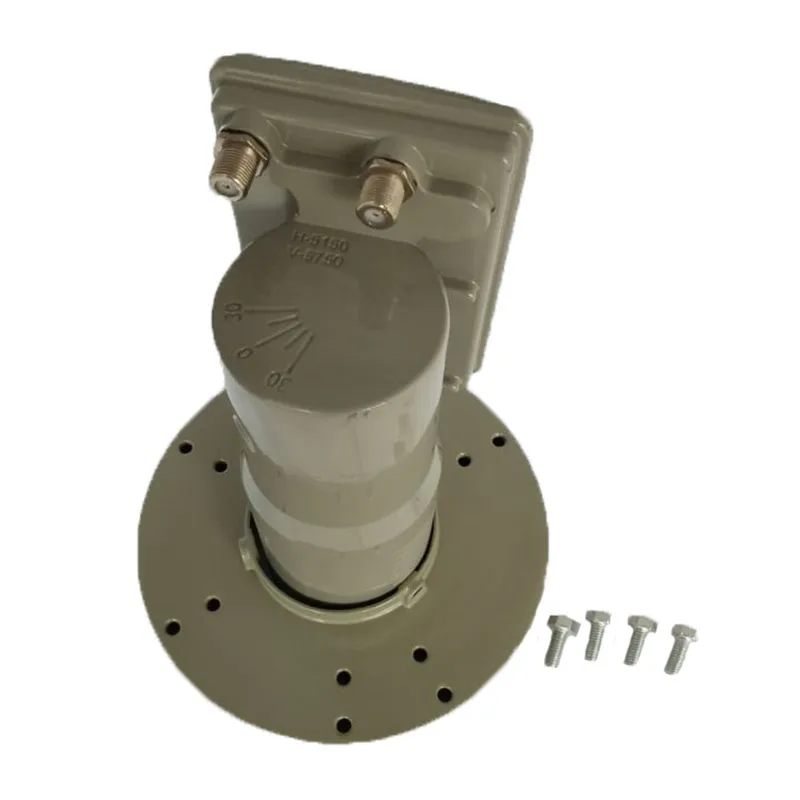

Product Image
Specification
Model Number | BW-380B |
Input Frequency | 3.7-4.2 GHz |
Local Frequency | 5150MHz & 5750MHz |
Output Frequency | 950-1450MHz & 1550-2050MHz |
Ouput Interference | F-male connector |
L.O. Stability | ±1.5MHz ( - 40 ºC to +70ºC ) |
Noise Figure | <17°K typ |
Gain | >65dB typ |
Gain Flatness | ±1 dBm (max) |
Input VSWR | 2.5:1 (max) |
Output VSWR | 2.0:1 (max) |
Connector | F-type female |
Output Impedance | 75Ω |
Cross Polar Isolation | 20dB (min) |
Image Rejection | 45dB (min) |
Phase Noise | -75dB/Hz@10kHz (max) |
Supply Voltage | 11.5-14.0V (Vertical Polarization) 16.0-19.0V (Horizontal Polarization) |
Operation Temperature | - 40 ºC to +70ºC |
Storage Temperature | - 40 ºC to +80ºC |
Relative Humidity | 0% ~ 95% |

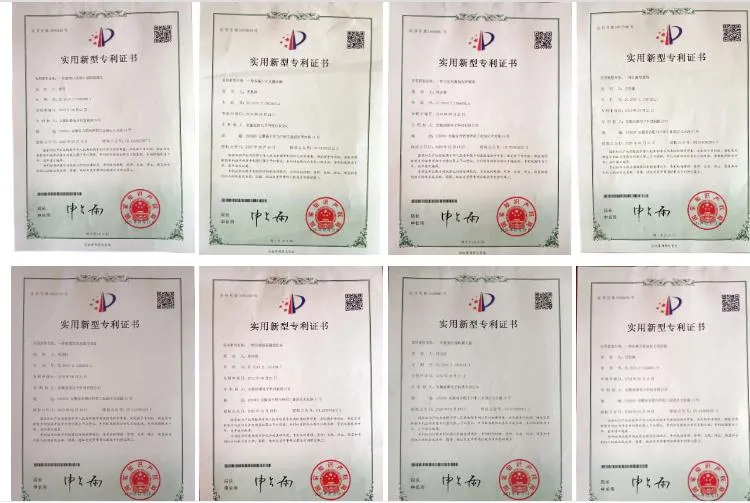

Patent Certificate & Test Report

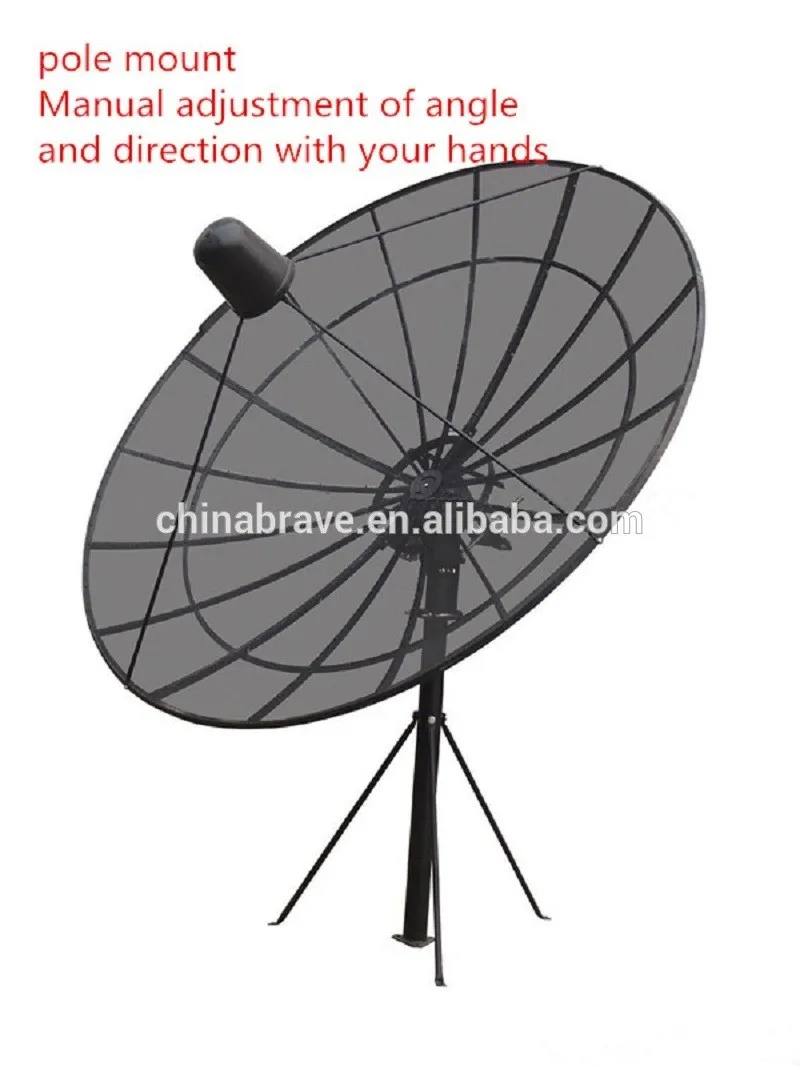

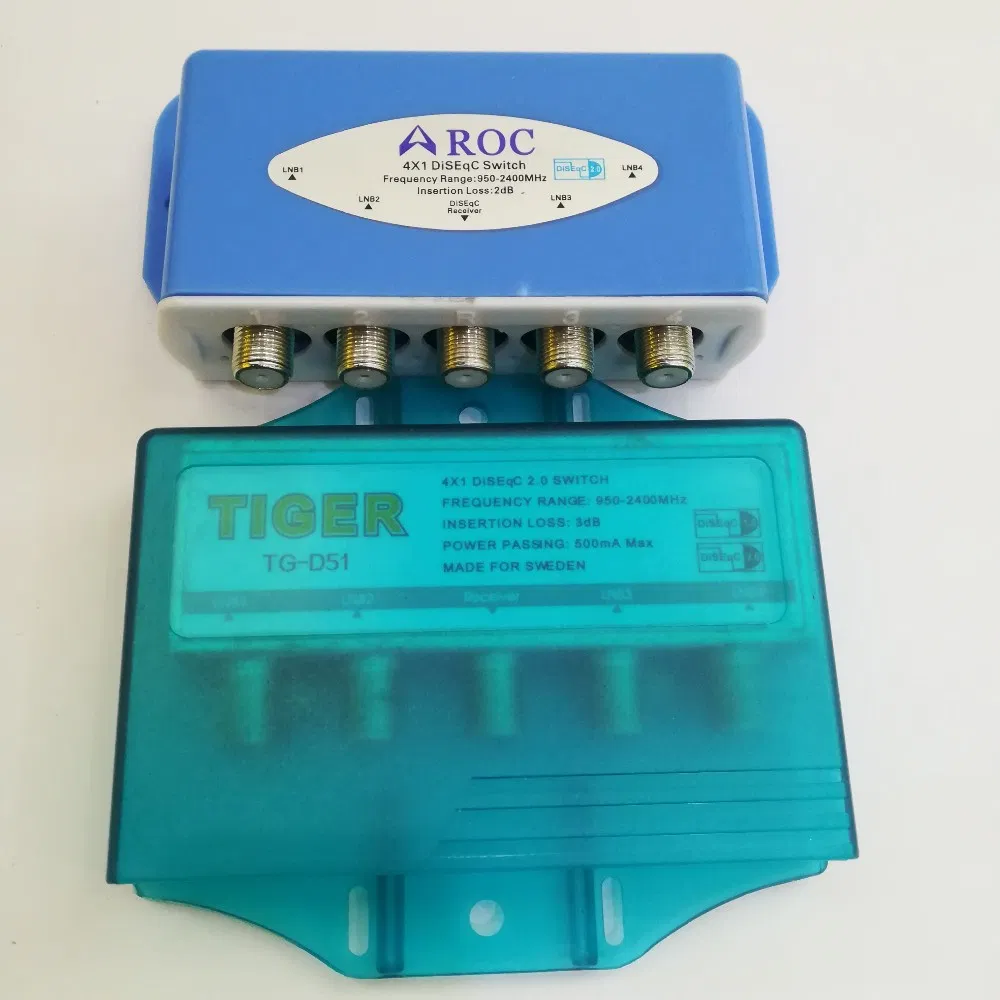

Related Products

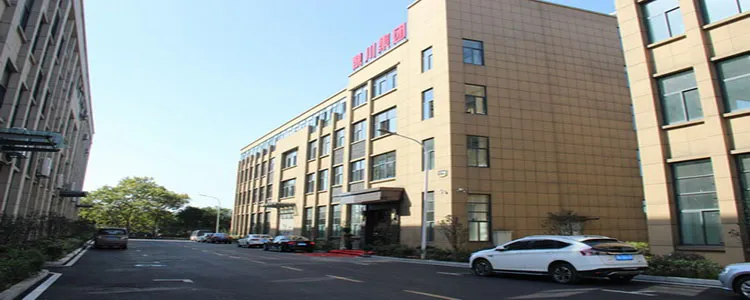

Company Overview
Anhui Bowei Electronic Technology Co., Ltd is a National high and new technology enterprise engaged in the research, development, production, fabrication, marketing and project of microwave high frequency electronics, over voltage protection equipments and light current projects.
We are a professional manufacturer for 21 years specialized in S,C,Ku Band LNB,MMDS Downconverter,Dish/Antenna,Receivers,Wave Filters,Amplifiers,Duplexer and etc.
The essential components of our products are selected from original imported ones and the main inspection instruments adopt HP instruments and meters, all of which are fabricated in modern assembly line. Moreover, a professional well-trained team for the management, production and sales are serviced for our company.Excellent devices,superior team and advanced production testing equipment guaranteesthe finest quality and the best products for our customers.
The products command a good market both at home and abroad. Microwave high frequency electronics are mainly exported to Europe, Southeast Asia, Middle East, North America etc 83 countries and areas. Back in the domestic markets, Bowei provides service for the national rural cable TV installation project and also the digital improvement for Regional Radio and TV Cable Network Companies. Meanwhile, over-voltage and over-current protection equipments are widely distributed around the country and mostly applied in fields of electricity ,petroleum , chemistry , metallurgy,cement and steel. Moreover, light current projects are chiefly designed for such places as bank, school, hospital, Residential sub districts, parking lot etc.
We are a professional manufacturer for 21 years specialized in S,C,Ku Band LNB,MMDS Downconverter,Dish/Antenna,Receivers,Wave Filters,Amplifiers,Duplexer and etc.
The essential components of our products are selected from original imported ones and the main inspection instruments adopt HP instruments and meters, all of which are fabricated in modern assembly line. Moreover, a professional well-trained team for the management, production and sales are serviced for our company.Excellent devices,superior team and advanced production testing equipment guaranteesthe finest quality and the best products for our customers.
The products command a good market both at home and abroad. Microwave high frequency electronics are mainly exported to Europe, Southeast Asia, Middle East, North America etc 83 countries and areas. Back in the domestic markets, Bowei provides service for the national rural cable TV installation project and also the digital improvement for Regional Radio and TV Cable Network Companies. Meanwhile, over-voltage and over-current protection equipments are widely distributed around the country and mostly applied in fields of electricity ,petroleum , chemistry , metallurgy,cement and steel. Moreover, light current projects are chiefly designed for such places as bank, school, hospital, Residential sub districts, parking lot etc.
Packing & Delivery
Packing
All standard export packing or as your requirements
Delivery
For samples and small orders, we suggest HK post,EMS,DHL,FedEx,TNT and UPS.
Shipping out the goods within 7 working days after getting payment.
Large quantity suggest shipping by sea, we usually ship out within 10-15working days.
Shipping out the goods within 7 working days after getting payment.
Large quantity suggest shipping by sea, we usually ship out within 10-15working days.
FAQ
1. Are you a factory or trading company?
Re: We are a factory with more than 20 years MMDS downconverter and LNB manufacture experiences.
2. What's the Material of your products?
Re:The main material is Aluminum.
3.Can you make products as our specification providing OEM&ODM service?
Re: Yes. Our Company are a OEM&ODM having a professional engineer team who can design the products as your specification.
4 How does your factory do regarding about quality control ?
Re:Quality is the priority.The products will be examined many times by our technicians before packing.
5.What about your services?
Re: We respond to you during 7*24hours
6.How long is your products warranty period?
Re: We guarantee the warranty period 2years.
7.What are the main customers you have?
Re:We welcome every kind of customers, such as Wholesaler,retailer,Agents,middlemen,and any other Secondary terminal users.
8.Can design special band as our specification?
Re:Yes, of course, we have succeed design down converter between band 2.1-2.3,2.3-2.5,2.2-2.4 and 2.7-2.9GHz .Design new products is the our biggest advantage.
9.Why choose Anhui Bowei Electronics Technology Co., Ltd?
Re:21years specialized in LNB,MMDS down converter and Antenna etc. 8 years Gold Supplier in Alibaba,and we have professional team and good after-sale services.
10.Where is your factory located? How can I visit there?
Re:Our factory is located in Hefei City, Capital of Anhui Province,China, near Shanghai.You can fly to Hefei Xinqiao International Airport directly. All our clients, from home or abroad, we are warmly welcome to visit us.
11.Is it safe for the shipping? How can do if any questions happen on the way?
Re:As for the packing,we use the special carton with high quality and each in a box,or produce in your need.If any questions happen,we will reply you or solve within 24 hours
12.Can get samples before production?
Re:Yes.Preproduction samples will be available.
Re: We are a factory with more than 20 years MMDS downconverter and LNB manufacture experiences.
2. What's the Material of your products?
Re:The main material is Aluminum.
3.Can you make products as our specification providing OEM&ODM service?
Re: Yes. Our Company are a OEM&ODM having a professional engineer team who can design the products as your specification.
4 How does your factory do regarding about quality control ?
Re:Quality is the priority.The products will be examined many times by our technicians before packing.
5.What about your services?
Re: We respond to you during 7*24hours
6.How long is your products warranty period?
Re: We guarantee the warranty period 2years.
7.What are the main customers you have?
Re:We welcome every kind of customers, such as Wholesaler,retailer,Agents,middlemen,and any other Secondary terminal users.
8.Can design special band as our specification?
Re:Yes, of course, we have succeed design down converter between band 2.1-2.3,2.3-2.5,2.2-2.4 and 2.7-2.9GHz .Design new products is the our biggest advantage.
9.Why choose Anhui Bowei Electronics Technology Co., Ltd?
Re:21years specialized in LNB,MMDS down converter and Antenna etc. 8 years Gold Supplier in Alibaba,and we have professional team and good after-sale services.
10.Where is your factory located? How can I visit there?
Re:Our factory is located in Hefei City, Capital of Anhui Province,China, near Shanghai.You can fly to Hefei Xinqiao International Airport directly. All our clients, from home or abroad, we are warmly welcome to visit us.
11.Is it safe for the shipping? How can do if any questions happen on the way?
Re:As for the packing,we use the special carton with high quality and each in a box,or produce in your need.If any questions happen,we will reply you or solve within 24 hours
12.Can get samples before production?
Re:Yes.Preproduction samples will be available.
