Hfc 8 Ways Return Path Optical Receiver (HR2080A, HR2080B)

HFC 8 ways return path optical receiver
HR2080A, HR2080B

Product description

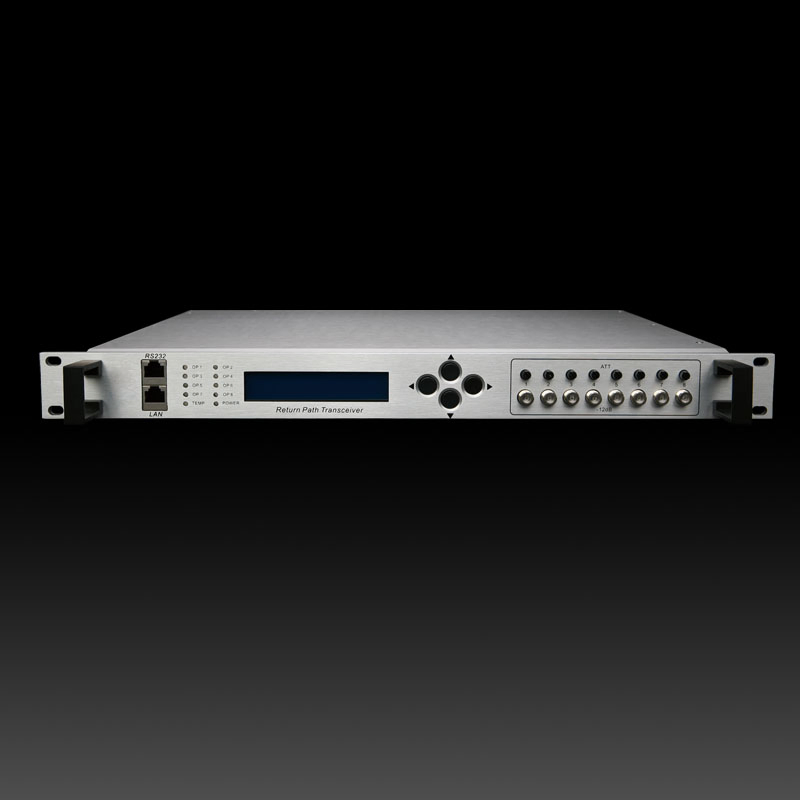

HR2080 series HFC 8 ways return path receiver can convert upstream optical signal to RF signal at the head-end and remote control center. 8 independent receivers integrated into a 1RU 19" casing to supply service for HFC network terminal. Receiver's low noise design, -22dBm receive sensitivity can provide service to farther place.
There are two versions of this receiver. HR2080A with LCD on the front panel, HR2080B without LCD. All receivers are temperature tolerance type can be installed in any network surroundings including out-door type. Both of these two types can adopt SNMP function which can control the front panel to realize optimization work at the head-end and remote installment.

Product features
1.8 low noise optical receiver, up to -22dBm receive sensitivity
2.1200~1620nm wide wavelength
3. SNMP network management function option
4. RF output level can be adjusted by network
5. Built-in 1+1 backup power, redundant A/B inputs (option)
6. Good performance of resistance to temperature, allow -40~+65º C operating temperature
7. Simple mode, 19" 1RU mount, contain 8 pcs of independent optical receiver
8. Excellent P/P ratio

Main application
HFC
