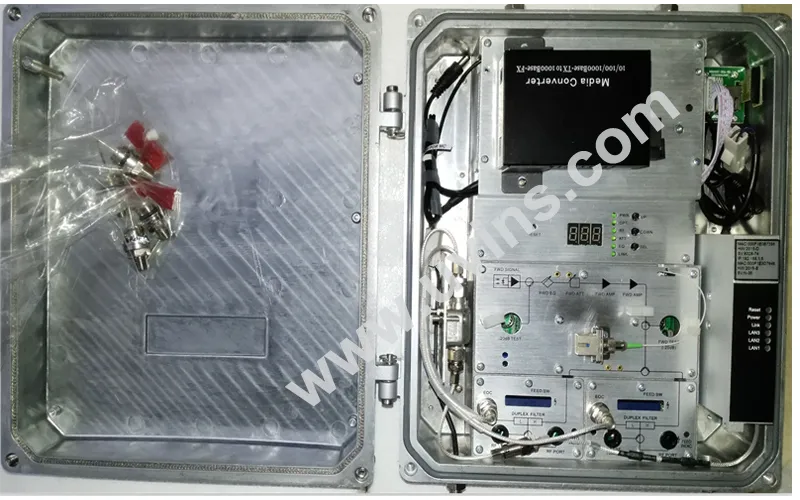

Eoc Master+ONU+Optical Node/ Eoc Platform

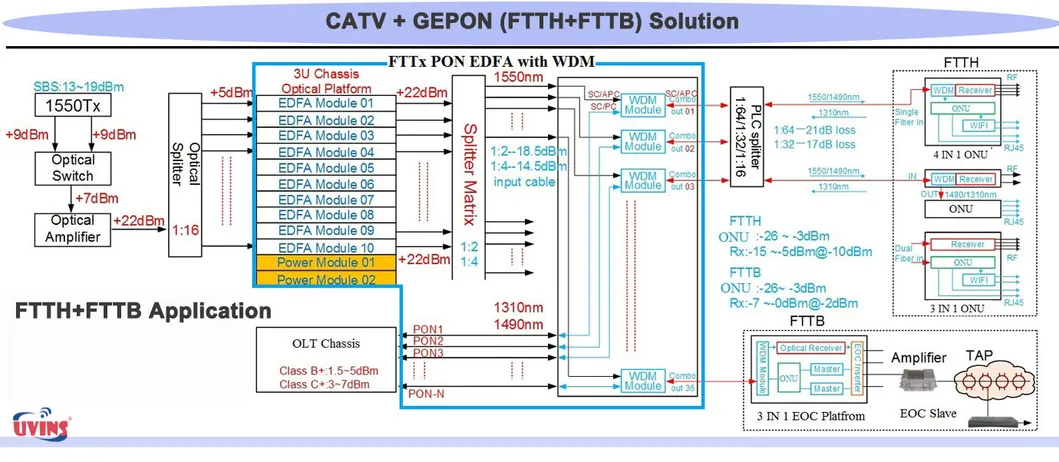

UVE-503 EOC Platform is our new design product which is multi-combination with modular design and it can combine 1high output optical receiver module, 2*EoC masters, 1*NM module(for optical receiver, optional), 1*ONU, 1*WDM, which is save much cost for the network.Feature* Multi-combination with mod......
Send Inquiry
Product Description
Feature
* Multi-combination with modular design
* Optical node, EoC Master, ONU, SNMP
* Support Network management
* Built in WDM as single fiber core solution optional
* The maximum combination: 1*High output optical receiver, 2*EoC masters, 1*NM module
(for optical receiver, optional), 1*ONU, 1*WDM.
* Optical receiver adopt GaAs module, 2 port high level output:104dBμV@AGC
* Digital ATT and digital EQ application, support monitor and debug remote
* Build in power pass diplexer in Each RF output with high isolation
* Include EoC system network management and optical node network management
* Support VLAN and QoS ,Support Web management, Bandwidth control precision:1K
* High reliability switch power, 60V/220V optional
* Excellent surge and transient protection
Specification
Parameters | Specifications | |
Optical receiver | Optical receive range | -10~+3 dBm -7~0dBm(AGC range) |
Optical wavelength | 1100~1600nm | |
Frequency range | 47~1000 MHz | |
Flatness | ±0.75 dB | |
RF output level | 104dBμV@-7~0dBm | |
CSO | >68dB(12dB tilt) @-1dBm | |
CTB | >70dB(12dB tilt) @-1dBm | |
Return loss | ≥16dB (85~1000MHz) | |
Built in diplexer -power pass | Frequency range | 47-1000MHz, 5-33MHz in, 5-860MHz out |
Port to Port Isolation | >100dB | |
Insertion loss | 1.5dB | |
EOC master
| 1 Master Throughput | Homeplug AV/AR74XXX chipset |
500Mbps@PHY,300Mbps@MAC | ||
Chipset Frequency Range | 7.5-64MHz | |
1 Master Support subscriber | <64 recommend 253 Maximum | |
Master output lever | 118dBμV Max | |
OFDM | 2048 sub-carrier | |
Adaptive Bit-Loading | BPSK, QPSK, (16, 64, 256,1024,4096)QAM Auto Adaptable each carrier | |
Channel Coding | Viterbi & Reed-Solomon FEC | |
Transmission Power Step | Fixed ATT optional | |
Dynamic Range | 50dB recommened,90dB Maximum | |
Minimum Received | -72dB without any noise Power level | |
Network Functions and Protocols | Master/Slave MAC using CSMA/CA Protocols on chipset: chipset support 802.1D Bridge and spanning tree protocol, 802.1Q VLAN, QoS 802.1p | |
Network Management | Via SNMP (SARFT standard), CLI and Web based management Firmware and configuration file upgrade via TFTP sever | |
Interface | Optical input: SC/APC Optical out: SC/PC RF out: 4*3/8" F-type connector 4*5/8" Feed thru connector optional | |
Operating Voltage | AC 35~70V or AC 150~240V | |
Consumption | 30 W | |
Dimension(mm) | 300*271*106 | |

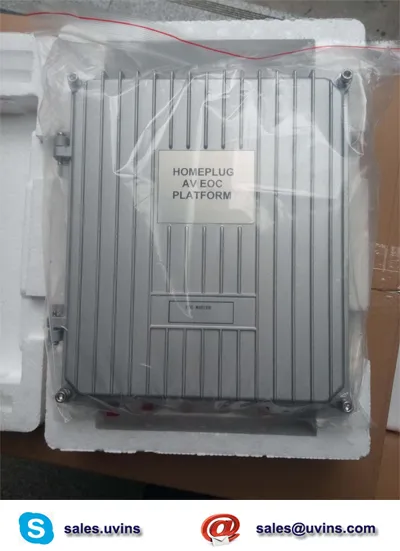

Well Packing For Shipment:
