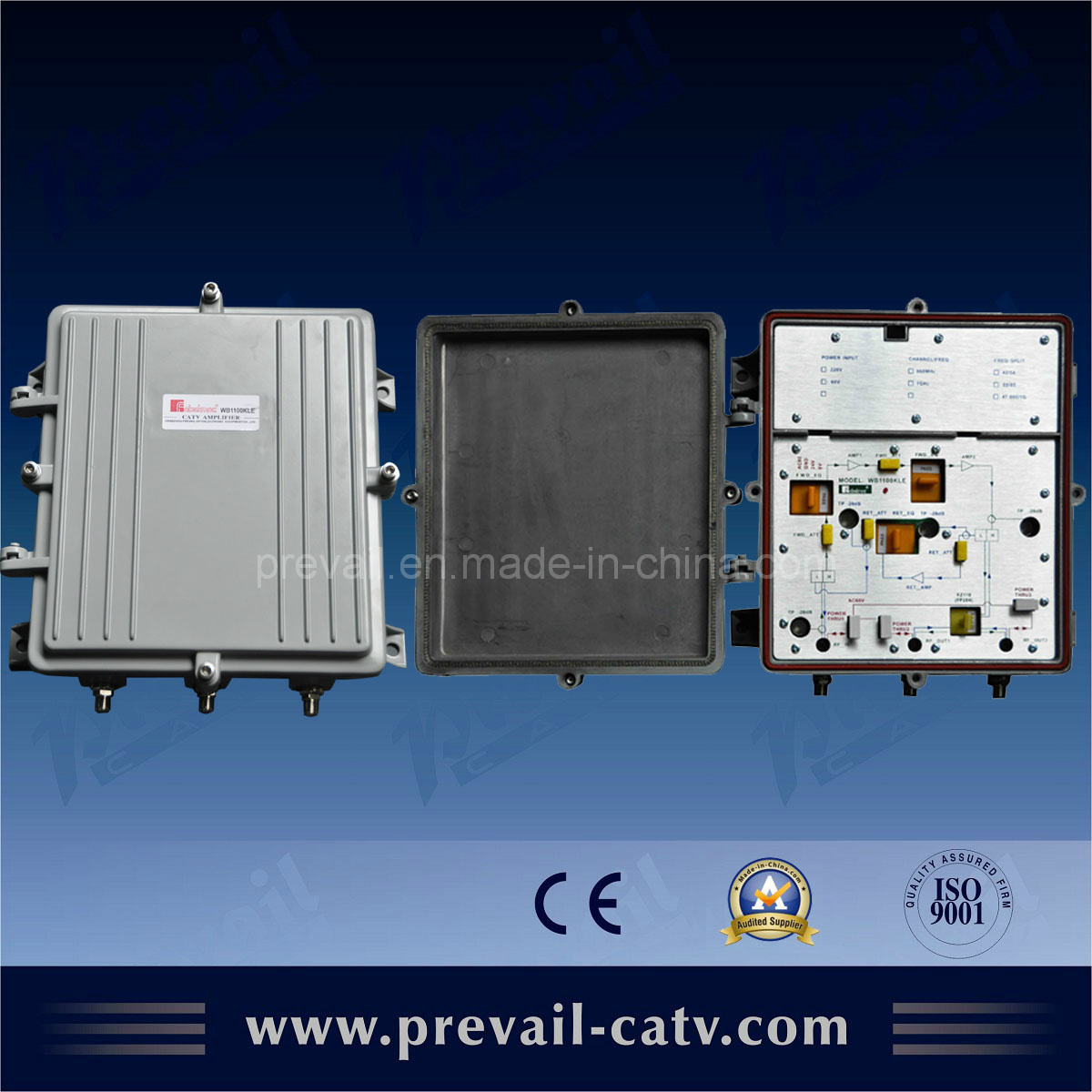

1GHz Cable TV Bi-Directional Trunk Amplifier
Characteristics1. 1000MHz bandwidth design.2.The pre-amp of forward path adopts GaAs MMIC amplify module, output stage adopts the latest imported, high index, power doubler module, achieve the high output level, low distortion and high signal to noise ratio.3. It is more convenient to debug because ......
Send Inquiry
Product Description
Characteristics
1. 1000MHz bandwidth design.
2.The pre-amp of forward path adopts GaAs MMIC amplify module, output stage
adopts the latest imported, high index, power doubler module, achieve the high
output level, low distortion and high signal to noise ratio.

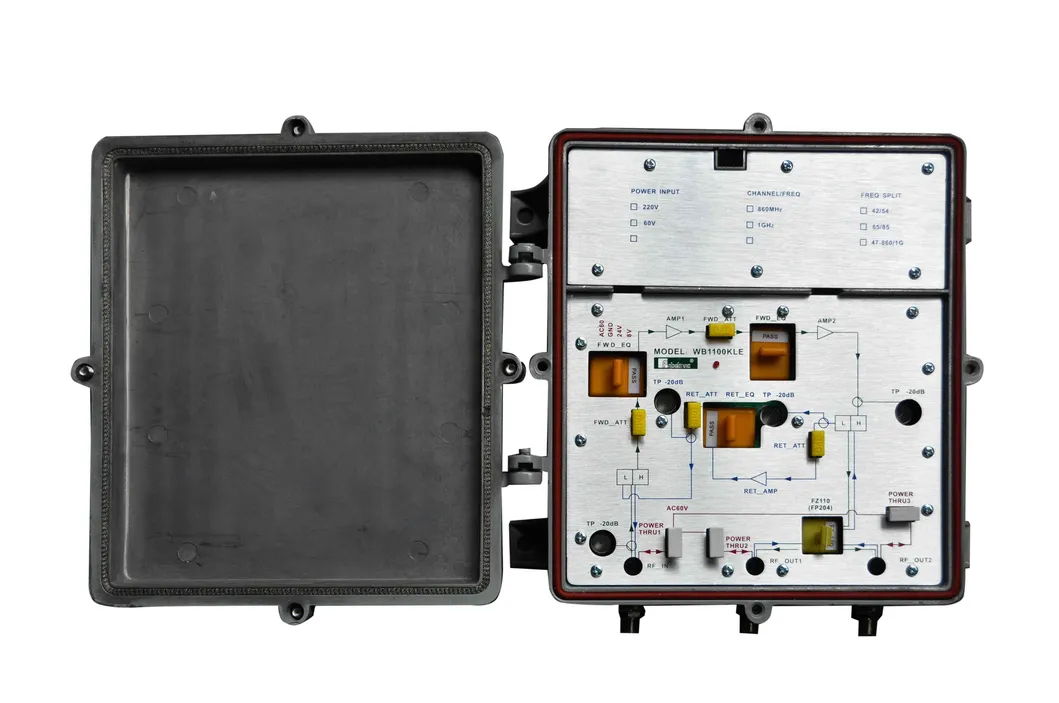

3. It is more convenient to debug because of the plug-in duplex filter, equalizer,
attenuator, output splitter and the scientific and reasonable on-line detection ports.
4.The equipment can long time continuous work steadily under outdoor bad
environmental condition. Because of the aluminum waterproof housing, high
reliability switching power supply and strict lightning protection system.
1. 1000MHz bandwidth design.
2.The pre-amp of forward path adopts GaAs MMIC amplify module, output stage
adopts the latest imported, high index, power doubler module, achieve the high
output level, low distortion and high signal to noise ratio.
3. It is more convenient to debug because of the plug-in duplex filter, equalizer,
attenuator, output splitter and the scientific and reasonable on-line detection ports.
4.The equipment can long time continuous work steadily under outdoor bad
environmental condition. Because of the aluminum waterproof housing, high
reliability switching power supply and strict lightning protection system.
| Item | Unit | Technical Parameter | ||
| Forward Path | ||||
| Frequency range | MHz | 87(47)~ 862 | 87(47)~ 1000 | |
| Rated gain | dB | 30 | 38 | |
| Rated input level | dBμV | 72 | 70 | |
| Rated output level | dBμV | 102 | 108(EQ6dB) | |
| Flatness in band | dB | ±0.75 | ±0.75 | |
| Noise figure | dB | ≤10 | ≤10 | |
| Return loss | dB | ≥16 | ||
| C/CTB | dB | ≥70 | ≥66 | |
| C/CSO | dB | ≥67 | ≥64 | |
| Group delay | ns | ≤10 (112.25 MHz/116.68 MHz) | ||
| Signal to hum ratio | % | < 2 | ||
| Gain stability | dB | -1.0 ~ +1.0 | ||
| Return Path | ||||
| Frequency range | MHz | 5 ~ 65(30) | ||
| Rated gain | dB | 24(Different modules, different gain. Modules can be specified by the users.) | ||
| Maximum output level | dBμV | 110 | ||
| Flatness in band | dB | ≤±0.75 | ||
| Noise figure | dB | ≤12 | ||
| Return loss | dB | ≥16 | ||
| Signal to hum ratio | % | < 2 | ||
| General Performance | ||||
| Characteristic impedance | Ω | 75 | ||
| Power supply voltage | V | A:AC(135~250)V;B:AC(35~90)V | ||
| Impulse withstand voltage | kV | > 5(10/700μs) | ||
| Power consumption | W | ≤20 | ||
| dimension | mm | 270(L)X 215(W)X 118(H) | ||
