1550nm Optical Transmitter External-Modulated Jdsu 2X7dBm/2*11dBm 870MHz/ 1GHz
OutlineUVOT-EX15 (II) is a standard external 1550nm Optical Transmitter which adopts low-noise and original DFB laser. With Its perfect pre-distortion circuit to ensure the best CTB and CSO value when the CNR is in high standard.Feature * 191U standard rack mounted * Support single or du......
Send Inquiry
Product Description
Outline

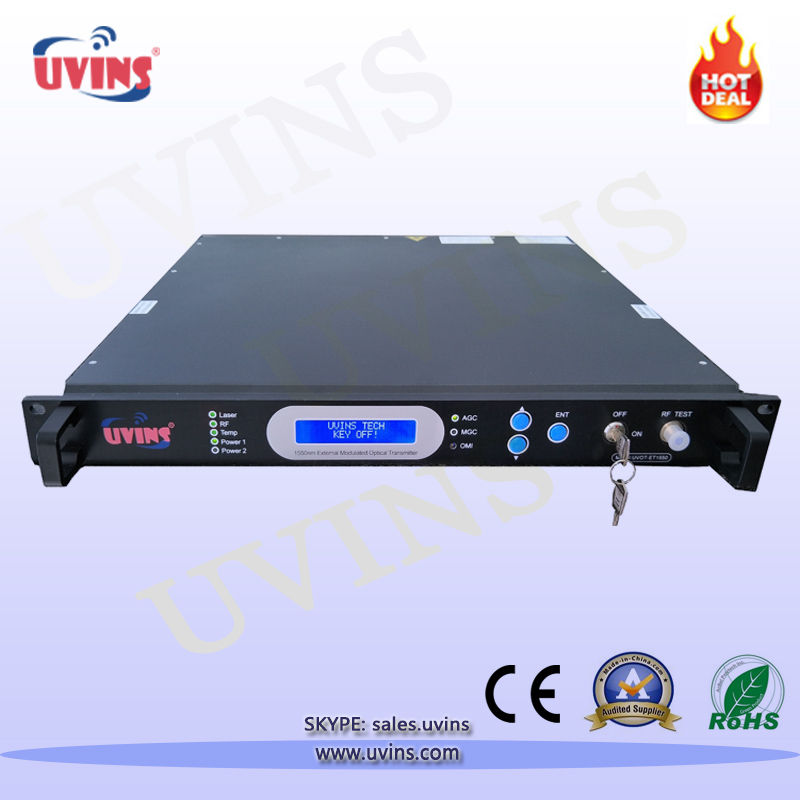

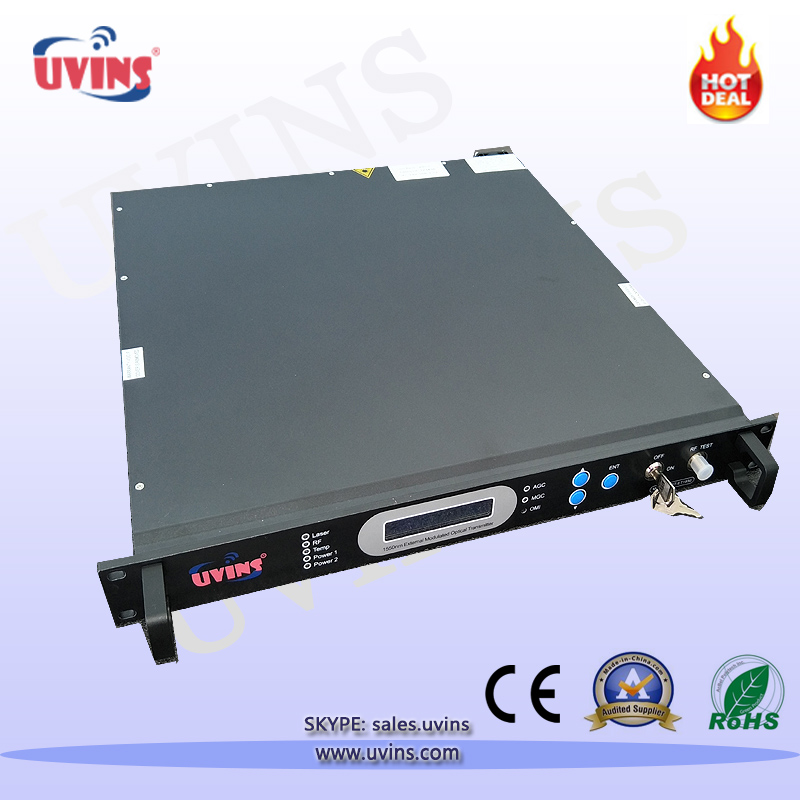

UVOT-EX15 (II) is a standard external 1550nm Optical Transmitter which adopts low-noise and original DFB laser. With Its perfect pre-distortion circuit to ensure the best CTB and CSO value when the CNR is in high standard.
Feature
Specification
Well Packing For Shipment:
UVOT-EX15 (II) is a standard external 1550nm Optical Transmitter which adopts low-noise and original DFB laser. With Its perfect pre-distortion circuit to ensure the best CTB and CSO value when the CNR is in high standard.
Feature
* 19″1U standard rack mounted
* Support single or dual output from 3dB -10dB
* SBS 13,16,19 Optional
* Original JDSU/FUJITSU/MITSUBISHI Laser
* AGC and MGC control
* SNMP management system
* Dual power supply
* RJ45 and RS232 interface available
Specification
| Parameter | Index | Remarks | |
| Optical Parameters | Wavelength (nm) | 1550±10 | |
| Output power (dBm) | 2*7 | Or 1*5,1*6,1*7, 1*9,1*10,2*3,2*5,2*6,2*7,2*9 | |
| Optical return loss (dB) | ≥60 | ||
| Connector type | FC/APC | Or SC/APC | |
| RF parameters | bandwidth (MHz) | 45-862 | |
| Input level (dBmV) | 80±5 | AGC | |
| Flatness (dB) | ≤±0.75 | 45~862MHz | |
| Return loss (dB) | ≥16 | 45~750MHz | |
| Input impedance (Ω) | 75 | ||
| Link Parameters | channels | PAL-D/60ch | |
| CNR (dB) | ≥52 | 65Km fiber,Receive0dBm | |
| CTB (dB) | ≥65 | ||
| CSO (dB) | ≥65 | ||
| SBS (dBm) | ≥16.0 | 13,16,19 | |
| General Parameters | Net interface | RJ45,R232 | |
| Power (V) | 90~265 | Or -48VDC | |
| Power loss (W) | ≤50 | ||
| Working Temp(ºC) | 0~50 | Automatically shell temp control | |
| Storage Temp(ºC) | -20~85 | ||
| Working relative Temp | 20%~85% | ||
Well Packing For Shipment:
