China (WDT-1200H) Double Channels DVB-C/S/S2/T/T2 SD/HD MPEG-2/H. 264 IRD

Product Description

Description

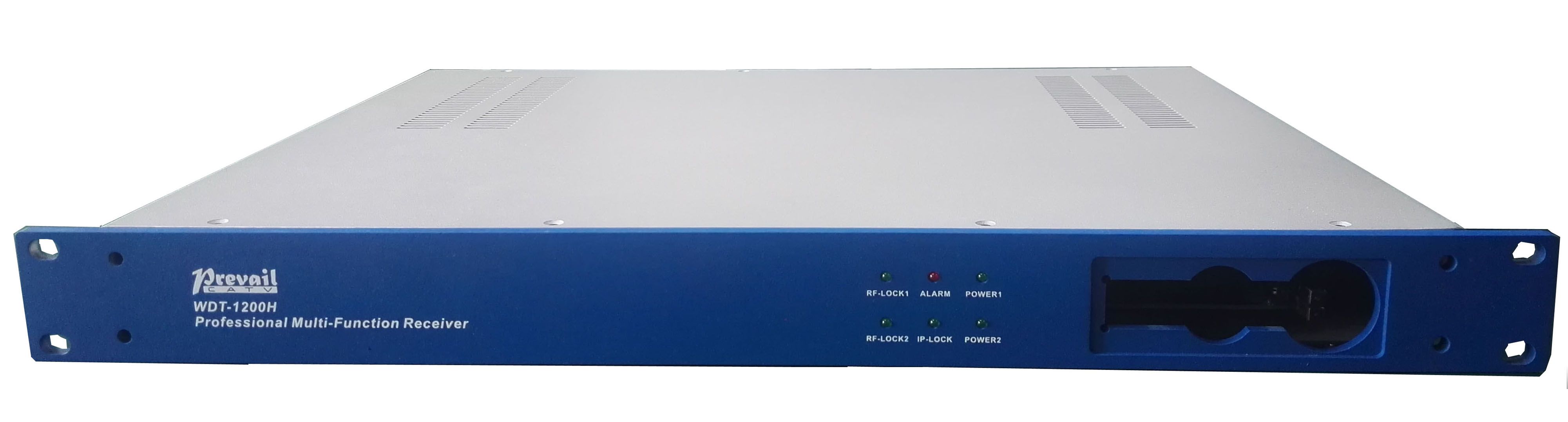

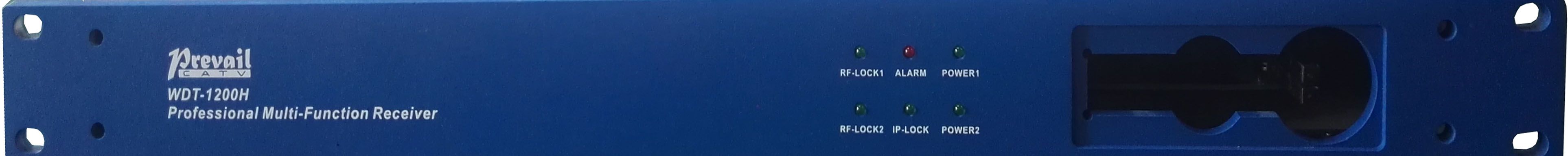

The WDT-1200H is a professional HD integrated receiver decoder (with 2 DVB-CI interfaces) that is fully compatible with receiving free and encrypted programs.
You can flexibly select the input signal for descrambling or multiplexing. These signals which from Tuner (demodulated satellite and cable encrypted programs), IP, ASI are sent to the CAM card for processing through internal multiplexing or internal selection, finally, it output the free ASI or IP signal by the CAM descrambling card.

Features

2 full-function Tuner input (support 2*DVB-C/T/T2 signal input or 2*DVB-S/S2 signal input)

Support ASI input/output and IP input/output

2 x DVB-CI Slots, Multi Programs,

Support HD/SD H.264, MPEG-2, AVS, AVS+ decoding

Support optical fiber digital audio (SPDIF) output

Support HDMI/SDI, AV video output

Built-in PID filtering, PSI/SI editing and generating

Support PMT auto update

Support volume control

Supporting dual power supply hot plug

One of NMS interface, support Web network management

Specifications

*Parameter*	*Description*
Mechanical dimension	42434346(HWD)mm

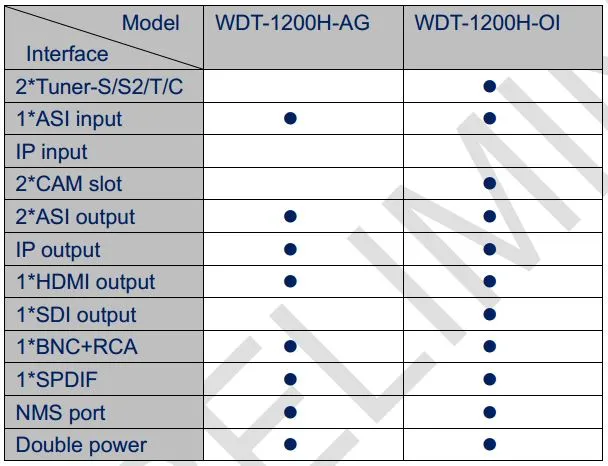

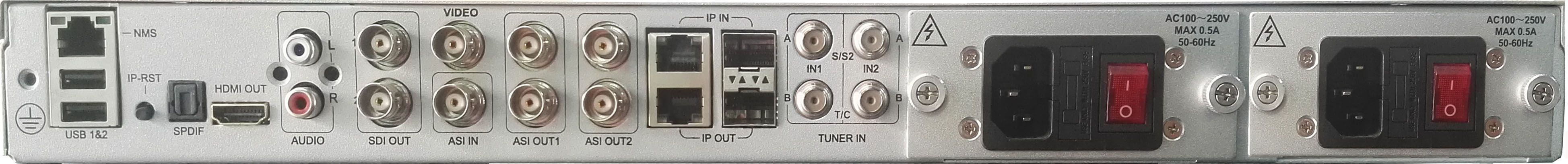

TS interface	Tuner input: 2DVB-S/S2/T/T2/C ASI input: 1BNC-Female,75Ω ASI output: 2* BNC-Female,75Ω IP input: one optical port and one electrical port, choose one when using; Maximum support 512 UDP/RTP input IP output: one optical port and one electrical port, choose one when using; Maximum support 32 UDP output
DVB-C Demodulation	110~862MHz full band tuner Fully compliant with ETS300 429 specification for DVB-C application Output MPEG-2 parallel/serial transport stream Support 4/16/32/64/128/256QAM for DVB-C
DVB-T/T2 Demodulation	170~862MHz full band tuner Support 5/6/7/8MHz and 1.7MHz BW for T2 Complies with DTG7.0, NorDig-Unified test specification ver2.2.1 and targeting upcoming digital Europe Ebook requirements Output MPEG-2 parallel/serial transport stream superior low noise and high sensitivity performance support all code rates, constellations, guard intervals LP and HP streams DVB-T2: EN 302 755 Modulation type: QPSK 16QAM 64QAM 256QAM FFT mode: 1K 2K 4K 8K 16K 32K Channel bandwidth: 6MHz 7MHz 8MHz Code rate: 1/2 3/5 2/3 3/4 4/5 5/6 Guard internal: 1/4 5/32 1/8 5/64 1/16 1/32 1/64 1/128 DVB-T: EN 300 744 Modulation type: QPSK 16QAM 64QAM FFT mode: 2K 8K Channel bandwidth: 6MHz 7MHz 8MHz Code rate: 1/2 2/3 3/4 5/6 7/8 Guard internal: 1/4 1/8 1/16 1/32
DVB-S/S2 Demodulation	Input frequency: 950~2150MHz Input signal level -65~-25dBm Complies with NorDig-Unified test specification ver2.2.1 Symbol rate: 8SPK 1~45Msym/s (TS output parallel mode) 8SPK 1~31Msym/s (TS output serial mode) QPSK 1~45Msym/s Code rate: 8PSK 3/5 2/3 3/4 5/6 8/9 9/10 QPSK 1/4 1/3 2/5 1/2 3/5 2/3 3/4 4/5 5/6 8/9 9/10 Conforms to DiSEqC 1.x and 2.x and signal cable Distribution Fast and accurate channels scan
CI interface	Support for the European DVB-CSA Cam module interface number 2 Smart card interface: ISO7816 Device exclusive card: PCMCIA
Video decode	Video interface: HDMI/CVBS/HDSDI Aspect Ratio: 4:3, 16:9 Resolution:1080p60/1080p50/1080p30/1080p24/1080i60/1080i50/720p/576p /576i/480p/480i Video Mode: PAL/NTSC /SECAM Video Decoding Mode: MPEG-2/H.264 AVC/AVS+
Audio Decode	Audio Interface: 1 channel fiber digital audio (SPDIF), 1 group of RCA stereo (R/L), HDMI embedded audio, HDSDI embedded audio Sound Decode: MPEG-I Layer I and II Audio Operating Mode: Single Track/Double Track/Stereo Audio Sampling Frequency: 32/44.1/48KHz
