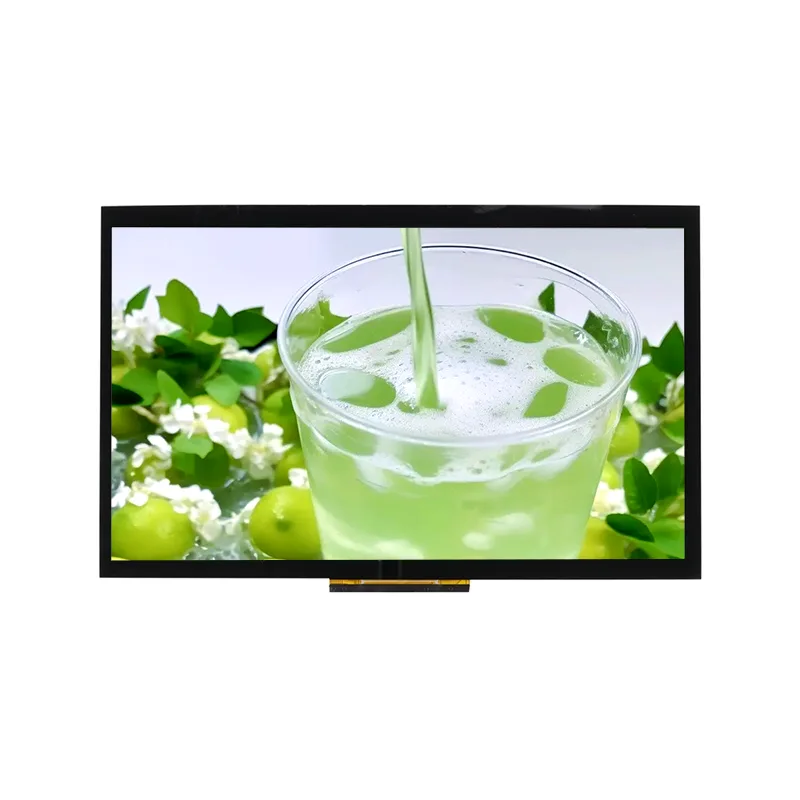

How Does a 10.1 inch Industrial PCAP Touch Screen Module Compare to Resistive Touch in Industrial Applications
2026-06-12
When selecting a human-machine interface (HMI) for harsh environments, engineers often debate between the 10.1 inch Industrial PCAP Touch Screen Module and traditional resistive touch technology. At Tianfu, we have deployed thousands of both solutions across factory automation, medical devices, and outdoor kiosks. Understanding their differences in durability, usability, and total cost of ownership is critical to avoiding field failures.
Comparative Analysis: PCAP vs. Resistive Touch
| Feature | 10.1 inch Industrial PCAP Touch Screen Module | Resistive Touch Screen |
|---|---|---|
| Touch Activation | Light finger touch, capacitive sensing | Pressure required (stylus or fingernail) |
| Glove Support | Works with conductive gloves (special coating) | Works with any glove (pressure-based) |
| Optical Clarity | >90% light transmission | ~75-80% light transmission |
| Durability | Scratch-resistant glass, no moving parts | Top film layer wears over time |
| Multi-Touch | Yes (2-10 points) | No (single-point only) |
| Temperature Range | -20°C to +70°C | 0°C to +50°C typically |
| Moisture Resistance | Excellent (water droplets ignored) | Poor (water can cause false triggers) |
Why Industrial Engineers Are Switching to PCAP
The 10.1 inch Industrial PCAP Touch Screen Module offers superior sunlight readability and chemical resistance. In a recent Tianfu factory deployment, a PCAP module lasted 50,000 hours without calibration, while resistive units required quarterly recalibration. Resistive technology still excels in specific niches—such as sterile medical environments where users wear thick rubber gloves—but for most Industry 4.0 applications, PCAP is the future-proof choice.
Common FAQs About the 10.1 inch Industrial PCAP Touch Screen Module
FAQ 1: Can a 10.1 inch Industrial PCAP Touch Screen Module work with thick protective gloves in a cold storage warehouse?
Yes, but with conditions. Standard PCAP screens require a conductive path. For thick insulated gloves (e.g., -20°C freezer gloves), Tianfu offers a high-sensitivity controller that increases the signal-to-noise ratio by 3x. Alternatively, we can integrate a glove-tune mode firmware. Without this optimization, the module may not register inputs. We recommend ordering a sample kit with your actual gloves for validation.
FAQ 2: How does the lifespan of a 10.1 inch Industrial PCAP Touch Screen Module compare to resistive touch in high-vibration environments (e.g., heavy machinery)?
The PCAP module typically lasts 3-5 times longer. Resistive touch relies on two conductive layers separated by air gaps; vibration causes micro-fretting and delamination, leading to dead zones within 12-18 months. In contrast, a 10.1 inch Industrial PCAP Touch Screen Module has no moving layers—the sensor is bonded directly to the cover glass with optically clear adhesive (OCA). Tianfu has validated PCAP modules to 10G vibration (MIL-STD-810G) without failure.
FAQ 3: What interface options are available for integrating a 10.1 inch Industrial PCAP Touch Screen Module into an existing ARM or x86 industrial PC?
Tianfu provides three standard interfaces: USB for touch data (HID-compliant, plug-and-play), I²C for low-latency embedded systems, and RS232 for legacy serial communication. For display video, you can choose LVDS (40-pin, most common), HDMI (up to 1080p), or MIPI-DSI. We also provide Linux (Ubilinux, Yocto), Windows (10/11 IoT), and Android (9-13) drivers. A detailed pinout diagram and driver package are included with every evaluation kit.
Why Tianfu Leads in Industrial PCAP Solutions
Unlike consumer-grade modules, each Tianfu 10.1 inch Industrial PCAP Touch Screen Module undergoes 72-hour burn-in testing, UV resistance validation, and EFT immunity up to ±4kV. Our optical bonding process eliminates condensation between the LCD and touch sensor—a common failure in resistive screens.
Conclusion
If your application requires multi-touch gestures, optical clarity, and long-term reliability without calibration, the 10.1 inch Industrial PCAP Touch Screen Module is superior. Choose resistive touch only when operating with non-conductive, extremely thick gloves or on a sub-$50 budget.
Contact Us
For customized 10.1 inch Industrial PCAP Touch Screen Module samples with glove-tune or wide-temperature options, reach out to Tianfu today. Our engineering team provides free feasibility reviews within 24 hours.
