Wsee FTTH Handheld 1310nm 1490nm/ 1550nm Olt/Ont Pon Optical Power Meter Fiber Optic Medidor De Potencia De Fibra Optica
WS-OPM-36 portable optical power meter is a brand-new optical fiber measurement equipment independently developed by our company tomeet customer needs and combine the features and functions of current mainstream test instruments in the market. This equipment has the characteristics of small size, fr......
Send Inquiry
Product Description

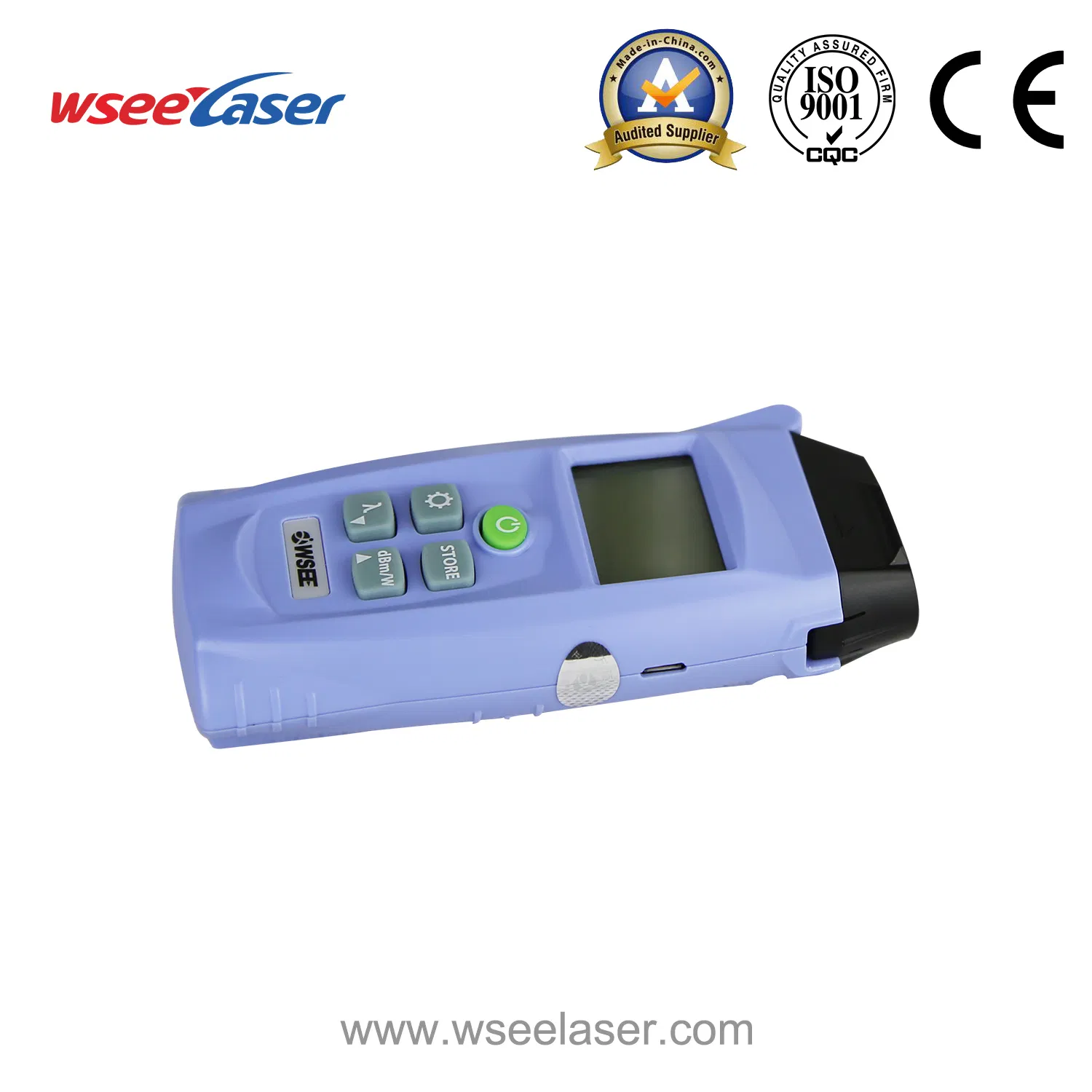

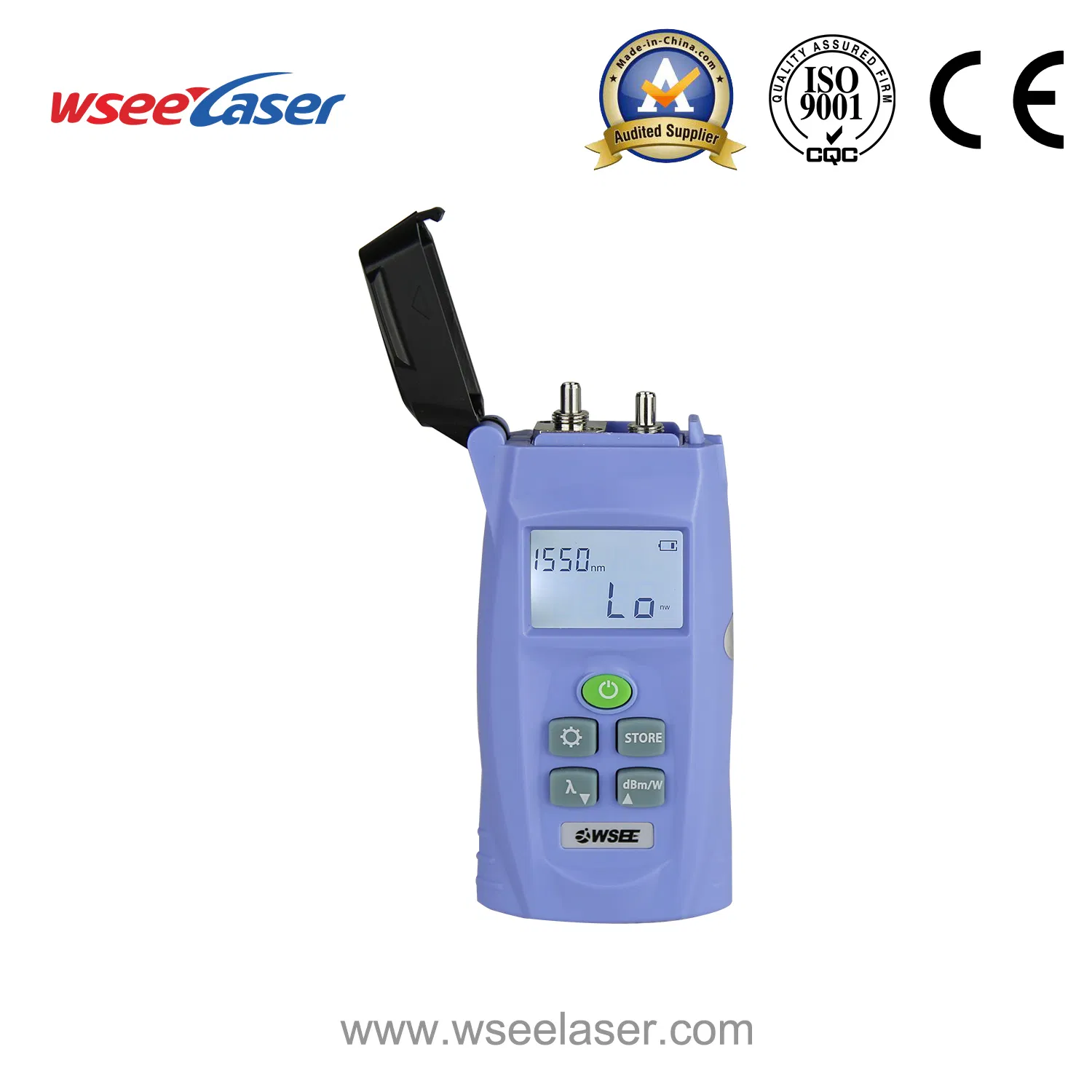

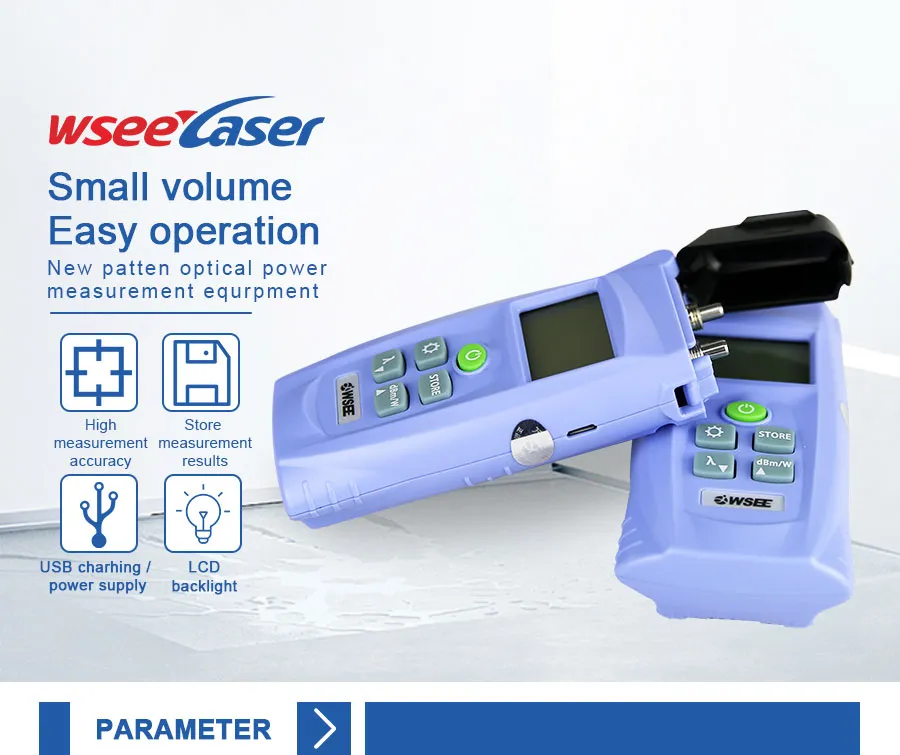

WS-OPM-36 portable optical power meter is a brand-new optical fiber measurement equipment independently developed by our company tomeet customer needs and combine the features and functions of current mainstream test instruments in the market. This equipment has the characteristics of small size, friendly operation interface, high precision and brand-new user automatic calibration. It is an ideal measuring
equipment for optical fiber transmission network.
| Technical parameters | WS-OPM-36 |
| Red light source part(This feature is customizing for customers) | |
| Light emitting device | FP-LD |
| Working wavelength(nm) | 650nm |
| Typical output of output power(mw) | (1mw 5km),(10mw 10km),(30mw 20km),(50mw 25km) optional |
| Transmission distance(Km) | |
| Red light frequency scintillation function | Yes, the frequency is 2Hz |
| Red light mode | Always on and flashing |
| Optical power meter section | |
| Calibrated wavelength(nm) | 850,980,1300,1310,1490,1550,1625 |
| Probe type | InGaAs |
| Detection range(dBm) | -70~+6;-50~+26 optional |
| Inherent uncertainty | ±5% |
| Degree of linearity(dB) | ±0.001 |
| Display resolution(dB) | 0.05 |
| Communication interface | Micro USB |
| Connector type | FC,SC optional |
| Power supply battery type | Dry battery: 3pcs No. 7 1.5V AA dry battery Lithium battery: 800mAh 4.2V lithium battery |
| Continuous working time of dry battery type (h) | 120h(Only for the optical power meter to operate alone) |
| Intelligent automatic shutdown time | Automatic shutdown without operation within 10min |
| Working temperature(ºC) | -10~+50 |
| Storage temperature(ºC) | -25~+70 |
| Net weight(g) | 87g(Without battery) |
| Size(mm) | 126*56*27 |

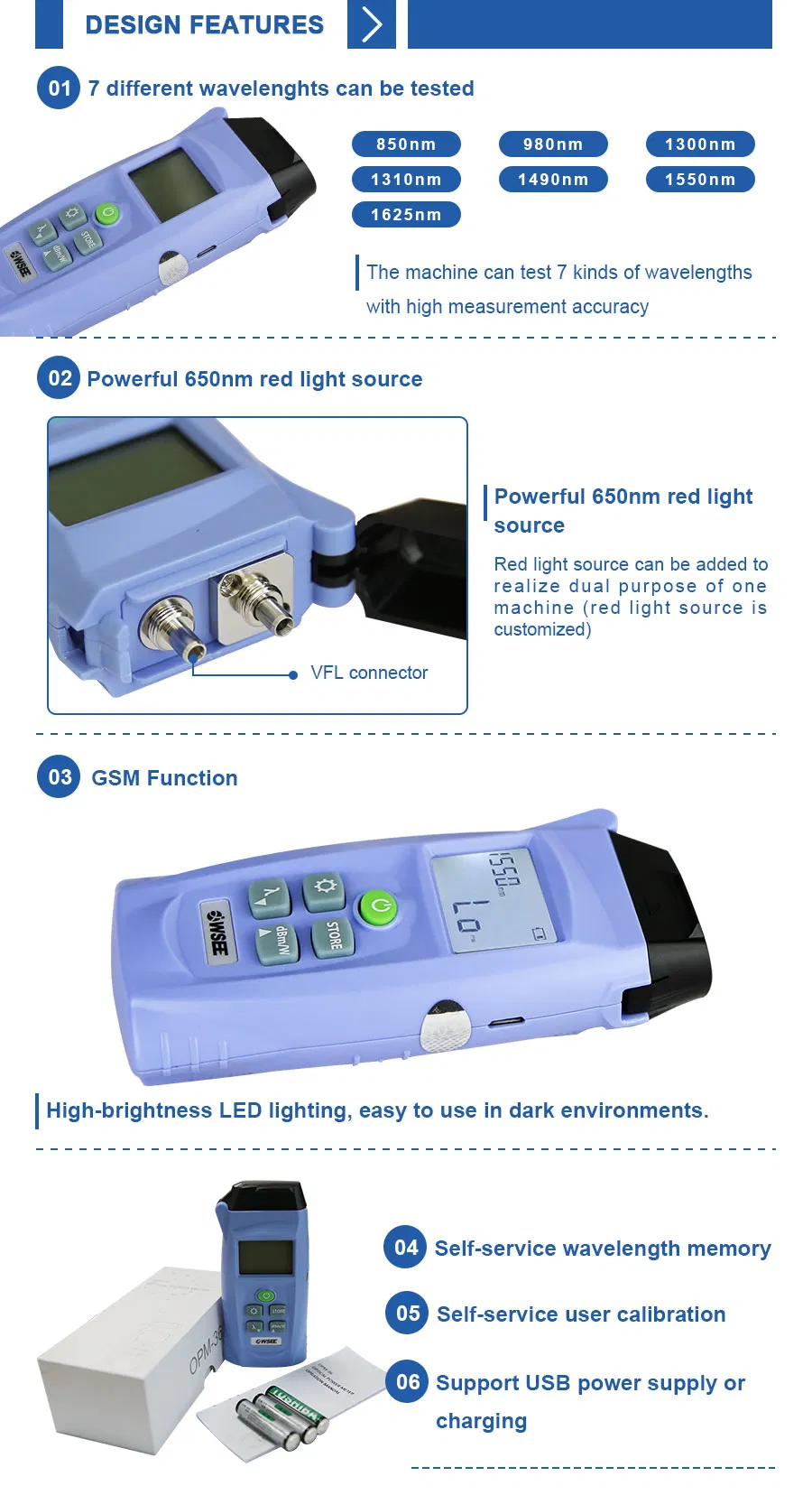

- The machine can test 7 kinds of wavelengths with high measurement accuracy
- Support USB power supply or charging

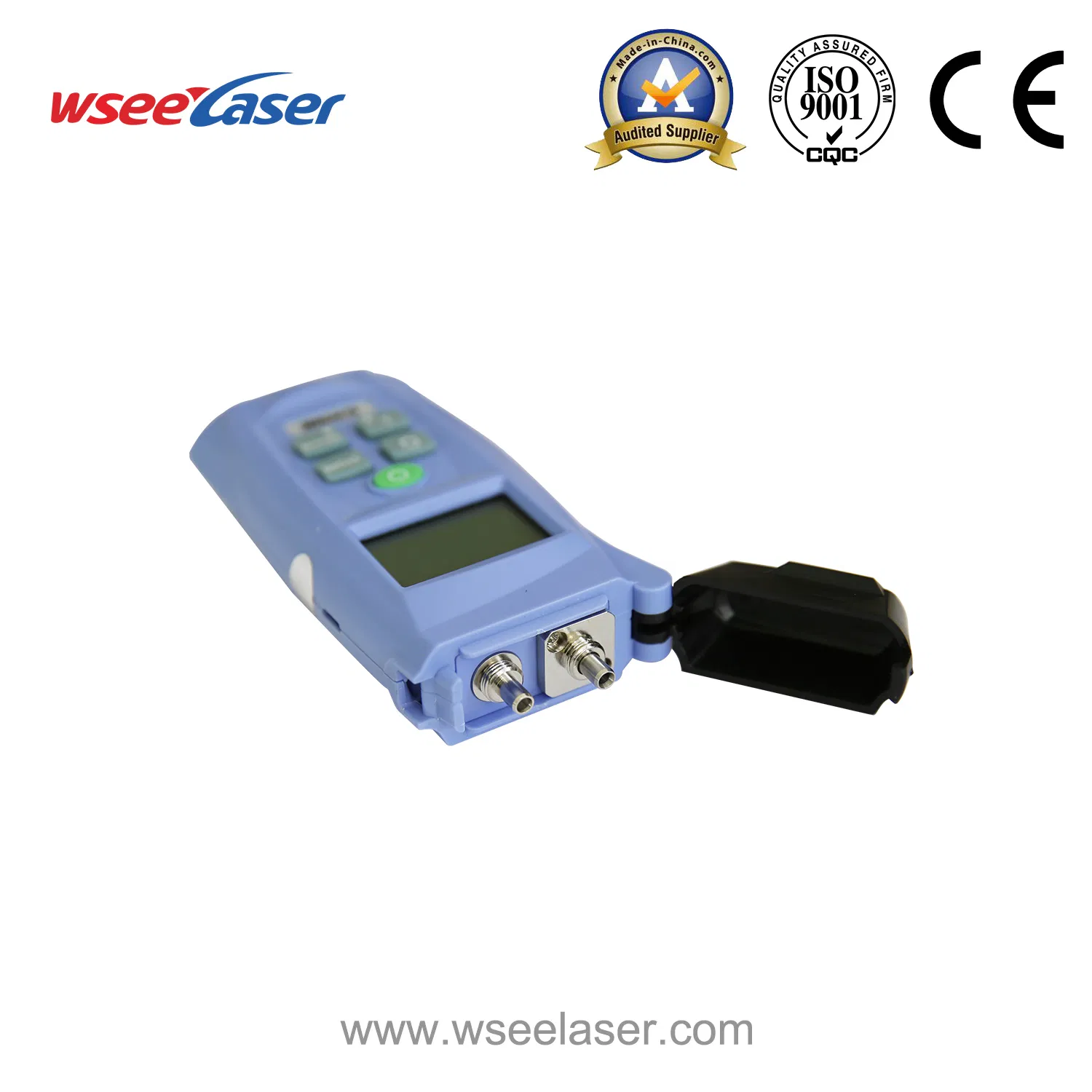

- Powerful 650nm red light source
- Red light source can be added to realize dual purpose of one machine (red light source is customized)
- High-brightness LED lighting, easy to use in dark environments
- Self-service wavelength memory
- Self-service user calibration
