Product Description

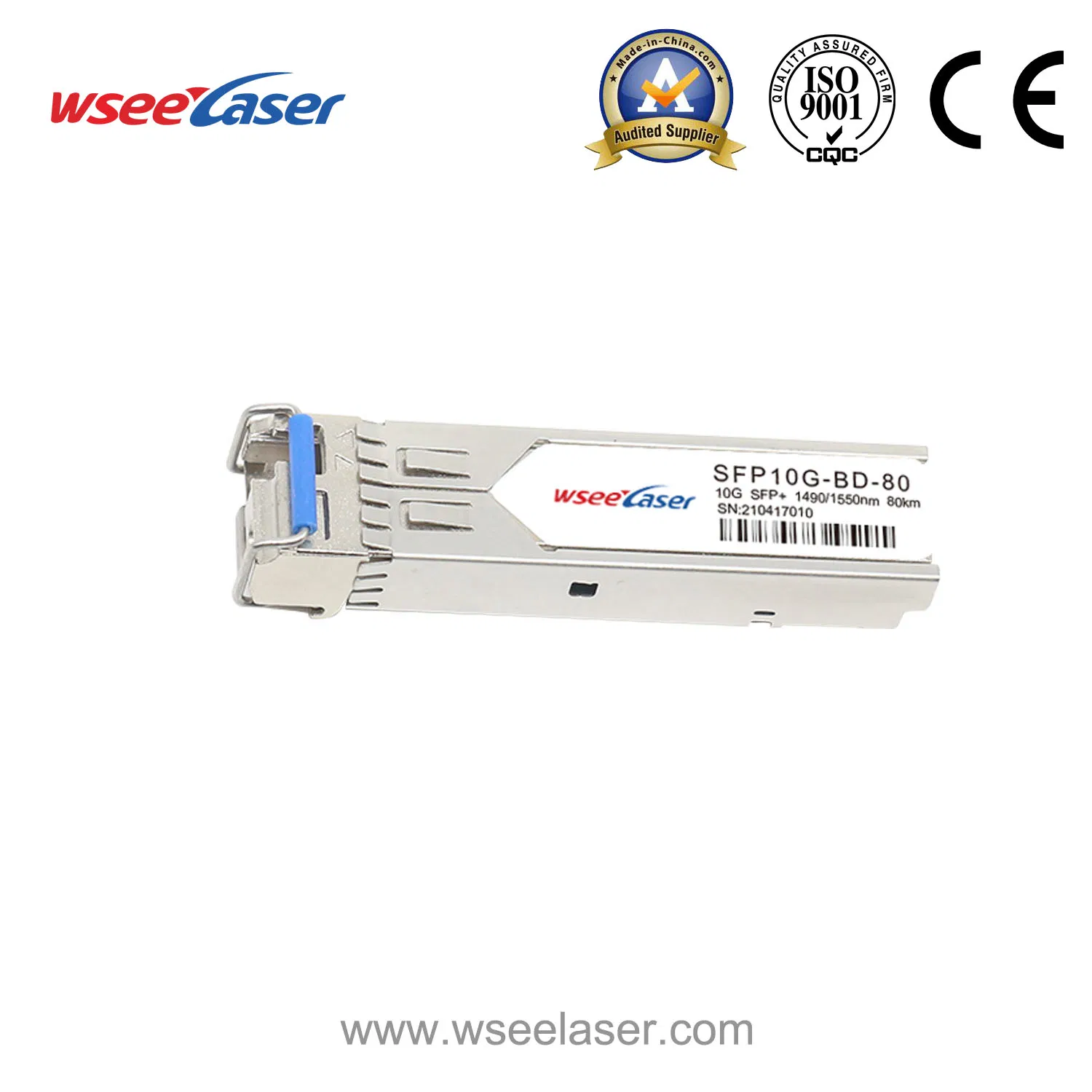

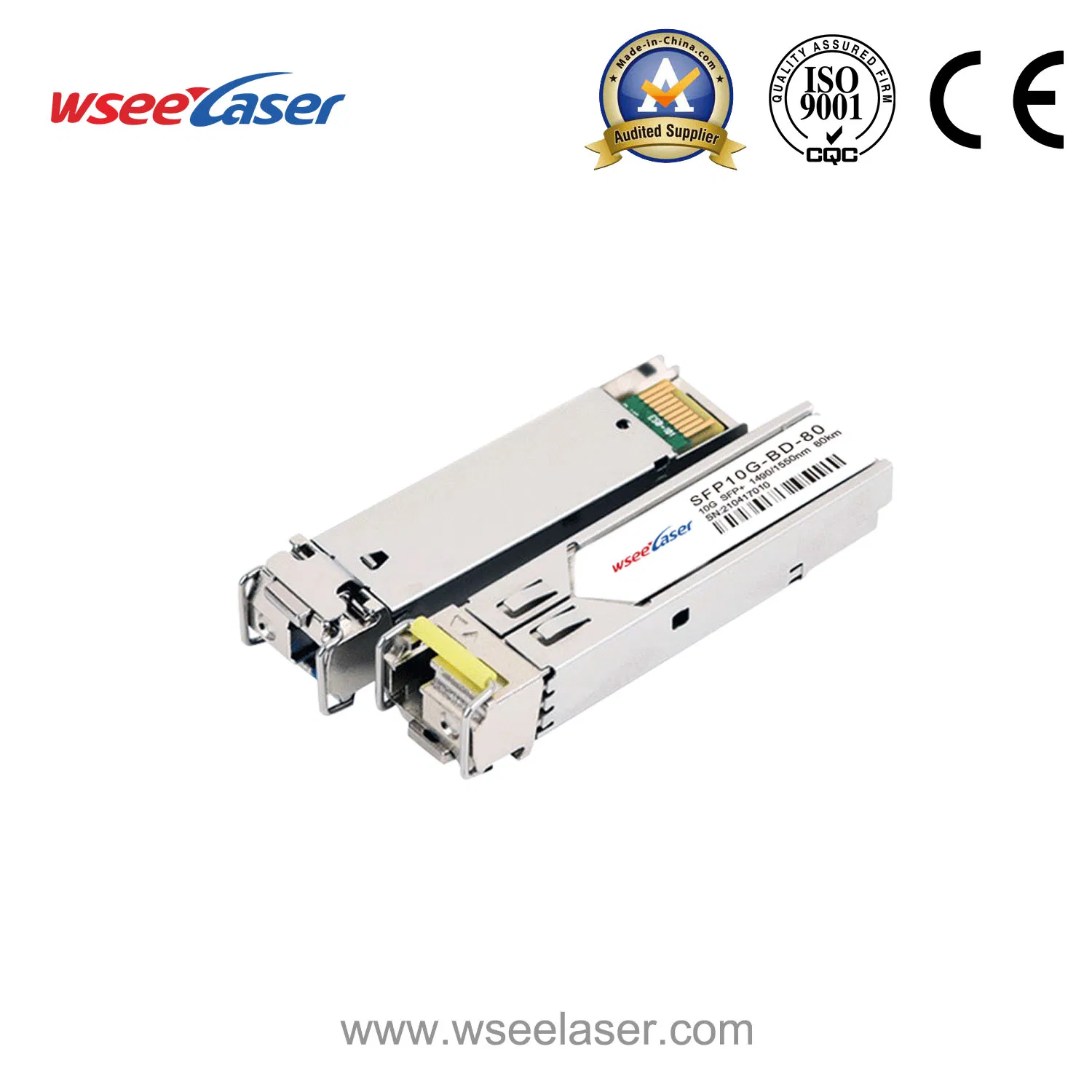

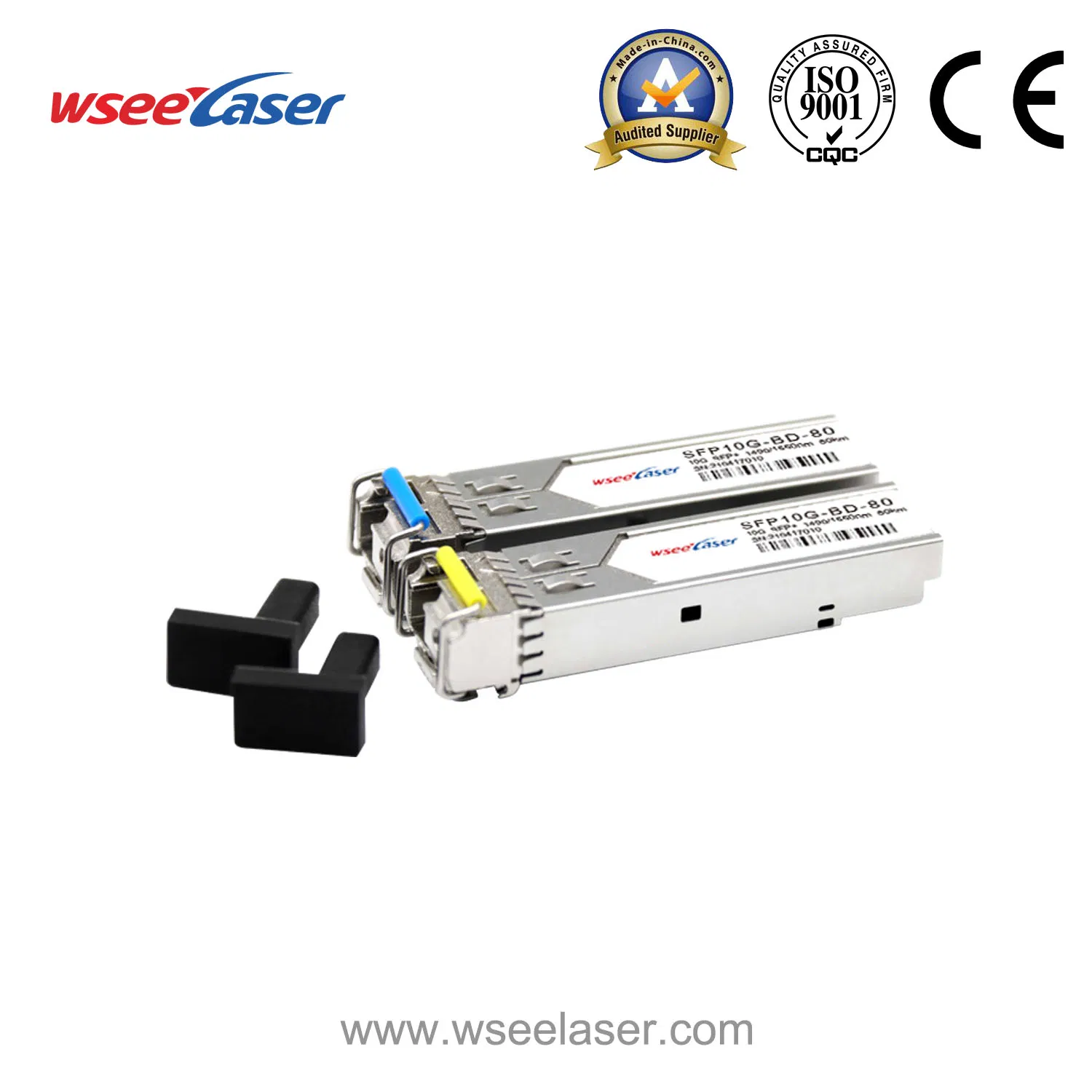

Wsee 10GB/S Bidi 190-1550 80km SFP Optical Transceiver

The CWDM 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km. This transceiver consists of two sections: The transmitter section incorporates a CWDM EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. Wsee 10GB/S Bidi 190-1550 80km SFP Optical Transceiver

Optical Characteristics (TOP(C) = 0 to 70 ºC, TOP(I) =-40 to 85 ºC,VCC = 3.13 to 3.47 V)

Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Transmitter
Operating Wavelength	λ	1464.5		1617.5	nm	1
Ave. output power (Enabled)	PAVE	-1		+3	dBm	2
Side-Mode Suppression Ratio	SMSR	30			dB
Extinction Ratio	ER	8			dB
Spectral width	Δλ			1	nm
Transmitter and Dispersion penalty	TDP			3.2	dB
Output Optical Eye	Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength	λ	1260		1610	nm
Receiver Sensitivity	PSEN			-16	dBm	3
Input Saturation Power(Overload)	PAVE	-3			dBm
Receiver Reflectance	Rrx			-27	dB
LOS Assert Power	Pa	-30			dBm
LOS De-assert Power	Pd			-17	dBm
LOS-Hysteresis	Phys	0.5			dB
