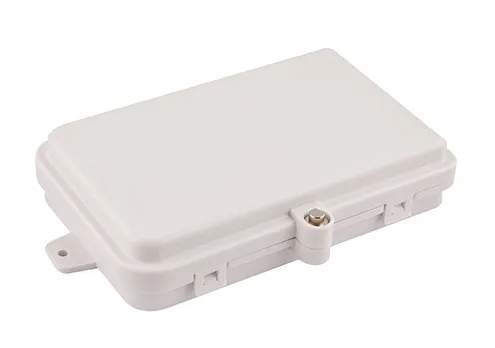

Wall Mounted Sc Upc APC Fiber Optic Terminal Box with ABS PC Material FTTH

  This FTTH mini fiber optic terminal box  is widely used as a termination point for feeder cable to connect with drop cable.

The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and manage-mant for FTTX network.Can be used indoor or outdoor.






FTTH Distribution Box Feature

• ABS material used ensures the body strong and light.
• Water-proof design for outdoor uses.
• Easy installations: Ready for wall mount - installation kits provided.

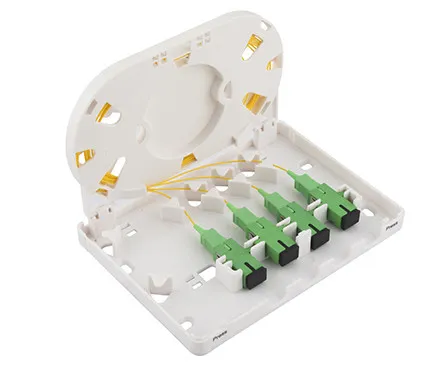

• Adapter slots used - No screws and tools needed for installing adapters.
• Ready for splitters: designed space for adding splitters.

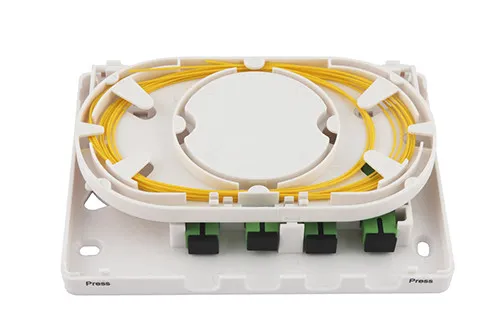

• Space saving! Double-layer design for easier installation and maintenances:
• Lower layer for splitters and over length fiber storage.
• Upper layer for splicing, cross-connecting and fiber distribution.
• Cable fixing units provided for fixing the outdoor optical cable.
• Protection Level: IP65.
• Accommodates both cable glands as well as tie-wraps
• Lock provided for extra security


Packaging Details

 Environmental reguirement
  Working temprature : -40ºC~+85ºC
  Relative humidity : ≤85% (+30ºC)
  Atmospheric pressure : 70Kpa~106Kpa

  Main technical datasheet
  Insertion loss : ≤0.2db
  UPC return loss : ≥50db
  APC return loss : ≥60db
  Life of insection and extraction : >1000 times

  Thunder-proo technical datasheet
  The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC);

   IR≥2*104MΩ/500V(DC)
  The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,

   no flashover; U≥3000V
