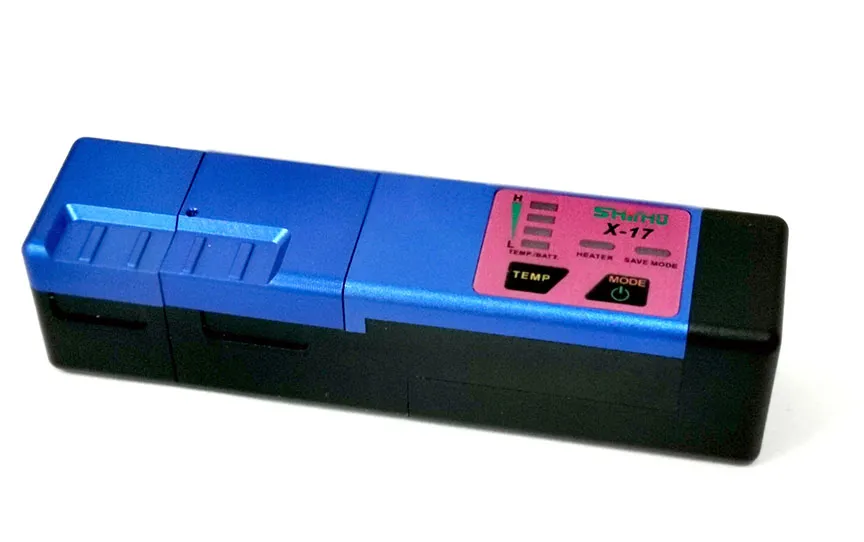

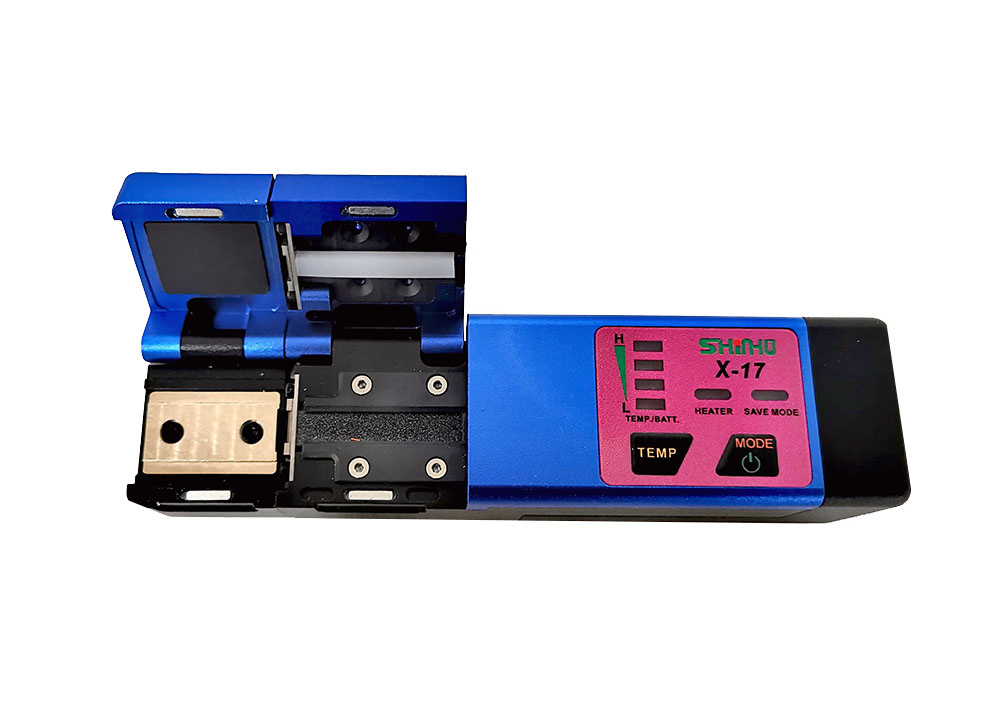

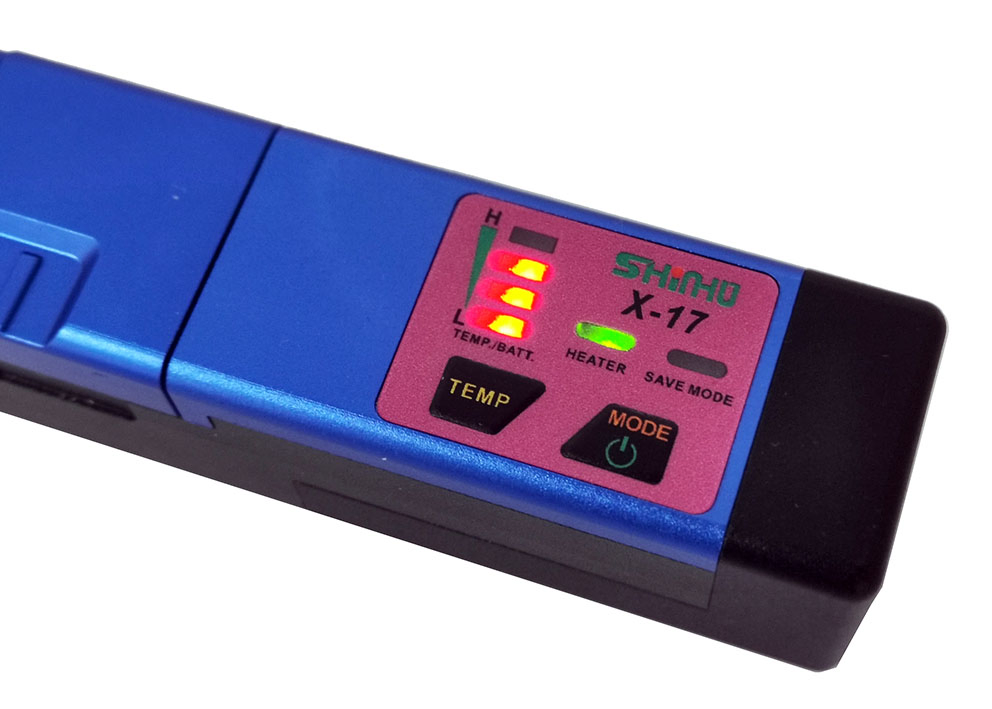

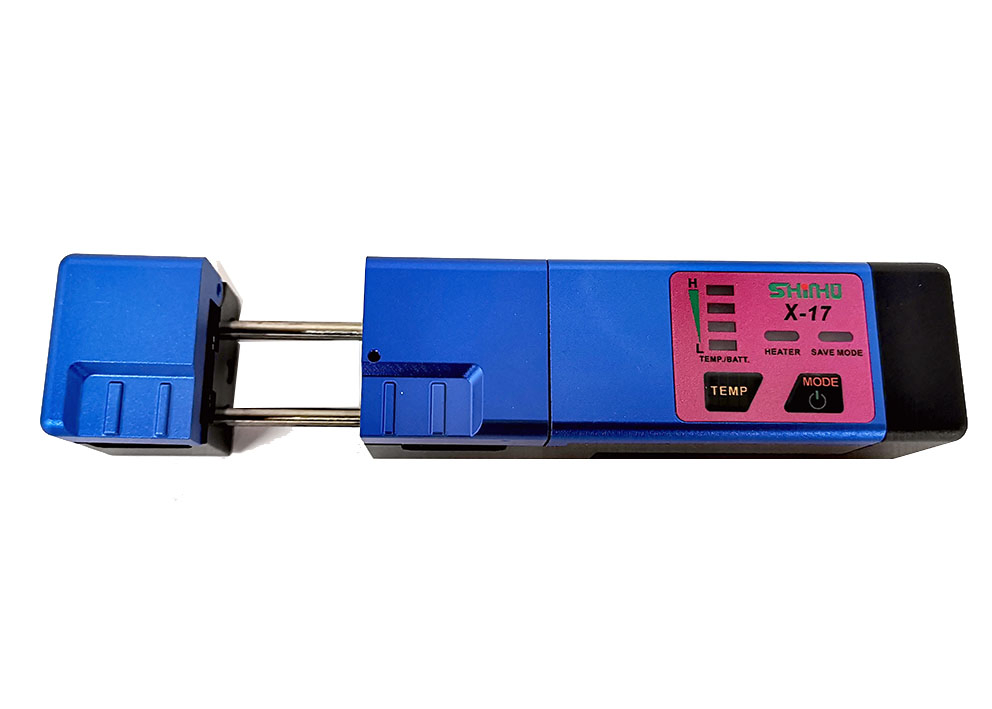

Thermal Stripper for Ribbon Splicer

Product Description

Features:

pply to single and ribbon (up to 12 cores) fibers
4 seconds fast heating, 4 levels temperature optional
Normal and Power saving modes Optional
Pluggable Li-battery, support more than 300 cycles
Small size and light weight, conenient to carry
Rugged and durable for any tough environment
Easy to operate and maintain, near zero failure.
Reach CE, ROHS international standards
Thermal Stripper for Ribbon Splicer

Product Description

Fiber material	Silica glass
Coating material	UV curable resin
Coating diamter	Single core: 0.25~0.4mm; 2~12 ribbon fiber: 0.3~0.4mm
Cladding diameter	125µm
Coating stripping length	Max 30mm
Fiber typs	Single fiber, ribbon fiber
Fiber holder type	FH-2,FH-4,FH-6,FH-8,FH-10,FH-12,FH-250,FH-900,FH-U (for 250/900µm fibers)
Heating mode	Normal mode, power saving mode
Temperature setting	Normal mode: 80ºC, 95ºC 110ºC, 130ºC. Power saving mode: 70ºC, 80ºC, 95ºC, 110ºC.
Typical heating time	Normal mode: 4~5secs Power saving mode: 5~6secs
Battery capacity	800mAh Li-battery. Support more than 300 cycles stripping once fully charged
Power supply	AC adapter, input: AC100-240V(50/60HZ), output: DC12V-1A
Operation environment	Altitude: 0-5000m, Relative humidity: 0-95%, Temperature: 0ºC ~ +40 ºC, Wind speed: 15m/s maximum
Dimension/Weight	138mm (L)×34.5mm (W)×35mm (H) /300g(inlcuding battery)

Accessories:

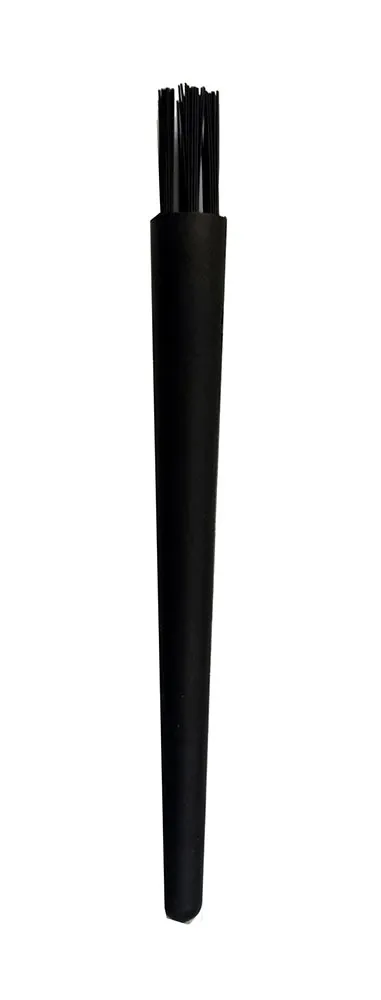

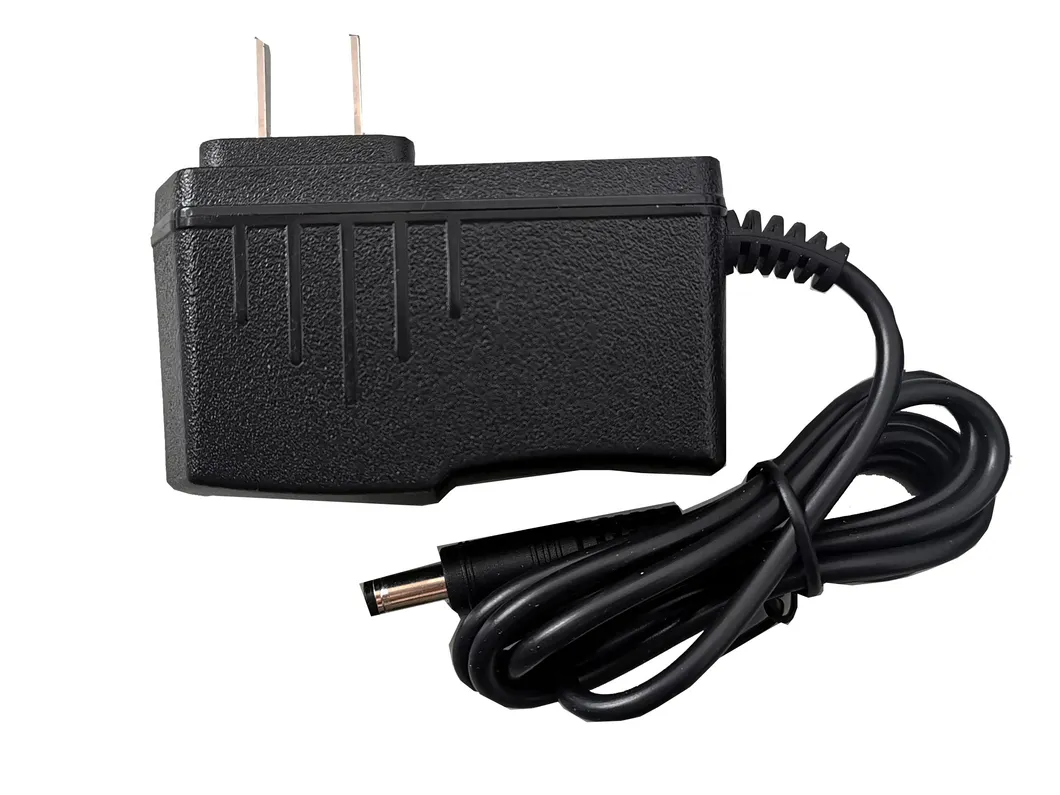

Thermal stripper AC adapter Cleaning brush

Delivery leading period:

Within 3 working days for small orders after receiving full payment

Kindly consult us for bulk orders

Shipment:

Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders.

By sea or by aircargo for bulk orders.

After-sales Service:

We guarantee all our fusion splicers for one year from the date customers receive them. Other parts for six months.

We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.

Company Information

Shanghai shinhoFiber Communication Co., Ltd is one real professional manufacturer of fusion splicers.We provide OEM, ODM and other services to our valuable customers from overseas markets.As a new manufacturer, our X-series optical fiber fusion splicers have independent IPR. Our optical fiber splicing machines have advanced and stable performance, their operation is easy and intelligent, being widely used in kinds of telecom areas, like communication projects, broadcasting & TV, railway, petroleum & chemical industry, optical passive components production, scientific institute, etc. Compared with Fujikura, Sumitomo, Fitel, Inno and other Chinese splicers, our splicers' fusion losses have reached world's advanced level, much better than all Chinese brands' fusion splicers.

Based on years of experiences in optical communication fields, our aim is to provide you excellent fiber optic fusion splicers, and best after-sales service. Hoping we could establish business relations with your esteemed company very soon.

Be remember, shinho is a leading OEM manufacturer of single core fiber fusion splicers in Shanghai.
