Stranded Loose Tube Metallic Strength Member Armored 20-24 Cores Cable GYTA53
Stranded Loose Tube metallic Strength Member armored 14-18 Cores Cable GYTA53DescriptionThe fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of ......
Send Inquiry
Product Description
Stranded Loose Tube metallic Strength Member armored 14-18 Cores Cable GYTA53
Description

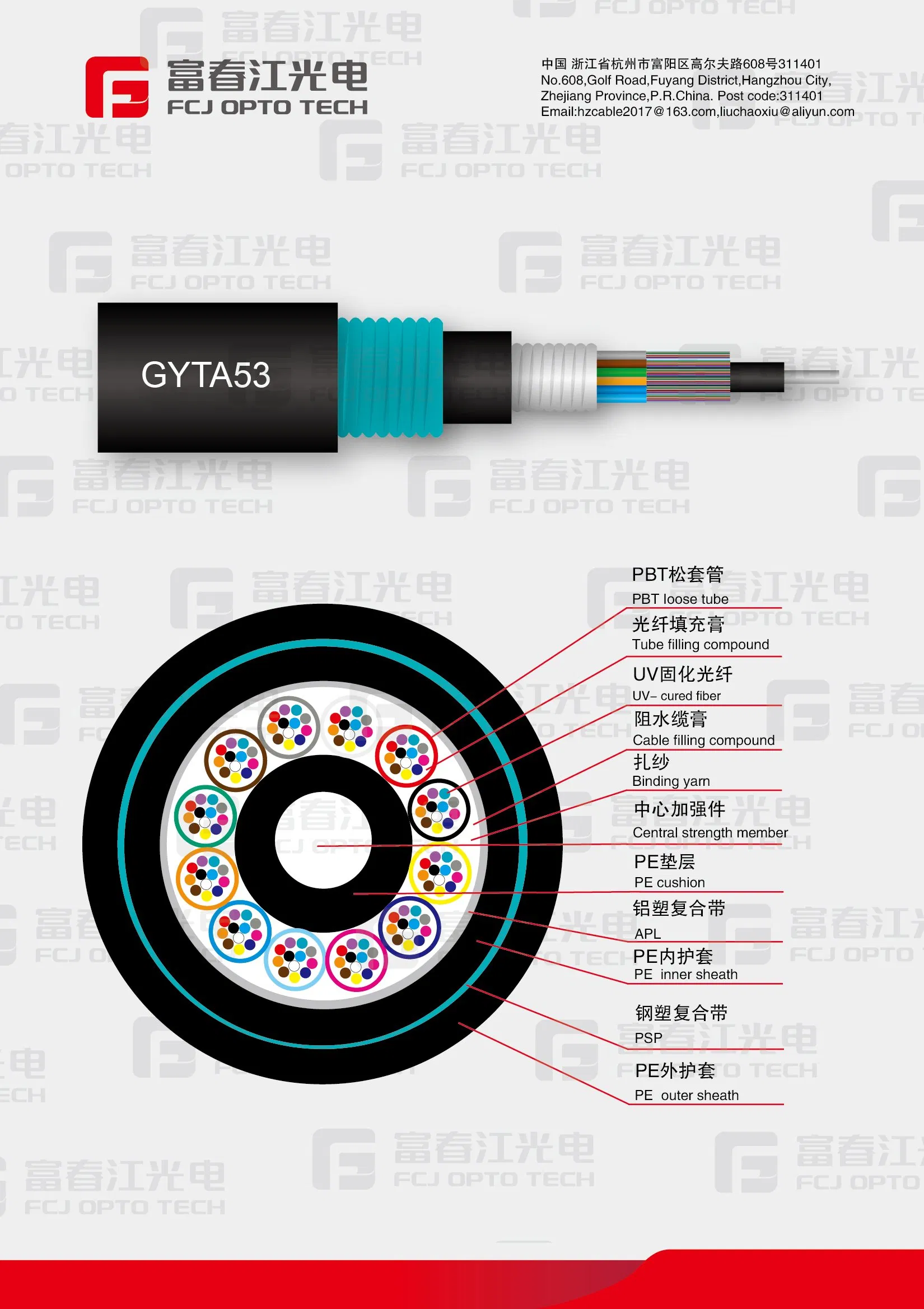

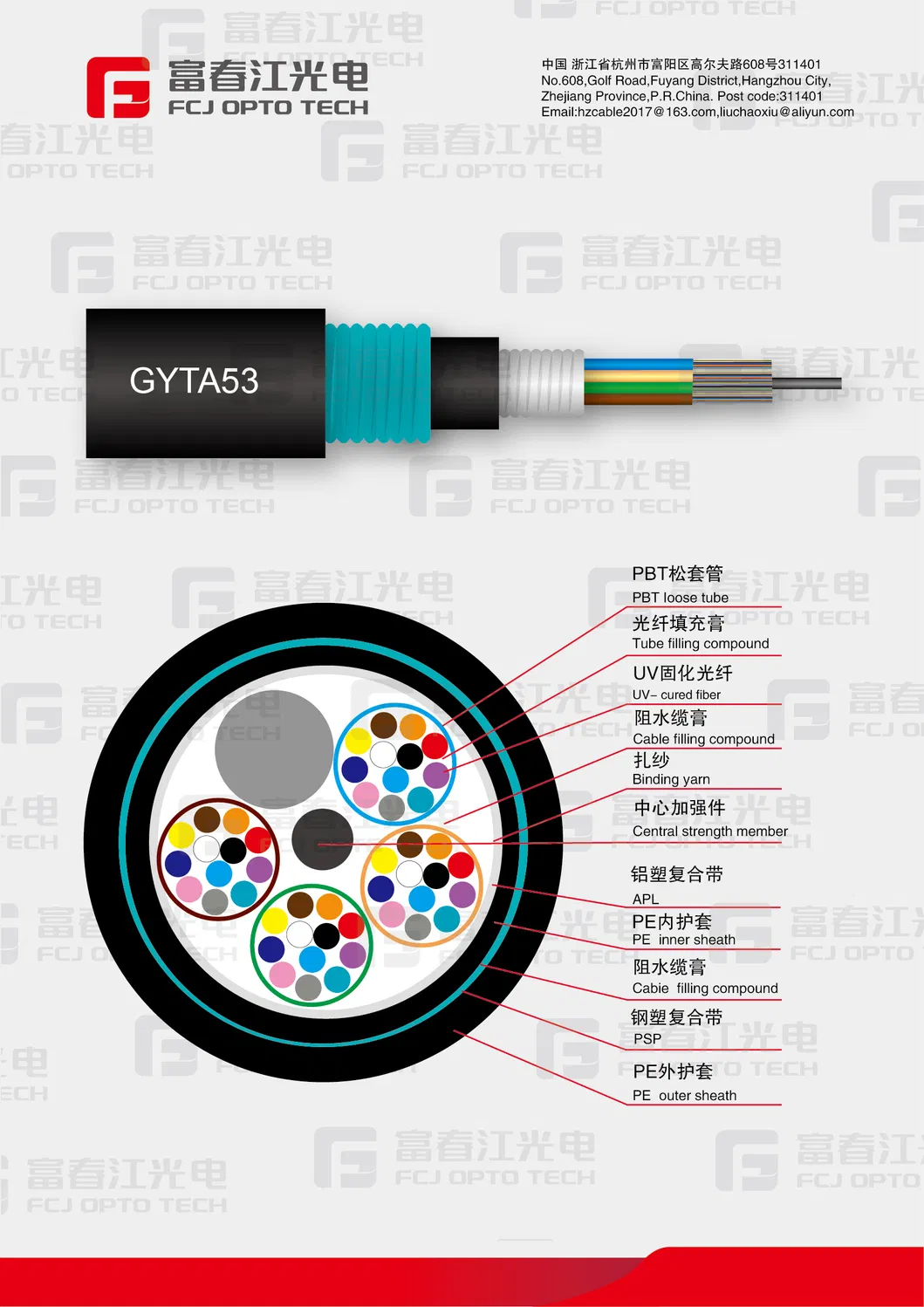

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is extruded with a polyethylene inner sheath, and then PSP is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.
Characteristics:
- Special tube filling compound ensure a critical protection of fiber
- Full-section water-blocking structure, longitudinally wrapped double-sided coated corrugated steel (aluminum) tape armored, reliable lap bonding, high strength, no cracking during torsion, double-layered double-armored structure, excellent crush resistance, ensure Good water and moisture resistance; also has anti-rat ability.
- Phosphorized wire center reinforcement member has high modulus and corrosion resistance
- PE sheath protects cable from ultraviolet radiation
- The product service life is more than 25 years;
- Operating Temperature: -40 ~ +70ºC
- GYTA53 cable complies with Standard YD/T 901-2018.
- Application: Long distance communication and interoffice communication
- Method of installation: direct burial
Technical Parameters
| Cable Type | Fiber Count | Tubes | Fillers | outer diameter (ref) | Cable Weight kg/km(Ref) | Tensile Strength Long/Short Term(N) | Crush Resistance Long/Short Term(N/100mm) | Bending Radius Static/Dynamic(mm) |
| GYTY53-2~6B1.3 | 2~6 | 1 | 4 | 12.6 | 164 | ≥1000/ ≥3000 | ≥1000/ ≥3000 | 12.5D/25D |
| GYTY53-8~12B1.3 | 8~12 | 2 | 3 | 12.6 | 164 | |||
| GYTY53-14~18B1.3 | 14~18 | 3 | 2 | 12.6 | 164 | |||
| GYTY53-20~24B1.3 | 20~24 | 4 | 1 | 12.6 | 164 | |||
| GYTY53-26~30B1.3 | 26~30 | 5 | 0 | 12.6 | 164 | |||
| GYTY53-32~36B1.3 | 32~36 | 6 | 0 | 12.6 | 164 | |||
| GYTY53-38~48B1.3 | 38~48 | 4 | 1 | 12.9 | 168 | |||
| GYTY53-50~60B1.3 | 50~60 | 5 | 0 | 12.9 | 168 | |||
| GYTY53-62~72B1.3 | 62~72 | 6 | 0 | 13.1 | 194 | |||
| GYTY53-74~96B1.3 | 74~96 | 7~8 | 1~0 | 14.2 | 201 | |||
| GYTY53-98~120B1.3 | 98~120 | 9~10 | 1~0 | 15.5 | 233 | |||
| GYTY53-122~144B1.3 | 122~144 | 11~12 | 1~0 | 16.6 | 278 | |||
| GYTY53-146~216B1.3 | 146~216 | 13~18 | 5~0 | 17.2 | 302 | |||
| GYTY53-218~288B1.3 | 218~288 | 19~24 | 5~0 | 18.9 | 332 |
