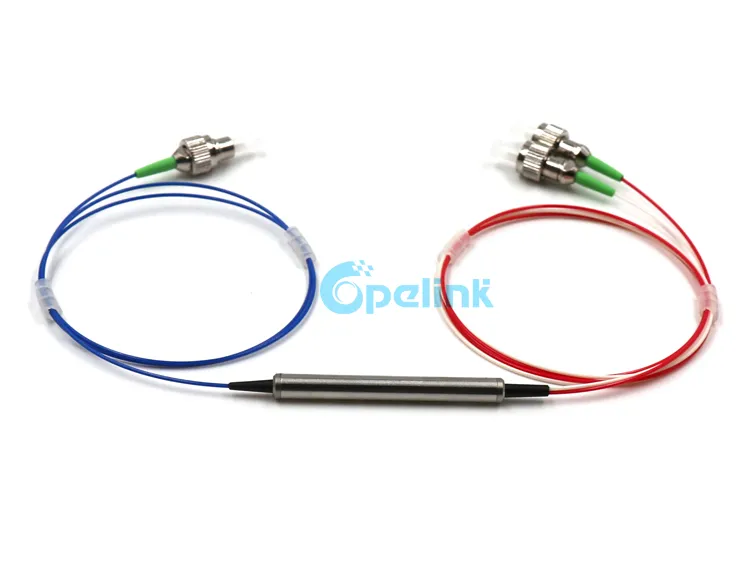

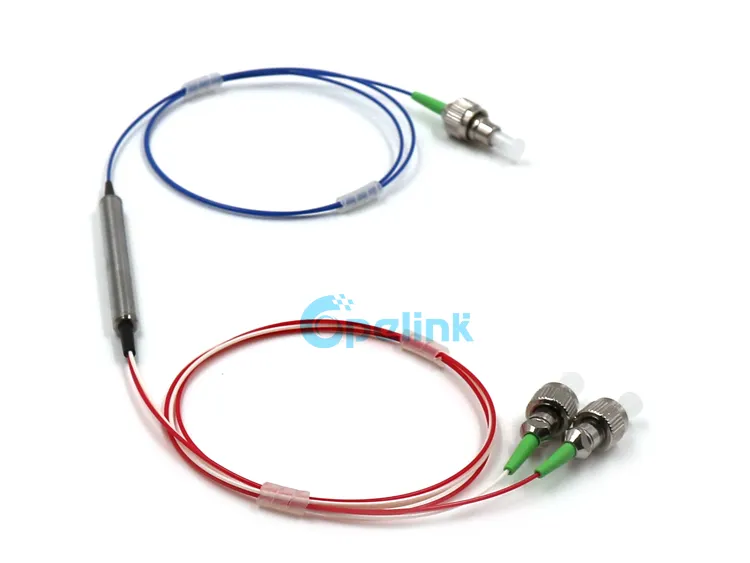

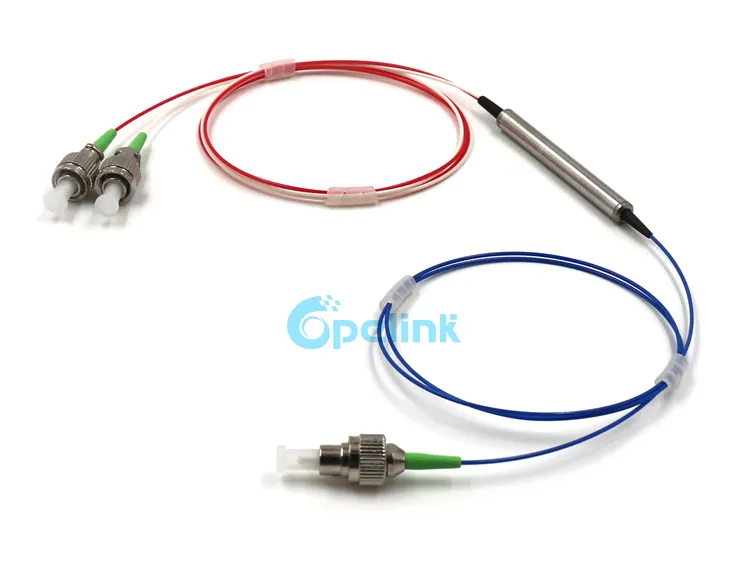

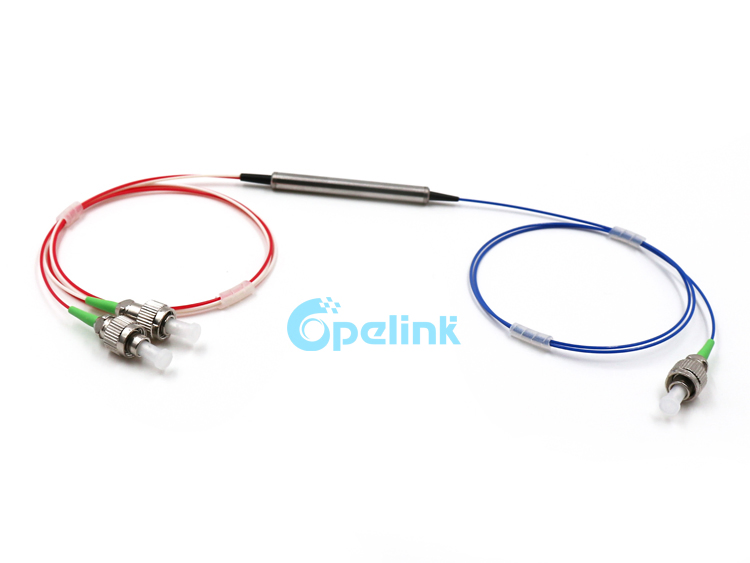

ST/PC Low Pdl 3 Ports Optical Circulator for Optical EDFA, Steel Tube Pigtail 0.9mm

Product Description

ST/PC Low PDL 3 Ports Optical Circulator For Optical EDFA,steel tube pigtail 0.9mm,L=1mm

Features:

Low Insertion Loss
Wide Band High Isolation
Ultra-low PDL and PMD
Compact In-Line Package
High Stability and Reliability

Application:

Metro Area Network
Wavelength Add/Drop
Dispersion Compensation
Fiber optic instruments

DWDM OTDR System

DWDM & OADM Networks

Bi-Directional Transmission System

Fiber Frag Gratting

EDFA, optical fiber amplifiers
Dispersion compensation modules
Optical fiber communication networks

Optical Specifications:

Parameter		Specification
Configuration		Port 1 to Port 2 to Port 3		Port 1 to Port 2 to Port 3 to Port 4
Operation Wavelength (nm)		1310±30 or 1550±30 or 1585±30	1525 to 1610	1310±30 or 1550±30
I.L (dB)	Typical	0.6	1.0	0.8
I.L (dB)	Maximum	0.8	1.2	1.0
Typical Isolation (dB)		50	50	50
Minimum Isolation (dB)		40	35	40
Cross Talk (dB)		≥50	≥50	≥50
Polarization Dependent Loss (dB)		<0.15	<0.2	<0.2
Polarization Mode Dispersion		<0.1	<0.1	<0.1
Return Loss(dB)		≥50	≥50	≥50
Power Handling (mW)		300	300	300
Operating Temperature (ºC)		-0~+70	-0~+70	-0~+70
Storage Temperature (ºC)		-40~+85	-40~+85	-40~+85

Order Information:

Type	Operating Wavelength	Fiber type	package	cable type	fiber length	connector (Input-Output)
3=3port 4=4port	13=1310nm 15=1550nm 16=1585nm CL=C+L Band 1525~1610nm	S1=G652D S2=G657A1	06=5.5x50mm Steel Tube 04=90x20x9.5mm Plastic Box	B=250um Bare Fiber L=900um Loose Tube 2=2.0mm 3=3.0mm	0.5M=0.5M 1M=1M XX=OTHER	00=None FA=FC/APC FU=FC/UPC SA=SC/APC SU=SC/UPC ST=ST/UPC LU=LC/UPC
