Product Description
Summary

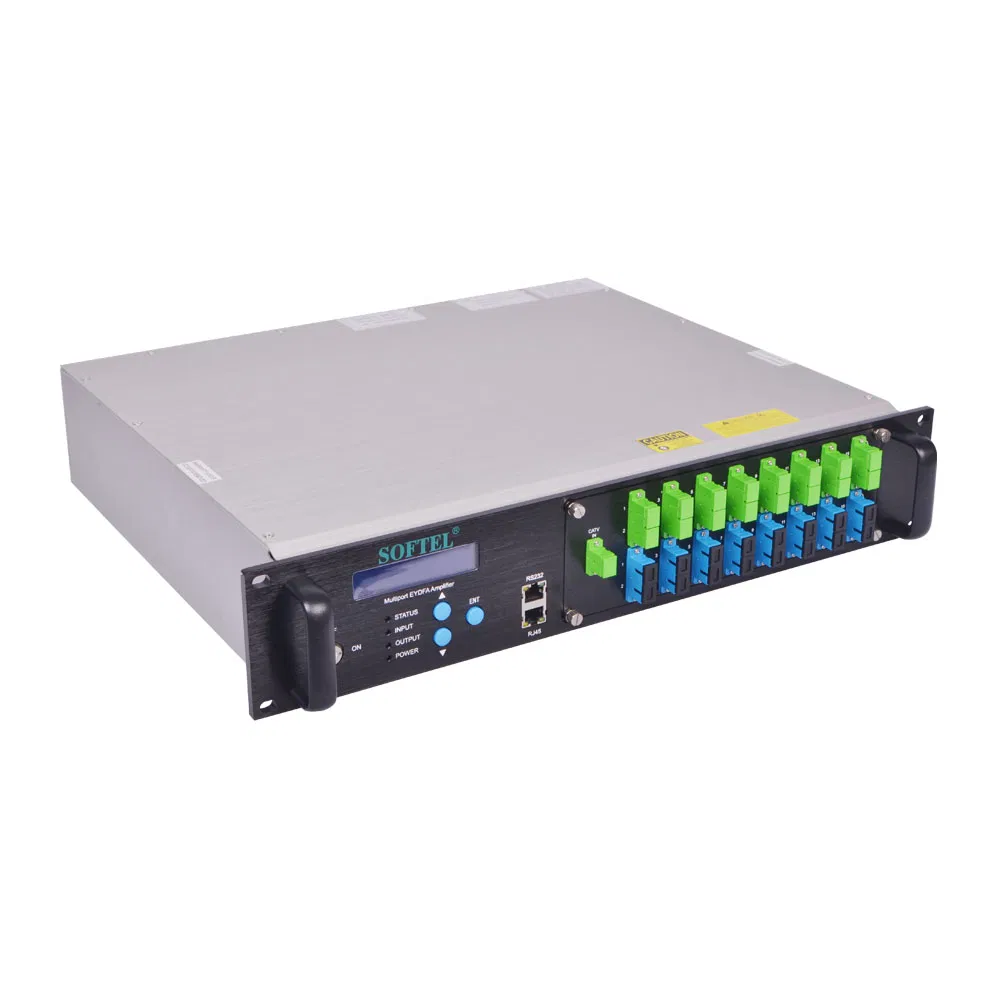

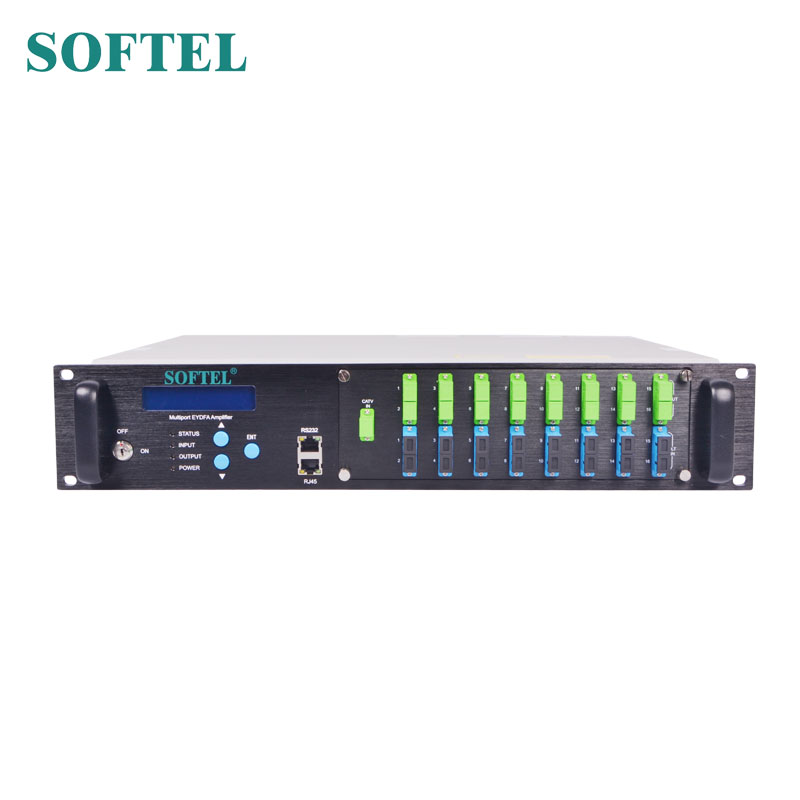

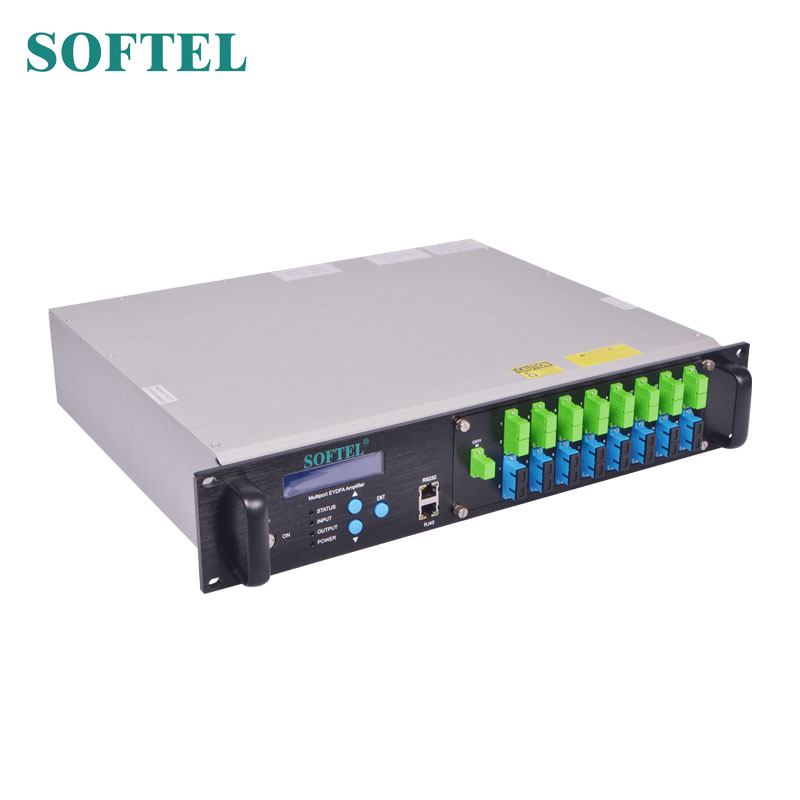

SPA-16 is a low noise high-performance Er Yb co-doped fiber amplifier. Each output built-in CWDM (1310/1490/1550) wavelength division multiplexer. Conveniently multiplex the data stream of OLT and ONU to thefiber amplifier output by 1310nm and 1490nm optical connector. Thus reduced the equipment quantity, improved the system indexes and reliability. It is the ideal equipment for FTTx network, provides a flexible and low cost solution for the integration of three networks and the FTTH.
Feature
Adopts Er Yb Codoped double-clad fiber technology;
Output ports: 4-16 optional;
Optical output power: total output up to 5W;
Low noise figure: <5dB when input is 0dBm;

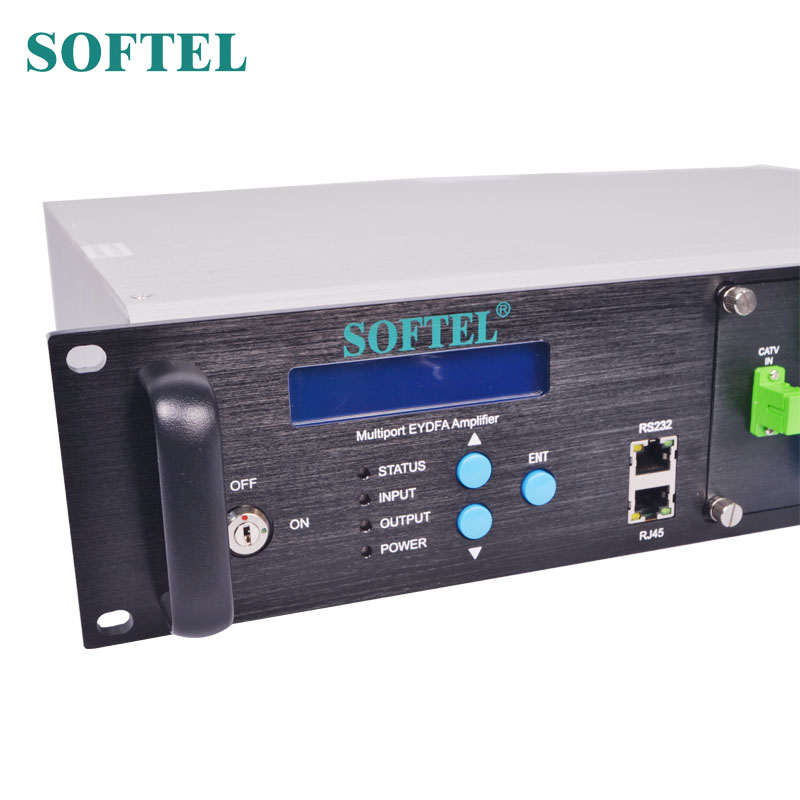

Perfect network management interface, in line with standard SNMP network management;
Intelligent temperature control system make the power consumption lower;
- AM CATV
- Digital CATV
- DBS&MMDS
- FTTP
Specifications
Item | Unit | Technique parameters | ||
CATV pass through wavelength | nm | 1545 - 1565 | ||
PON pass through wavelength | nm | 1260 - 1360 1480 - 1500 | ||
PON insertion loss | dB | <0.8 | ||
Isolation | db | >15 | ||
CATV optical input power range | dBm | -3 - +10 | ||
Maximum optical output power | dBm | 36 | ||
Output power stability | dBm | ±0.5 | ||
Noise figure | dB | ≤ 5.0 (Optical input power 0dBm, λ=1550nm) | ||
Return loss | Input | dB | ≥ 45 | |
Output | dB | ≥ 45 | ||
Optical Connector Type |
| SC/APC | ||
C/N | dB | ≥ 50 | Test condition according to GT/T 184-2002. | |
C/CTB | dB | ≥ 63 | ||
C/CSO | dB | ≥ 63 | ||

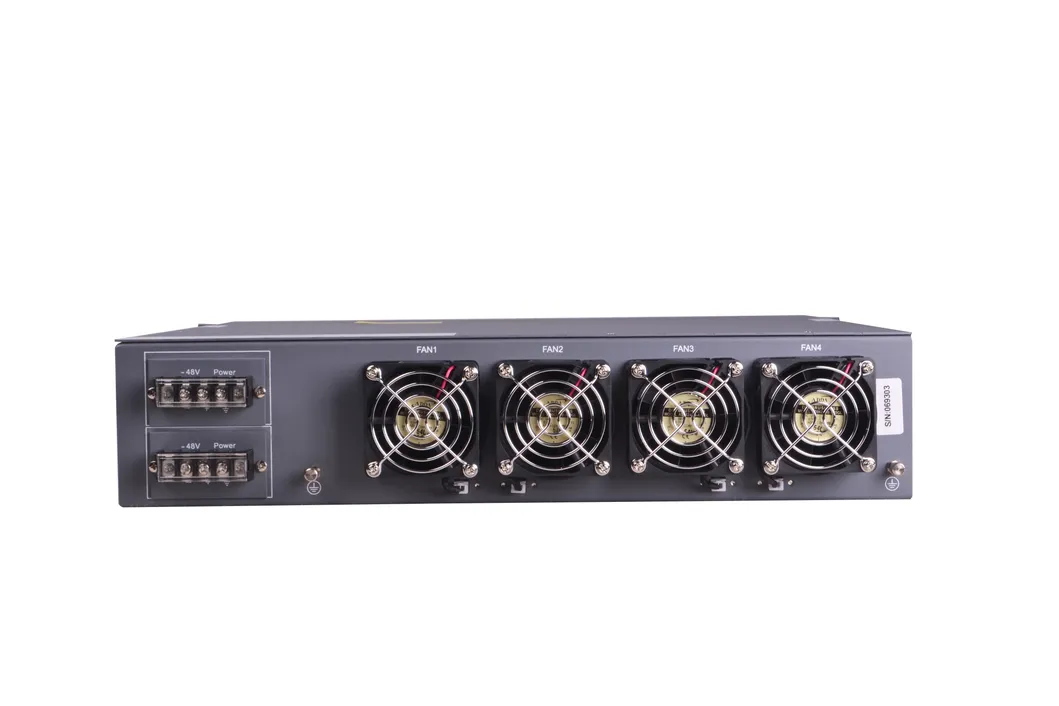

Power supply voltage | V | A: AC160V - 250V(50 Hz); B: DC48V | ||
Consumption | W | ≤ 70 | ||
Operating temperature range | °C | -10 - +42 | ||
Maximum operating relative humidity | % | Max 95% no condensation | ||
Storage temperature range | °C | -30 - +70 | ||
Maximum storage relative humidity | % | Max 95% no condensation | ||
Dimension | mm | 483(L)× 440(W)× 88(H) | ||
