Skycom Mini OTDR560-A24D 1310 /1550nm
SKYCOM MINI OTDR TOT560-A24DTechnical indicators Model No.WavelengthDynamic RangeMax. Test RangeTOT560-A24D1310/1550nm24/22dB80kmMeasuring range100m,500m,2km,5km,10km,20km,40km,80km/90kmSampling resolutionMinimum: 0.2mEvent dead zone< 2.0mAttenuation dead zone< 7.0mThe sampling point64,000 poi......
Send Inquiry
Product Description

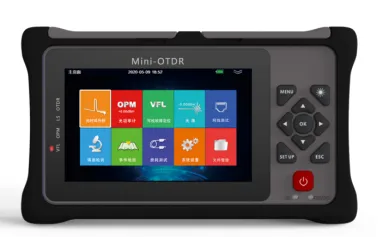

SKYCOM MINI OTDR TOT560-A24D
Technical indicators
Accessories
FAQ
1.Are you a manufacture or trade company?
We are the manufacture with 10 year's history still 2020
2.What is your product's brand?
Our product's brand is SKYCOM
3.What is your main products?
Our main product is Fusion Splicer, OTDR, some fiber tools
4.How can we place order?
After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your payment, we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods, if you don't have the ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost.
5. What is the quality for your product?
All of our productsare with high quality, Our customers from Asia, South America, North America,EU, Africa. We also serve for China Unicom, China Telecom, China Mobile
6. How do you arrange the shipping?
They are two types of shipping methods available, by sea and by air(Express courier-Fedex/DHL/UPS/TNT/EMS,we can ship them according to your express account or ship them by our agent company,the delivery time is about 7 working days.
7. Why choose SKYCOM to cooperate?

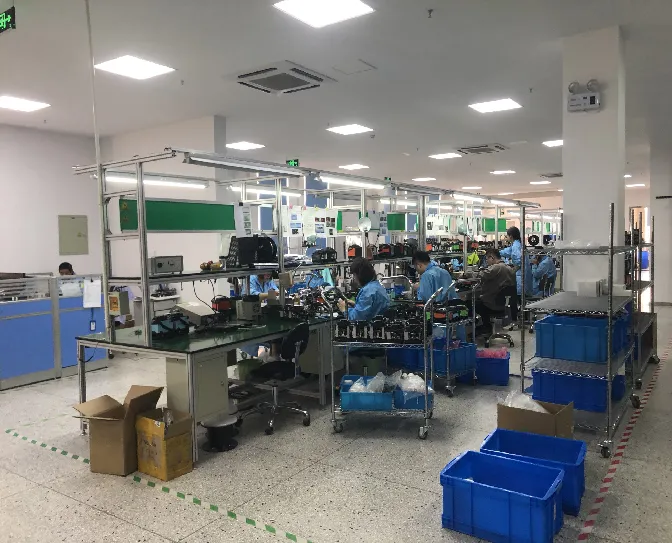

We have first-class production line and strict quality management system.
We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
We can provide the most competitive price to meet your budget.
We also design and innovation the new products based on our rich experience.
We have professional team to provide comprehensive one-stop service for you.
| Model No. | Wavelength | Dynamic Range | Max. Test Range |
| TOT560-A24D | 1310/1550nm | 24/22dB | 80km |
| Measuring range | 100m,500m,2km,5km,10km,20km,40km,80km/90km | ||
| Sampling resolution | Minimum: 0.2m | ||
| Event dead zone | < 2.0m | ||
| Attenuation dead zone | < 7.0m | ||
| The sampling point | 64,000 point | ||
| Linearity | ≤0.05dB/dB | ||
| Loss threshold | 0.01dB | ||
| Loss resolution | 0.001dB | ||
| Range resolution | 0.01m | ||
| Range accuracy | ±(0.5m+Range×3×10-5+Sampling resolution) (Excluding refractive index error) | ||
| Memory | >40000 | ||
| Data interface | 2 USB(Type A×1, Micro USB×1, SD card) | ||
| Screen | 4.3-inch TFT-LCD (Standard distribution capacity touch screen) | ||
| Battery | 3.7V/5200mAh | ||
| Temperature | Working temperature:-10ºC~+55ºC; Storage temperature:-20ºC~+80ºC | ||
| Humidity | ≤95%(No condensation) | ||
| Size/Weight | 175x105x45mm / 0.56kg(Include the battery) | ||
| OPM | Type A:+10dBm~-70dBm;Type B:+26dBm~-50dBm | ||
| VFL | 10mW,CW/2Hz | ||
| LS(Laser Source) | The output power:-5dBm,Modulation frequency:CW/270Hz/1KHz/2KHz | ||
| Network Cable test (Optional) | Support network wire sequence testing and wire alignment | ||
Accessories
| Standard | FC adaptor, Power adapter, Lithium battery, USB cable, Quick guide, Portable package |
FAQ
1.Are you a manufacture or trade company?
We are the manufacture with 10 year's history still 2020
2.What is your product's brand?
Our product's brand is SKYCOM
3.What is your main products?
Our main product is Fusion Splicer, OTDR, some fiber tools
4.How can we place order?
After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your payment, we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods, if you don't have the ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost.
5. What is the quality for your product?
All of our productsare with high quality, Our customers from Asia, South America, North America,EU, Africa. We also serve for China Unicom, China Telecom, China Mobile
6. How do you arrange the shipping?
They are two types of shipping methods available, by sea and by air(Express courier-Fedex/DHL/UPS/TNT/EMS,we can ship them according to your express account or ship them by our agent company,the delivery time is about 7 working days.
7. Why choose SKYCOM to cooperate?
We have first-class production line and strict quality management system.
We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
We can provide the most competitive price to meet your budget.
We also design and innovation the new products based on our rich experience.
We have professional team to provide comprehensive one-stop service for you.
