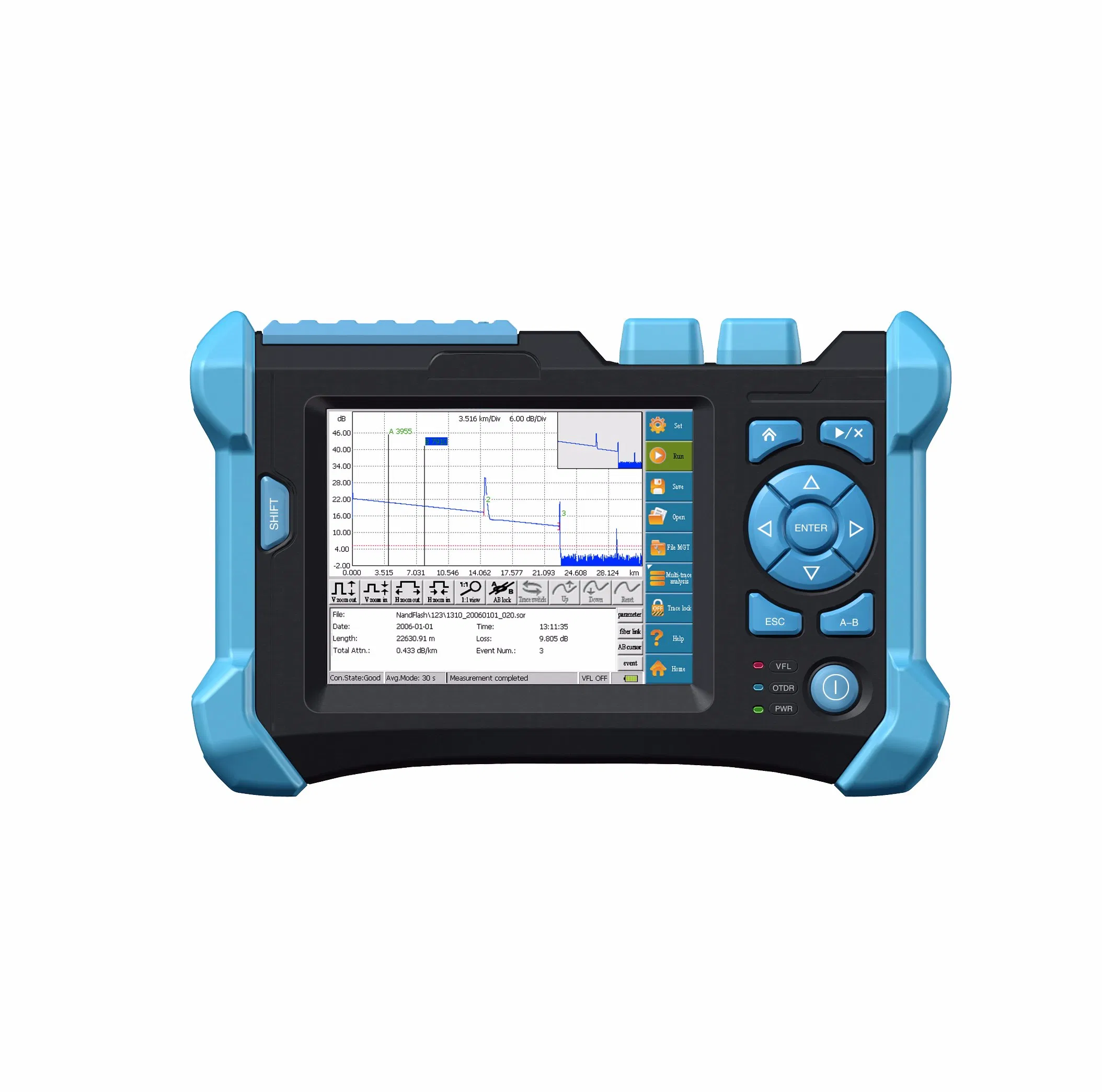

Shinho X-60 OTDR Tester for Fiber Netwok Projects Online Testing 1310 /1550/1625nm
X-60 OTDRFeatures*Multi-wavelength Analysis Function: It can achieve the comparison, display and analysis functions of any trace file.*FTTx online testing, able to identify the splitter and the fiber's end.*Large-capacity lithium-ion rechargeable battery, with the long standby time over 8 hours.......
Send Inquiry
Product Description
X-60 OTDR
Features
*Multi-wavelength Analysis Function: It can achieve the comparison, display and analysis functions of any trace file.
*FTTx online testing, able to identify the splitter and the fiber's end.
*Large-capacity lithium-ion rechargeable battery, with the long standby time over 8 hours.
*Bellcore file format (.sor), with the storage of greater than 10,000 traces.
*Communication Light Detection: It can effectively protect the test instrumentation and communication equipments.
*Connection State Detection: To promptly know the connection status of the instrumentation and the fiber for test.
*The Switching of Measurement Mode: Through the shortcut key operation, it can achieve the flexible switching of real-time measurement mode and average measurement mode.
X-60 OTDR datasheet
| Technical Specifications | ||||||||
| Wavelength (nm) | 850/1300 | 1310/1550 | 1310/1490/1550 | 1625 | ||||
| Dynamic range (dB) | 23/21 21/19 | 32/30 38/36 | 32/30/30 | 344 365 | ||||
| Pulse width (ns) | 5,20,40,80,160,320,640,1280 | 5,20,40,80,160,320,640,1280,2560,5120,10240,20480 | ||||||
| Event blind zone (m)3 | 3m | 3m | ||||||
| Attenuation blind zone (m)3 | 13m | 13m | ||||||
| Linearity (dB/dB) | ±0.05 dB/ dB | |||||||
| Loss threshold (dB) | 0.05 | |||||||
| Loss resolution ratio (dB) | 0.01 | |||||||
| Sampling resolution ratio (m) | 0.125 to 8 | |||||||
| Sampling point | 32K | |||||||
| Distance uncertainty (m) | ±(1 m + 5×10-5× distance + sampling interval) | |||||||
| Distance scope (km) | 0.3 to180 | |||||||
| Typical real-time refreshing duration (s) | 0.2 | |||||||
| Memory capacity of trace | SD Card (4G), > 10000 pieces | |||||||
| Duration of measurement | Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are optional. | |||||||
| General specification | Interface category | |||||||
| Dimension (H×W×D)(mm) | 150×235×66 | Optical interface | FC/UPC (PC, and APC are optional) | |||||
| Weight | 1.5kg | Data interface | USB interface, SD card interface | |||||
| Temperature | Running temperature -10ºC to 50ºC | Visible failure orientation VFL | ||||||
| Memory temperature -40ºC to 70ºC | ||||||||
| Relative humidity | 0% to 95% (non condensation) | Wavelength | 650nm | |||||
| Power supply | Lithium battery; continuing working duration ≥ 8 hours | Output power (dBm) | ≥-3 | |||||
| Warranty period | 12 months | Maximum testing distance | 3km | |||||
Delivery leading period
Within 3 working days for small orders after receiving full payment
Kindly consult us for bulk orders
Shipment
Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders.
By sea or by aircargo for bulk orders.
After-sales Service
We guarantee all our fusion splicers for one year from the date customers receive them. Other parts for six months.
We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.
Lifelong Maintenance Service
During the warranty period, we can repair or replace the defective parts for free.
After the warranty time, we can also repair the defective parts, but only charge for parts.
Shinho Fiber Communication Co., Ltd is a professional OEM manufacturer of fiber optic fusion splicers. Besides, Shinho could also supply other related test equipment, like palm OTDRs, power meters, VFLs, light sources, fiber identifiers, toolkits, cleavers, etc.
Shinho X-series of optical fiber fusion splicers have Independent Intelligent Property Right (IIPR). They have advanced functions and stable performance, and their splicing loss could reach the top level in the world. After several years' development, Shinho products are broadly acknowledged and trusted by different clients around the world, like USA, South America, Russia, India, Pakistan, Europe, Middle East, South Africa, etc.
Shinho would keep researching and developing the top level fiber optic fusion splicers, providing the excellent and quick service to our customers.
