Shinho S-16 Core Alignment Fusion Splicer for Naked Fiber, Rubber Insulated Cables, 64 Cores Cable
Product DescriptionsWe're a professional manufacturer of fusion splicers, OEM is available. We also offer related products, such as OTDR, power meter, light source, VFL, toolkit etc.S-16 Fusion Splicer is the new model to the market, which has faster splicing time and heating time. It is with c......
Send Inquiry
Product Description
We're a professional manufacturer of fusion splicers, OEM is available. We also offer related products, such as OTDR, power meter, light source, VFL, toolkit etc.

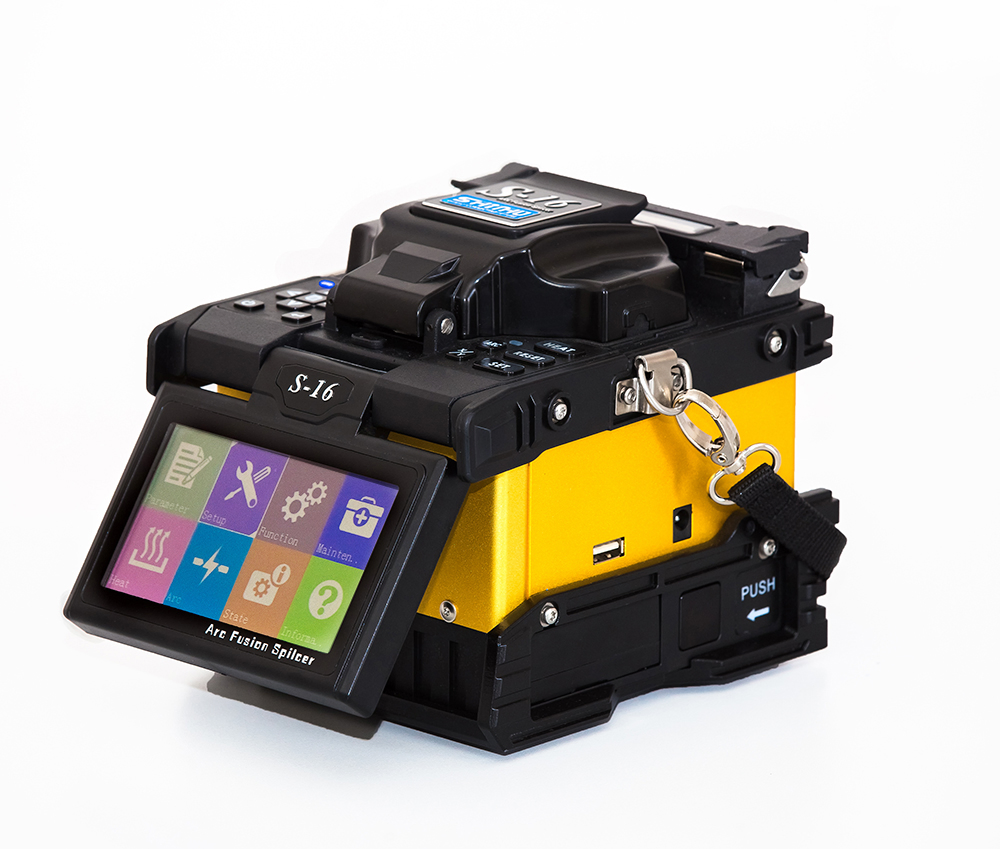

S-16 Fusion Splicer is the new model to the market, which has faster splicing time and heating time. It is with core to core alignment technology, and has very stable performance and low fusion loss. Easy operation for fiber optical projects.
Features
6s for splicing and 18s for heating
Core to core alignment technology

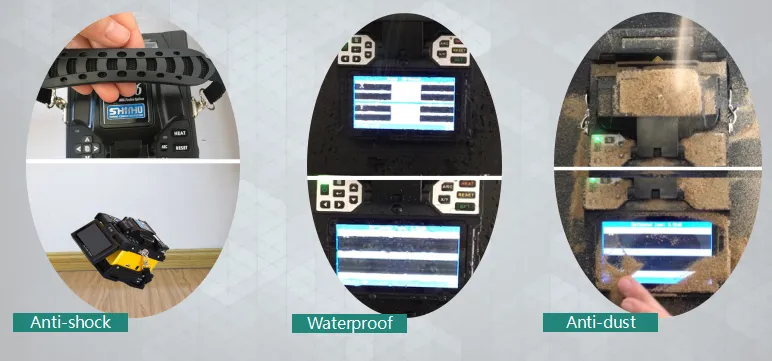

Anti-shock, Anti-dust and waterproof
Automatic ARC value & position calibration
USB port for software updating and data records exporting
5800mAh Li-battery, more than 220 cycles splicing&heating
Multi-function holder clamps, apply to bare fiber,pigtail,patch cords, drop cable etc.
Specifications
| Applicable fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657) |
| Diameter of cladding | 80 -150μm |
| Diameter of coating | 160 - 900μm |
| Typical splice loss | SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB |
| Return loss | >60db |
| Fiber cleaved length | 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm ) |
| Splicing program | 40 groups |
| Operate mode | Manual, Automatic |
| Auto-heating | Available |
| Typical splicing time | 6 seconds |
| Tube heating time | 18 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber view magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing method and display | 2 CMOS cameras, 4.3 inch color LCD monitor |
| Storage of splice result | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easier operation |
| Battery capacity | 5800mAh Li-battery, typical 220 cycles(splice and tube heat) |
| Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
| Electrode life | More than 4000 ARC discharges, can be replaced conveniently |
| Terminals | USB 2.0 port, for uploading splice results and upgrading software |
| Operating condition | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s |
| Dimension | 160mm(L)x136mm(W)x140mm(H) |
| Weight | 2.20kg including battery |
| Package | Packed in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg |

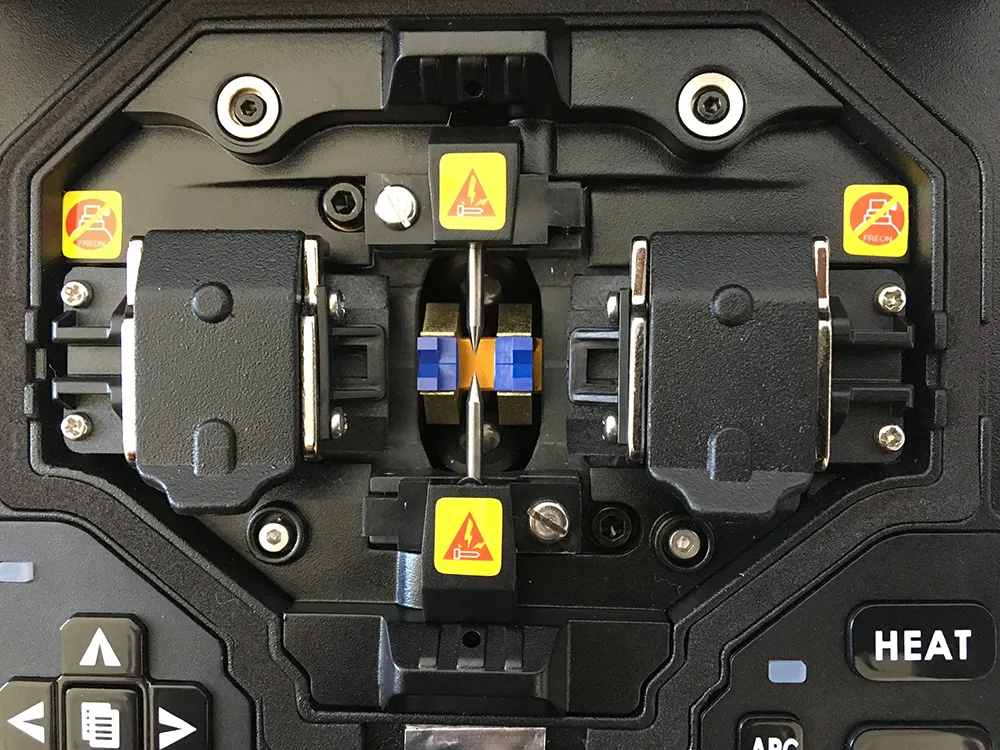

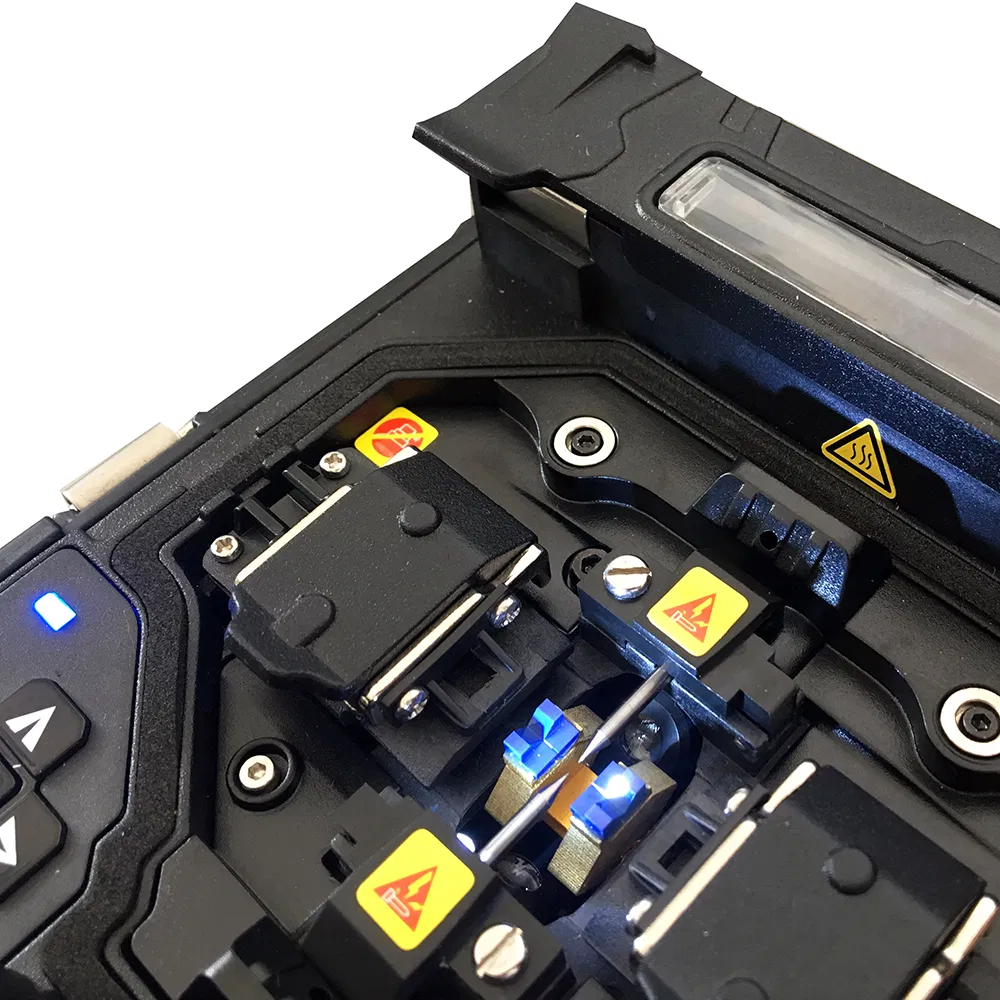

Details

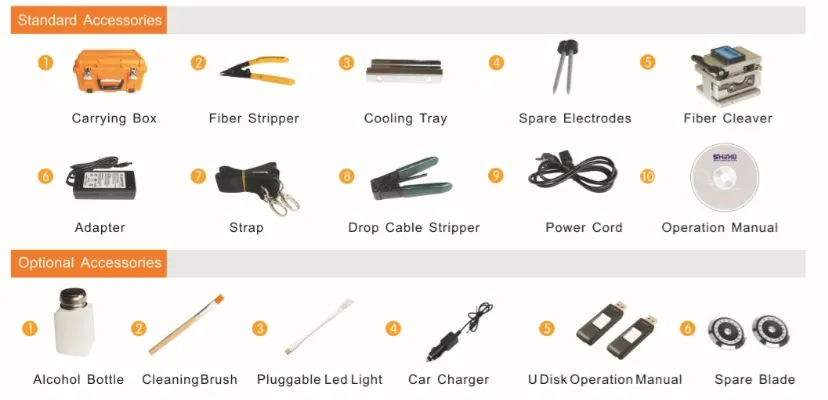

Standard accessories
Our Team
We have a professional, experienced, creative and conscientious team. Customers can get
Reliable quality
Upgraded technology
Cost-effective products
Flexible OEM service
Timely techinical support (including repair, maintaining, training etc.) from us.
Packing&Shipping
Delivery leading period
Within 3 working days for small orders after receiving payment;
Kindly consult us for bulk orders.
Shipment
Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders;
By sea or by aircargo for bulk orders.
After-sales Services
We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.
We guarantee all our fusion splicers for 24 months from the date customers receive them. Other parts for six months. During the warranty period, we can repair or replace the defective parts for free. After the warranty time, we can also repair the defective parts, but only charge for parts.
If you have any interest, please do not hesitate to contact us!
