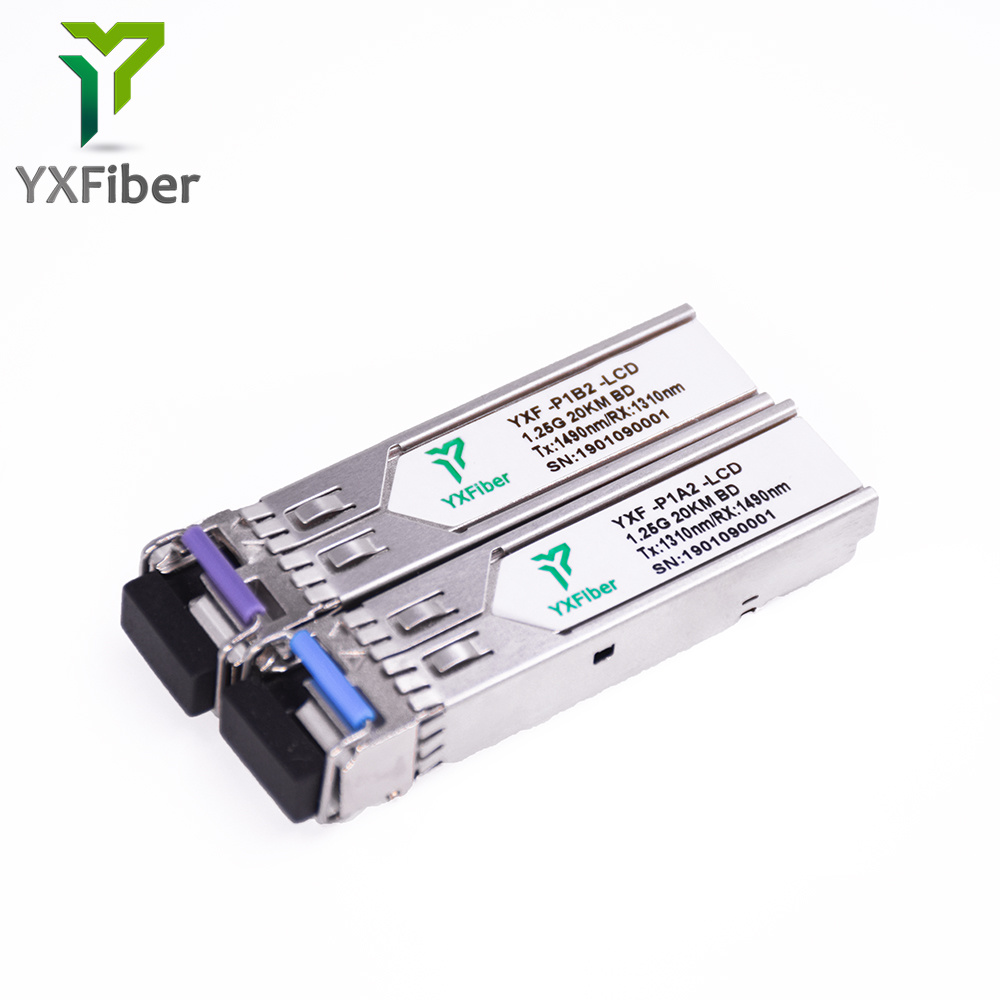

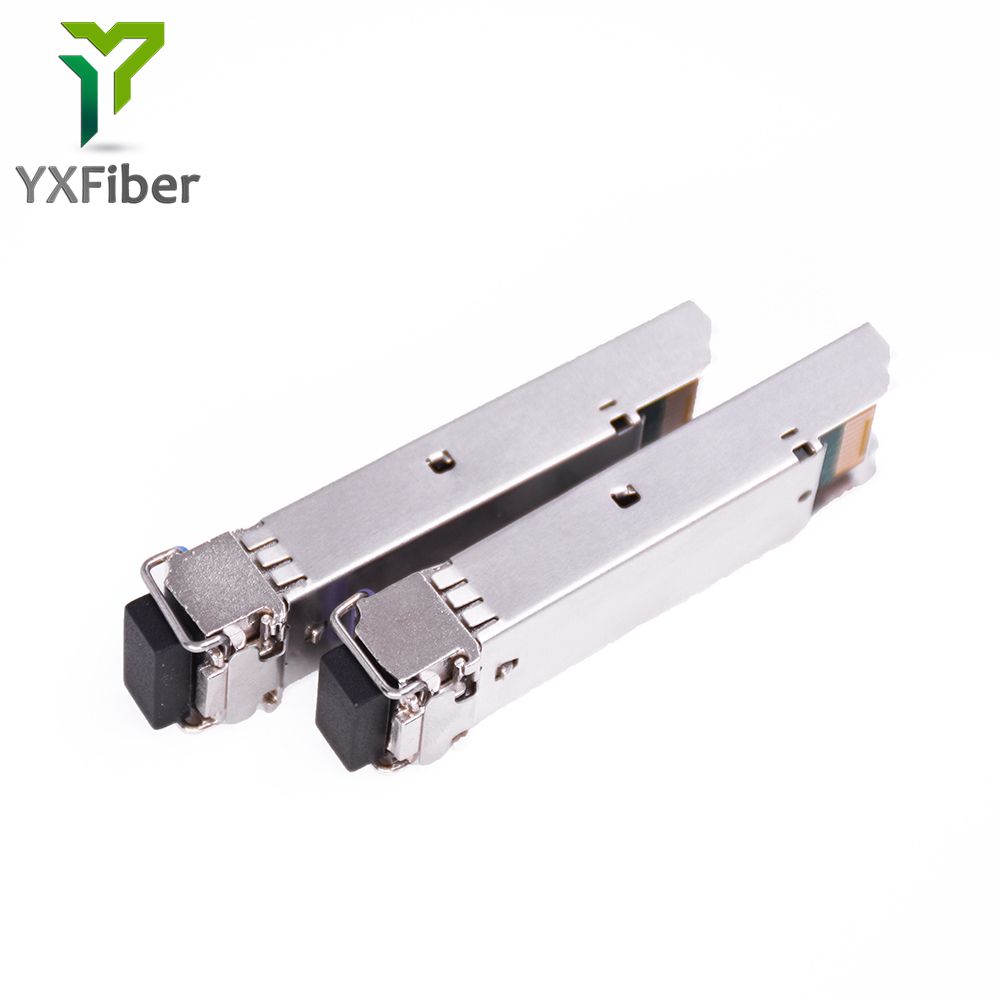

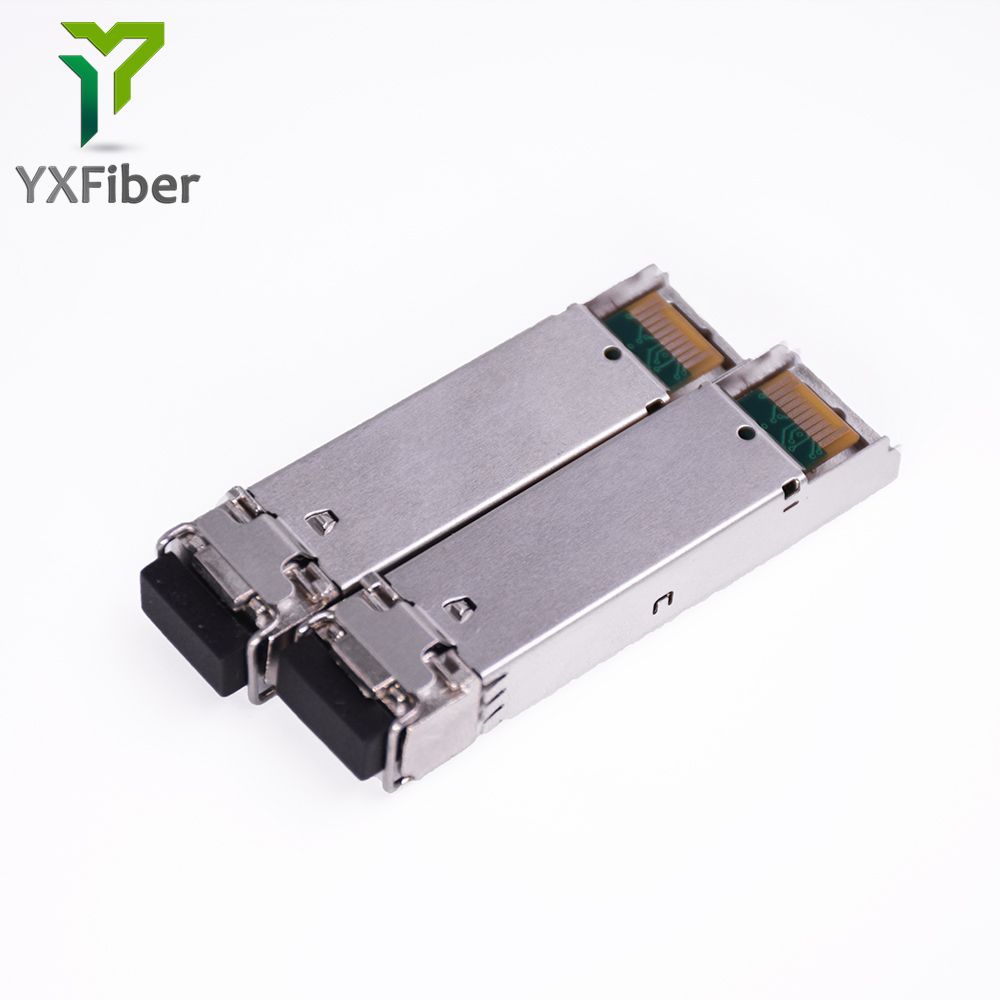

SFP 1.25g LC Connector Simplex 1310 /1490nm 20km SFP Module
Form TypeSFPMax Data Rate1.25GWavelength1490nm-TX/1310nm-RXMax Cable Distance20KMinterfaceLC SimplexOptical ComponentsDFB BiDiDOM SupportYesTX Power-9~-3dBmCommercial Temperature Range0 to 70°CReceiver Sensitivity< -23dBmSFP 1.25G 20km 1310nm/1490nm SFP Module Duplex LC DDMFeatures : 1.Su......
Send Inquiry
Product Description
| Form Type | SFP | Max Data Rate | 1.25G |
| Wavelength | 1490nm-TX/1310nm-RX | Max Cable Distance | 20KM |
| interface | LC Simplex | Optical Components | DFB BiDi |
| DOM Support | Yes | TX Power | -9~-3dBm |
| Commercial Temperature Range | 0 to 70°C | Receiver Sensitivity | < -23dBm |
SFP 1.25G 20km 1310nm/1490nm SFP Module Duplex LC DDM
Features :
1.Supports 1.25Gbps/1.0625Gbps bit rates

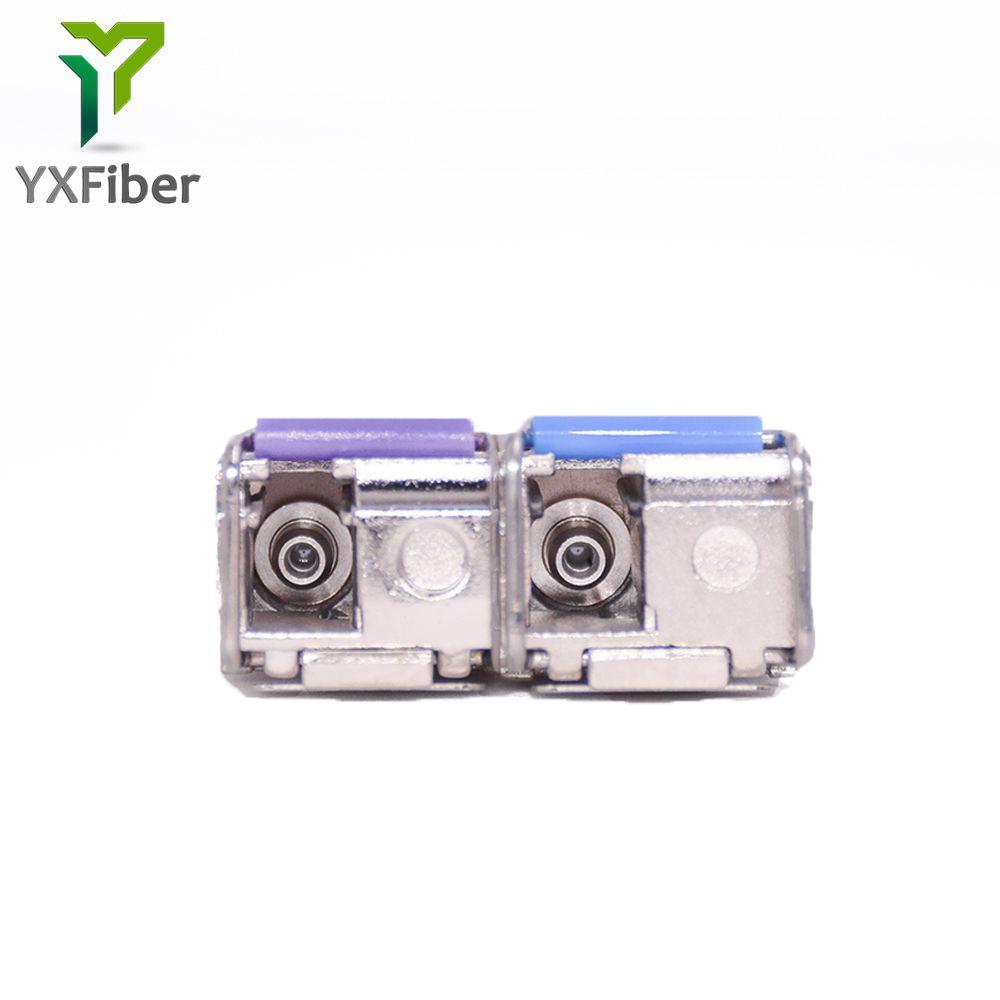

2.Bi-Directional LC connector
3.Hot-pluggable SFP footprint
4.1310nm FP laser and1490nm PIN photo detector
5.1490nm DFB laser and 1310nm PIN photo detector
6.Applicable for 20Km SMF connection
7.Low power consumption, < 0.8W
8.Digital Diagnostic Monitor Interface
9.Compliant with SFP MSA and SFF-8472
10.Very low EMI and excellent ESD protection
11.Operating case temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications:
1.Gigabit Ethernet
2.Fiber Channel
3.Switch to Switch interface
4.Switched backplane applications
5.Router/Server interface
6.Other Optical Links
Product Description:
SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP/DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

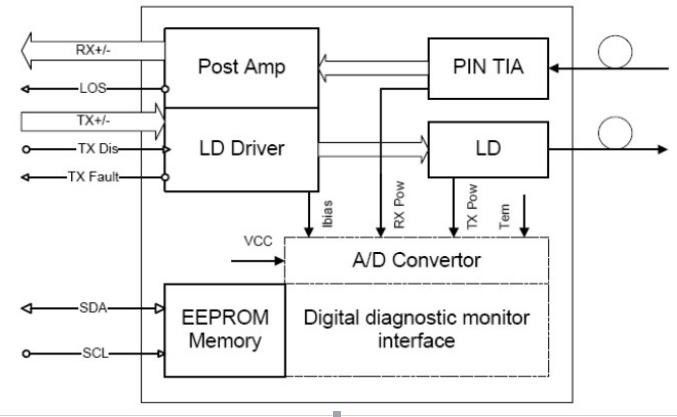

Functional Diagram:

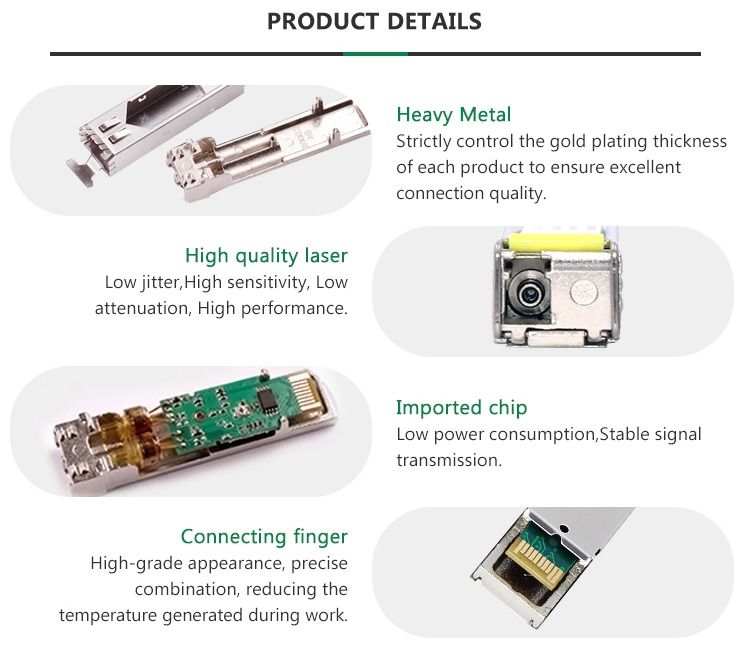

Products Details
Our Advantage
Packing and Shipping
We support DHL/FedEx/UPS and other delivery methods
Q&A
Q: What kinds of custom choices are offered in YXFiber?
A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.
Q: Why should I trust YXFiber compatible transceivers?
A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.
Q: Can we use APC connectors on this?
A: Hi, as the default type is UPC, so it's only can be connected with UPC connectors. Thanks
Q: Once I place an order for my transceivers, how long will it take to receive them?
A: Normally you can receive the goods within 7 workdays
Q: Will using compatible optics in my equipment negatively affect my manufacturer's warranty?
A: No. Network equipment manufacturers do not require that you use only name-brand optics. In fact, when a product fault or defect occurs in the network, and the fault or defect is not attributable to the use of third-party optics, they will continue to provide support for the affected product under warranty or covered by their support program.
