Security Industry Mini-Sc Bundle Cable Ruggedized Fibra Optica Roseta
Security Industry Mini-SC bundle cable Ruggedized fibra optica rosetaProduct DescriptionThe fiber optic rossete indoor wall outlet box is used for indoor cable distribution. The main purpose is to connect outdoor fiber optic cable and indoor optical router in the middle, the box is equipped with fi......
Send Inquiry
Product Description
Security Industry Mini-SC bundle cable Ruggedized fibra optica roseta
Product Description

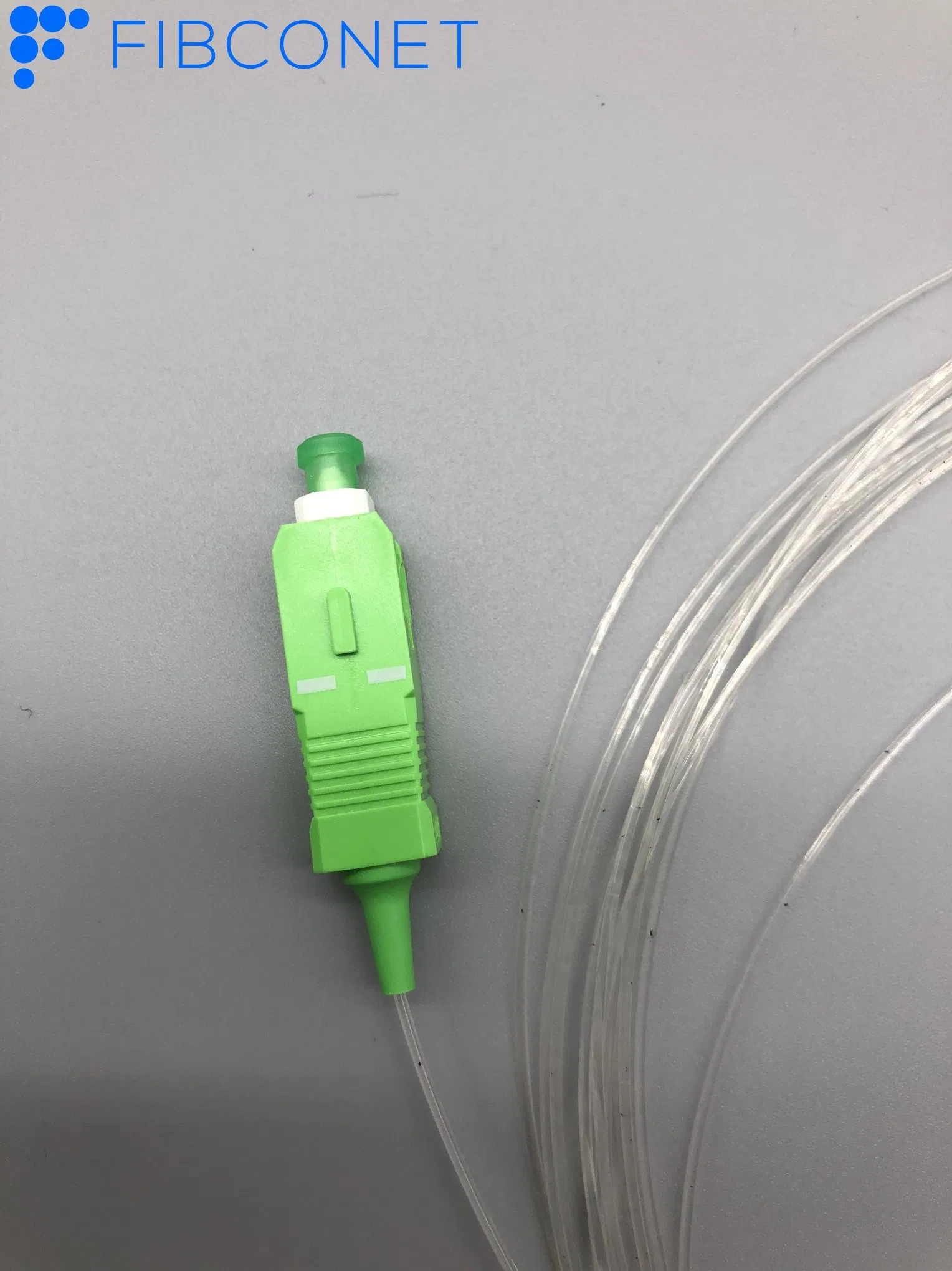

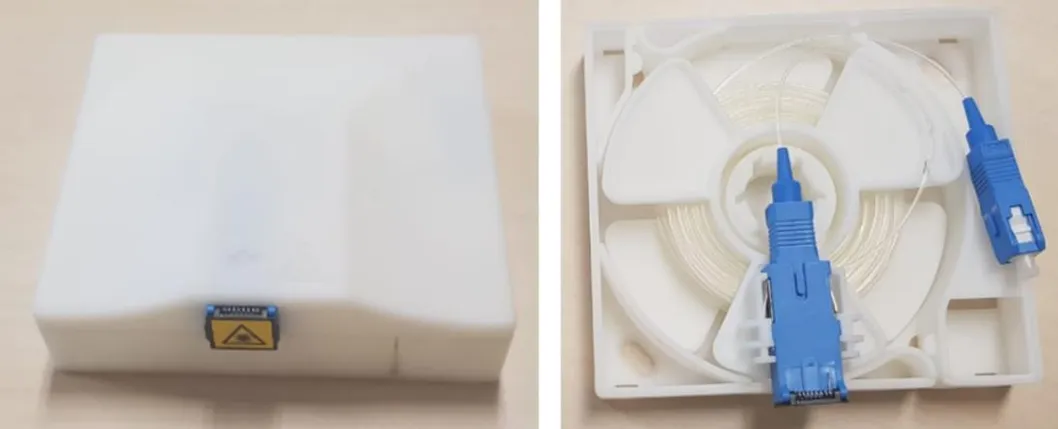

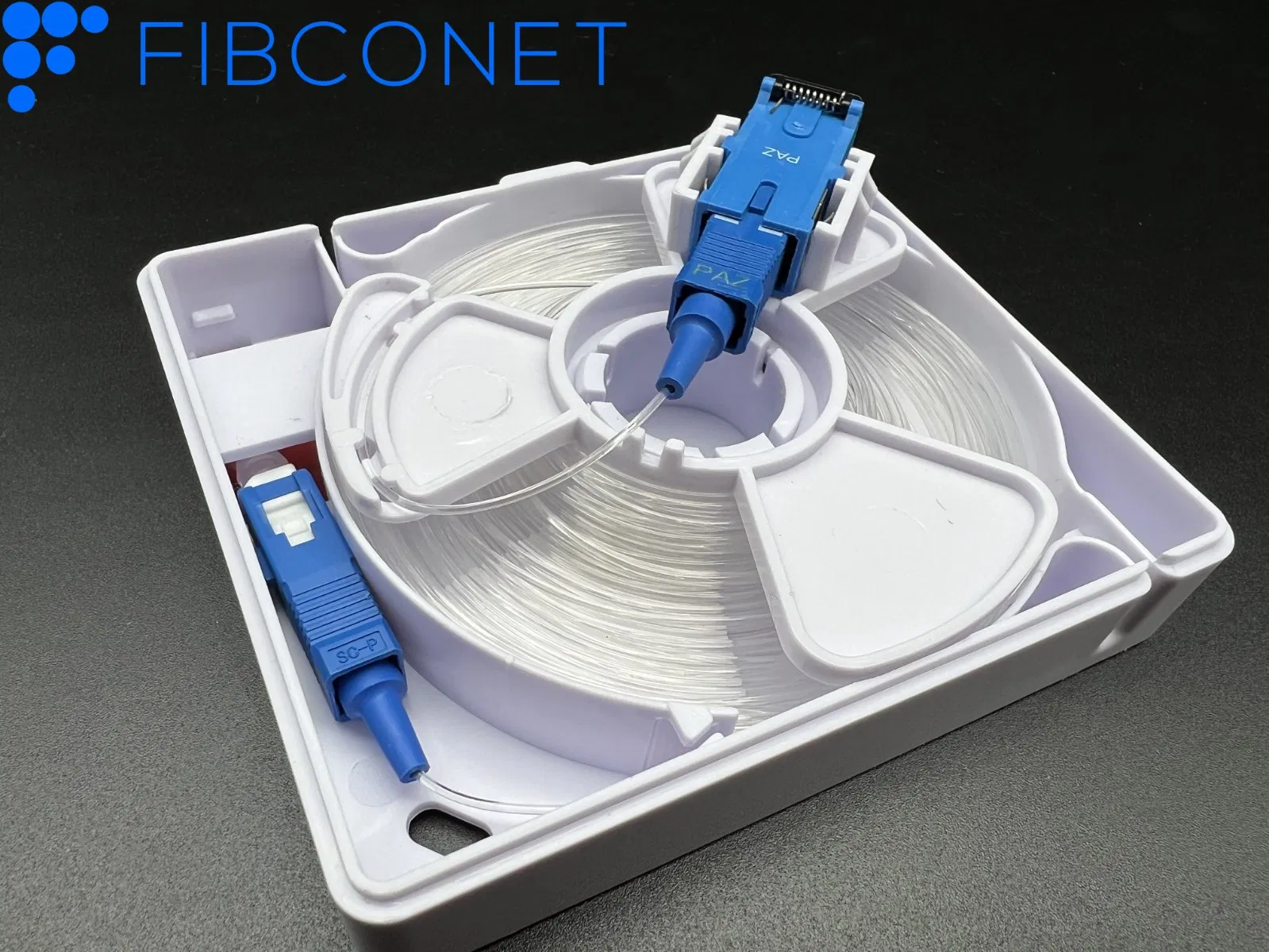

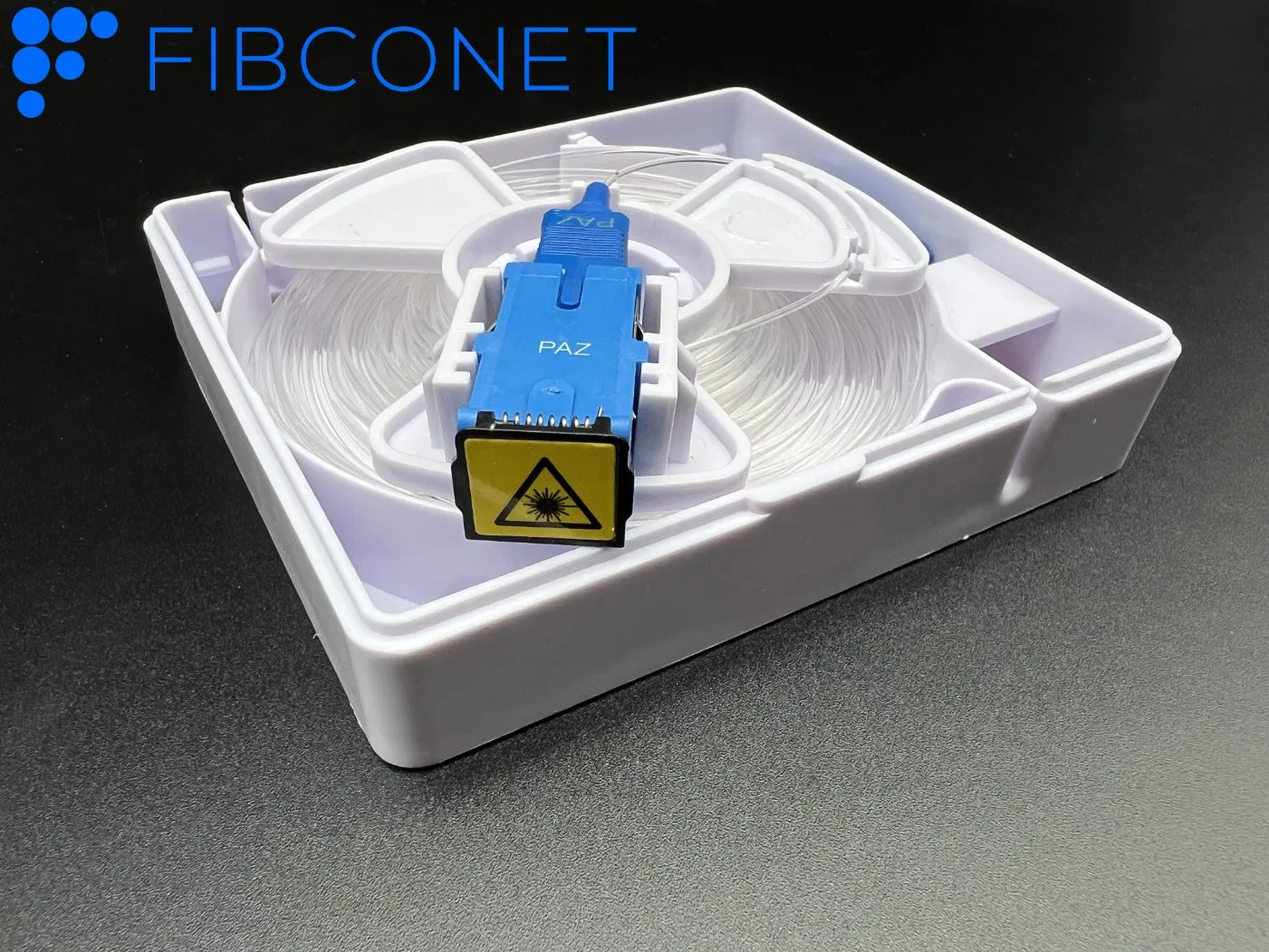

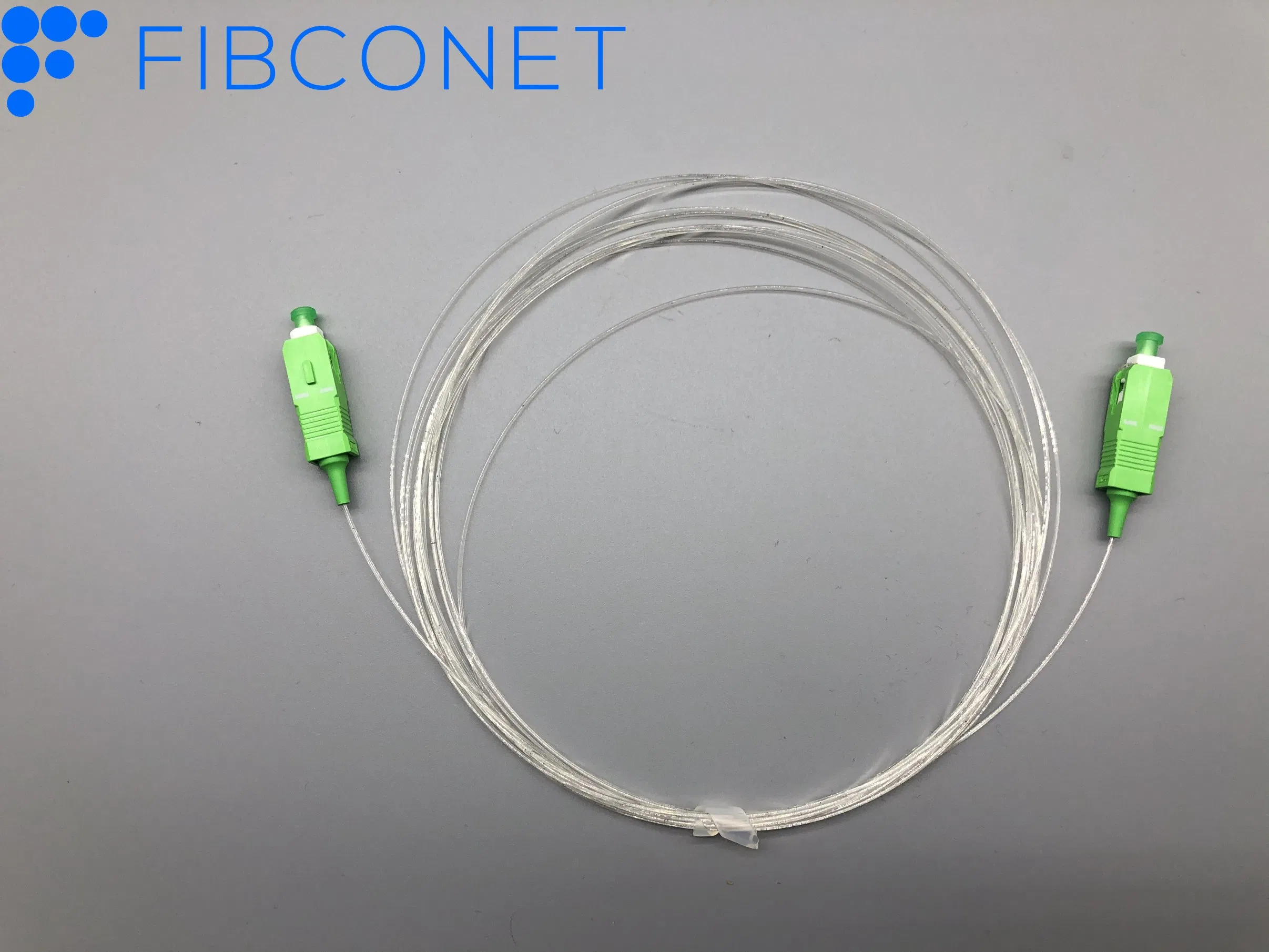

The fiber optic rossete indoor wall outlet box is used for indoor cable distribution. The main purpose is to connect outdoor fiber optic cable and indoor optical router in the middle, the box is equipped with fixed length fiber optic cable, the user can turn the fiber storage wheel to adjust the length of the cable according to the actual needs. Invisible fibre optic cable with standard SC connectors on the end of the 2 pieces, with an external diameter of 0.9mm, the exterior is made of high strength transparent nylon material. There is a high strength and stealth effect, the back of the box with 3M adhesive double-sided adhesive, allows for quick wall mounting, for unsuitable paste the wall, you can also use expansion screws to install. In addition the fixing of the optical cable, equipped with several transparent stickable mounting brackets, allows the user to connect the outdoor optical cable to the optical router simply and quickly as required, the installation does not require other heat sealing equipment, simple installation on the external wall, improving the aesthetics of the indoor wall. It's the ideal product for FTTH.
Features
Small size, light weight, use conveniently
ABS material, fireproof and dustproof
Radian appearance makes it slinky
Suitable for various modules and multimedia interfaces
Embedded chart and logo position make it easy to identity
Support MM or SM fiber connection
2 ports for SC simplex, LC duplex adapters
Specification
1, External dimensions. 93*86*29 Box material ABS.
2, Length of invisible fibre optic cable stored inside
The cable storage box has 15M, 20M, 30M, 40M, the maximum length of fiber storage for 40M.
3, The invisible fibre optic cable is available in two sizes, G657A2 and G657B3.

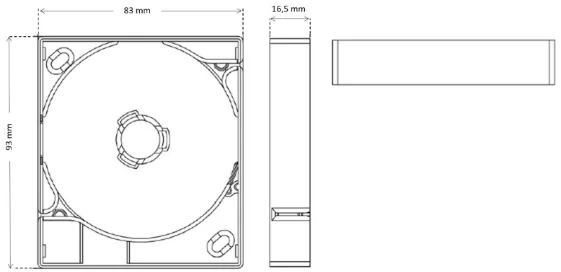

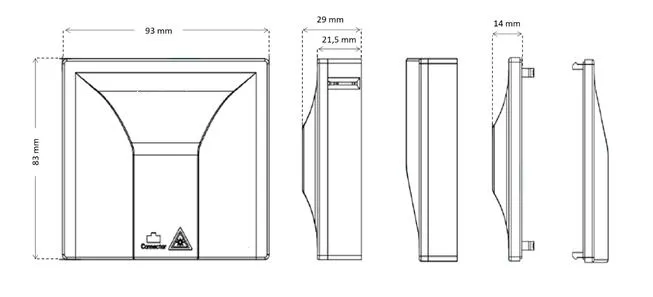

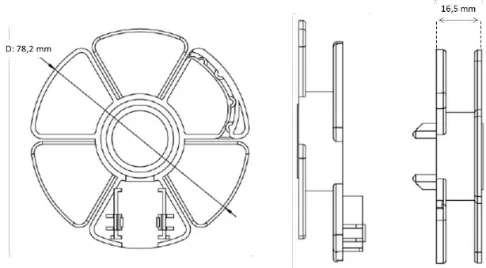

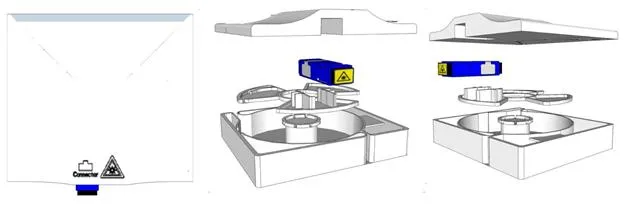

Structure and Dimensions
Construction and Installation

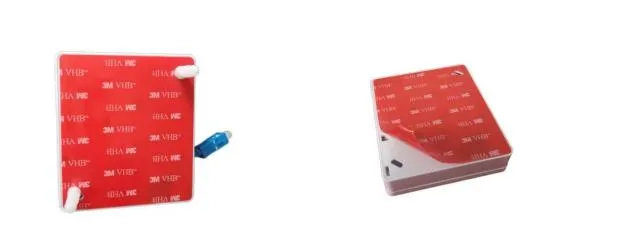

1, Double-sided adhesive installation: the reverse side of the box comes with 3M double-sided adhesive, which can be peeled off the protective layer and directly wall-adhered.
2, Installation of expansion screws
The box comes with wall mounting brackets so that the user can peel off the double-sided tape for wiring as required.
Company Profile
FAQ
1. Are you a manufacturer or trade company?
We are the manufacturer with more than 20 years' history.
2. What is your fiber brand ?
Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC
3. What is your main product ?
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal Box. Except that, we have very good prices for part of fiber tools!
4. How can we place order?
After the agreement be made on the product parameters, we will make proforma invoice for you to confirm. After advance payment (deposit) received, we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which offers a competitive freight cost.
5. What is the quality for your products?
All of our products are with high quality. We promise 100% recall policy if products are unqualified, and we can write it into our contract!
6. How do you arrange the shipping?
Solution A: Fibconet takes care of everything. Clients only need to collect cargo in local port or wait cargo delivery to their office. There are two types of shipping methods available: by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four to seven days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, Fibconet follows the shipping company's instructions and finish the delivery.
7. How can you guarantee the delivery time?
To avoid the delay, we have built a complete and professional procedure system from production to the delivery. We have rich experience on production and delivery. We can regulate the penalty clause in the contract for the late delay.
8. What's your best price for your passive fiber optic product?
Based on the quality and quantity of goods, we would quote the best matching price for you all the time.
9. What is your quality control for your fiber optic product?
1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and meet exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface, physical test, optical test. All the products are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.
10. Why choose Fibconet Fiber Optic to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.
Please always feel free to contact us for any questions, it's our honor to be on service of you!
Product Description
The fiber optic rossete indoor wall outlet box is used for indoor cable distribution. The main purpose is to connect outdoor fiber optic cable and indoor optical router in the middle, the box is equipped with fixed length fiber optic cable, the user can turn the fiber storage wheel to adjust the length of the cable according to the actual needs. Invisible fibre optic cable with standard SC connectors on the end of the 2 pieces, with an external diameter of 0.9mm, the exterior is made of high strength transparent nylon material. There is a high strength and stealth effect, the back of the box with 3M adhesive double-sided adhesive, allows for quick wall mounting, for unsuitable paste the wall, you can also use expansion screws to install. In addition the fixing of the optical cable, equipped with several transparent stickable mounting brackets, allows the user to connect the outdoor optical cable to the optical router simply and quickly as required, the installation does not require other heat sealing equipment, simple installation on the external wall, improving the aesthetics of the indoor wall. It's the ideal product for FTTH.
FeaturesSmall size, light weight, use conveniently
ABS material, fireproof and dustproof
Radian appearance makes it slinky
Suitable for various modules and multimedia interfaces
Embedded chart and logo position make it easy to identity
Support MM or SM fiber connection
2 ports for SC simplex, LC duplex adapters
Specification
1, External dimensions. 93*86*29 Box material ABS.
2, Length of invisible fibre optic cable stored insideThe cable storage box has 15M, 20M, 30M, 40M, the maximum length of fiber storage for 40M.
3, The invisible fibre optic cable is available in two sizes, G657A2 and G657B3.
| Item | Technology parameter | |
| Cable type | 0.9mm Tight buffered fiber | |
| Fiber type | 9/125 (G.657A2) | |
| Fiber color | Natural | |
| Tight buffer color | Natural | |
| Tight buffer material | Nylon | |
| Tight buffer diameter mm | 0.9±0.05 | |
| Cable weight Kg/km | Approx. 0.7 | |
| Min. bending radius mm | 15 (Static) 30 (Dynamic) | |
| Attenuation dB/km | <= 0.4 at 1310nm, <= 0.3 at 1550nm | |
| Operation temperature ºC | -20~+70 | |

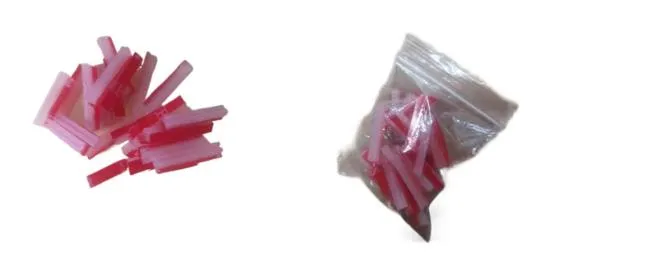

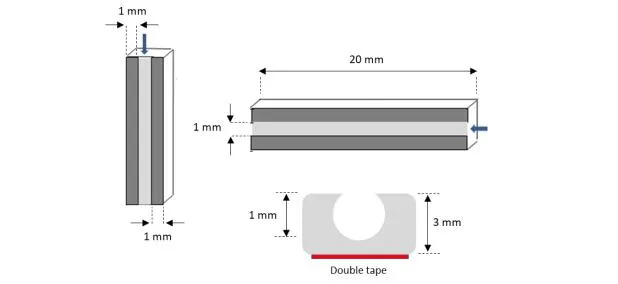

Construction and Installation- Rosette box is equipped with a clip holder to help install cables on the wall.
- must be installed by inserting it into the clip holder so that the cable position in the clip holder is neatly mounted.
- The shape of the clip holder is a straight clip that is used for all cable route models (straight route, turn route and inner / outer corner route).
- Clip holder can be equipped with a cover (cover) clip that is installed properly and not easily separated.
- The clip holder has a strong 3M double-sided adhesive tape.
- The diameter of the cable hole in the clip holder is a maximum of 1 mm making it suitable for the box (cable diameter 0.9 mm).
1, Double-sided adhesive installation: the reverse side of the box comes with 3M double-sided adhesive, which can be peeled off the protective layer and directly wall-adhered.
2, Installation of expansion screws
