Sc Fast Connector FTTH Fast Connector Fast Connector Sc Upc
SC fast connector ftth fast connector Fast connector sc upcSummarySc connector is push-pull coupling design and injection molding technology ensure convenient operation and lower insertion loss. It has high density and good strong character. The PC, UPC, and APC polishing technology have been adopte......
Send Inquiry
Product Description
SC fast connector ftth fast connector Fast connector sc upc
Summary
Sc connector is push-pull coupling design and injection molding technology ensure convenient operation and lower insertion loss. It has high density and good strong character. The PC, UPC, and APC polishing technology have been adopted in ceramic ferrule end-surface. It conforms to JIS C5973 standard and complies with NTT, IEC, TIA, telcordia standards.

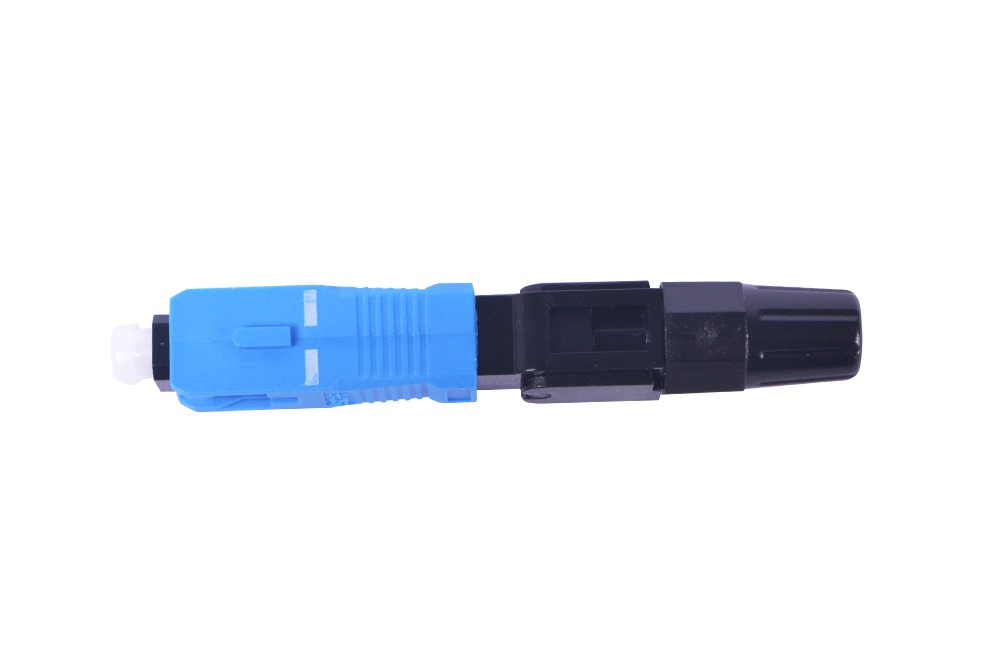

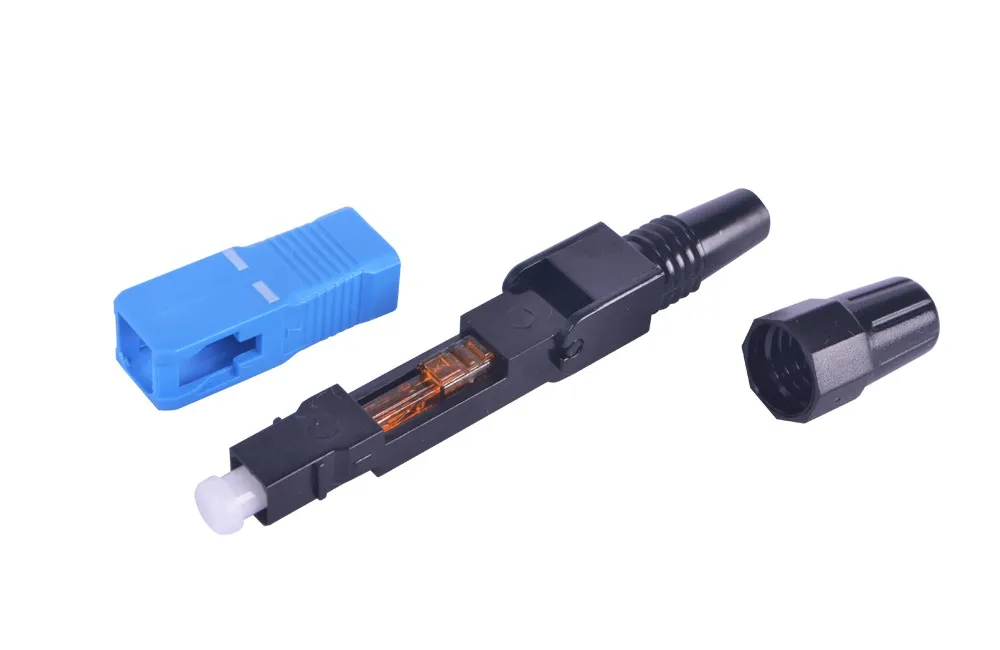

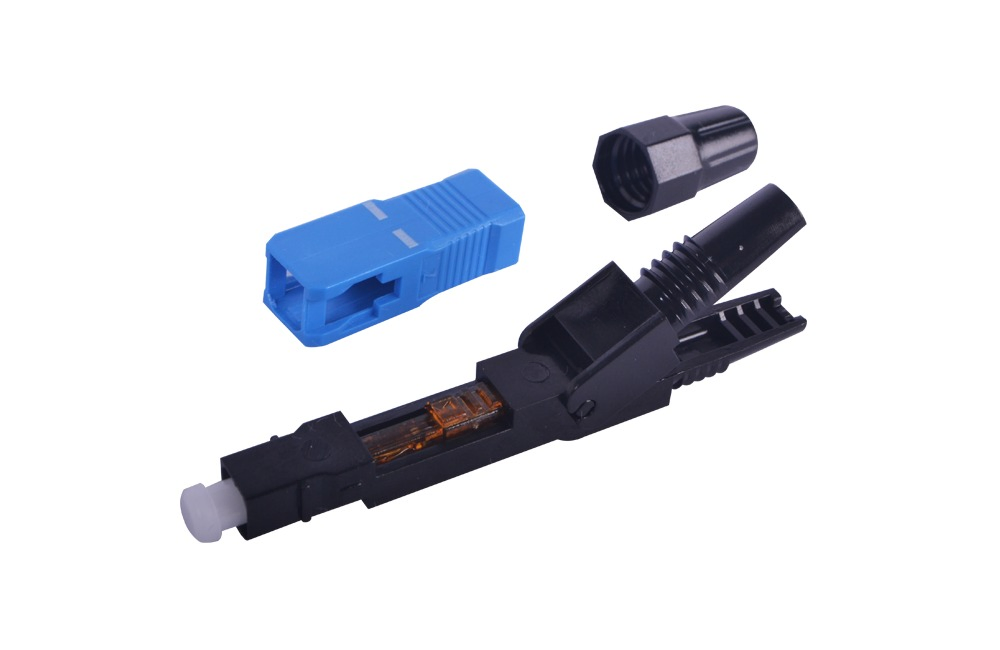

Product Display
Description
1. The connector can be supplied as a pre-assembled one-piece connector or as connector kit.
2. Clips are available for duplex connectors
3. Housing kits without ferrule are available.
4. SC/PC and SC/APC are available
Features
1. Low insertion loss and back reflection loss
2. RJ-45 style interface
3. Polarized and color-coded (TIA568-A & ISO 11801)
4. UL-rated plastic housing and boot
5. High precision alignment
6. Compact, pull-proof design
7. Behind-the-wall style short connector
Applications
1. CATV
2. Active device termination
3. Telecommunication networks
4. Metro
5. Local Area Networks (LANs)
6. Data processing networks
7. Test equipment
8. Premise installation
9. Wide Area Networks(WANs)
Parameters
| Singlemode(UPC) | Singlemode(APC) | Multimode | |
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥ 55db | ≥ 65db | ≥ 30db |
| Durability | ≤ 0.2db typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85 degree | ||
| Ferrule Hole Sizes | 125.0+1/-0um, Concentricity: ≤ 1.0um | 125.0+1/-0um, Concentricity: ≤ 0.5um | 125.0um, Concentricity: ≤ 3.0um |
| 125.3+1/-0um, Concentricity: ≤ 1.0um | 125.3+1/-0um, Concentricity: ≤ 0.5um | 127.0um, Concentricity: ≤ 3.0um | |
| 125.5+1/-0um, Concentricity: ≤ 1.0um | 125.5+1/-0um, Concentricity: ≤ 0.5um | 128.0um, Concentricity: ≤ 3.0um | |
| 126.0+1/-0um, Concentricity: ≤ 1.0um | 126.0+1/-0um, Concentricity: ≤ 0.5um | ||
