Rackmount Optical PLC Splitter, Fiber Optic Cable Cord Splitter, Professional Manufacturer on Fibre Splitter
Rackmount Optical PLC Splitter, Fiber Optic Cable Cord Splitter, Professional Manufacturer on Fibre SplitterTELEFLY's Single-mode Planar Lightwave Circuit Optical Splitter (PLCS) are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a minia......
Send Inquiry
Product Description

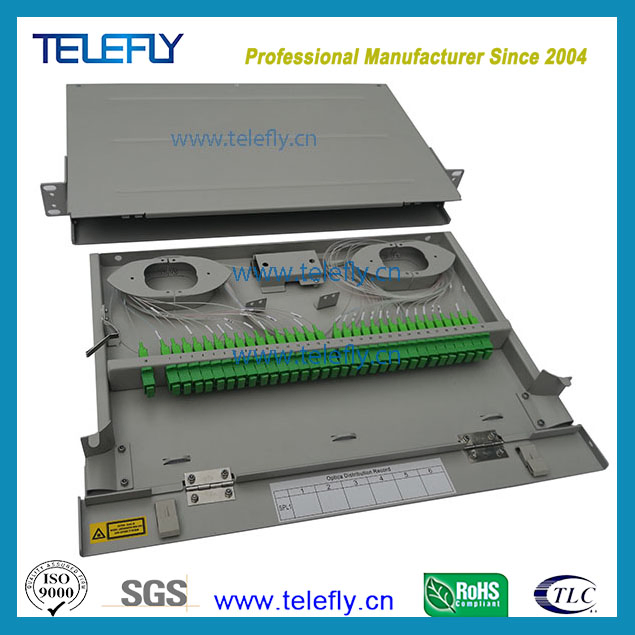

Rackmount Optical PLC Splitter, Fiber Optic Cable Cord Splitter, Professional Manufacturer on Fibre Splitter
TELEFLY's Single-mode Planar Lightwave Circuit Optical Splitter (PLCS) are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a minia-ture package, it provides a low cost light distribution solution with small form factor and high reliability. The PLCS devices have high performance in terms of low insertion loss, Low PDL, high return loss and excellent uniformity over a wide wave-length range from 1260nm to 1620nm and working in temperature from -40 to +85. The PLCS devices have standard configurations of 1*4, 1*8, 1*16, 1*32, 1*64, 2*2, 2*4, 2*8, 2*16 and 2*32. Rackmount Optical PLC Splitter, Fiber Optic Cable Cord Splitter
Feature
1. Rackmount PLC Splitters with compact design
2. Low insertion loss and low PDL
3. High reliability
4. High channel range
5. Large operating temperature range
6. Customized packaging and configuration
7. Compliant with Telcordia GR-1209-CORE, GR-1221-CORE
Application
1. FTTX Systems
2. LAN, WAN and Metro Networks
3. Analog/Digital Passive Optical Networks
4. CATV Networks
TELEFLY Telecommunications Equipment Co., Ltd. is a leading Chinese manufacturer founded in 2004, certified by SGS. We provide high quality and price competitive on fiber optic patch panels, FTTH equipments, patch cords, optical splitters, WDM, optical attenuators, fast connectors and so on. Up till now, our products and solutions have been deployed in over 60 countries and regions, TELEFLY is looking forward to strengthening friendly cooperative relationships with all clients, creating benefits together and sharing the joy of success!

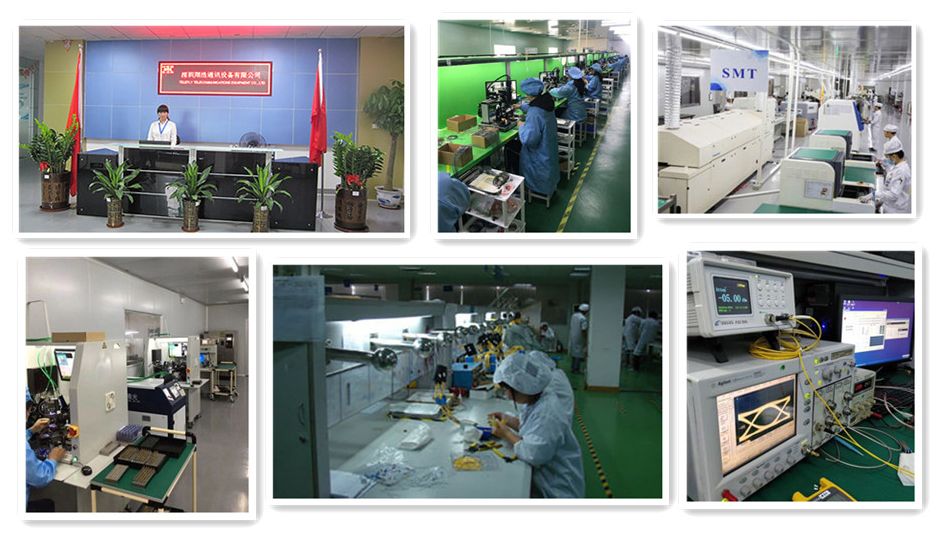

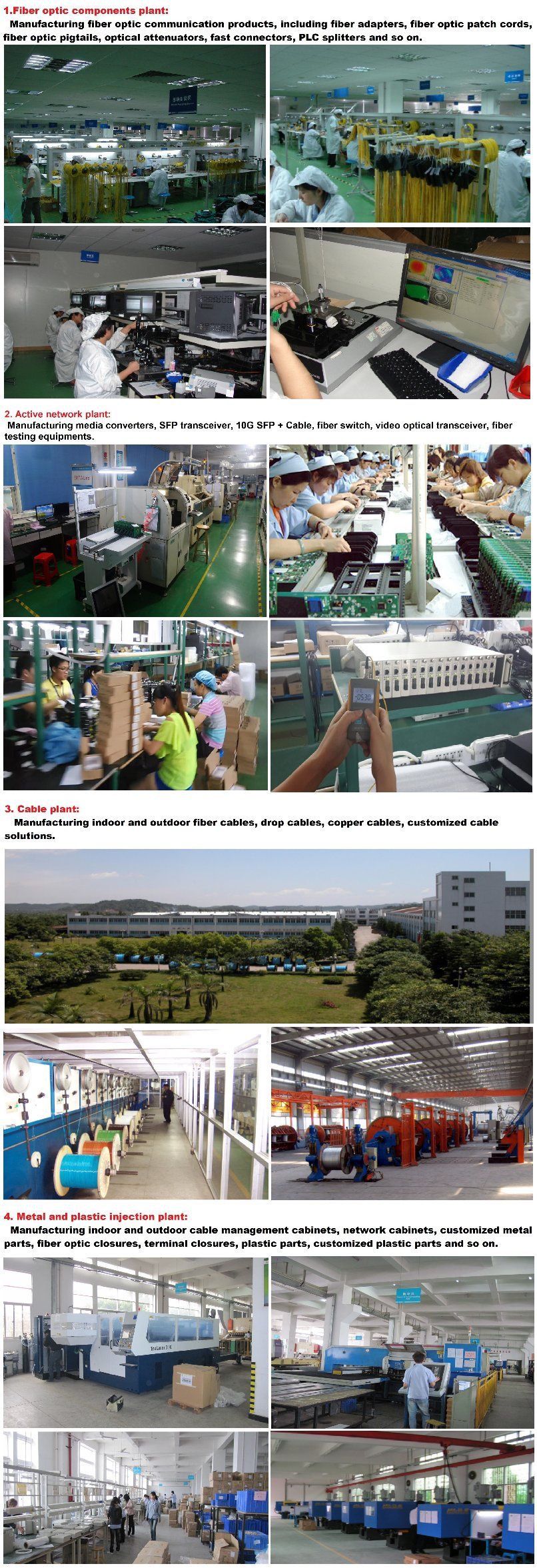

Company Profile
TELEFLY Telecommunications Equipment Co., Ltd. is a leading Chinese manufacturer founded in 2004, certified by SGS. We provide high quality and price competitive fibre optic cable, fibre optic patch cords, fibre optic patch panels, FTTH equipments, fibre optique patch panels, optical splitters, WDM, optical attenuators, fast connectors ,Ethernet switch ,SFP transceiver and so on. Up till now, our products and solutions have been deployed in over 60 countries and regions, TELEFLY is looking forward to strengthening friendly cooperative relationships with all clients, creating benefits together and sharing the joy of success!
Why you choose TELEFLY be one of your partner?
1.Customer get satisfied quality and service with competitive price and punctual delivery.
2.OEM service with 13-year experiences, free samples are available.
3.Prompt answer for any question and inquiry in the shortest time.
4.Factory directly,reduce your cost and save time.
Cerfifications Showing
Our Exhibition
Professional packing and transportation
TELEFLY's Single-mode Planar Lightwave Circuit Optical Splitter (PLCS) are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a minia-ture package, it provides a low cost light distribution solution with small form factor and high reliability. The PLCS devices have high performance in terms of low insertion loss, Low PDL, high return loss and excellent uniformity over a wide wave-length range from 1260nm to 1620nm and working in temperature from -40 to +85. The PLCS devices have standard configurations of 1*4, 1*8, 1*16, 1*32, 1*64, 2*2, 2*4, 2*8, 2*16 and 2*32. Rackmount Optical PLC Splitter, Fiber Optic Cable Cord Splitter
Feature
1. Rackmount PLC Splitters with compact design
2. Low insertion loss and low PDL
3. High reliability
4. High channel range
5. Large operating temperature range
6. Customized packaging and configuration
7. Compliant with Telcordia GR-1209-CORE, GR-1221-CORE
Application
1. FTTX Systems
2. LAN, WAN and Metro Networks
3. Analog/Digital Passive Optical Networks
4. CATV Networks
TELEFLY Telecommunications Equipment Co., Ltd. is a leading Chinese manufacturer founded in 2004, certified by SGS. We provide high quality and price competitive on fiber optic patch panels, FTTH equipments, patch cords, optical splitters, WDM, optical attenuators, fast connectors and so on. Up till now, our products and solutions have been deployed in over 60 countries and regions, TELEFLY is looking forward to strengthening friendly cooperative relationships with all clients, creating benefits together and sharing the joy of success!
| 1*N PLC datasheet | ||||||
| Port Configuration | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | |
| Fiber Type | SMF-28E or customer specified | |||||
| Operation wavelength | 1260nm to 1620nm | |||||
| Insertion loss | Typical | 6.8 db | 10.0 db | 13.0 db | 16.0 db | 19.5 db |
| Max | 7.2 db | 10.5 db | 13.5 db | 16.9 db | 21.0 db | |
| Loss Uniformity | Max | 0.6 db | 0.8 db | 1.2 db | 1.5 db | 2.5 db |
| Return Loss | Min | 50 db | 50 db | 50 db | 50 db | 50 db |
| Polarization Dependent Loss | Max | 0.2 db | 0.3 db | 0.3 db | 0.3 db | 0.4 db |
| Directivity | Min | 55 db | 55 db | 55 db | 55 db | 55 db |
| Wavelength Dependent Loss | Max | 0.3 db | 0.3 db | 0.5 db | 0.5 db | 0.8 db |
| Temperature Dependent Loss(-40 to +85) | Max | 0.5 db | 0.5 db | 0.8 db | 0.8 db | 1.0 db |
| Operating Temperature | -40 to +85 | |||||
| Storage Temperature | -40 to +85 | |||||
| 2*N PLC datasheet | ||||||
| Port Configuration | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | |
| Fiber Type | SMF-28E or customer specified | |||||
| Operation wavelength | 1260nm to 1620nm | |||||
| Insertion loss | Typical | 3.8 db | 7.4 db | 10.8 db | 14.2 db | 17.0 db |
| Max | 4.2 db | 7.8 db | 11.2 db | 14.6 db | 17.5 db | |
| Loss Uniformity | Max | 1.0 db | 1.4 db | 1.5 db | 2.0 db | 2.5 db |
| Return Loss | Min | 50 db | 50 db | 50 db | 50 db | 50 db |
| Polarization Dependent Loss | Max | 0.2 db | 0.2 db | 0.4 db | 0.4 db | 0.4 db |
| Directivity | Min | 55 db | 55 db | 55 db | 55 db | 55 db |
| Wavelength Dependent Loss | Max | 0.8 db | 0.8 db | 0.8 db | 0.8 db | 0.8 db |
| Temperature Dependent Loss(-40 to +85) | Max | 0.5 db | 0.5 db | 0.5 db | 0.8 db | 0.8 db |
| Operating Temperature | -40 to +85 | |||||
| Storage Temperature | -40 to +85 | |||||
Company Profile
TELEFLY Telecommunications Equipment Co., Ltd. is a leading Chinese manufacturer founded in 2004, certified by SGS. We provide high quality and price competitive fibre optic cable, fibre optic patch cords, fibre optic patch panels, FTTH equipments, fibre optique patch panels, optical splitters, WDM, optical attenuators, fast connectors ,Ethernet switch ,SFP transceiver and so on. Up till now, our products and solutions have been deployed in over 60 countries and regions, TELEFLY is looking forward to strengthening friendly cooperative relationships with all clients, creating benefits together and sharing the joy of success!
Why you choose TELEFLY be one of your partner?
1.Customer get satisfied quality and service with competitive price and punctual delivery.
2.OEM service with 13-year experiences, free samples are available.
3.Prompt answer for any question and inquiry in the shortest time.
4.Factory directly,reduce your cost and save time.
Cerfifications Showing
Our Exhibition
Professional packing and transportation
