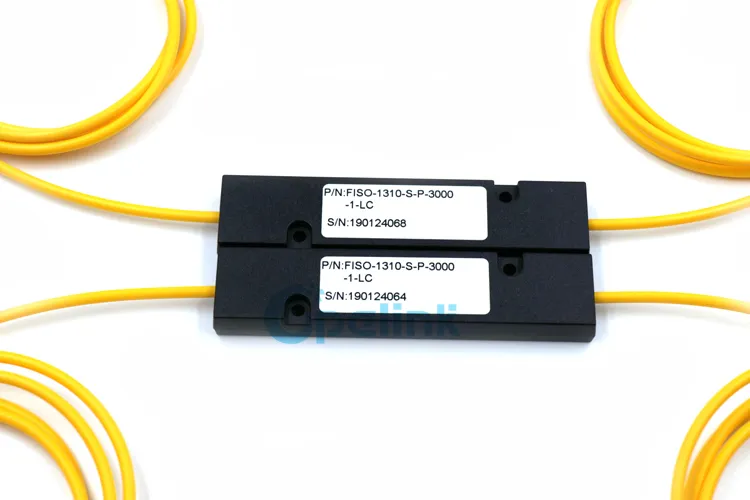

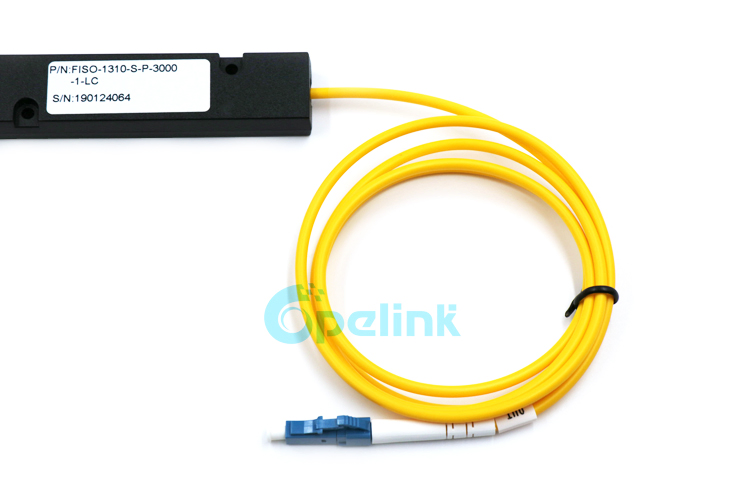

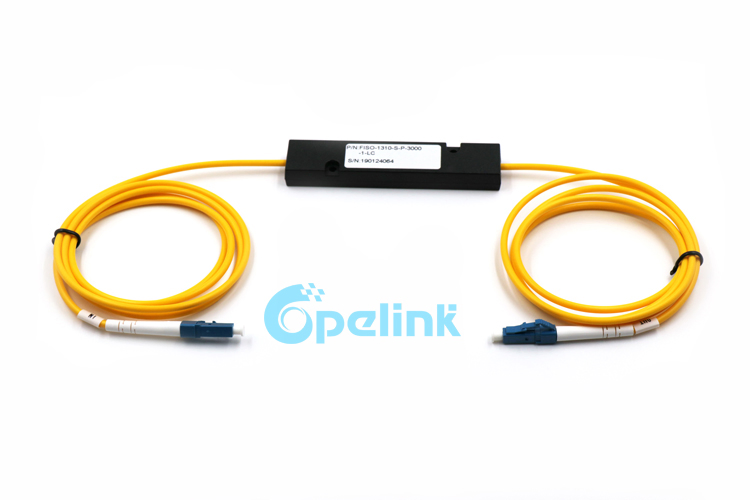

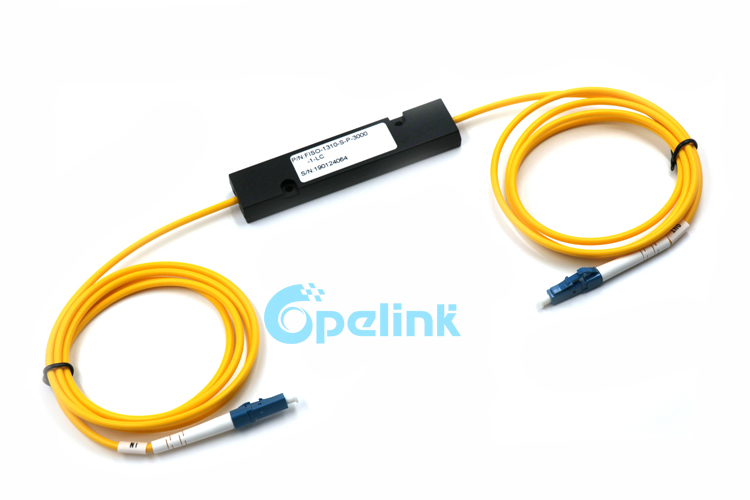

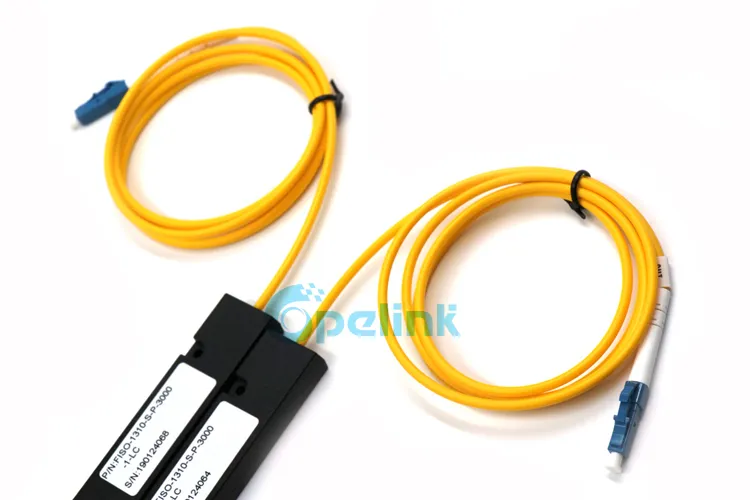

Polarization Isensitive Dual Stage Fiber Optical Isolator 1310/1490/1550nm
Polarization-Insensitive Single/Dual Stage Optical IsolatorAn optical isolator is a passive magneto-optic device that only allows light to travel in one direction. Isolators are used to protect a source from back reflections or signals that may occur after the isolator. Back reflections can damage a......
Send Inquiry
Product Description
Polarization-Insensitive Single/Dual Stage Optical Isolator
An optical isolator is a passive magneto-optic device that only allows light to travel in one direction. Isolators are used to protect a source from back reflections or signals that may occur after the isolator. Back reflections can damage a laser source or cause it to mode hop, amplitude modulate, or frequency shift. In high-power applications, back reflections can cause instabilities and power spikes.Optical isolators are also known as optoisolators, optocouplers and photocouplers.
Order Information:
An optical isolator is a passive magneto-optic device that only allows light to travel in one direction. Isolators are used to protect a source from back reflections or signals that may occur after the isolator. Back reflections can damage a laser source or cause it to mode hop, amplitude modulate, or frequency shift. In high-power applications, back reflections can cause instabilities and power spikes.Optical isolators are also known as optoisolators, optocouplers and photocouplers.
Features
High Isolation
Low Insertion Loss
High Return Loss
Low Polarization Sensitivity
Optical Path Epoxy Free
Applications
Fiberoptic Amplifiers
CATV Fiberoptic Links
Fiberoptic Systems Testing
Fiberoptic LAN Systems
Telecommunication
Specifications
High Isolation
Low Insertion Loss
High Return Loss
Low Polarization Sensitivity
Optical Path Epoxy Free
Applications
Fiberoptic Amplifiers
CATV Fiberoptic Links
Fiberoptic Systems Testing
Fiberoptic LAN Systems
Telecommunication
Specifications
| Parameter | Unit | Value | |
| Product Type | Single | Dual | |
| Operating Wavelength | nm | 1310 or 1550 | |
| Peak Isolation(Typ.) | dB | 42 | 58 |
| Isolation(Min.) | dB | 32 | 46 |
| Insertion Loss(Typ.) | dB | 0.3 | 0.4 |
| Insertion Loss (Max.) | dB | 0.5 | 0.6 |
| Return Loss(In/Out) | dB | ≥65/60 | ≥65/60 |
| PDL | dB | ≤0.05 | ≤0.05 |
| PMD | dB | ≤0.2 | ≤0.1 |
| Bandwidth | nm | ±15 | ±30 |
| Maximum Power | mW | 300 | |
| Operating Temperature | ºC | -20 ~ + 70 | |
| Storage Temperature | ºC | -40 ~ +85 | |
| Isolator Type | Wavelength | Fiber Type | Package | Pigtail Type | Fiber Length | In/Out Connector |
| IS=Single stage IU=Dual stage | 13=1310nm 14=1480nm 15=1550nm LB=L Band | 1=G652D 2= G657A1 | C2=5.5X30mm Steel Tube B8=3.0x25mm Steel Tube D=90X20X9.5mm Plastic Box | B=0.25mm Bare Fiber L=900um S=2.0mm R=3.0mm | 10=1.0m 15=1.5m 20=2.0m | 00=None FA=FC/APC FU=FC/UPC SA=SC/APC SU=SC/UPC ST=ST/PC LU=LC/UPC LA=LC/APC |
