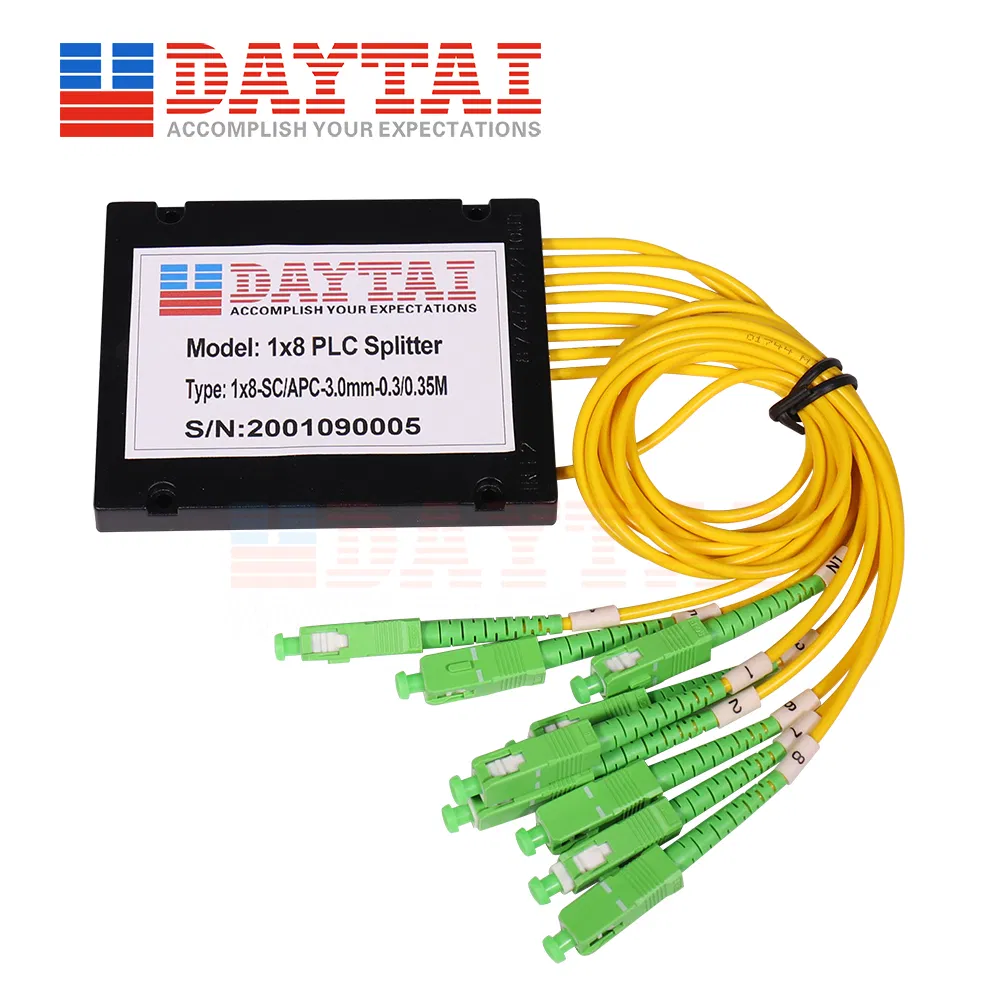

PLC Splitter 1X8 ABS Cassettes Fiber Optic Splitter Splice / Pigtailed Sc APC Connector Box Type Fiber Splitter
Plc Splitter 1x8 Abs Cassettes Fiber Optic Splitter Splice / Pigtailed Sc Apc Connector Box Type Fiber SplitterDescription 1x8 PLC Splitter ABS Box Type ,SM fiber,OD:2.0mm or 3.0mm pigtail,1m length, With SC/APC connector.FeaturesFTTHReliableMonitoringSmaller sizeCATV SystemGood UniformityNetwork ......
Send Inquiry
Product Description
Plc Splitter 1x8 Abs Cassettes Fiber Optic Splitter Splice / Pigtailed Sc Apc Connector Box Type Fiber Splitter
★Description

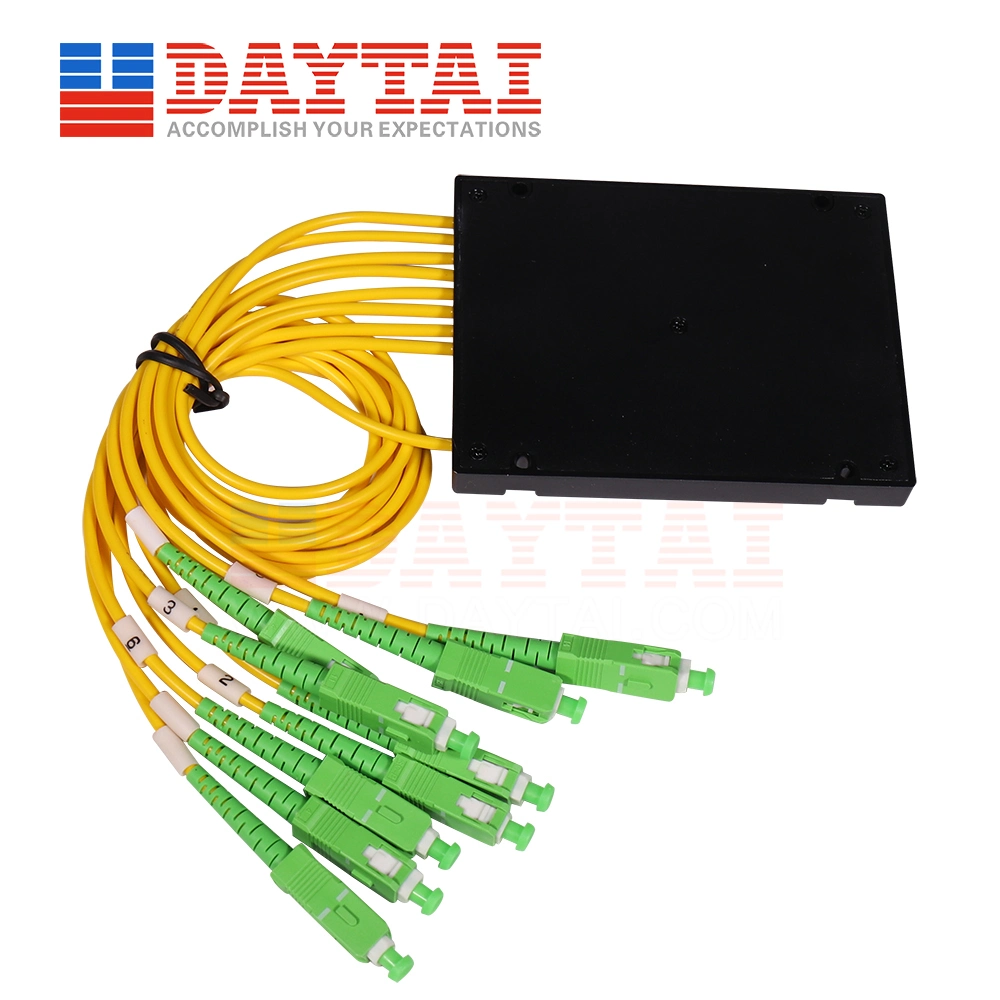

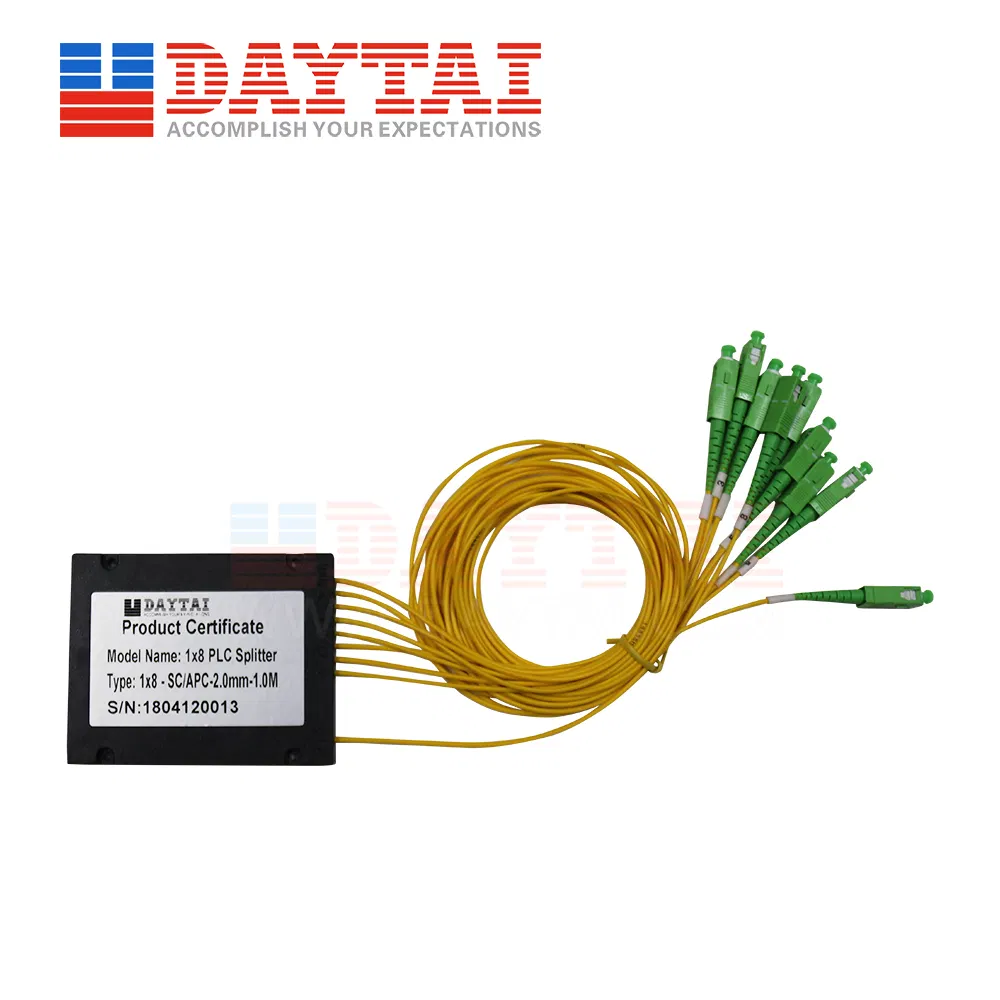

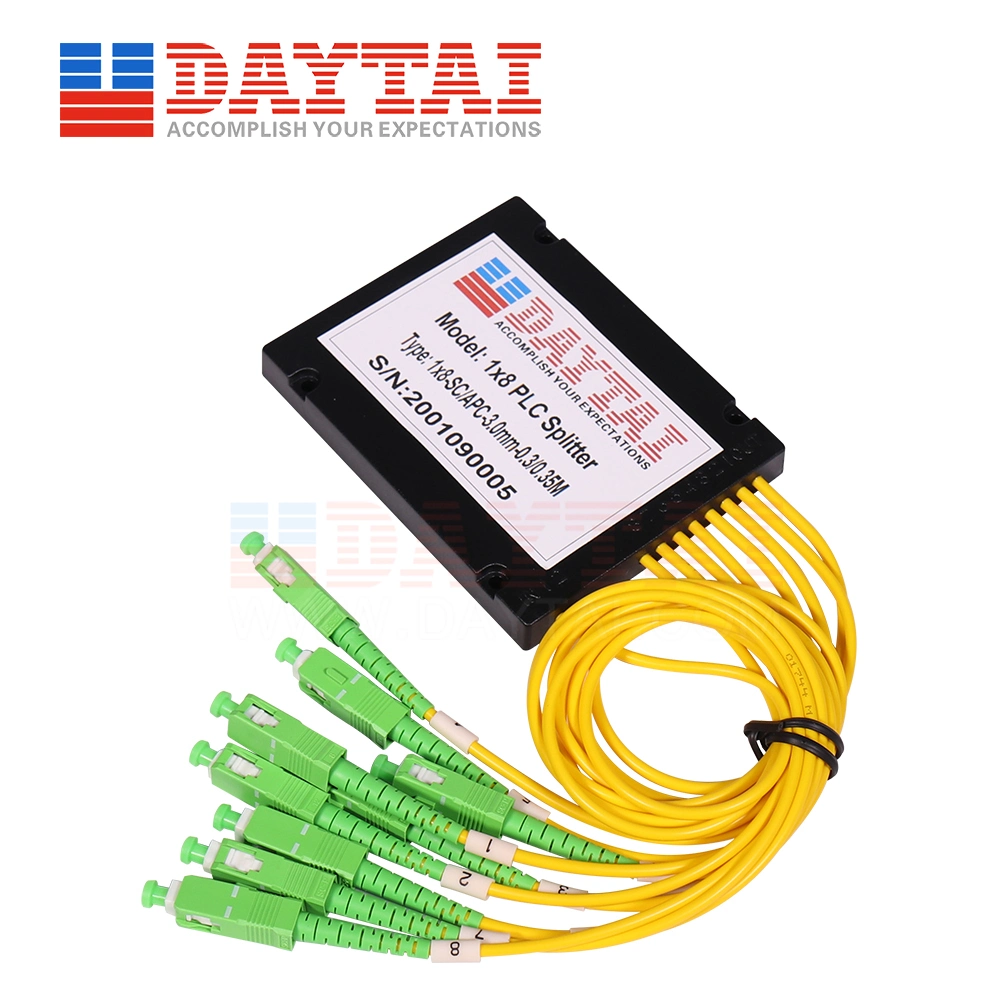

1x8 PLC Splitter ABS Box Type ,SM fiber,OD:2.0mm or 3.0mm pigtail,1m length, With SC/APC connector.
★Features
⊙FTTH
⊙Reliable
⊙Monitoring
⊙Smaller size
⊙CATV System
⊙Good Uniformity
⊙Network Protection
⊙Low Polarization loss
⊙Access/PON Distribution
⊙Not Sensitive to wavelengths
★Product Standards
⊙GR-1209-Core
⊙GR-1221-Core
⊙YD/T 2000.1-2014
⊙ISO/IEC 11801 Generic cabing for customer premises
★Product Specification
★Ordering Information
★Description
1x8 PLC Splitter ABS Box Type ,SM fiber,OD:2.0mm or 3.0mm pigtail,1m length, With SC/APC connector.
★Features
⊙FTTH
⊙Reliable
⊙Monitoring
⊙Smaller size
⊙CATV System
⊙Good Uniformity
⊙Network Protection
⊙Low Polarization loss
⊙Access/PON Distribution
⊙Not Sensitive to wavelengths
★Product Standards
⊙GR-1209-Core
⊙GR-1221-Core
⊙YD/T 2000.1-2014
⊙ISO/IEC 11801 Generic cabing for customer premises
★Product Specification
| Category | Specification | Remarks | |
| Fiber Type | G657A or G652 | ||
| The 0.9mm Tube | Outer Diameter | 2.0mm | or 3.0mm |
| Material | PVC | Or LSZH | |
| Colour | Yellow | ||
| Length | L1±50mm | L≥0.3M | |
| Connector type | SC,FC,LC | ||
| ABS-Box | 100*80*9mm | ||
| Number tube NO: | IN/Input No./Output | ||
| Category | Specification | ||
| Working Wavelength | NM | 1260~1650 | |
| Test Wavelength | nm | 1310&1490&1550 | |
| Insertion Loss | exclude connector | dB | ≤10.5 |
| With connector | dB | ≤11.0 | |
| Channel Uniformity | dB | ≤0.8 | |
| Polarization Dependent Loss-PDL | dB | ≤0.2 | |
| Directivity | dB | ≥55 | |
| Return Loss | dB | ≥55 | |
| Operating Temperature | ºC | -40~+85 | |
