Product Description

★Description

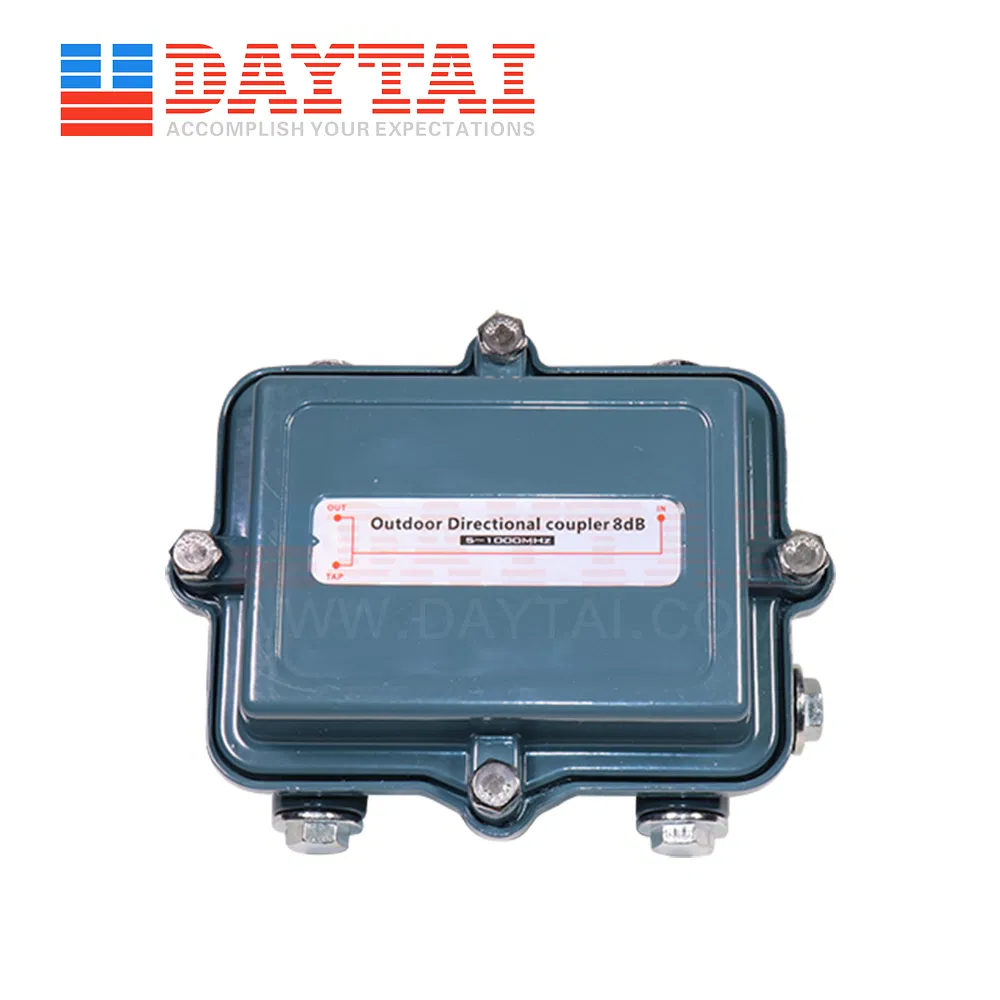

Outdoor Directional Coupler 1 Way CATV Sub-trunk tap,4dB,8dB,11dB,14dB,
17dB,20dB,23dB,26dB,29dB,32dB,35dB,(it is optional),5-1000Mhz,RFI>110dB,
in-out ports power pass 10A,in&out UNEF 5/8" port, tap ports F female port.
★Specification

Tap Value	dB	4	8	11	14	17	20	23	26	29	32
Insertion Loss In-Out (-dB Max)	Frequency(MHz)
	5~10	-	3.2	1.7	0.9	0.5	0.5	0.5	0.4	0.4	0.4
	11~300	-	3.0	1.7	1.1	0.6	0.7	0.6	0.5	0.5	0.5
	301~400	-	3.2	2.0	1.3	0.8	0.8	0.8	0.5	0.5	0.5
	401~450	-	3.5	2.0	1.4	1.0	1.0	0.9	0.7	0.7	0.7
	451~600	-	3.7	2.2	1.6	1.1	1.1	1.0	0.8	0.8	0.8
	601~750	-	4.1	2.6	1.8	1.5	1.3	1.3	1.2	1.2	1.2
	751~900	-	4.3	2.8	2.2	1.7	1.6	1.5	1.4	1.4	1.4
	901~1000	-	4.8	3.1	2.4	2.0	1.9	1.8	1.6	1.6	1.6
Tap Loss In-To-Tap (±1.5dB)	5~10	4.0	8.5	10.0	14.0	17.0	20.0	23.0	26.0	29.0	32.0
	11~750	4.0	8.5	11.0	14.0	17.0	20.0	23.0	26.0	29.0	32.0
	751~900	4.0	8.5	11.0	14.0	17.0	20.0	23.0	26.0	29.0	32.0
	901~1000	4.0	8.5	11.0	14.0	17.0	20.0	23.0	26.0	29.0	32.0
Tap-To-Tap Lsolation (dB Min)	5~10	20	20	20	20	20	20	20	20	20	20
	11~600	24	24	24	24	24	24	24	24	24	24
	601~750	22	22	22	22	22	22	22	22	22	22
	751~1000	20	20	20	20	20	20	20	20	20	20
Out-To-Tap Lsolation (dB Min)	5~10	-	19	19	21	25	25	27	29	31	33
	11~600	-	25	25	28	31	32	35	40	43	46
	601~750	-	23	23	26	29	32	34	38	41	44
	751~900	-	21	21	24	27	28	30	36	39	42
	901~1000	-	20	20	21	24	26	28	30	32	34
Return Loss IN,Out&Tap (dB Min)	5~10	16	16	16	16	16	16	16	16	16	16
	11~400	18	18	18	18	18	18	18	18	18	18
	401~450	18	18	18	18	18	18	18	18	18	18
	451~750	17	17	17	17	17	17	17	17	17	17
	751~1000	16	16	16	16	16	16	16	16	16	16
Hum (dB Min) (10 Amps)	5~10	-	68	68	68	68	68	68	68	68	68
	11~300	-	70	70	70	70	70	70	70	70	70
	301~550	-	68	68	68	68	68	68	68	68	68
	551~750	-	64	64	64	64	64	64	64	64	64
	751~900	-	62	62	62	62	62	62	62	62	62
	901~1000	-	60	60	60	60	60	60	60	60	60

Response All Ports:                ±0.5dB
Current Capacity:                 10Amps,60VAC
Impedence:                     75Ω
Outdoor Directional Coupler 1 Way CATV Sub Trunk Tap
