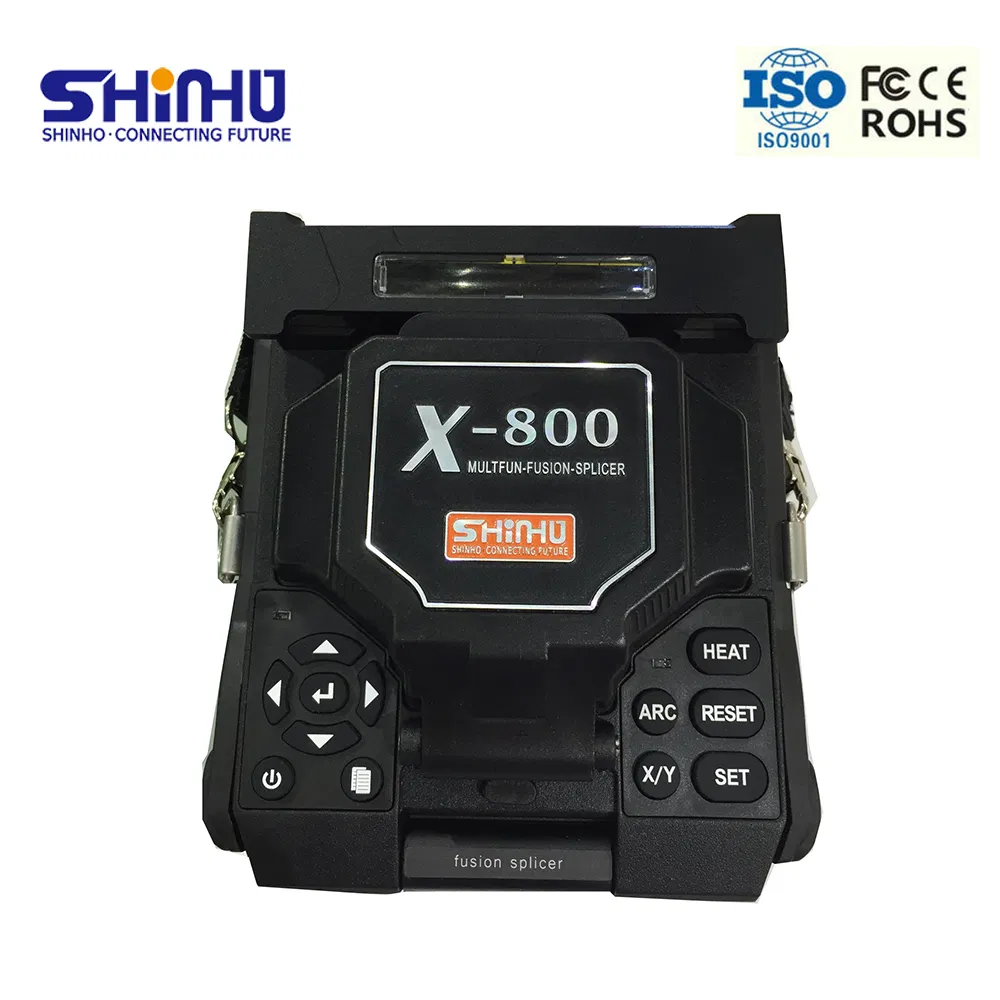

Optic Fiber Core Splicing Machine Ruggedized Fusion Splicer for FTTX, Outdoor

Product Description

Features:

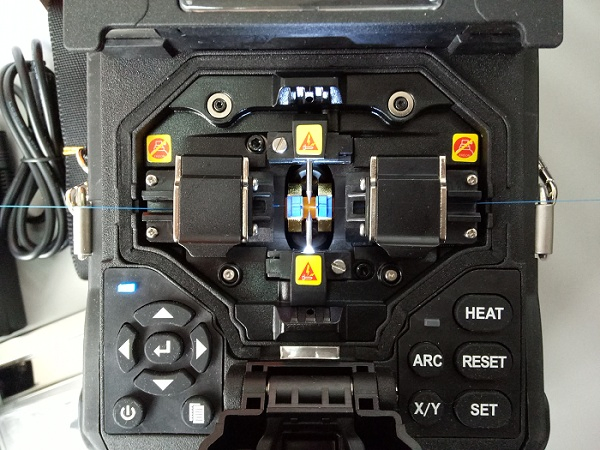

4 motors accurate core to core alignment
6 seconds splicing & 20 seconds heating
Automatic & real-time ARC calibration
Heating temperature and time both adjustable
Automatic splicing and heating, easy to operate
Anti-shock, anti vibration, dust-proof &waterproof
Apply to bare fiber, pigtails, drop cable etc.
Suitable for FTTx, FTTH, CATV, MAN projects etc.

Product Specifications

Applicable fiber	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T
Applicable fiber	G.655), others(including G.657)
	G.655), others(including G.657)
Cladding diameter	80 -150μm
Coating diameter	160 - 1000μm
Typical splice loss	SM 0.02dB, MM 0.01dB, DS 0.04dB, NZDS 0.04dB
Return loss	<60dB
Cleaved length	5~16mm ( Diameter of coating < 250μm ) ; 16mm ( Diameter of coating
Cleaved length	250~1000μm )
	250~1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-Heat	Available
Typical splicing time	6 seconds
Heating time	20 seconds for 60mm, 40mm shrinkable sleeve
Magnification	250 times for single display, 125 times for double display

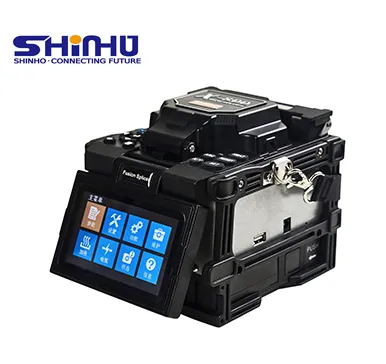

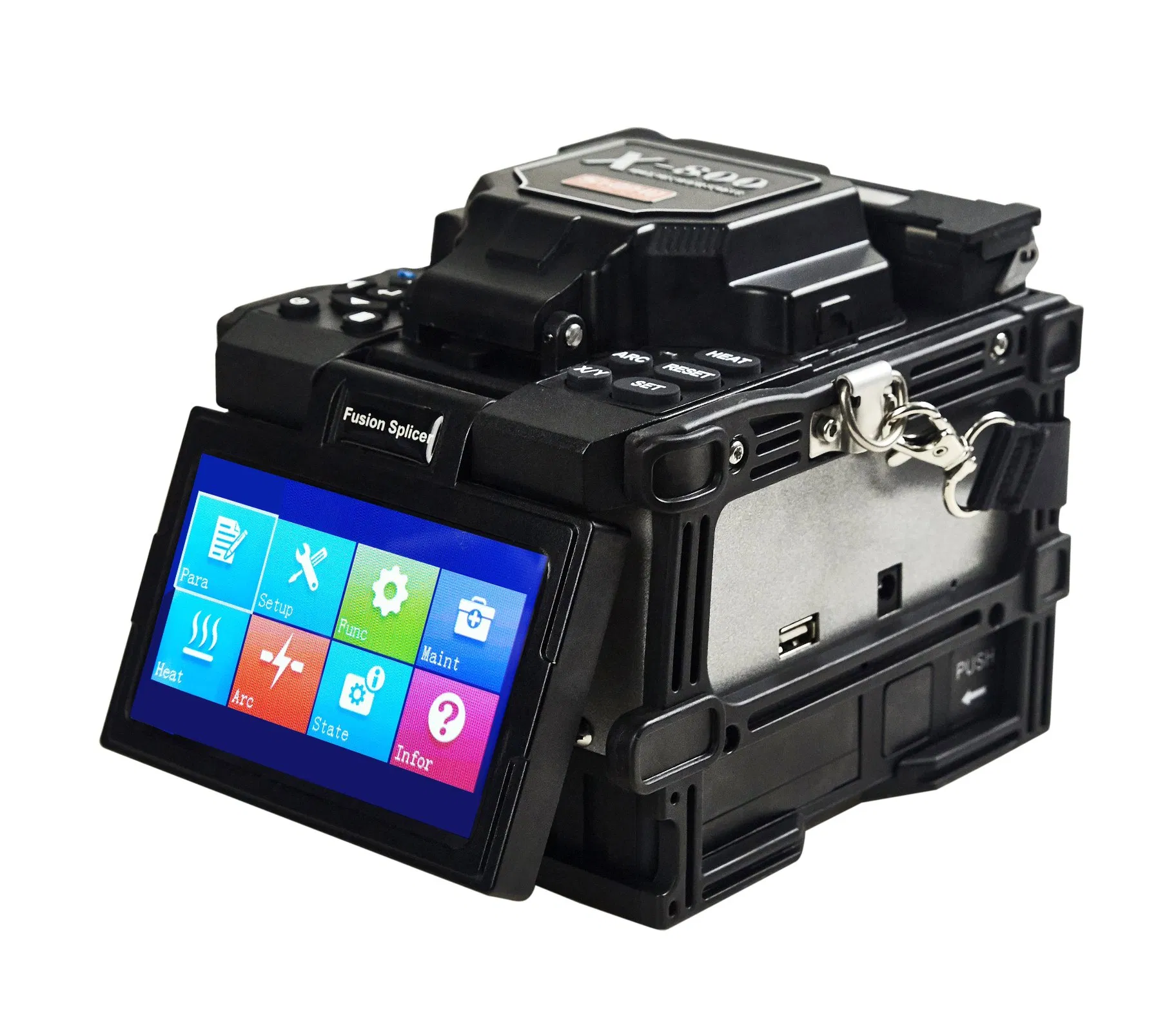

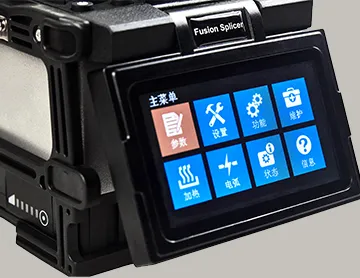

Photoelectric system	Two high sensitive cameras, 4.3' 800×480 colorful LCD
Splicing data record	Storing up to 4000 groups of records
Loss evaluation	Available
Tension test	1.8~2.25N
Interface	GUI menu interface, easy operation
Battery capacity	5200mAh, 250 times fusion and heating, pluggable, real-time power monitor
Power supply	Adaptor, input: AC 100-240V ( 50/60HZ ) , output: DC 11~13.5V
Electrodes lifetime	More than 4000 times splicing, electrodes can be replaced conveniently
External port	USB2.0 port, used to derive splicing record data, software upgrade
Operate environment	Altitude: 0~5000m; Relative humidity: 0~95%; Temperature: -10ºC~+50ºC;
Operate environment	Wind speed: max 15m/s
	Wind speed: max 15m/s
Volume/Weight	157mm(L)×136mm(W)×140mm(H) / 2.1kg (including battery)

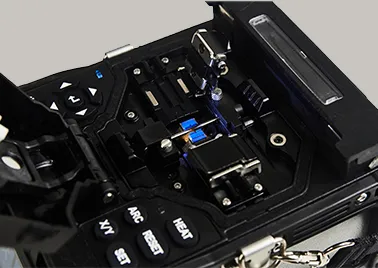

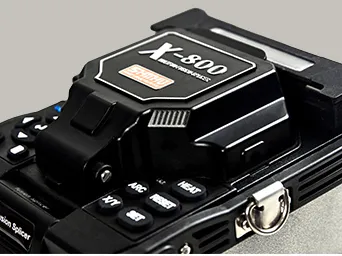

Optic Fiber Core Splicing Machine Ruggedized Fusion Splicer for FTTX, Outdoor

Delivery leading period:

Within 3 working days for small orders after receiving full payment
Kindly consult us for bulk orders

Shipment:

DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders.
By sea or by aircargo for bulk orders.

After-sales Services
We guarantee that every fusion splicer works perfectly before shipment. We strive for 100% customer satisfaction on every sale we complete.

We are responsible for the whole lifespan of our products, and whenever you have questions feel free to contact us, we are glad to provide technical support timely.

We provide a warranty for 3 years from the date customers receive our fusion splicers. Other accessaries for six months. During the warranty period, we can repair or replace the defective components for free. when warranty is expired, we will charge newly replaced components only.

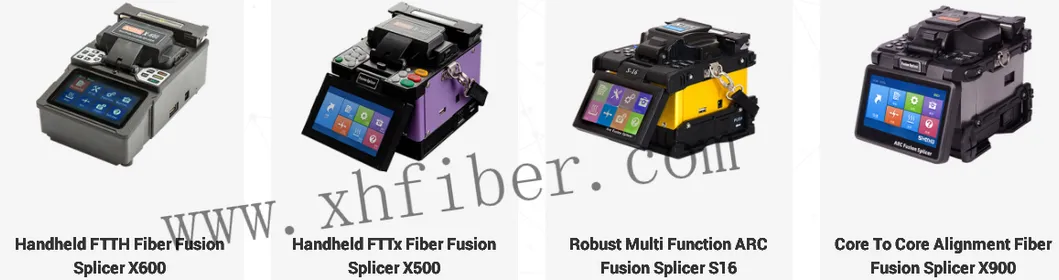

Other hot selling fusion splicers

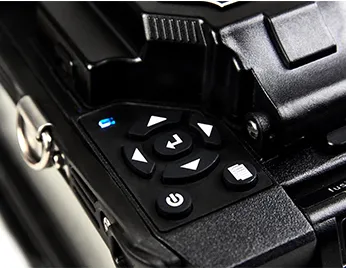

Optic Fiber Core Splicing Machine Ruggedized Fusion Splicer for FTTX, Outdoor
