China Next Generation Network Optical Fiber Splitter (OLT-ODN-ONU)

Product Description

Description

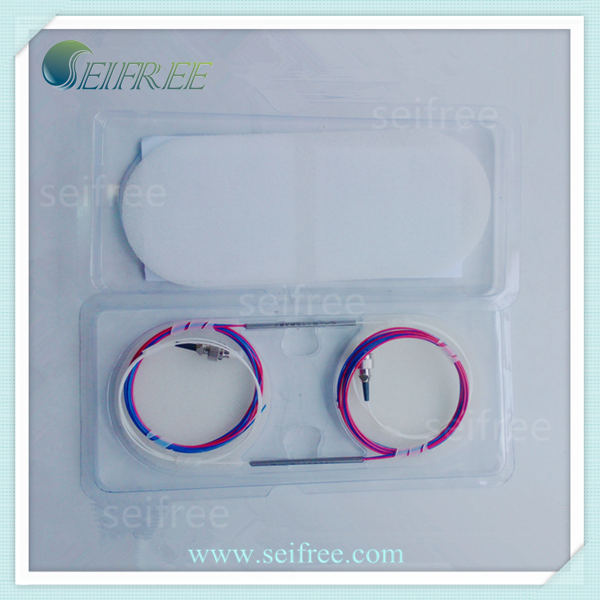

The Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

Applications Features
Telecommunication system Low excess loss
Line monitor system Low PDL
Access network High reliability
OCT system
Amplifier
CATV
Ordering Information
SSBC-       -       -       -       -       -       -       -

Ports	Wavelength	Coupling ratio	Fiber Type	Pigtail Dia.	Pigtail Length	Package	Connector Type
12=1x2	82=820nm	01=01/99	H=Hi 780	02=0.25mm	05=50cm	A1(2, 3,)	FU(A)=FC/UPC(APC)
22=2x2	98=980nm	02=02/98	F=Flex 1060	09=0.9mm	10=100cm	B1(2)	SU(A)=SC/UPC(APC)
/			E=SMF-28e	2=2mm		C1
	13=1310nm	40=40/60	B=SMF-28e XB	3=3mm	20=200cm	D1	LU(A)=LC/UPC(APC)
	35=1310&1550nm	00=50/50	/	X=Customization

Specification

Operating Wavelength(nm)	820±40/980±40/1310±40/1550±40		980&1550±40/1310&1490&1550±40		Parameter	Unit	Value
Operating Wavelength(nm)	820±40/980±40/1310±40/1550±40		980&1550±40/1310&1490&1550±40		Parameter	Unit	Value
Coupling	Insertion Loss (dB)				Fiber Type	/	Hi 780/ Flex 1060/SMF-28e/ SMF-28e XB
Ratio (%)	Tap	Signal	Tap	Signal	Fiber Type	/	Hi 780/ Flex 1060/SMF-28e/ SMF-28e XB
01/99	19.0-21.0	≤0.20	18.5-21.5	≤0.25	PDL	dB	Typ.:<0.1 Max.:<0.15
03/97	14.6-16.2	≤0.30	14.5-16.5	≤0.30	Directivity	dB	>55
05/95	12.4-13.8	≤0.35	12.0-14.5	≤0.45	Return Loss	dB	>50
10/90	9.70---10.7	≤0.60	9.70-11.2	≤0.60	Excess Loss	dB	Typ.:<0.1 Max.:<0.2
20/80	6.70---7.60	≤1.15	6.60---7.80	≤1.15	Pigtail Dia.	mm	0.25 /0.9 / 2 / 3
33/67	4.65---5.65	≤1.70	4.50---5.85	≤1.80	Pigtail Length	cm	>100
40/60	3.95---4.30	≤2.50	3.70---4.70	≤2.70	Operating Tem.	ºC	-10~ +70
50/50	2.85---3.30		2.80---3.40		Storage Tem.	ºC	-40~ +85

Package and Mounting Dimension (mm)

Stainless Steel Tube (A)		Plastic Box (B)		Aluminum alloy Box (C)		Aluminum alloy Rack (D)
Outline	Outline	Outline	Mounting	Outline	Mounting	Outline
A1=Φ3x50	A5=Φ5.5x34	B1=90x20x9.5	50x12x2Φ3.2	C1=85x18x8.4	44.5x13x2Φ3	D1=129x29x160 1U LGX
A2=Φ3x54	A6=Φ5.5x38	B2=100x80x10	70x73.5x4Φ3.2	C2=90x72x8	86x68x4Φ3	D2=129x58x160 2U LGX
A3=Φ3x60	A7=Φ5.5x50	B3=120x80x18	80x74.5x4Φ3.2	C3=110x95x7.5	99x84x4Φ3.5	D3=485x43.5x230 1U 19' RACK
A4=Φ5x70	A8=Φ5.5x64	B4=141x115x18	100x106x4Φ3.2	C4=110x95x15	99x84x4Φ3.5	D4=485x87x230 2U 19' RACK
Item	φ0.25 Stainless	φ0.9 Stainless	φ2/3 Stainless	φ0.9(φ2,φ3) Plastic	φ0.9(φ2/φ3) Aluminum Alloy	LGX	19' Rack
1x2	A1	A2	A4	B1	C1	D1	D3
2x2	A1	A3	A4	B1	C1	D1	D3
