Multimode 1310 /1550nm Filter FTTH Wdm

Product Description

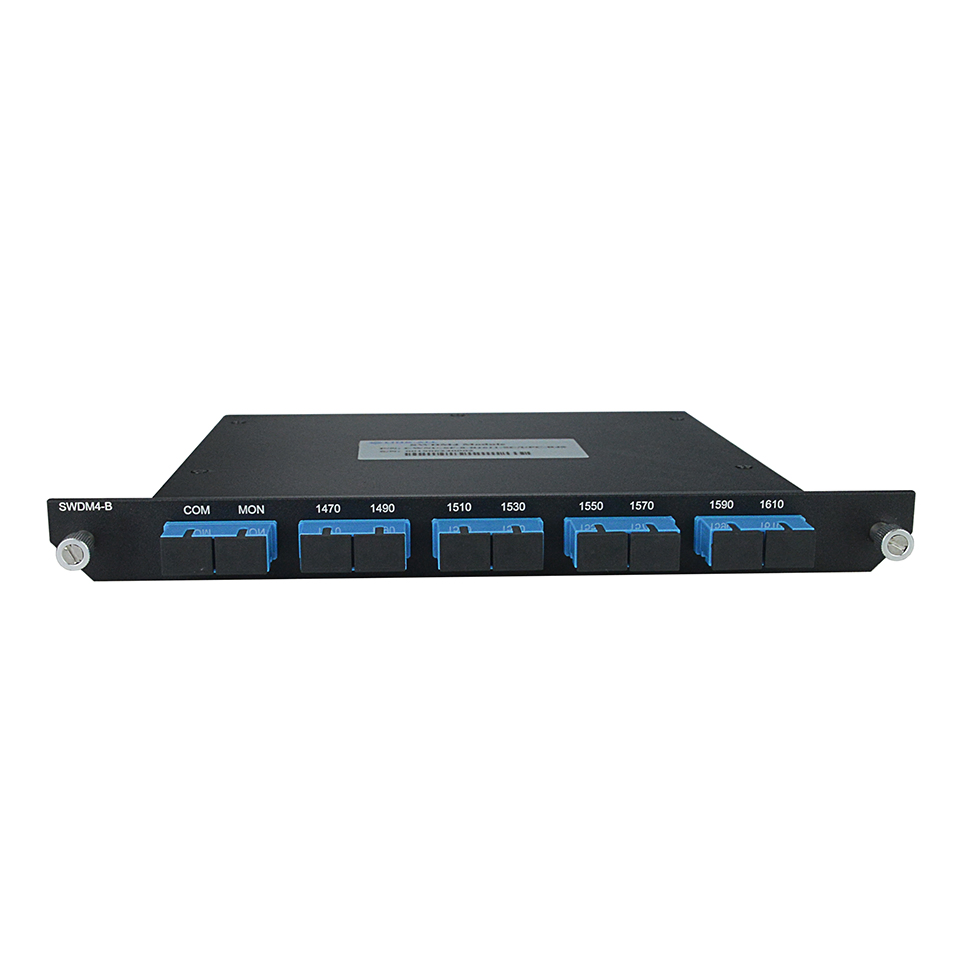

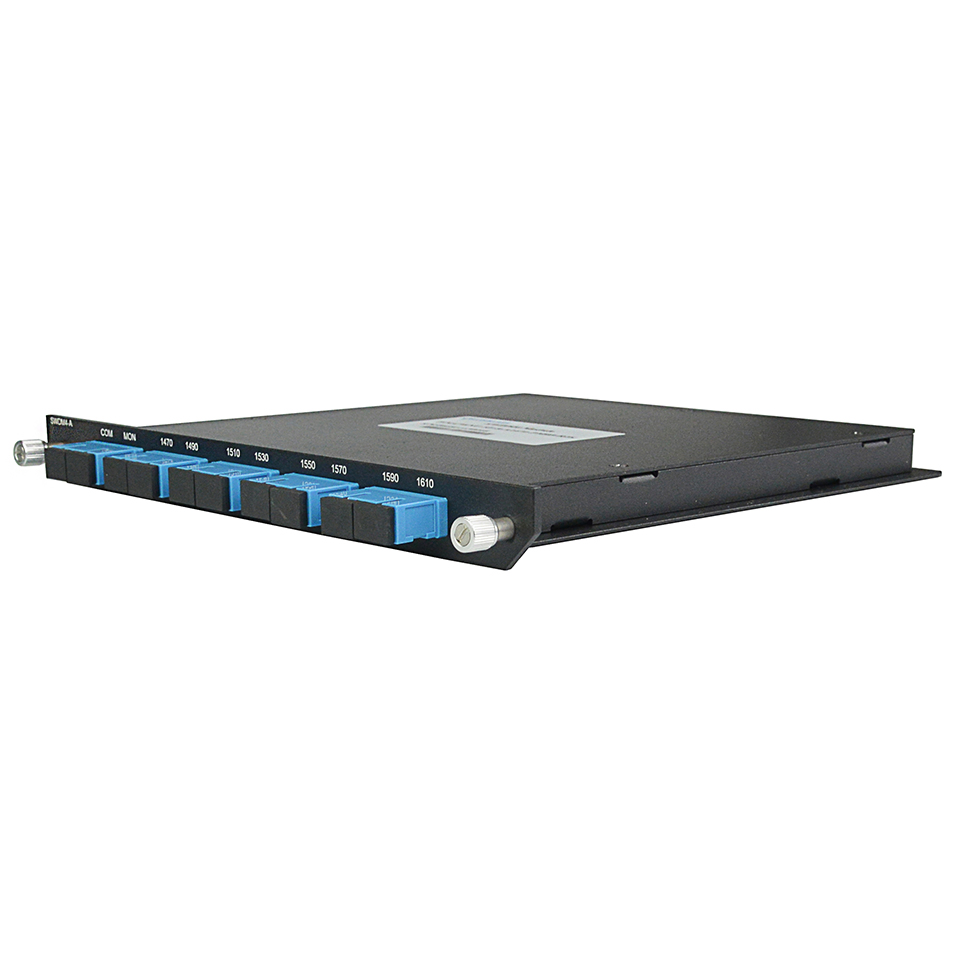

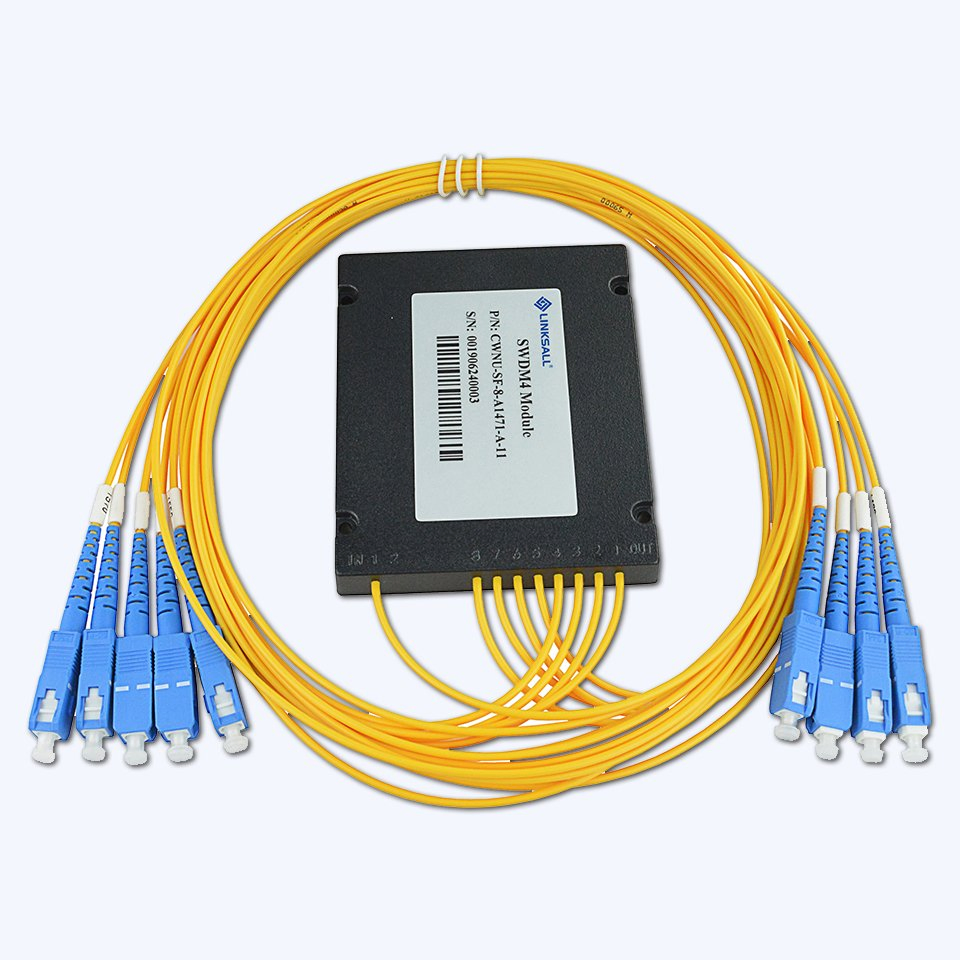

CWDM SWDM9 multiplexier module

Product Overview

Coarse Wavelength Division Multiplexing, 20nm Channel Space, with 5% Bi-Direction Monitor Single Fiber 9 Channels
Bi-Direction, 18 Wavelengths, 1RU 19" rack mount chassis, 2 slots

Features

Cost-effective CWDM technology
Terminates sixteen wavelengths
Reliable passive thin film filter WDM optical technology
Low optical insertion loss
Low-profile modular design

Applications

Metro Network
Access Network
FTTH Application
Unidirectional network traffic rings
Point-to-point applications
CATV Fiberoptic Links

Performance Specification

Parameter		Unit	Thin Film Coarse WDM
Channel spacing		nm	20
Number of Channels		ch	18
Central Wavelength		nm	1271, 1291, 1311, 1331, 1351, 1371, 1391, 1411, 1431, 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611
Operation Wavelength		nm	ITU±6.5
Ripple in Passband		dB	≤ 0.4
Power Monitor Rate		%	5
Channel Insertion Loss (with connector)		dB		≤ 4.8
End To End Insertion Loss (with connector)		dB	≤ 7.0
Mux/Demux pair Insertion Loss uniformity		dB		≤ 2.5
Insertion Loss for Monitoring Port		dB		≥ 10 and ≤ 21.5
Isolation	Adjacent channel	dB	≥ 30
	Non-adjacent channel	dB	≥ 40
Polarization Dependent Loss		dB	≤ 0.15
Polarization Mode dispersion		ps	≤ 0.20
Return Loss (with connector)		dB	≥ 45
Directivity		dB	≥ 50
Insertion Loss Temperature Stability		dB/°C	≤ 0.005
Temperature Wavelength Drift		nm/°C	≤ 0.002
Recommend Operation Environment
Power Handling		mW	≤ 500
Tensile Load		N	5
Operating Temperature		°C	0 ~ 70
Storage Temperature		°C	-40 ~ 85
Relative Humidity		%	95
Package Specification
Fiber Type					Corning SMF-28e
