Mini Size 3 Ports 10m/100m Fiber Switch with Data Transmission Long Distance of 20 Km
Mini Size 3 Ports 10M/100M Fiber Switch with Data Transmission Long Distance of 20 km Product Brief Introductioin : OFS-SF1T2-20 series is a Layer 2 + Optical Ethernet switch with 1*100Mbps Optical fiber ports and 2*10/100Mbps RJ45 ports. It is designed to meet the various application needs, and pr......
Send Inquiry
Product Description
Product Brief Introductioin :
OFS-SF1T2-20 series is a Layer 2 + Optical Ethernet switch with 1*100Mbps Optical fiber ports and 2*10/100Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.
OFS-SF1T2-20's high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.
Main Features:
- 2 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps Fiber port.
- Automatic MAC address learning and aging
- 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
- LED indicators for monitoring power/link/activity
- Supports10/100Mbps-Full/Half-duplex
- Supports Wall-mount and DIN-Rail installation ,Optional.
- Supports Broadcast Storm Control
- Excellent heat elimination without cooling fan.
- Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
- Harsh environment or higher requirement
- -10ºC-55ºCoperating temperature range.

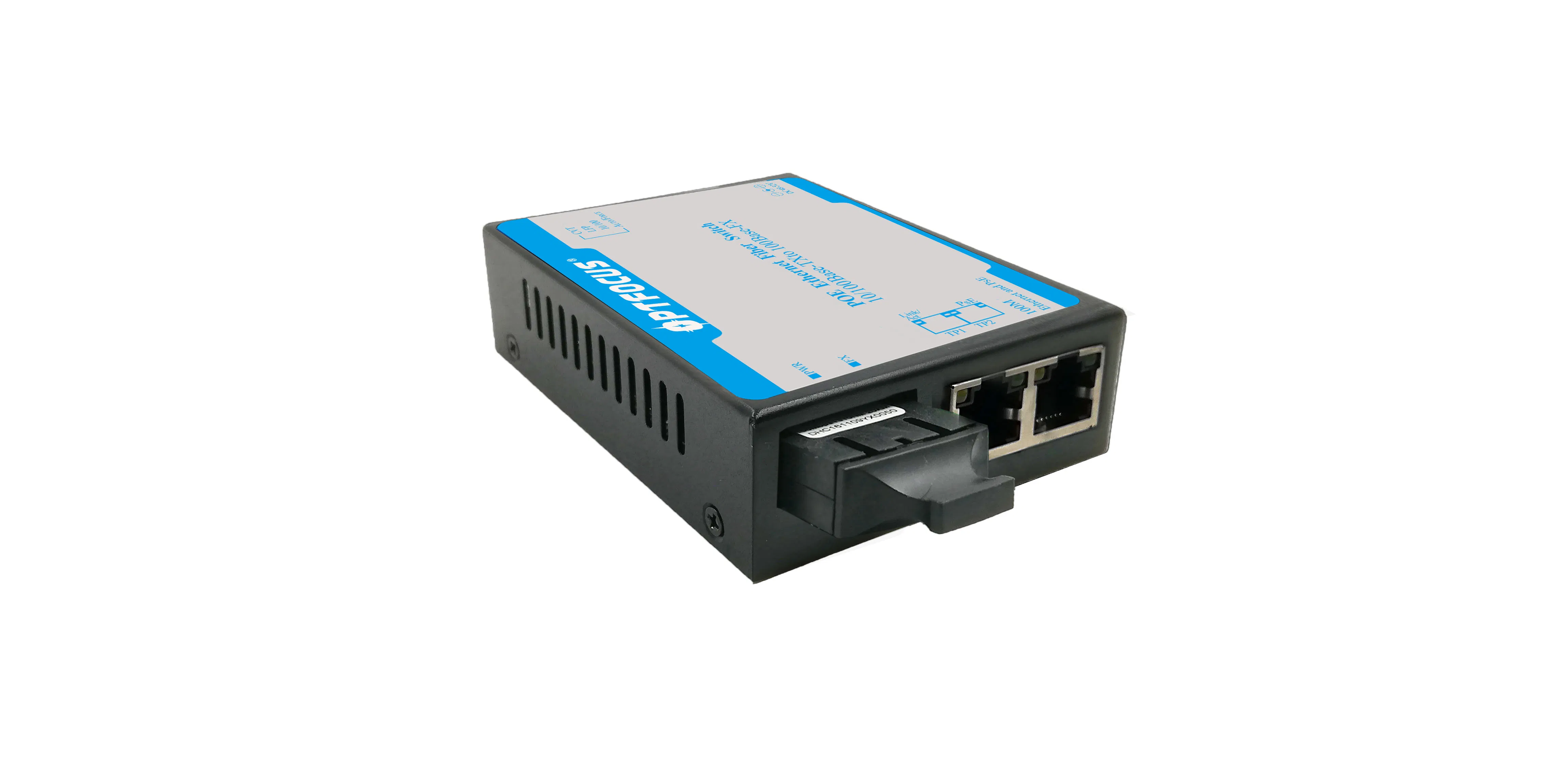

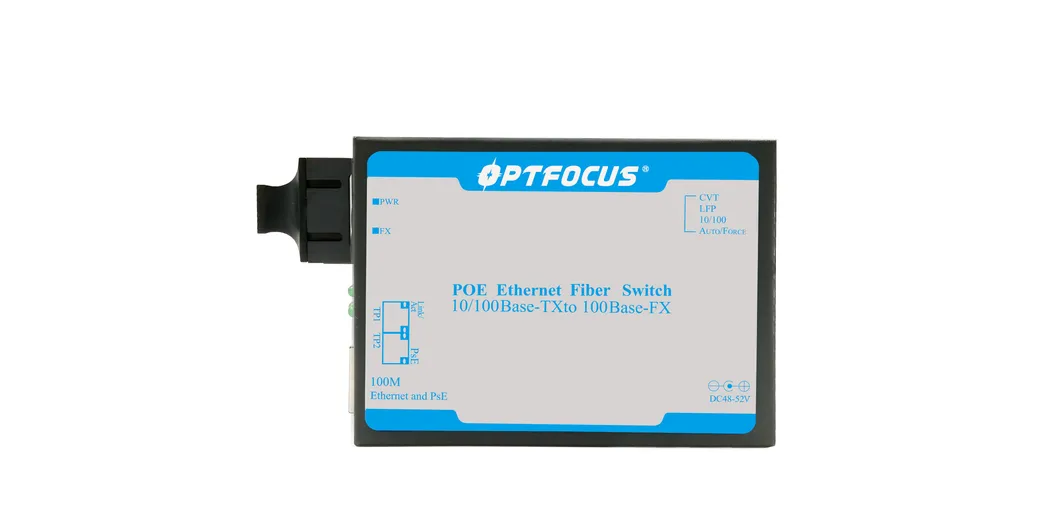

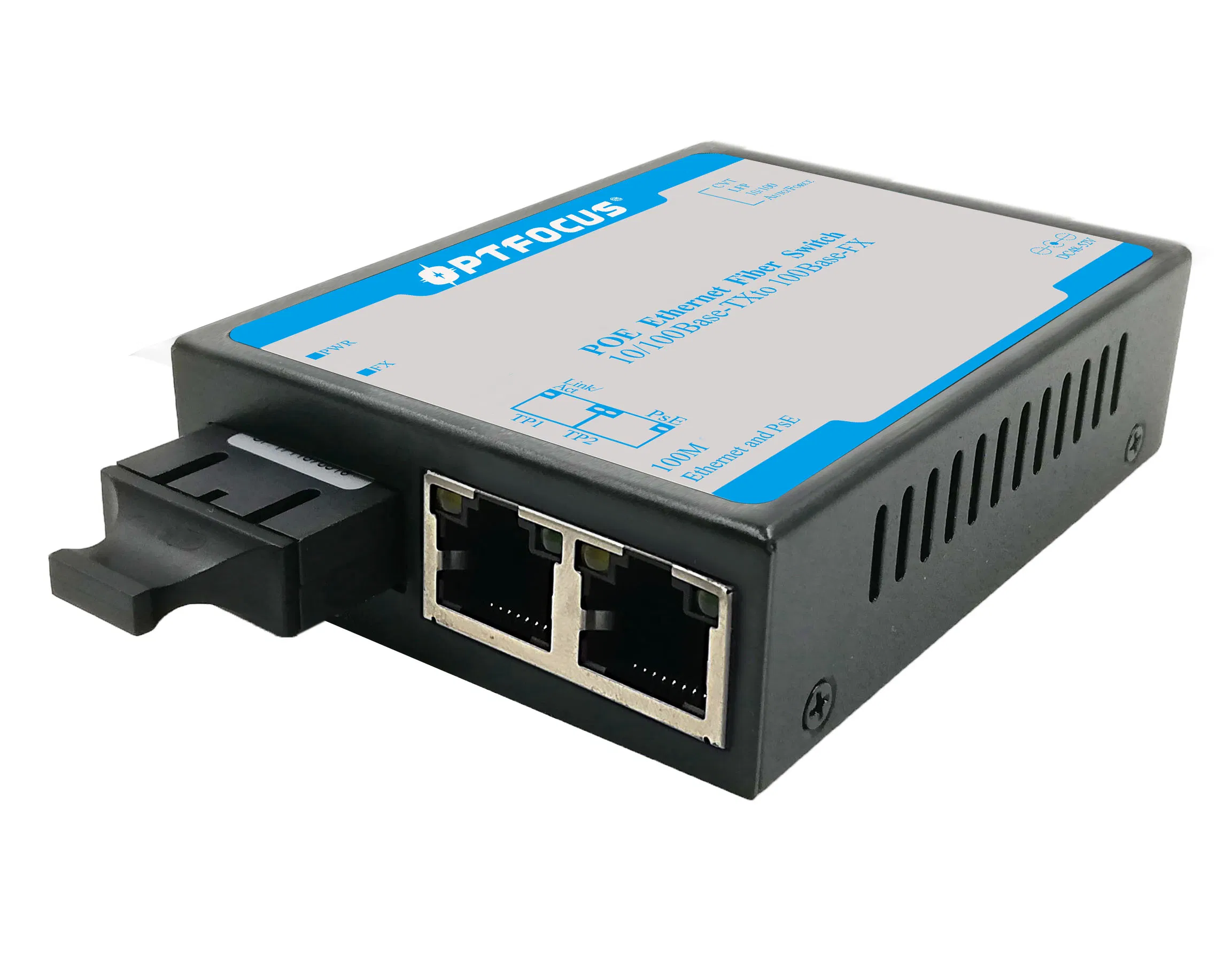

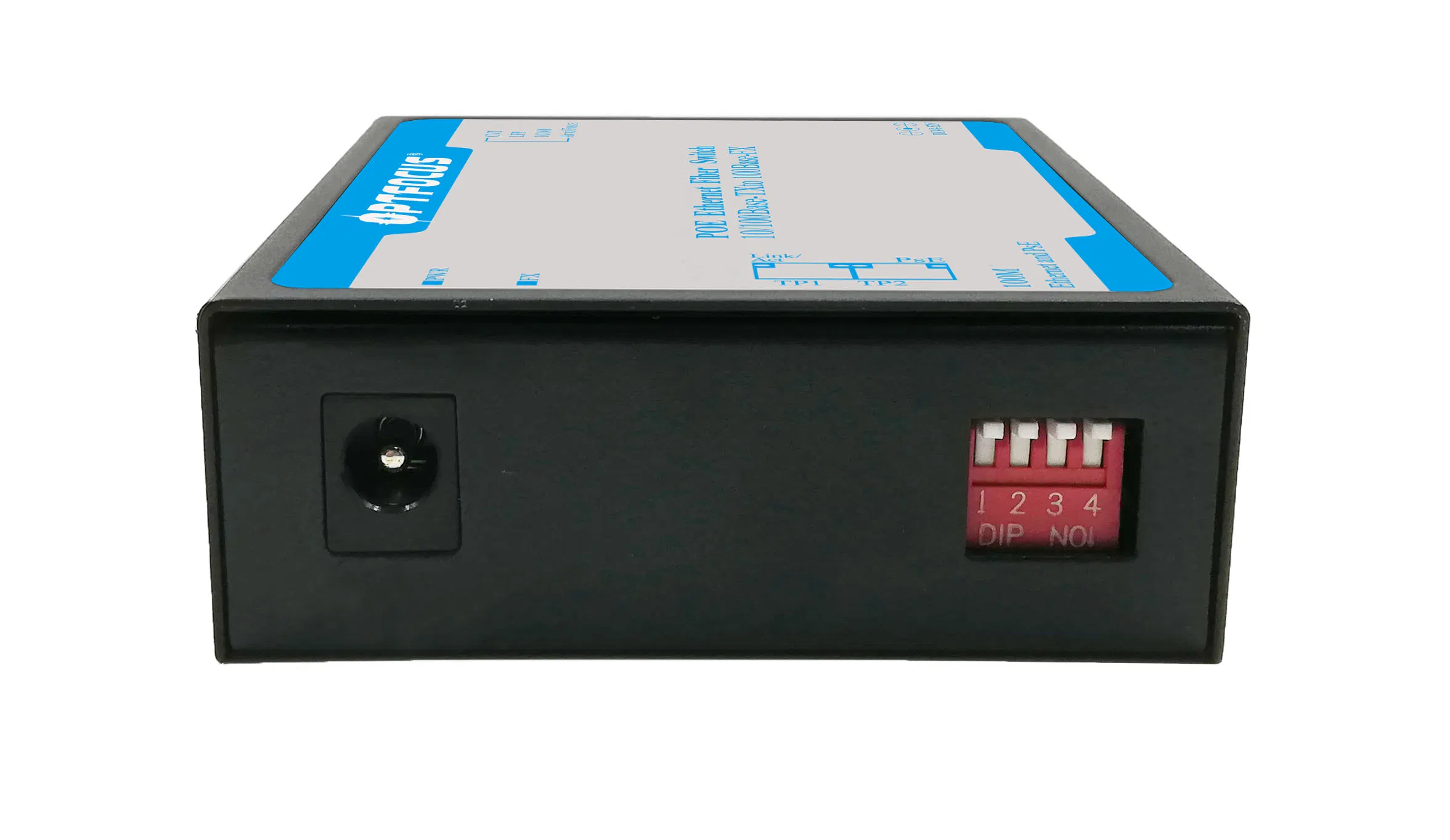

Detail Images:
Technical Data Sheet
| Product Name | 2-port 10/100Mbps + 1-port 100Mbps Fiber |
| Product Model | OFS-SF1T2-20 |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode: 2KM Single-mode: 20/40/60/80/100KM Fiber port :SC/ST/FC Optional |
| Performance Specification | Bandwidth: 1Gbps Packet Buffer Memory:1M Packet Forwarding Rate:148800pps/port MAC Address Table:1K |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR; FX Link;TP 100 ;TP Link/Act |
| Power Supply | Input: AC100 ~ 250V, Output:DC5V 2A. |
| Max power | 3W |
| Environment temperature | 0 ~ +55ºC |
| Storage temperature | -20 ~ +70ºC |
| Humidity | 5% ~ 90% |
| Dimensions | 26 × 70 × 93mm |
View of our Company:
Profile of SHENZHEN OPTFOCUS TECHNOLOGY CO.,LTD ?
Shenzhen Optfocus Technology Co.,Ltd was established in 2009, OPTFOCUS is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx, Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.
Why Choose us ?
We offer the following service both online and offline
A.Payment Terms
1) PAYPAL, Western Union, T/T for samples
2) ESCROW, Ali-Secure, L/C, OA are negotiable
3) Drop-shipping available; Agent/Proxy are welcome!
B.Any inquiried will be replied within 24 hours
C.Professional manufacturer; Welcome to visit our website Http://optfocus1.en.made-in-china.com
D. OEM/ODM service available
E. High quality,good price, short lead time
F. 7x24 fast response after-sale Service
FAQ:
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date of shipment.
3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.
4.Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server for details.
5.Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.
