Mini Horizontal Fiber Optic Splice Closure 24f
In-line/Horizontal Splice Closure FOSC GP01-GF7-24GP01-GF7 In-line optic splice closures are specially designed to splice and protect joints of optic cable. It is mainly used to connect and branch fibers in aerial locations. The case body is made from high-intensity engineering plastics and formed ......
Send Inquiry
Product Description

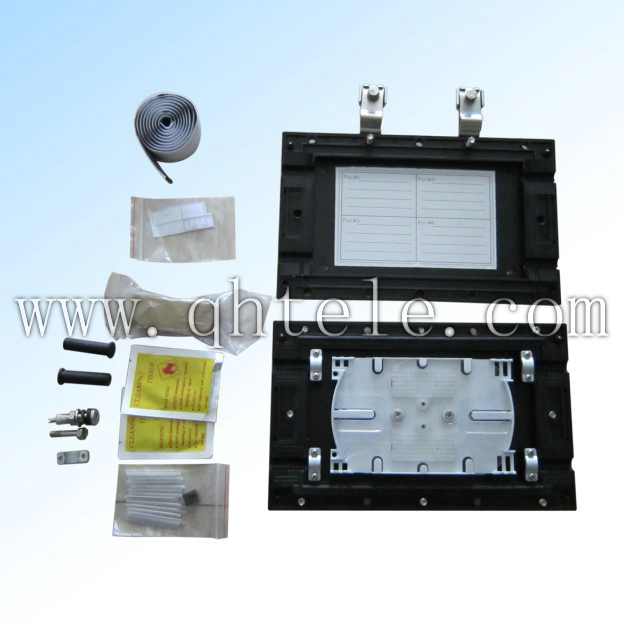

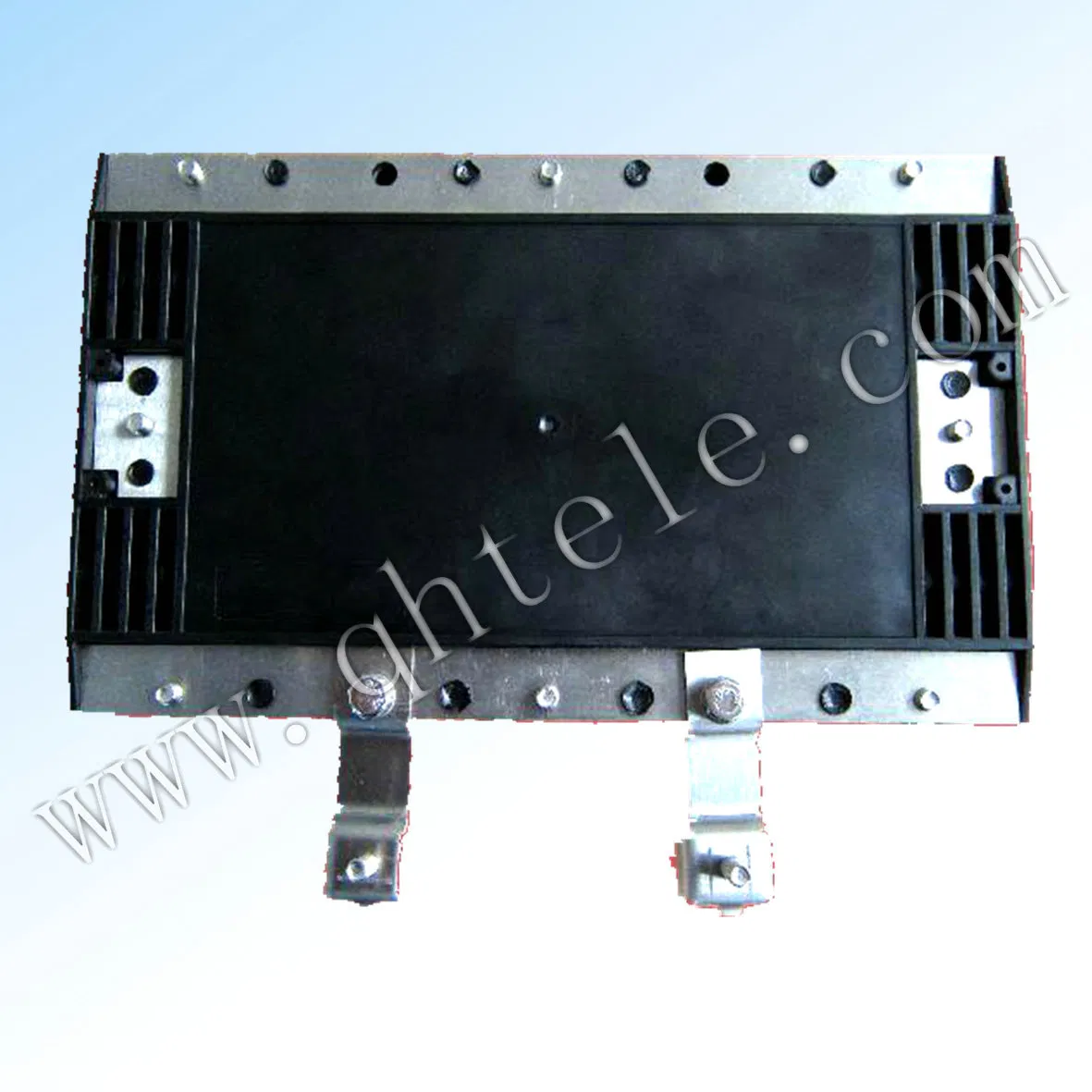

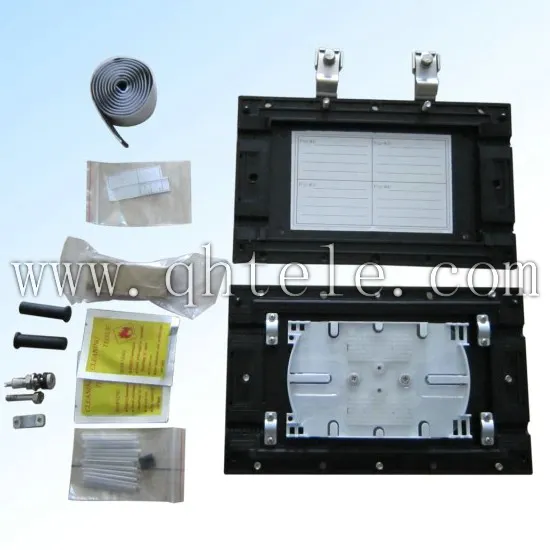

In-line/Horizontal Splice Closure FOSC GP01-GF7-24
GP01-GF7 In-line optic splice closures are specially designed to splice and protect joints of optic cable. It is mainly used to connect and branch fibers in aerial locations. The case body is made from high-intensity engineering plastics and formed the shape will mold plastics under high pressures.Adding anti-UV, corrosive-resistance, anti-thunderstruck element, with long service life.
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss.
GP01-GF7 In-line optic splice closures are specially designed to splice and protect joints of optic cable. It is mainly used to connect and branch fibers in aerial locations. The case body is made from high-intensity engineering plastics and formed the shape will mold plastics under high pressures.Adding anti-UV, corrosive-resistance, anti-thunderstruck element, with long service life.
| Spec. | Size mm | Tray number | Max. capacity | Ports number & avilable cable daia. | Raw material |
| GP01-GF7 | 249*153*30 | 1 | 24F | 2 inlets and 2 outlets for cable dia. Φ 3-10.8 mm | Closure: Modified P.P. Alloy & 304 Stainless steel. Tray: ABS |
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss.
