Micro (metal) fiber optic terminal box-6 cores

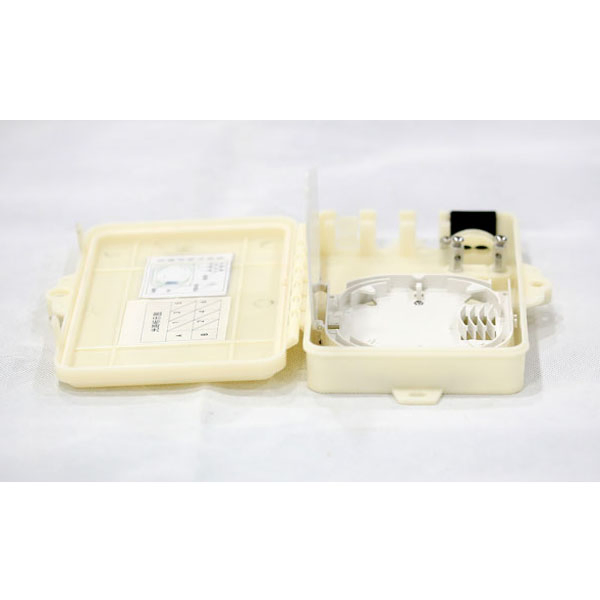

The terminal box is a rectangular parallelepiped casing, and one end of the box is a cable entry hole and a branch hole (according to customer requirements), and the other end is an outlet hole of the movable connector pigtail.The terminal box is composed of a bracket, an optical fiber connection tray and a pigtail bead.
The fiber optic terminal box is mainly used for fixing the optical cable terminal, splicing the optical cable and the pigtail, and accommodating and protecting the residual fiber.It is a box for protecting the optical cable and pigtail splicing in the cable laying terminal. It is mainly used for the straight-through force connection and branch connection of the indoor optical cable and the fixing of the cable terminal, and functions as a pigtail disk storage and protection joint.
Model:SH-4006-M
Conditions of Use:
·Operating temperature:-5ºC~+40ºC(Indoor type)
-20ºC~+60ºC(Outdoor type)
·Relative humidity: 25%~75% (+30ºC);
·Atmospheric pressure: 70~106Kpa;
Technical characteristics:
·Connector loss (including insertion, interchange, repetition)≤0.5dB;
·Insertion loss:≤0.2dB;
·Return loss:FC/PC≥40 dB,FC/UPC≥50dB,FC/APC≥60 dB;
·Stretch:Can withstand axial tensile force of ≥500N between the box and any cable;
·Pressure:Can withstand ≥200N vertical static pressure;
·Insulation resistance:Between the metal members, between the metal members and the ground ≥ 2 × 104 MΩ (500V / DC);
·Dielectric strength:3000V (DC) between the metal components and between the metal components and the ground for 1 min without breakdown, no arcing;
·Service life: >20 years
The terminal box is a rectangular parallelepiped casing, and one end of the box is a cable entry hole and a branch hole (according to customer requirements), and the other end is an outlet hole of the movable connector pigtail.The terminal box is composed of a bracket, an optical fiber connection tray and a pigtail bead.
The fiber optic terminal box is mainly used for fixing the optical cable terminal, splicing the optical cable and the pigtail, and accommodating and protecting the residual fiber.It is a box for protecting the optical cable and pigtail splicing in the cable laying terminal. It is mainly used for the straight-through force connection and branch connection of the indoor optical cable and the fixing of the cable terminal, and functions as a pigtail disk storage and protection joint.
Model:SH-4006-M
Conditions of Use:
·Operating temperature:-5ºC~+40ºC(Indoor type)
-20ºC~+60ºC(Outdoor type)
·Relative humidity: 25%~75% (+30ºC);
·Atmospheric pressure: 70~106Kpa;
Technical characteristics:
·Connector loss (including insertion, interchange, repetition)≤0.5dB;
·Insertion loss:≤0.2dB;
·Return loss:FC/PC≥40 dB,FC/UPC≥50dB,FC/APC≥60 dB;
·Stretch:Can withstand axial tensile force of ≥500N between the box and any cable;
·Pressure:Can withstand ≥200N vertical static pressure;
·Insulation resistance:Between the metal members, between the metal members and the ground ≥ 2 × 104 MΩ (500V / DC);
·Dielectric strength:3000V (DC) between the metal components and between the metal components and the ground for 1 min without breakdown, no arcing;
·Service life: >20 years
