Mechanical Sealing Waterproof 288core IP68 Fiber Optic Joint Enclosure
Mechanical Sealing waterproof 288core IP68 Fiber Optic Joint EnclosureTK-023 Fiber Optic joint enclosure provide with 7 fiber cable in-out round ports and the cable diameter is from 5-38. It is made of PP and with the mechanical sealing structure filled with the sealing material.Application 1. Aeri......
Send Inquiry
Product Description

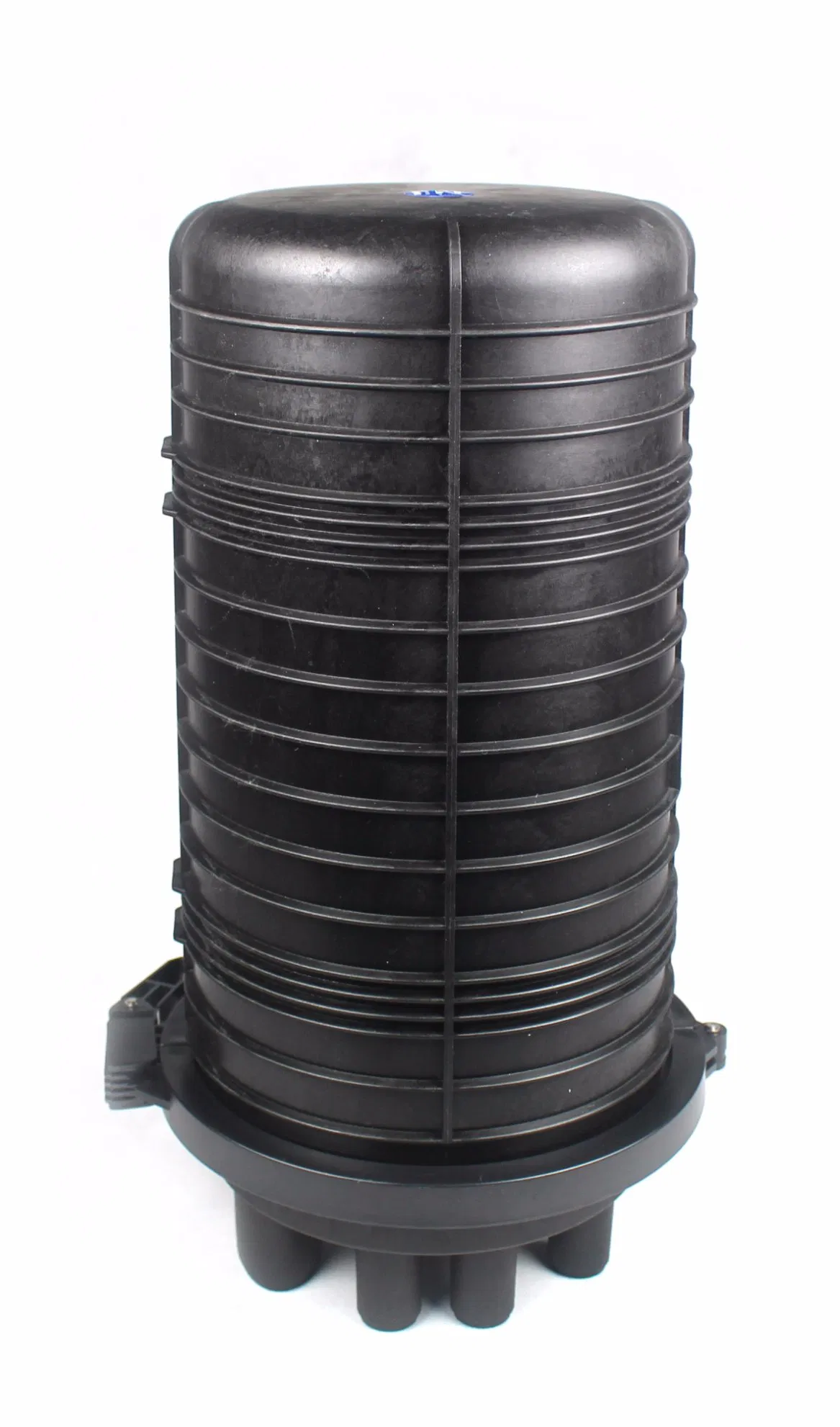

Mechanical Sealing waterproof 288core IP68 Fiber Optic Joint Enclosure
TK-023 Fiber Optic joint enclosure provide with 7 fiber cable in-out round ports and the cable diameter is from Ф5-Ф38. It is made of PP and with the mechanical sealing structure filled with the sealing material.
Application
1. Aerial,
2. Underground
3. Wall-mounting
4. Duct-mounting
5. Handhole- mounting
Specification
Main components
Would you like a IP68 Large Capacity Fosc 288 Core Fiber Optic Splice Closure to test??Please leave me an inquiry or contact me directly.
TK-023 Fiber Optic joint enclosure provide with 7 fiber cable in-out round ports and the cable diameter is from Ф5-Ф38. It is made of PP and with the mechanical sealing structure filled with the sealing material.
Application
1. Aerial,
2. Underground
3. Wall-mounting
4. Duct-mounting
5. Handhole- mounting
Specification
| Outside dimension (Height x Diameter) | 515mm×310mm |
| Weight (excluding outside box) | 3000 g- 4600g |

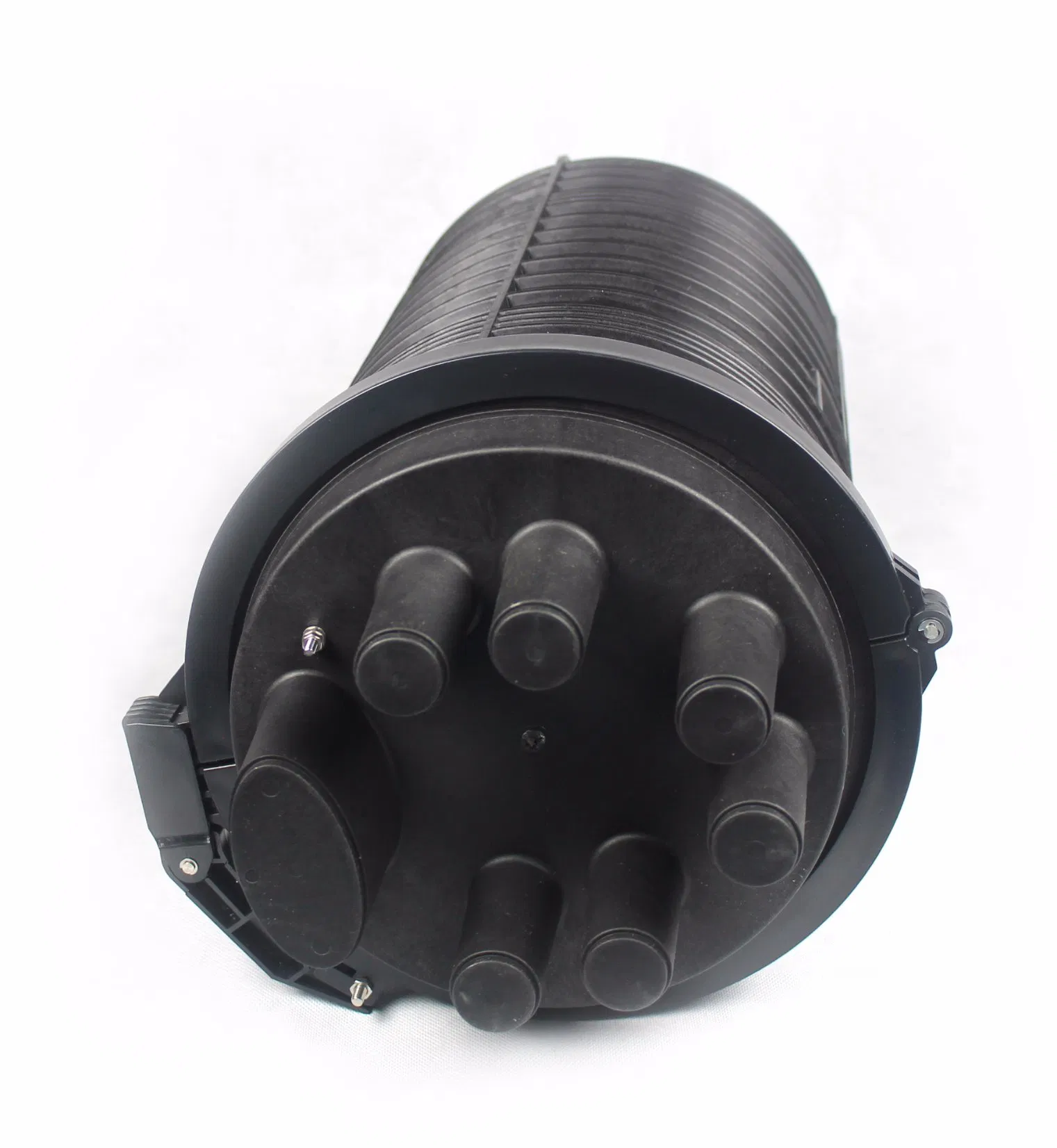

| Number of inlet/out ports | 7 pieces in general |
| Diameter of fiber cable | Φ5mm~Φ38 mm |
| Capacity of FOSC | Bunchy: 24-288(cores), Ribbon: up to864(cores) |

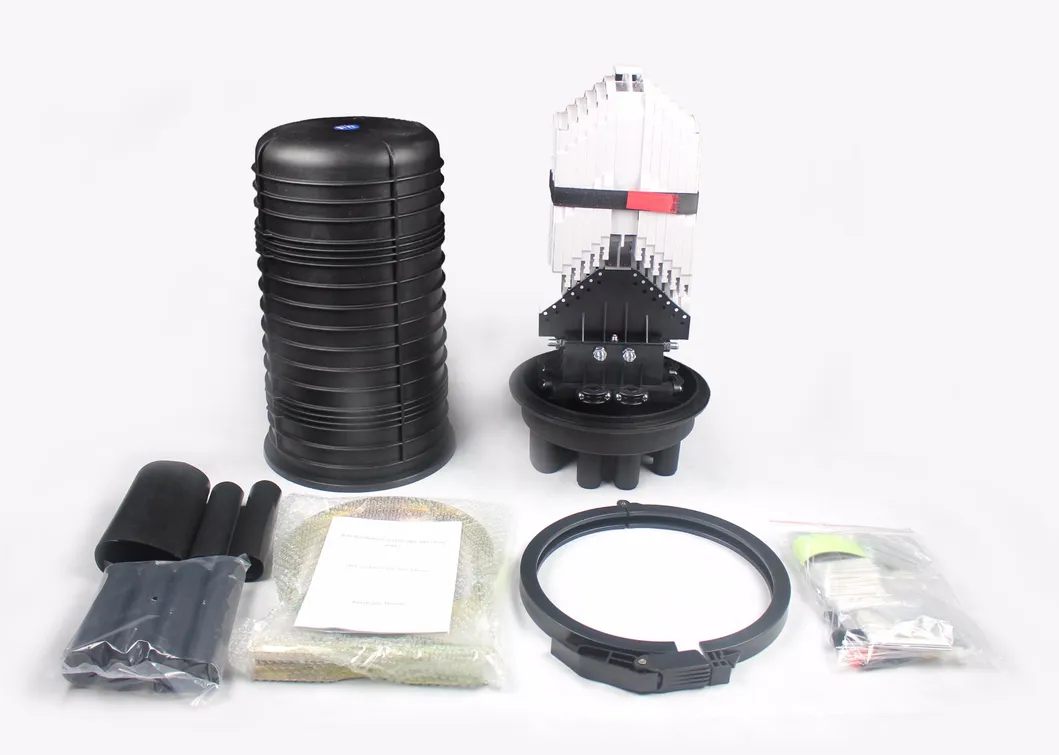

Main components
| No. | Name of components | Quantity | Usage | Remarks |
| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter 360mm x 177mm |

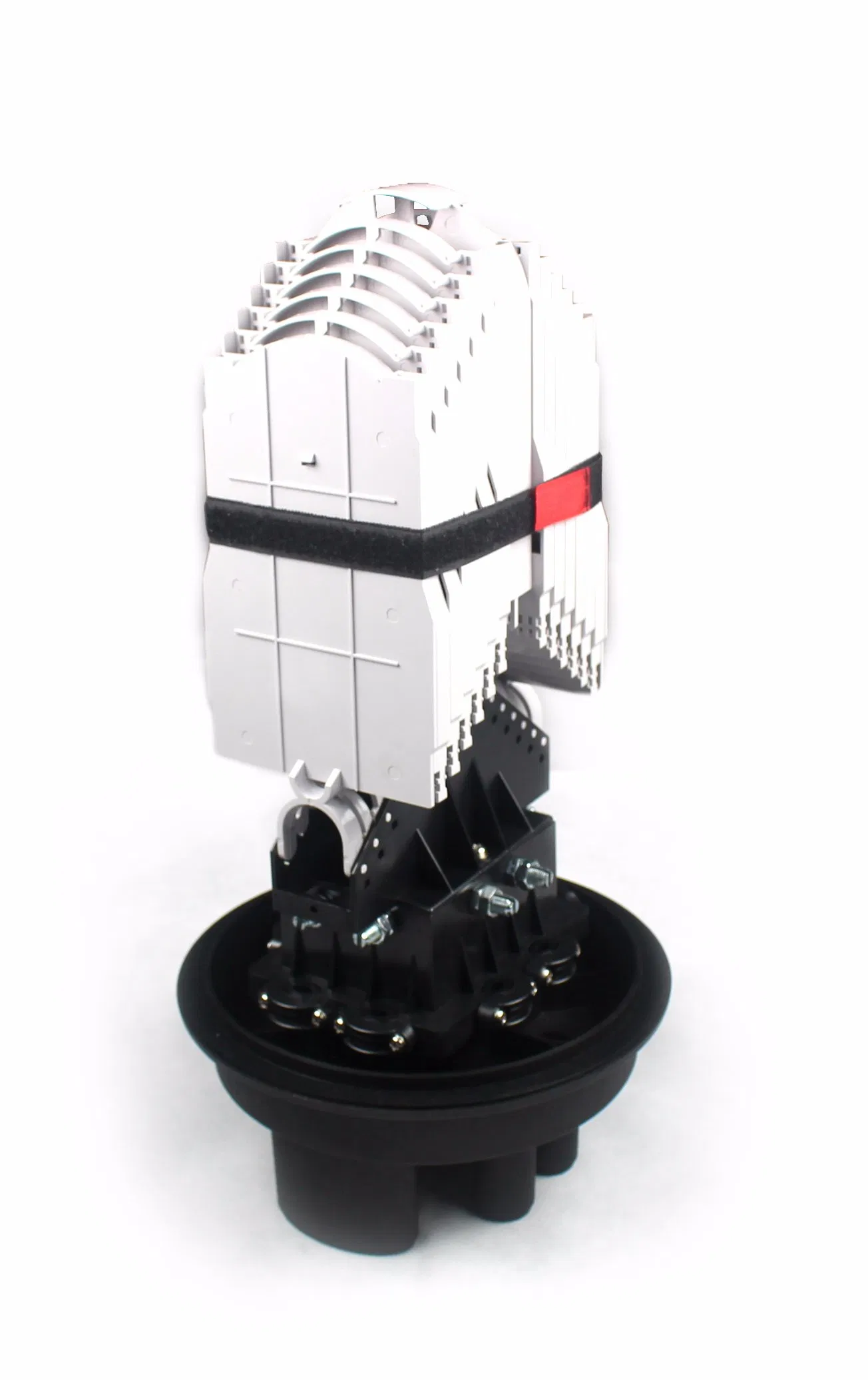

| 2 | Fiber optic splice tray (FOST) | Max. 12 trays (bunchy) Max. 12 trays (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
| 3 | Fiber holding tray | 1 pcs | Holding fibers with protective coat | |
| 4 | Base | 1set | Fixing internal and external structure | |
| 5 | Plastic hoop | 1 set | Fixing between FOSC cover and base | |
| 6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
| 7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 8 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
Would you like a IP68 Large Capacity Fosc 288 Core Fiber Optic Splice Closure to test??Please leave me an inquiry or contact me directly.
