Home > Products > Fiber Optic Equipment > Lower Price Gpon Epon OEM ONU CATV 1ge+1fe+WiFi+ CATV Optic Fiber Modem, FTTH CATV Router
Lower Price Gpon Epon OEM ONU CATV 1ge+1fe+WiFi+ CATV Optic Fiber Modem, FTTH CATV Router
FWG-HGU8020WC GPON ONT, 1*GE+1*FE+CATV+WIFI Product OverviewFWG-HGU8020WC GPON ONT is a three-in-one FTTH gateway for small and medium-sized businesses, SOHO office and home users, integrating GPON, WIFI, and CATV functions. This series of products complies with the G.988 international standard and ......
Send Inquiry
Product Description

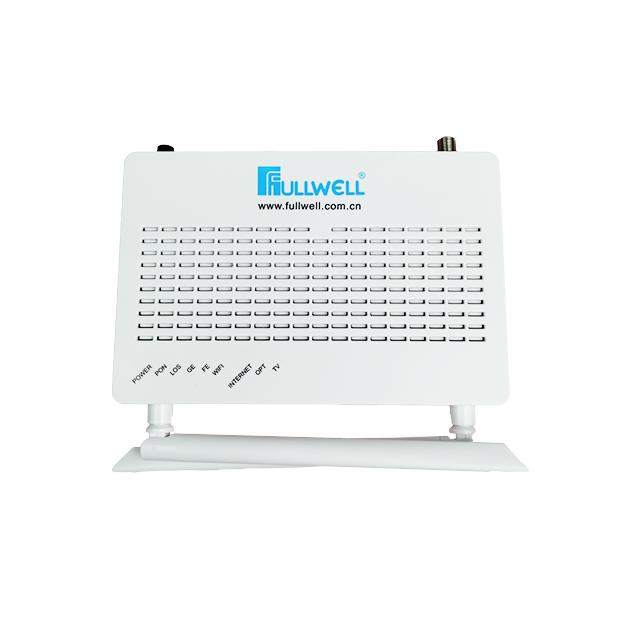

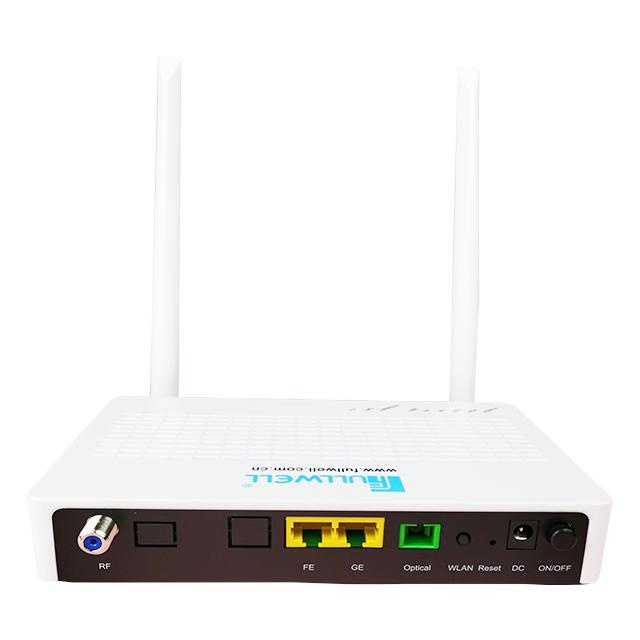

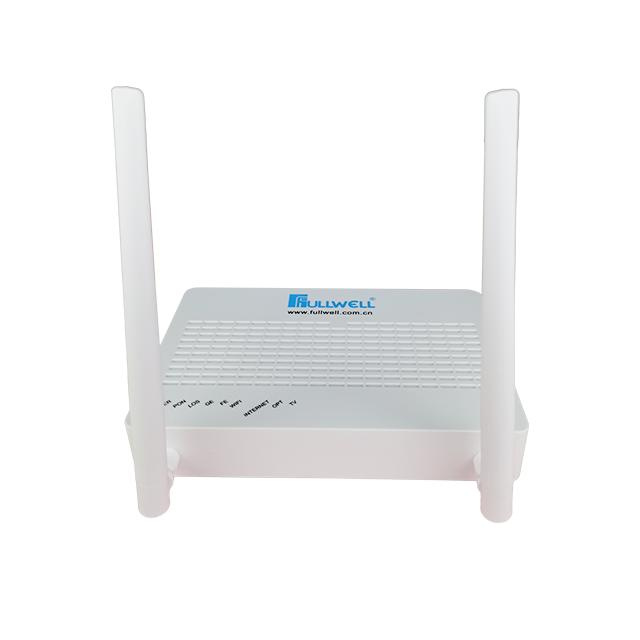

FWG-HGU8020WC GPON ONT, 1*GE+1*FE+CATV+WIFI
Products Series
FWG-HGU8020WC GPON ONT, 1*GE+1*FE+CATV+WIFI
FWG-SFU8020W GPON ONU, 1*GE+1*FE+WIFI
Product Overview
FWG-HGU8020WC GPON ONT is a three-in-one FTTH gateway for small and medium-sized businesses, SOHO office and home users, integrating GPON, WIFI, and CATV functions. This series of products complies with the G.988 international standard and has good interoperability and operability, enabling interoperability with mainstream manufacturers' OLT devices.
FWG-HGU8020WC GPON ONT is based on mature, stable and cost-effective Gigabit GPON technology, which integrates Gigabit Ethernet switching technology and high-quality VoIP technology. It has high reliability, easy management and good quality of service (QoS) guarantee, supports 1Gbps uplink and 2.5Gbps downlink transmission rate, and provides users with flexible bandwidth allocation, Ethernet services and CATV services. Integrated wireless function, in line with 802.11n Wireless standard protocol, external high gain omnidirectional antenna, wireless transmission rate of 300Mbps, strong penetration, wide coverage, providing users with a more efficient data transmission guarantee.

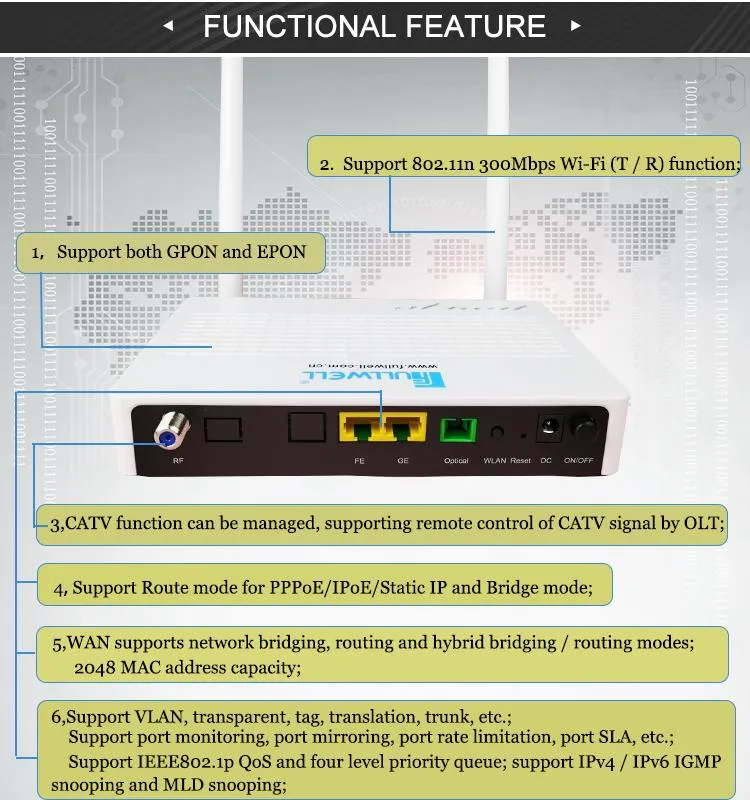

Performance Characteristics
1. Plug and play, integrated automatic detection, support remote configuration and remote firmware upgrade;
2. Integrates OMCI and TR-069 remote configuration and maintenance, supports diagnosis monitoring and remote disabling of optical fiber;
3. Support 802.11n 300Mbps Wi-Fi (T / R) function;
4. CATV function can be managed, supporting remote control of CATV signal by OLT;
5. WAN supports network bridging, routing and hybrid bridging / routing modes; 2048 MAC address capacity;
6. Support VLAN, transparent, tag, translation, trunk, etc.; support port monitoring, port mirroring, port rate limitation, port SLA, etc.; support IEEE802.1p QoS and four level priority queue; support IPv4 / IPv6 IGMP snooping and MLD snooping;
7. Select the high-quality power adapter designed for 5-year continuous operation, is the FTTH single fiber to home network security optical access equipment.
8. White cover + black bottom plastic shell, exquisite texture appearance, show brand strength.,
Main Parameter
FWG-HGU8020WC GPON ONT is a three-in-one FTTH gateway for small and medium-sized businesses, SOHO office and home users, integrating GPON, WIFI, and CATV functions. This series of products complies with the G.988 international standard and has good interoperability and operability, enabling interoperability with mainstream manufacturers' OLT devices.
FWG-HGU8020WC GPON ONT is based on mature, stable and cost-effective Gigabit GPON technology, which integrates Gigabit Ethernet switching technology and high-quality VoIP technology. It has high reliability, easy management and good quality of service (QoS) guarantee, supports 1Gbps uplink and 2.5Gbps downlink transmission rate, and provides users with flexible bandwidth allocation, Ethernet services and CATV services. Integrated wireless function, in line with 802.11n Wireless standard protocol, external high gain omnidirectional antenna, wireless transmission rate of 300Mbps, strong penetration, wide coverage, providing users with a more efficient data transmission guarantee.
Performance Characteristics
1. Plug and play, integrated automatic detection, support remote configuration and remote firmware upgrade;
2. Integrates OMCI and TR-069 remote configuration and maintenance, supports diagnosis monitoring and remote disabling of optical fiber;
3. Support 802.11n 300Mbps Wi-Fi (T / R) function;
4. CATV function can be managed, supporting remote control of CATV signal by OLT;
5. WAN supports network bridging, routing and hybrid bridging / routing modes; 2048 MAC address capacity;
6. Support VLAN, transparent, tag, translation, trunk, etc.; support port monitoring, port mirroring, port rate limitation, port SLA, etc.; support IEEE802.1p QoS and four level priority queue; support IPv4 / IPv6 IGMP snooping and MLD snooping;
7. Select the high-quality power adapter designed for 5-year continuous operation, is the FTTH single fiber to home network security optical access equipment.
8. White cover + black bottom plastic shell, exquisite texture appearance, show brand strength.,
Main Parameter
| Item | Unit | Parameter | |
| Optical characteristic | Operation Wavelength | nm | GPON: Tx 1310, Rx 1490 |
| CATV: 1550 | |||
| Receive Response | dBm | <-28 (1490nm) | |
| -2~-18 (Receive 1550nm Optical power range ) | |||
| Optic Connector | / | SC/APC | |
| Transmission Speed | Gbps | Downlink rate 2.5, Uplink rate 1.25 | |
| CATV Return Loss | dB | ≥45 | |
| RF characteristic | CATV Bandwidth | MHz/dB | 45~1000/≤ ±1 |
| CATV Output RF Level | dBuv | 82(AGC:-2~-12dBm) | |
| OLT management CATV RF | Support OMCI, TR069 On, Off CATV signal | ||
| Return Loss | dB | ≥14(75Ω) | |
| MER | dB | 31(Input: -15dBm), 34(Input: -12dBm) | |
| CTB/CSO/HUM | dB | ≥62/≥62/≥45 | |
Others | Wireless WIFI | / | 802.11 b/g/n, 2.4GHz 300Mbps |
| WAN RJ45 Interface | 1 * 100/1000Mbps + 1 * 10 / 100Mbp | ||
| Consumption | W | ≤6 | |
| Power Supply | V/A | AV110~255V→DC12V 1A | |
| Working Temperature | ºC | -25~ +65 | |
| Size(L)*(W)*(H) | mm | 198*145*31 | |
| Weight | Kg | 0.28 | |
Products Series
FWG-HGU8020WC GPON ONT, 1*GE+1*FE+CATV+WIFI
FWG-SFU8020W GPON ONU, 1*GE+1*FE+WIFI
Fullwell Manufacturer Service
1. Mature technical support
2. Perfect sell service
3. Free OEM service, laser your logo
