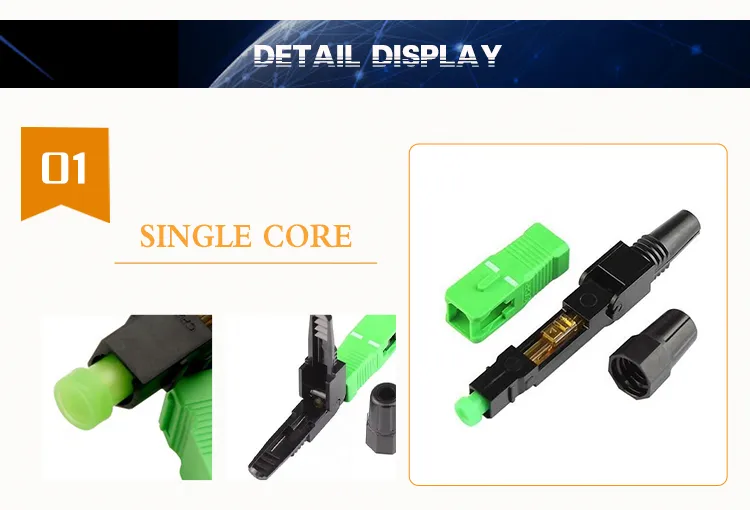

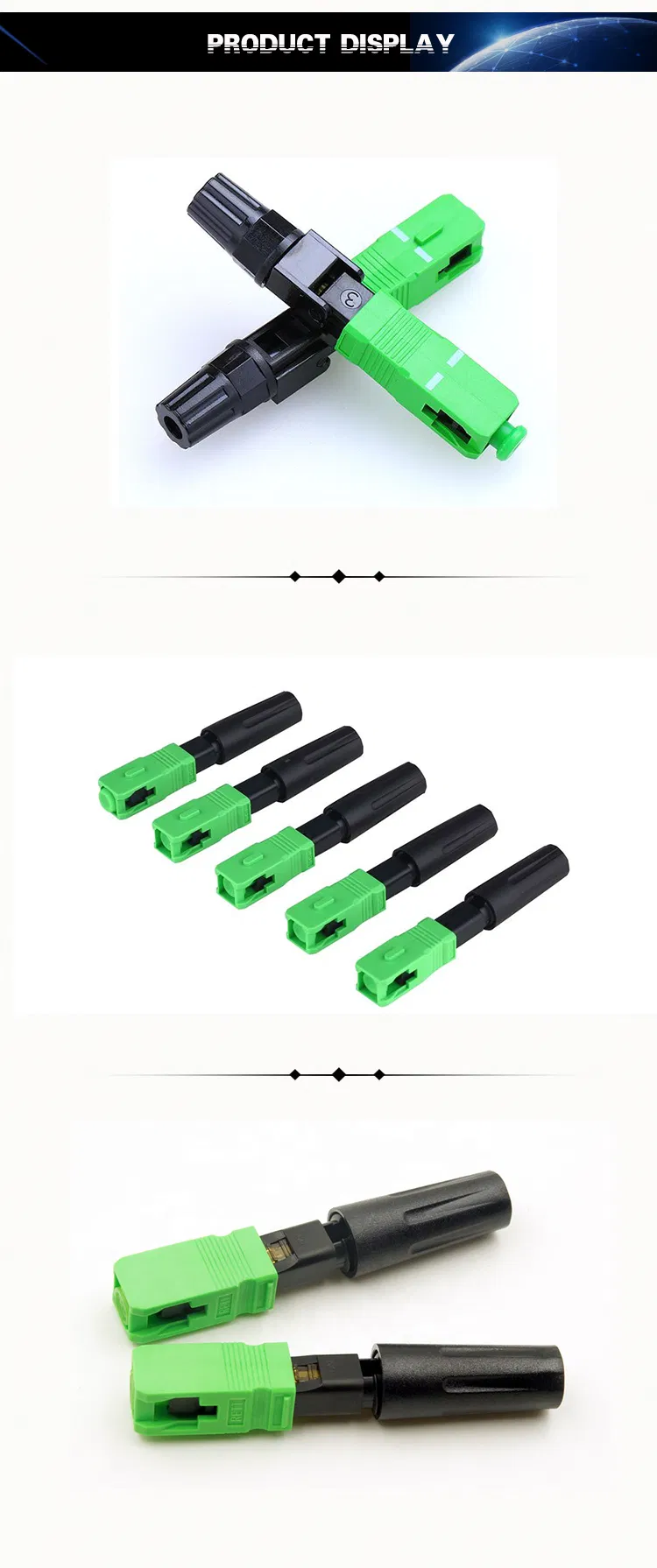

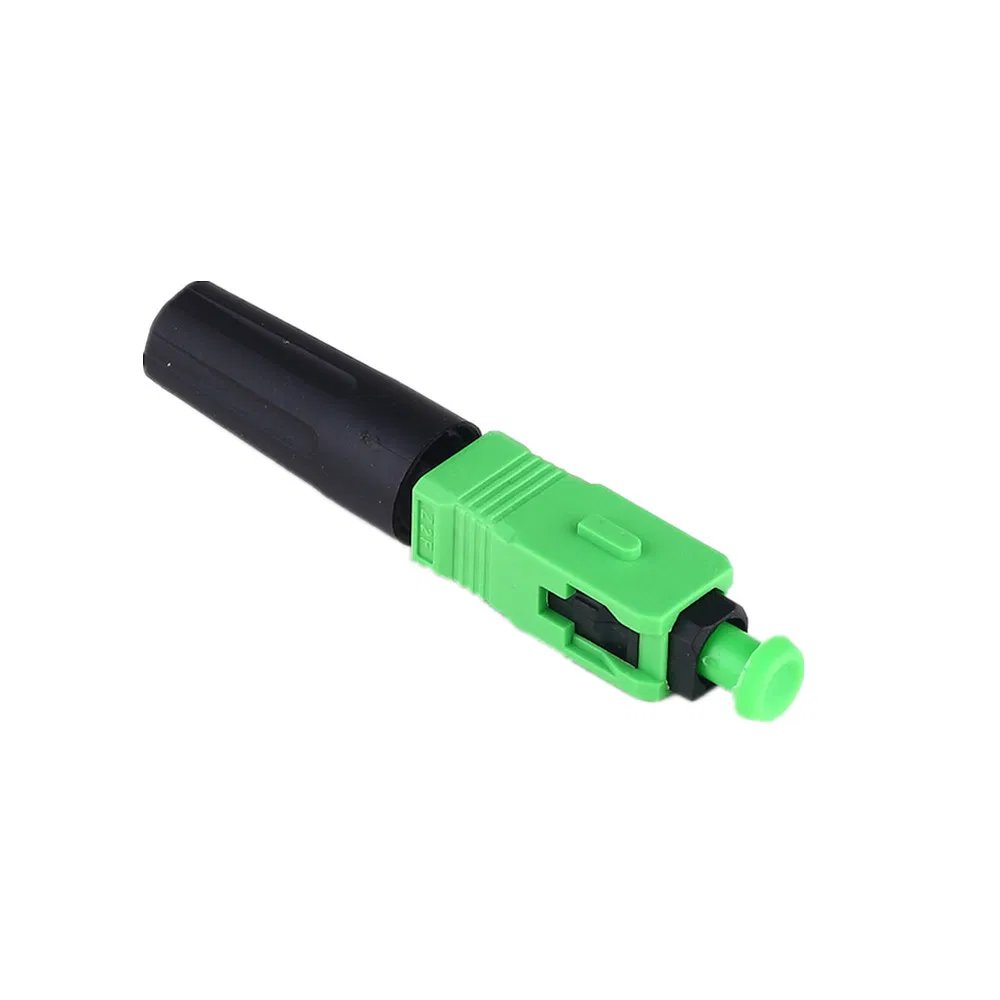

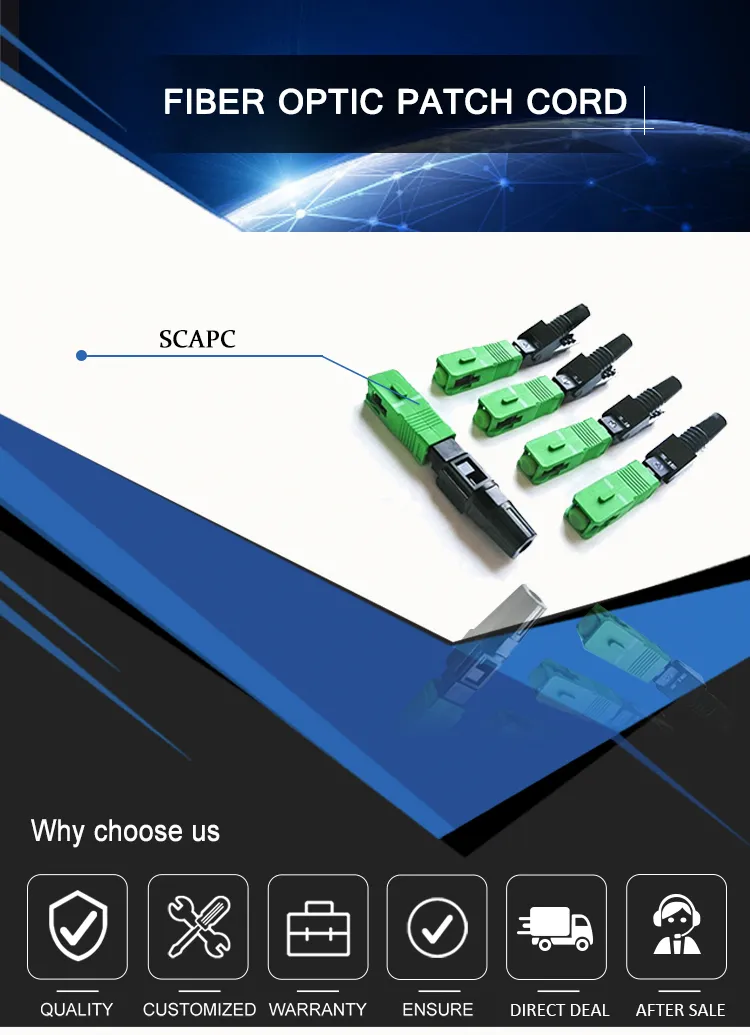

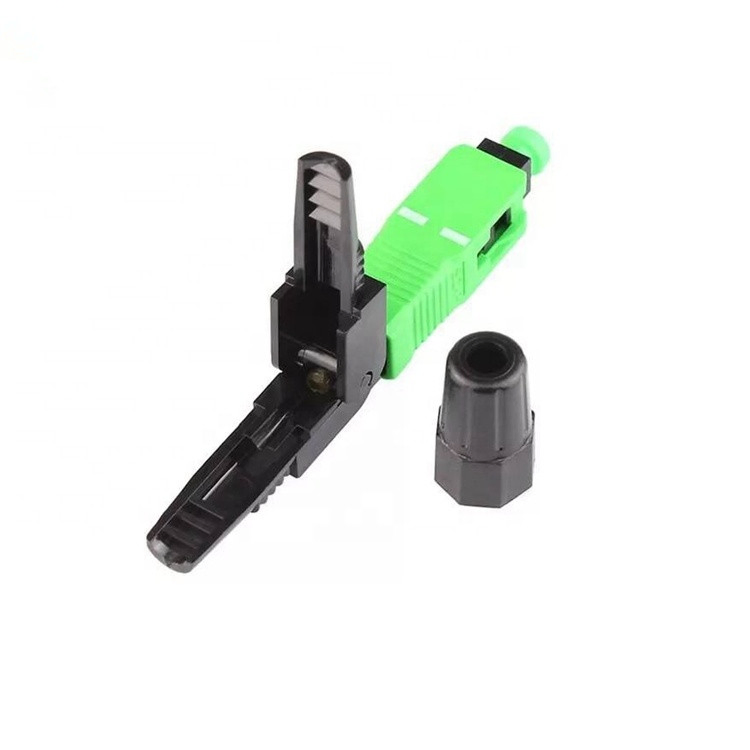

Low Loss Sc APC Fiber Optical Fast Connector
Description: Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks,to assemble with drop cable quickly. Fast Connector Features Factory-installed fiber stub No epoxy or polishing required Quick and easy fiber termi......
Send Inquiry
Product Description
Description:
Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks,to assemble with drop cable quickly.
Fast Connector Features - Factory-installed fiber stub
- No epoxy or polishing required
- Quick and easy fiber termination in the field
- Eliminates ca
- Patch panels
- Distribution frames
- Maintenance or emergency restoration of fiber networks
- FTTH Outlets
- Connection at the desk for LAN environments
- Suitable for FTTx butterfly type cable(both square and circle shape are available)
| Item | Parameter | |
| Cable Scope | 3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable | |
| Size: | 52*9*8.1mm | |
| Fiber Diameter | 125μm ( 652 & 657 ) | |
| Coating Diameter | 250μm | |
| Mode | SM | |
| Operation Time | about 15s(exclude fiber presetting) | |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) | |
| Return Loss | ≥ 50dB for UPC, ≥ 55dB for APC | |
| Success Rate | >98% | |
| Reusable Times | >10 times | |
| Tighten Strength of Naked Fiber | >5 N | |
| Tensile Strength | >50 N | |
| Temperature | -40 ~ +85 C | |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB | |
| Mechanical Durability(500 times) | IL ≤ 0.3dB | |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB | |
Relevant Solutions
- Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
- With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
- Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
