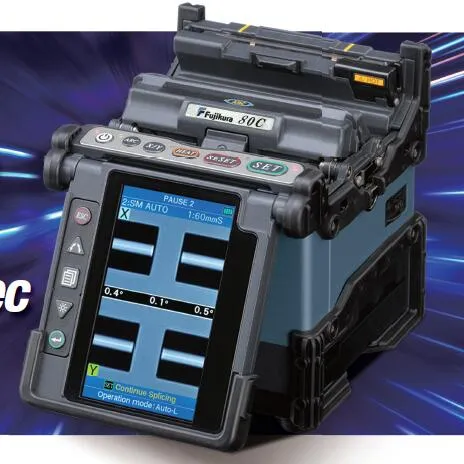

Japan Single Mode Fiber Fusion Splicer Fsm-80c
Fujikura fusion splicer with CT-30A cleaver, 4.1" color screen, standard accessories, Multiple foreign languages menu is optional.
Features:
1.Automated and programmable wind protector
2.14-second automated tube heater
3.Fully ruggedized for shock, dust and moisture
4.Li-Ion battery with 200 splices/shrinks per charge
5. 5mm cleave length for splice on connector or small package needs
6.Sheath clamp or fiber holder operation
7.On-board training and support videos
8.Internet software upgrades
9.Multi-function transit case with integrated workstation
Parameter
Applicable fibers | Single / SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655) |
Cladding dia. | 80-150um |
Cleave length | 5mm to 16mm with sheath clamp |
Splice mode / heating mode | Total 100 splice modes / 30 heating modes |
Splice loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) and 0.04dB (NZDS) Measured by cut-back method relevant to ITU-T and IEC standards. |
Attenuation splice function
| Intentional high splice loss of 0.1dB to 15dB(0.1dB step)can be made for an in-line fixed attenuator. |
Splice time / tube heating time | Typical 7sec with SM / Typical 14sec with FP-03 (60mm) sleeve |
Splice result storage | Last 2000 splices |
Viewing methods / magnification | 2 axis CMOS camera with 4.73" color LCD. X / Y (320X magnification), or both X and Y simultaneously (200X magnification) |
Tension test | 1.96 to 2.25N |
Applicable protection sleeve | 60mm, 40mm and Fujikura micro sleeves |
No. of splice / heating per battery full charge | Typical 200 cycles with BTR-09 |
Electrode life | 3000 splices |
Size / weight | 146W x 159D x 150H (mm) / 2.7kg (including battery) |
Operating condition | Altitude : 0 to 5,000m above sea level, Wind : 15m/sec Temperature : -10 to 50deg C, Humidity : 0 to 95%RH, non-dew |
Resistance features*1 | Shock : 76cm (30inch) all surface drop Dust : Exposure to dust (0.1 to 500um dia Alumina Silicate), IP5X Rain :H=10mm/hr for 10min, IPX2 |
Other features | PC software upgrade / data management |
Terminals | USB 2.0 (Mini-B type) connector for PC communication. 6-pin Mini-DIN connector for HJS-02 or HJS-03 power supply |
