IP67 Large Capacity Fosc 288 Core Fiber Optic Splice Closure
IP67 Large Capacity Fosc 288 Core Fiber Optic Splice ClosureTK-023 Fiber Optic Splice Closure provide with 7 fiber cable in-out round ports and the cable diameter is from 5-38. It is made of PP and with the mechanical sealing structure filled with the sealing material.Application 1. Aerial,2. Under......
Send Inquiry
Product Description
IP67 Large Capacity Fosc 288 Core Fiber Optic Splice Closure

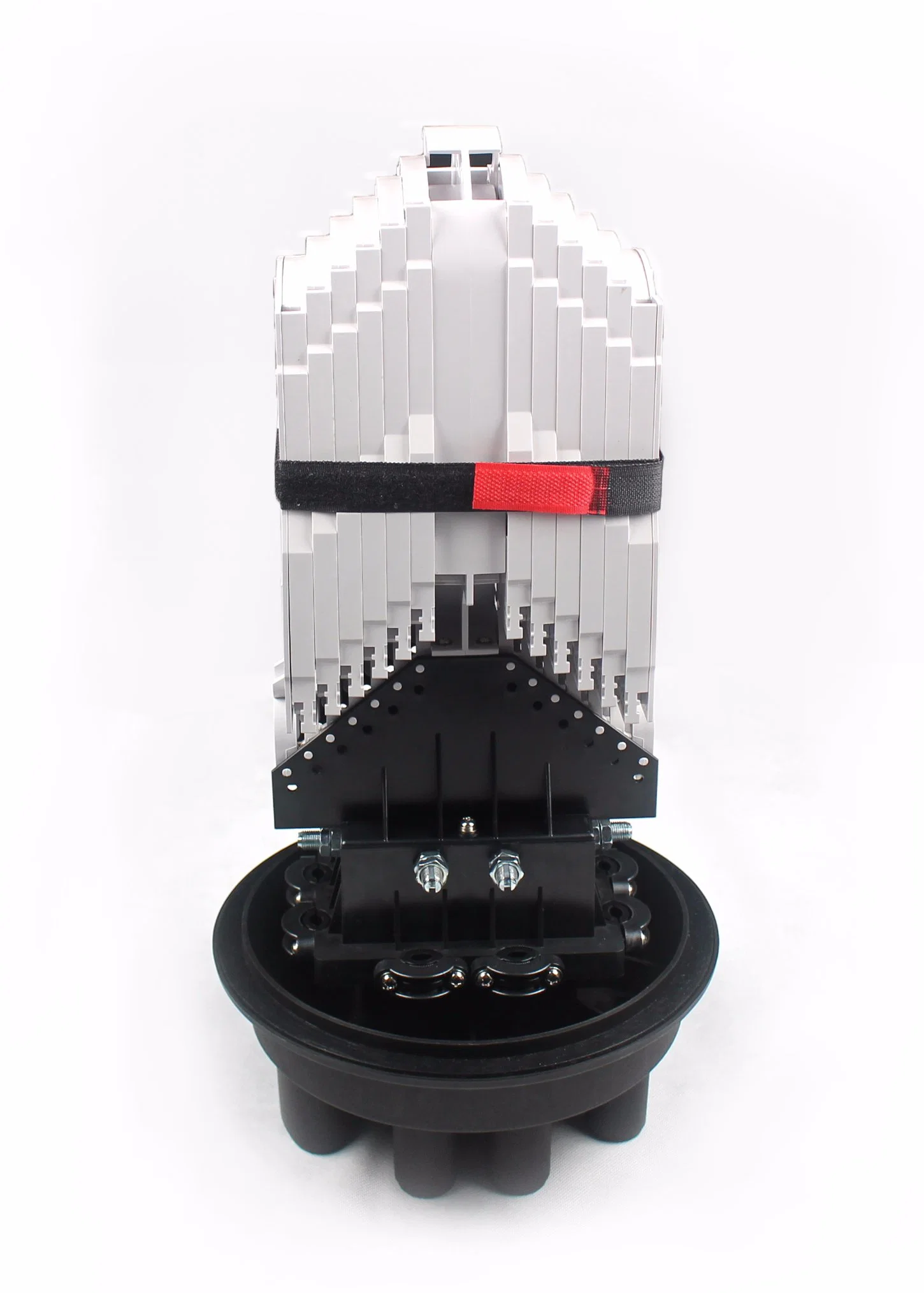

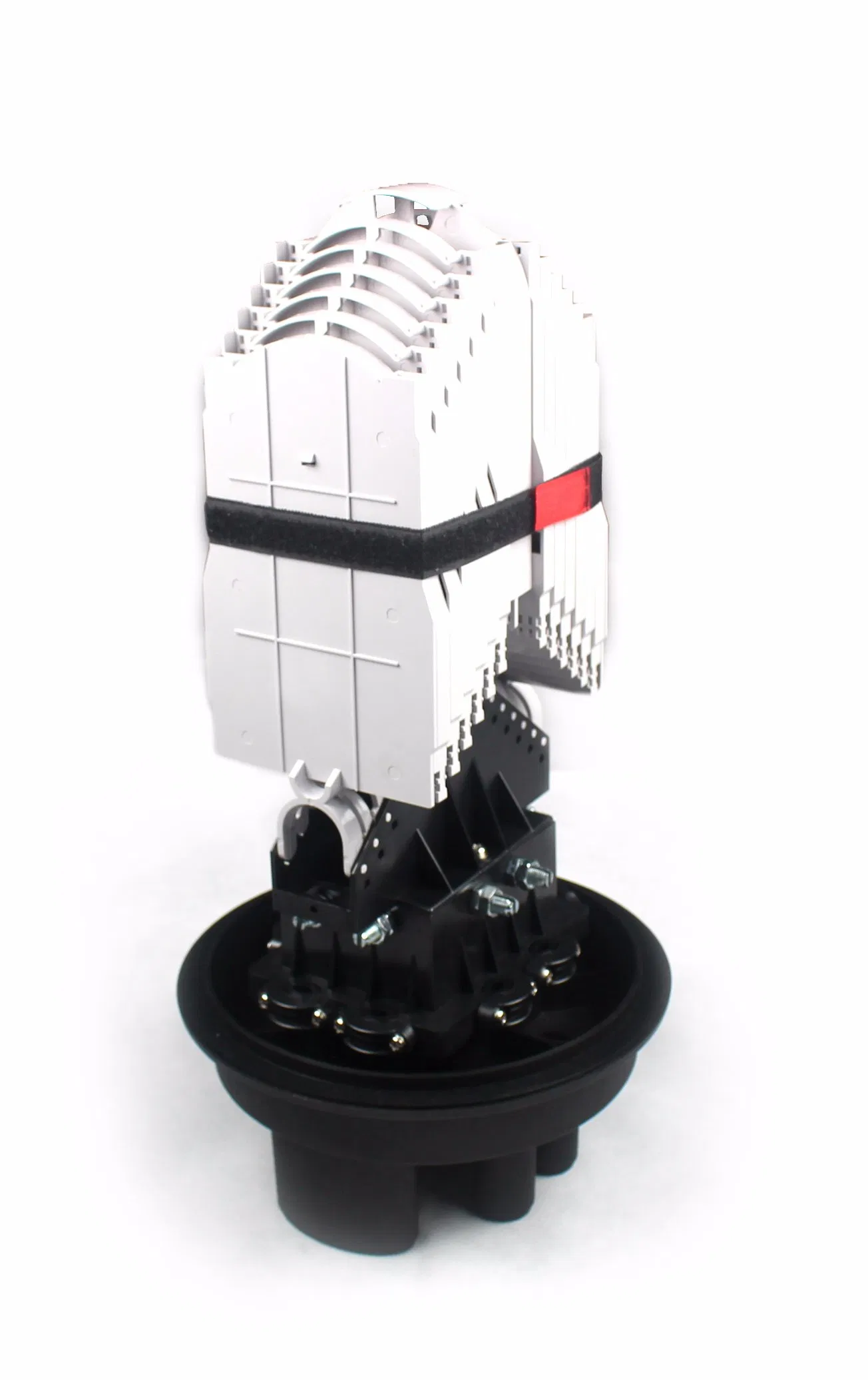

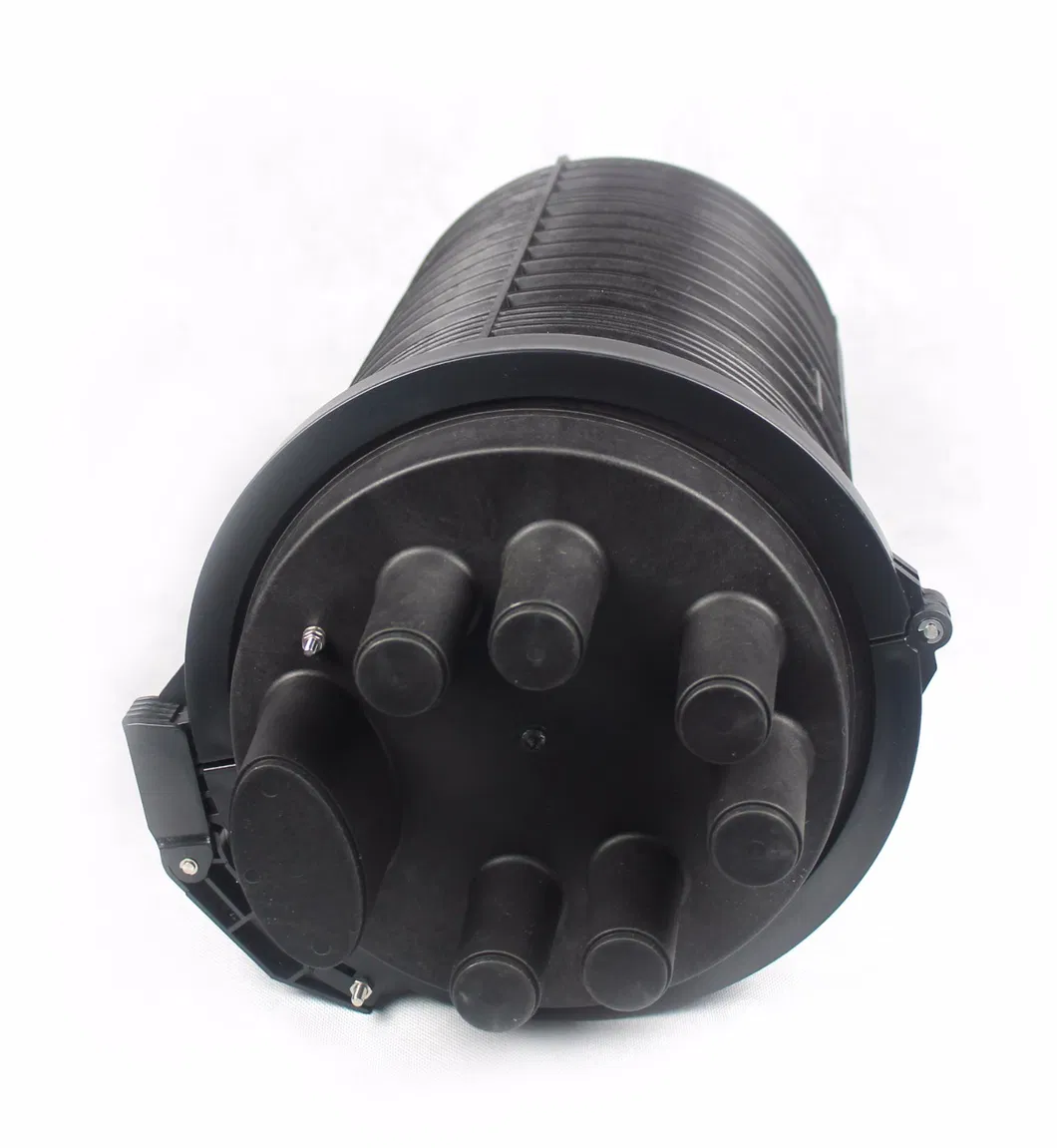

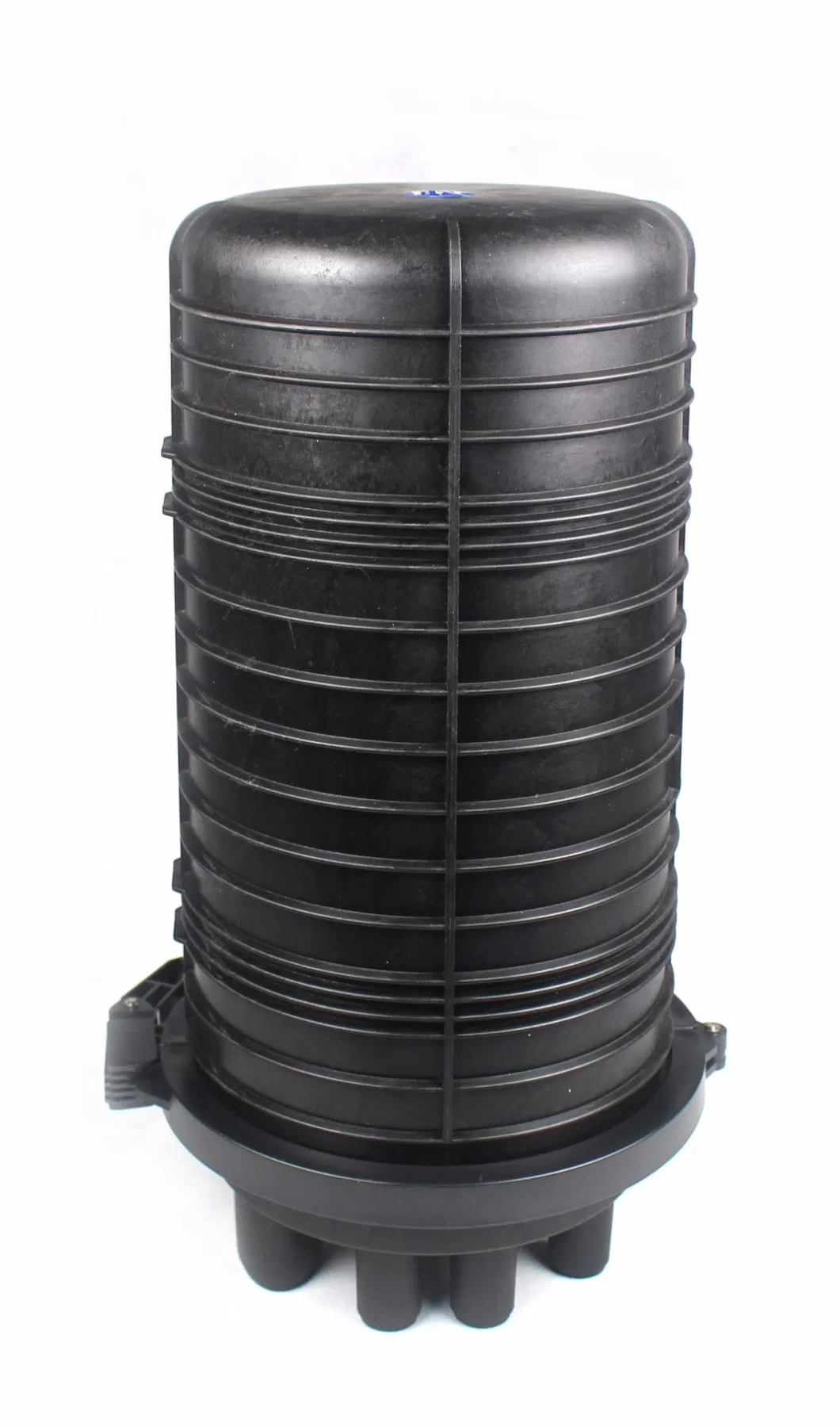

TK-023 Fiber Optic Splice Closure provide with 7 fiber cable in-out round ports and the cable diameter is from Ф5-Ф38. It is made of PP and with the mechanical sealing structure filled with the sealing material.
Application
1. Aerial,
2. Underground
3. Wall-mounting
4. Duct-mounting
5. Handhole- mounting
Specification
Main components
Would you like a 288 core fiber optic splice closure to test??Please leave me an inquiry or contact me directly.
TK-023 Fiber Optic Splice Closure provide with 7 fiber cable in-out round ports and the cable diameter is from Ф5-Ф38. It is made of PP and with the mechanical sealing structure filled with the sealing material.
Application
1. Aerial,
2. Underground
3. Wall-mounting
4. Duct-mounting
5. Handhole- mounting
Specification
| Outside dimension (Height x Diameter) | 515mm×310mm |
| Weight (excluding outside box) | 3000 g- 4600g |
| Number of inlet/out ports | 7 pieces in general |
| Diameter of fiber cable | Φ5mm~Φ38 mm |
| Capacity of FOSC | Bunchy: 24-288(cores), Ribbon: up to864(cores) |

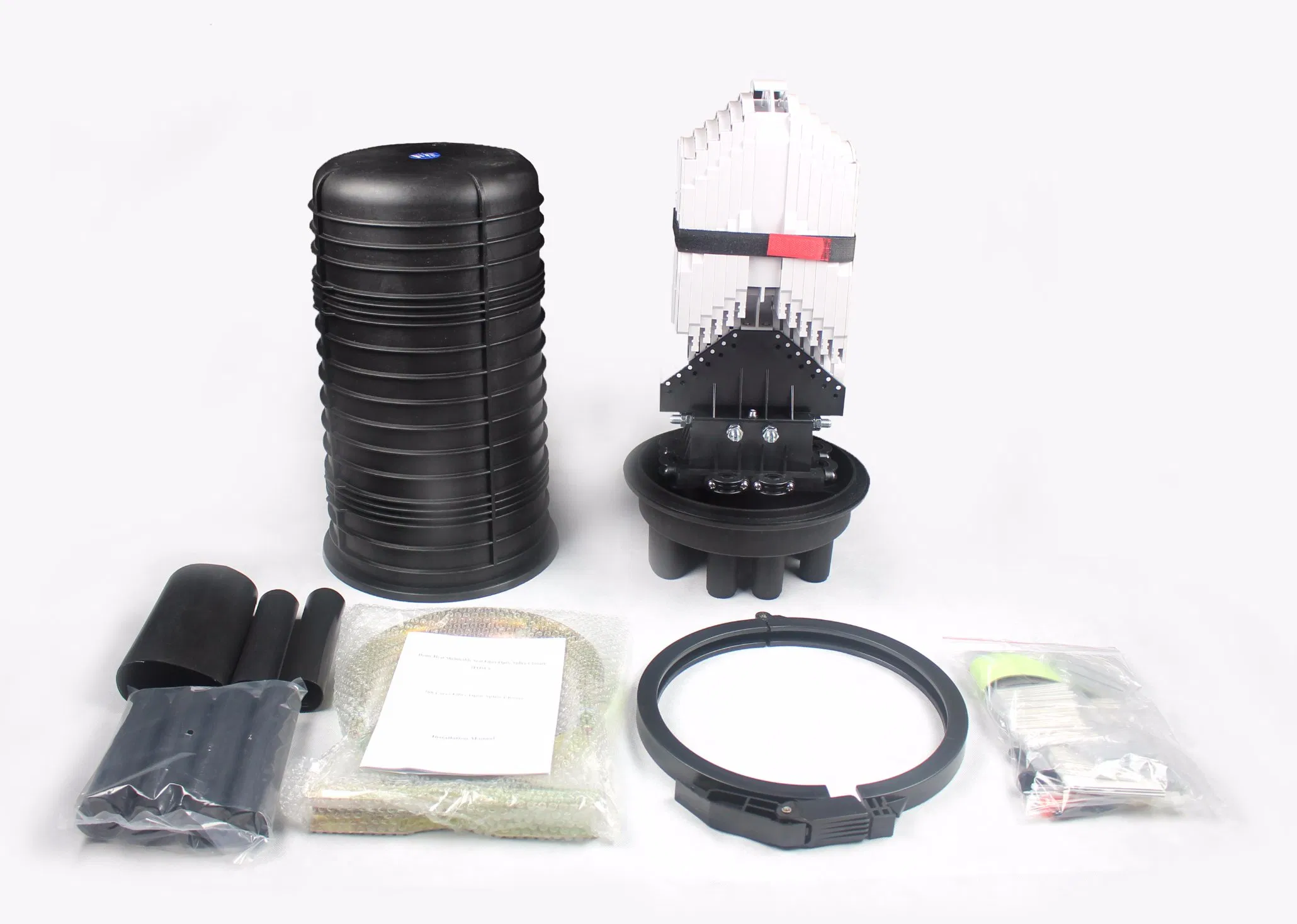

Main components
| No. | Name of components | Quantity | Usage | Remarks |
| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter 360mm x 177mm |
| 2 | Fiber optic splice tray (FOST) | Max. 12 trays (bunchy) Max. 12 trays (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
| 3 | Fiber holding tray | 1 pcs | Holding fibers with protective coat | |
| 4 | Base | 1set | Fixing internal and external structure | |
| 5 | Plastic hoop | 1 set | Fixing between FOSC cover and base | |
| 6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
| 7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 8 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
Would you like a 288 core fiber optic splice closure to test??Please leave me an inquiry or contact me directly.
