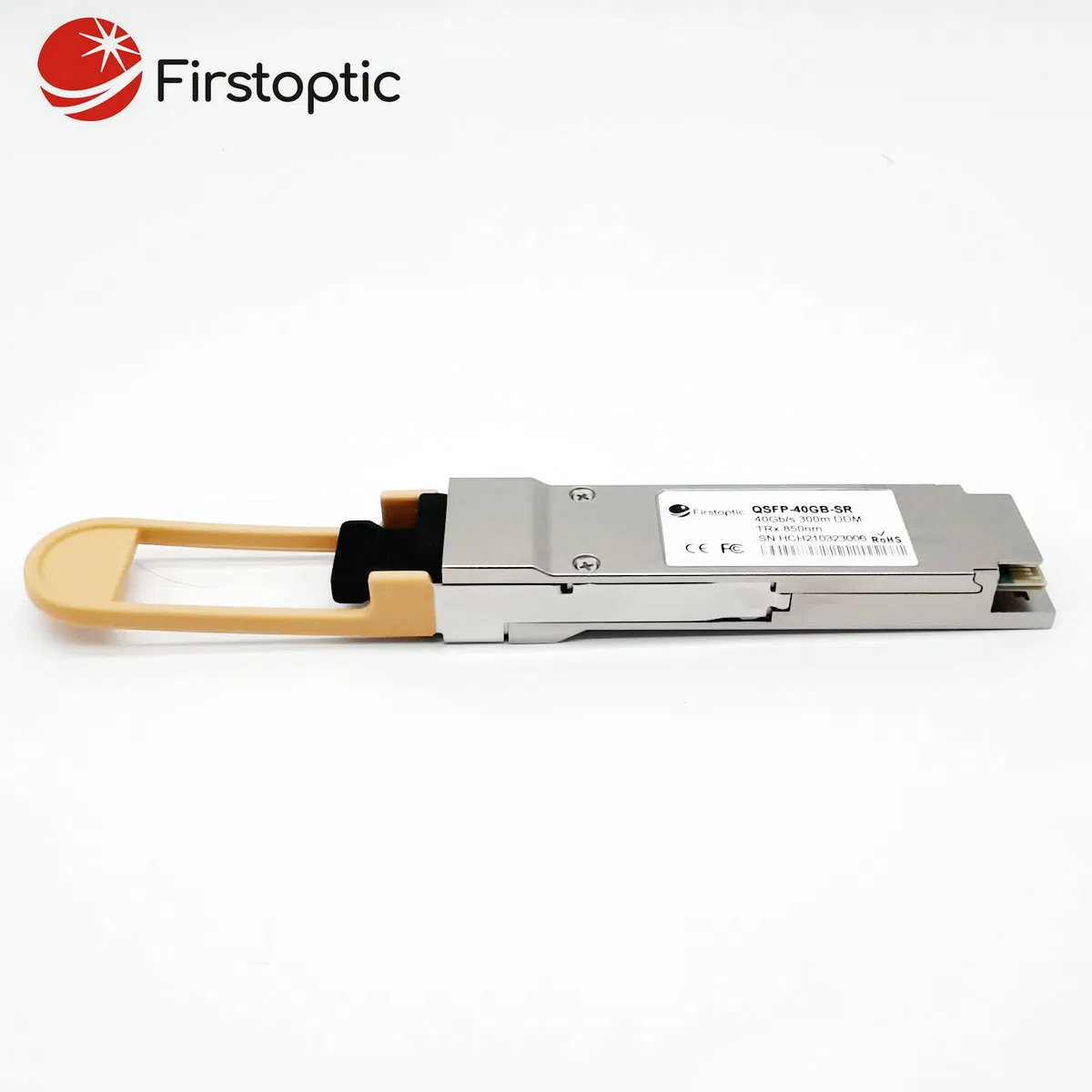

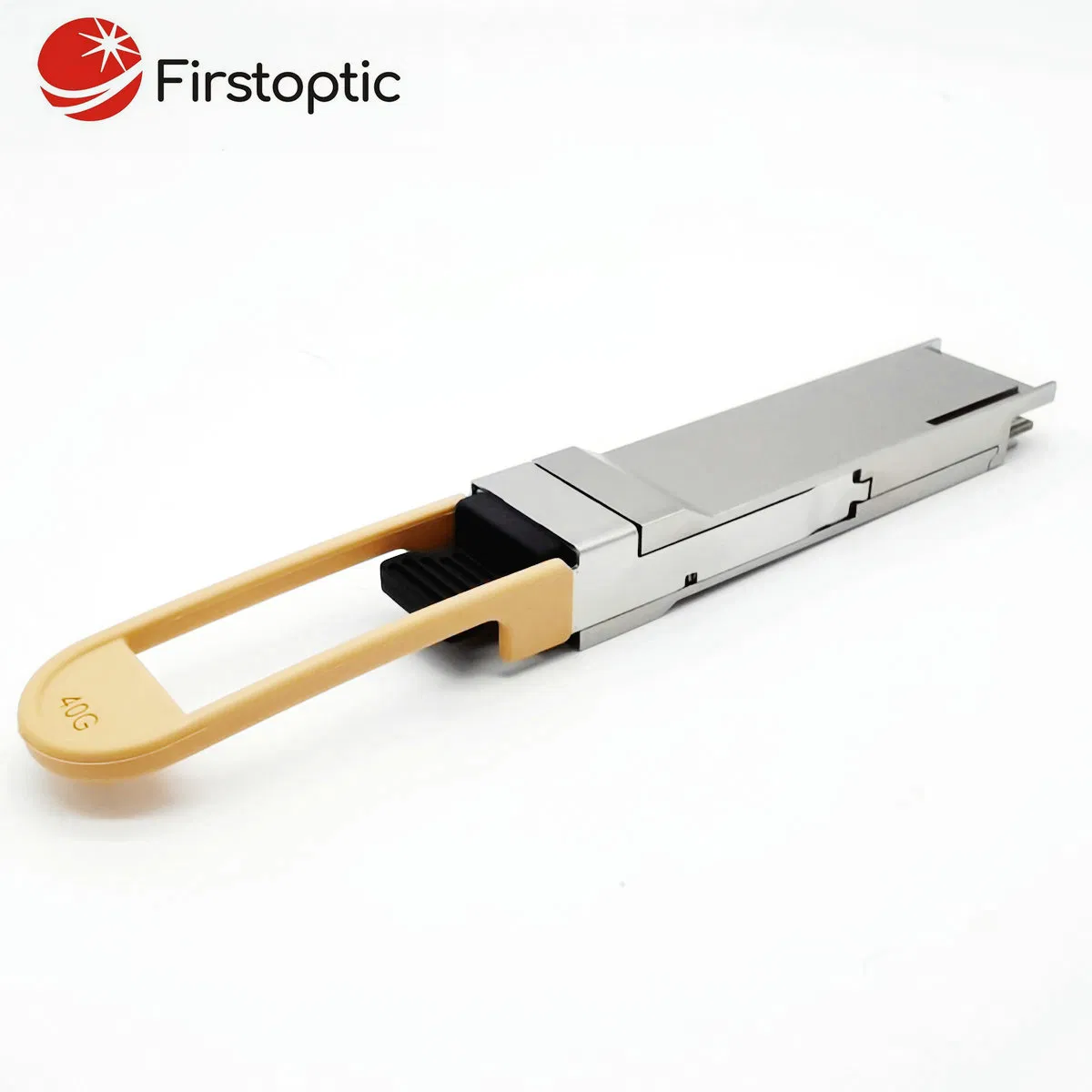

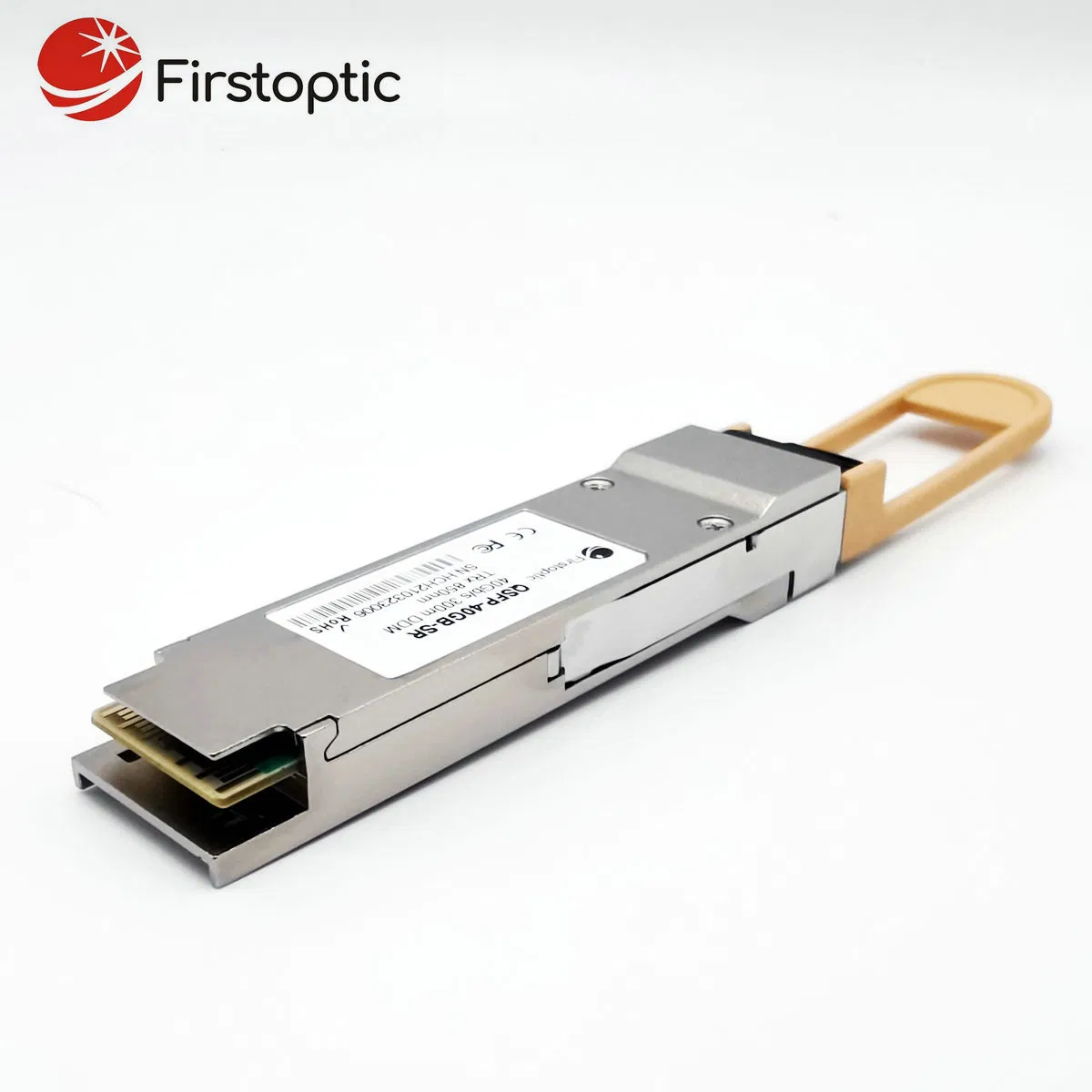

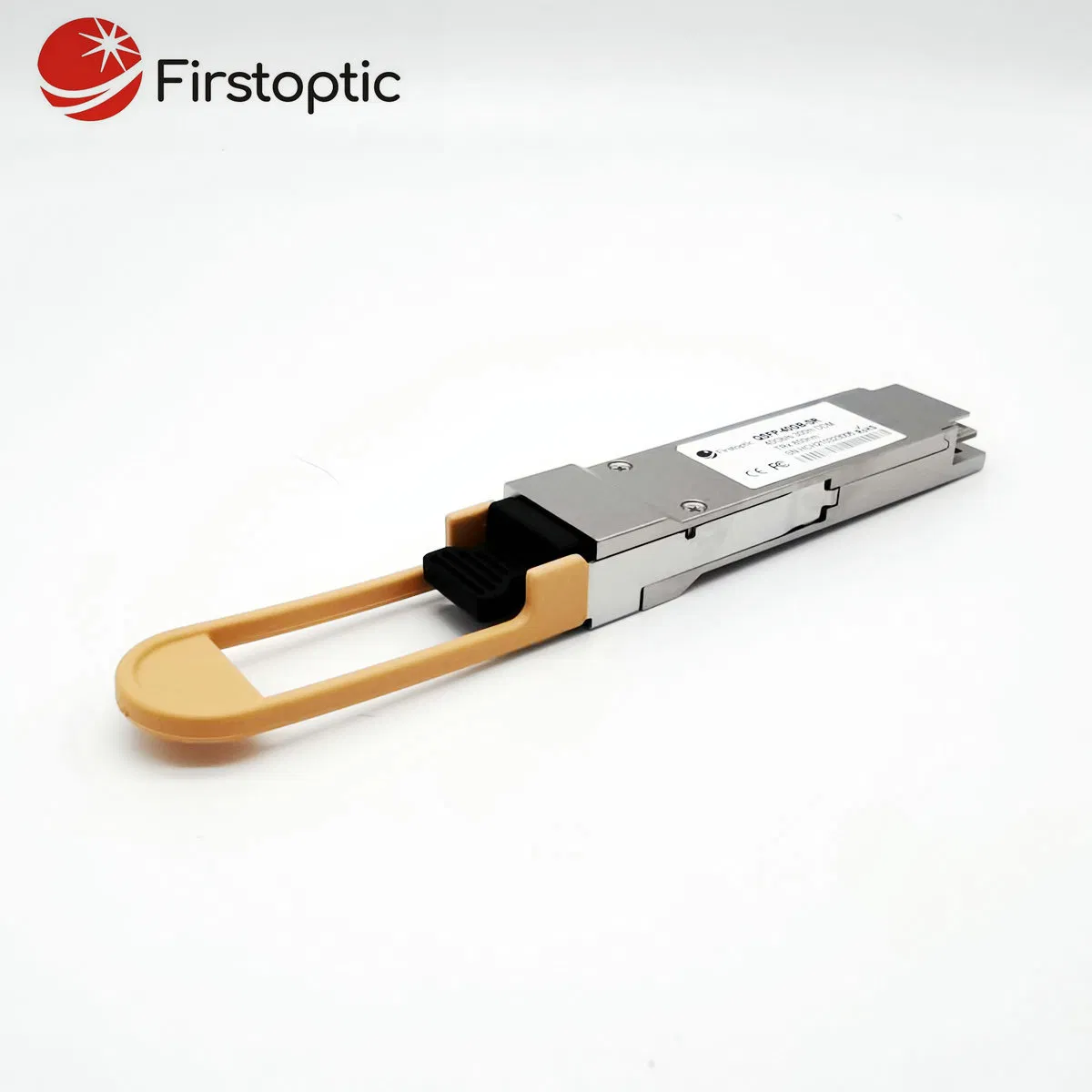

HW QSFP-40G-eiSR4 Compatible 40GBASE-eSR4/4x10GBASE-SR QSFP+ 850nm 400m DOM MTP/MPO MMF Optical Transceiver Module
SpecificationsHW QSFP-40G-eiSR4 Compatible 40GBASE-ESR4/4x10GBASE-SR QSFP+ Optical Transceiver Module for Ethernet and Data Center (MMF, 850nm, 400m, MTP/MPO, DOM)The 40GBASE-CSR4 QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 400m over multimode fiber (MMF......
Send Inquiry
Product Description
Specifications
The 40GBASE-CSR4 QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 400m over multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO connector. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core, distribution layers. It is fully compliant with the QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and IEEE 802.3ae 10GBASE-SR standard.
HW QSFP-40G-eiSR4 Compatible 40GBASE-ESR4/4x10GBASE-SR QSFP+ Optical Transceiver Module for Ethernet and Data Center (MMF, 850nm, 400m, MTP/MPO, DOM)
The 40GBASE-CSR4 QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 400m over multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO connector. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core, distribution layers. It is fully compliant with the QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and IEEE 802.3ae 10GBASE-SR standard.
Product Specification
| HCH Modle No | QSFP-40G-eiSR4 | Vendor Name | HCH |
| Form Factor | QSFP+ | Max Data Rate | 42Gbps |
| Wavelength | 850nm | Max Cable Distance | 400m@OM4 |
| Connector | MTP/MPO | Media Type | MMF |
| Transmitter Type | VCSEL850 | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -7.5~0dBm | Receiver Sensitivity | <-9.9dBm |
| Powerbudget | 2.4dB | Receiver Overload | 2.4dBm |
| Power Consumption | <1.2W | Extinction Ratio | >3dB |
| Transmit and Dispersion Penalty | 3.5dB | Modulation Format | NRZ |
| Packaging Technology | COB (chip on board) Packaging | FEC Function | Supported |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636, Infiniband 40G QDR | MTBF | 600,000 Hours |
| Application | 40GBASE Ethernet, Breakout to 4 x 10GBASE Ethernet, Data Center | Warranty | 5 Years |
Describe
40G QSFP+ include SR4, PSM IR4, PSM LR4, LR4, ER4.This series of products adopt LC or MPO interface, compatible with IEEE802.3bm, SFF-8436;With features of low power consumption, small size and high speed, it is beneficial to increase capacity, improve port density and reduce power consumption of data center, which is widely used in data center, MAN and other environments.
40G QSFP+ include SR4, PSM IR4, PSM LR4, LR4, ER4.This series of products adopt LC or MPO interface, compatible with IEEE802.3bm, SFF-8436;With features of low power consumption, small size and high speed, it is beneficial to increase capacity, improve port density and reduce power consumption of data center, which is widely used in data center, MAN and other environments.
Features
* Hot-pluggable QSFP+ form factor
* 4 independent full-duplex channels
* Up to 11.2Gbps per channel bandwidth
* Aggregate bandwidth of > 40Gbps
* QSFP MSA compliant
* VCSEL/DFB/EML transmitter
* Built-in digital diagnostic functions
* Duplex LC receptacles/Single MPO-12 receptacle
* Single +3.3V power supply operating
* TX input and RX output CDR retiming
* Temperature range 0°C to 70°C
* RoHS-6 Compliant
