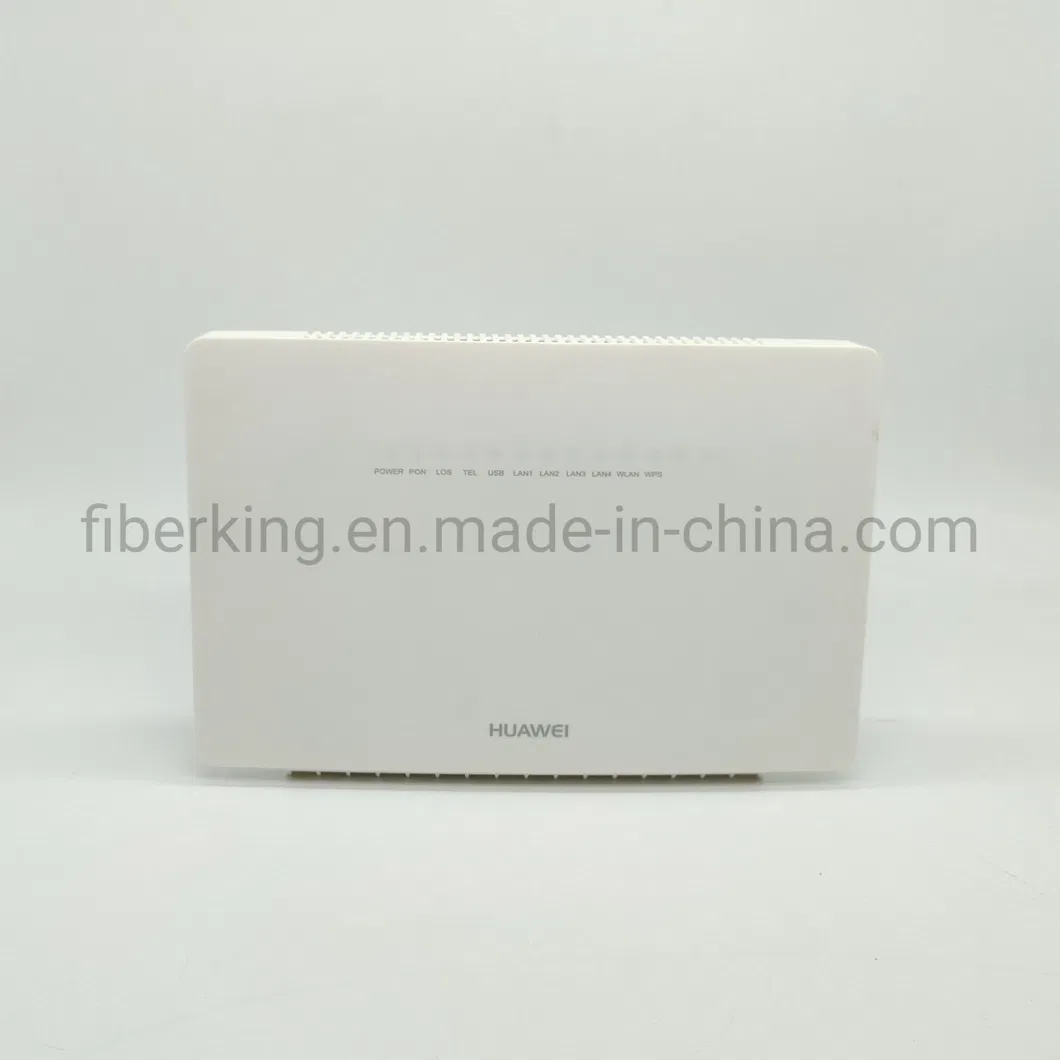

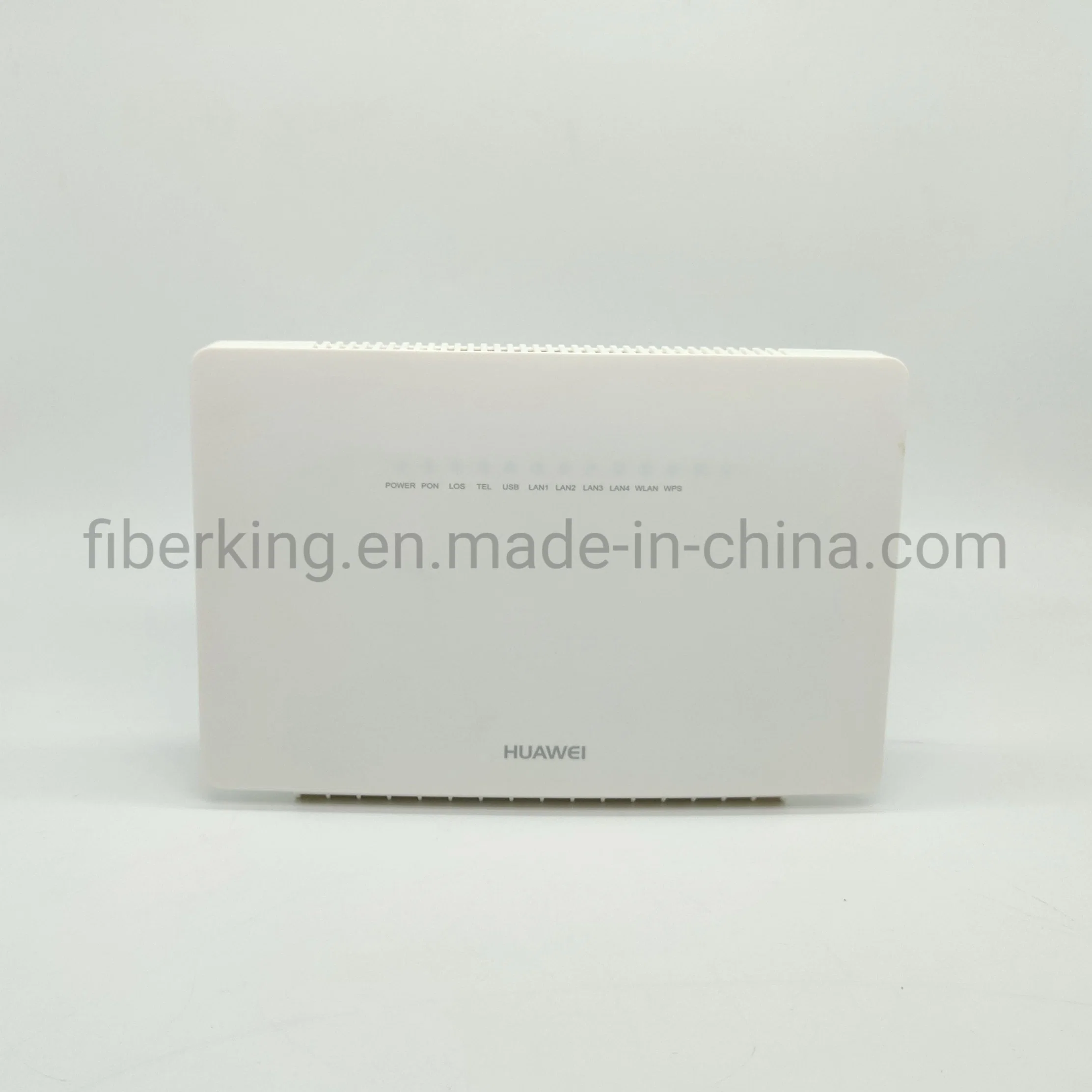

Huawei Echolife Hg8245q2 Hg8245q 4ge+ 2pots +WiFi+USB Gpon Dual Band ONU with English Firmware
Overview Quick DetailsModel Number: HG8245Q2Type: Gpon/ Epon , ONT ONUPlace of Origin: Guangdong, ChinaBrand Name: HuaweiUse: TerminalWarranty Time: 1 yearName: Huawei Onu HG8245Q2Condition: Original and Brand NewAntenna: External antennaPorts: 4GE+1Tel+2USB+2WIFI(2.4G/5G)Optical connecto: SC/UPC,......
Send Inquiry
Product Description
Quick Details
Model Number: HG8245Q2 | Type: Gpon/ Epon , ONT ONU |
Place of Origin: Guangdong, China | Brand Name: Huawei |
Use: Terminal | Warranty Time: 1 year |
Name: Huawei Onu HG8245Q2 | Condition: Original and Brand New |
Antenna: External antenna | Ports: 4GE+1Tel+2USB+2WIFI(2.4G/5G) |
Optical connecto: SC/UPC, SC/APC | Color: White |
Gross Weight: About 500g | MOQ: 50 SET |
Single-Mode Fiber: SMF | Application: FTTH FTTB FTTX Network |
Brand Name | Huawei |
Place of Origin | China |
Model Number | HG8245Q2 ONU |
Condition | Original and Brand New |
Fiber interface | SC/UPC/APC Dual mode/Singal mode |
Dimension | 25X19X3.5 cm |
Single gross weight | 0.5 kg ± |
Stock Situation | Ready stock |
Product Descript
XPON | GPON |
Optical interface | SC/UPC |

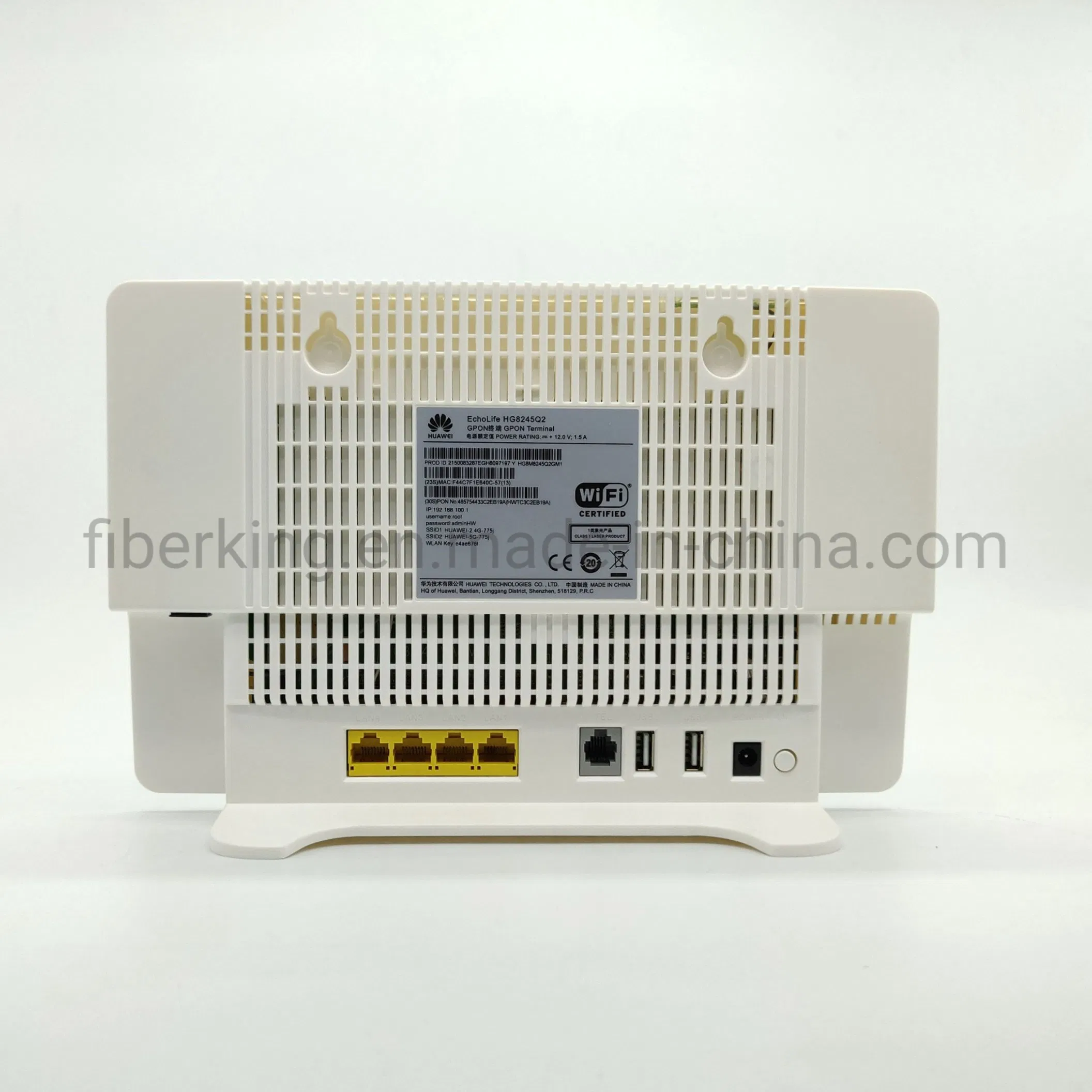

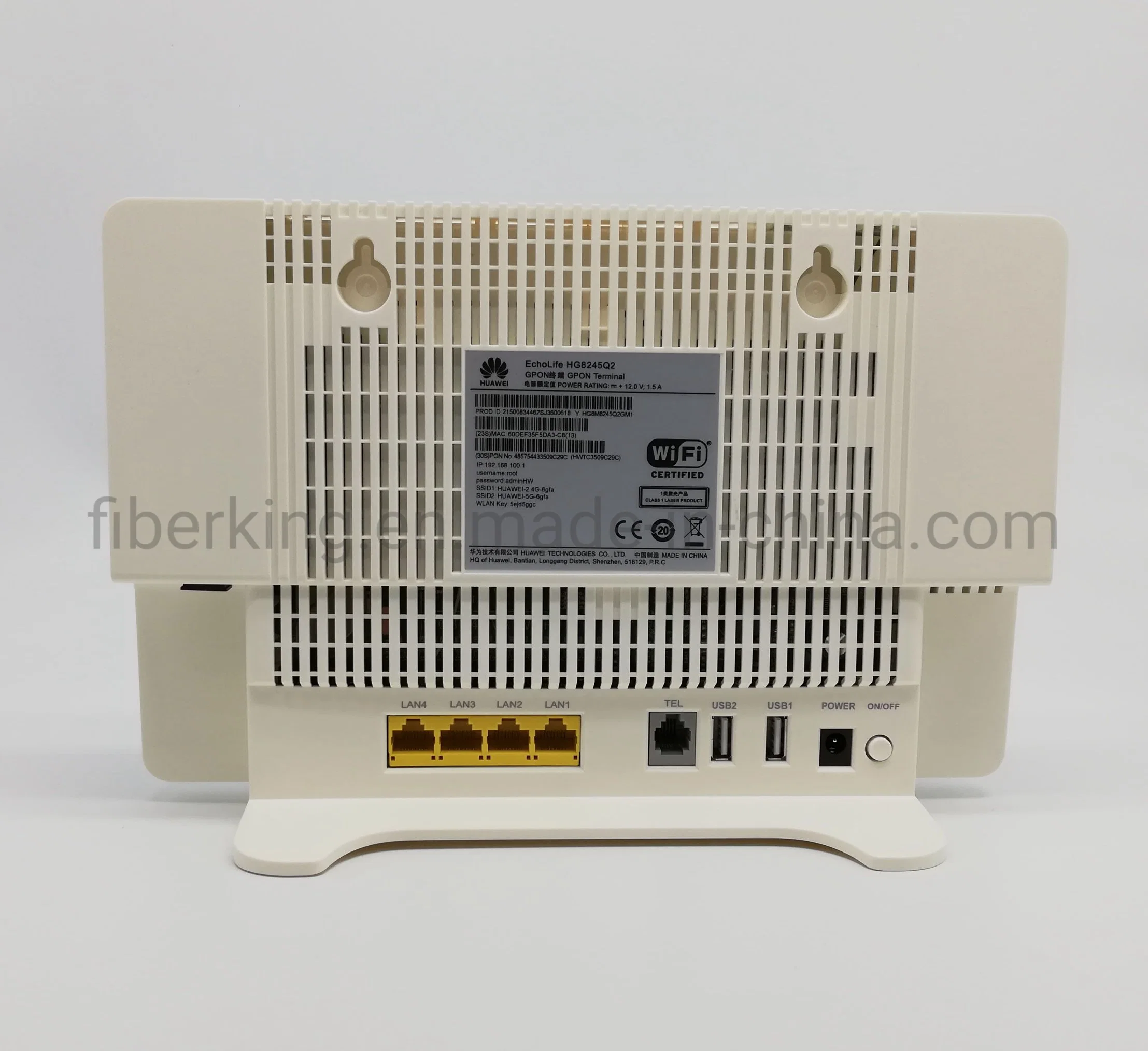

UNI | 1POTS+4GE+2USB+2.4G&5G Wi-Fi |
WiFi standard | 2.4GHz: 2 x 2 MIMO 802.11b/g/n |
Antenna gain | 2dBi |
Dimensions(Width×Depth×Height) | 265mm x 176mm x 82mm |
Box Dimensions(Width×Depth×Height) | 290mm x 230mm x 95mm |
Box Weight(kg) | 0.85kg |
Power supply | Power supply: 11-14V DC, 1A |
Input power: 100-240V AC, 50/60HZ | |
Operating temperature and operating humidity | 0ºC to 40ºC |
5% to 95%, non-condensing | |
Cooling | Passive cooling |
Maximum number of MAC addresses learned | 1024 |
L2 forwarding capability | 200 Mbit/s downstream (with any length packets) |
200 Mbit/s upstream (with any length packets) | |
IPv4 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction |
1Gbit/s with any length packets in upstream direction | |
IPv6 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction |
1Gbit/s with any length packets in upstream direction | |
Configuration method | NMS, Web, or TR069 |
Voice protocol | SIP, H.248 |
